Automatic Dental Pressing Diaphragm-Film Machine JPS-PF01
Automatic Dental Pressure Forming Machine — JPS-PF01

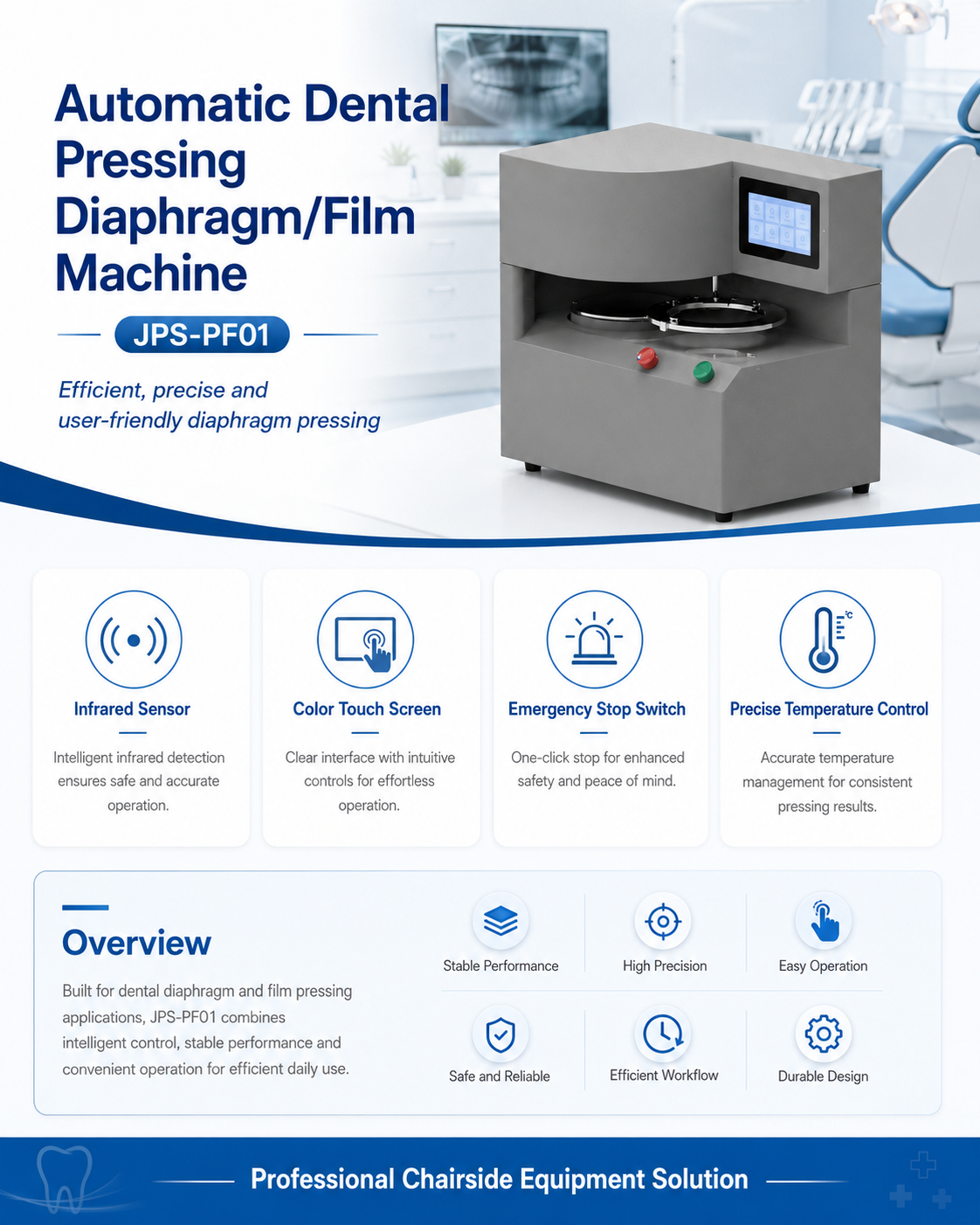

The JPS-PF01 is an automatic dental pressure-forming (vacuum/pressure diaphragm) machine for fabricating clear aligners, retainers, splints, and mouthguards. With an infrared sensor, color touchscreen, and precise diaphragm temperature detection, it heats and presses dental films of 0.4–4 mm thickness with consistent, repeatable results. Seven preset diaphragm programs, automatic specification setting, and one-hand loading make it fast and easy to operate chairside or in the lab.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights
- Automatic & precise — Diaphragm specification set automatically; diaphragm temperature detection for accurate, consistent forming.

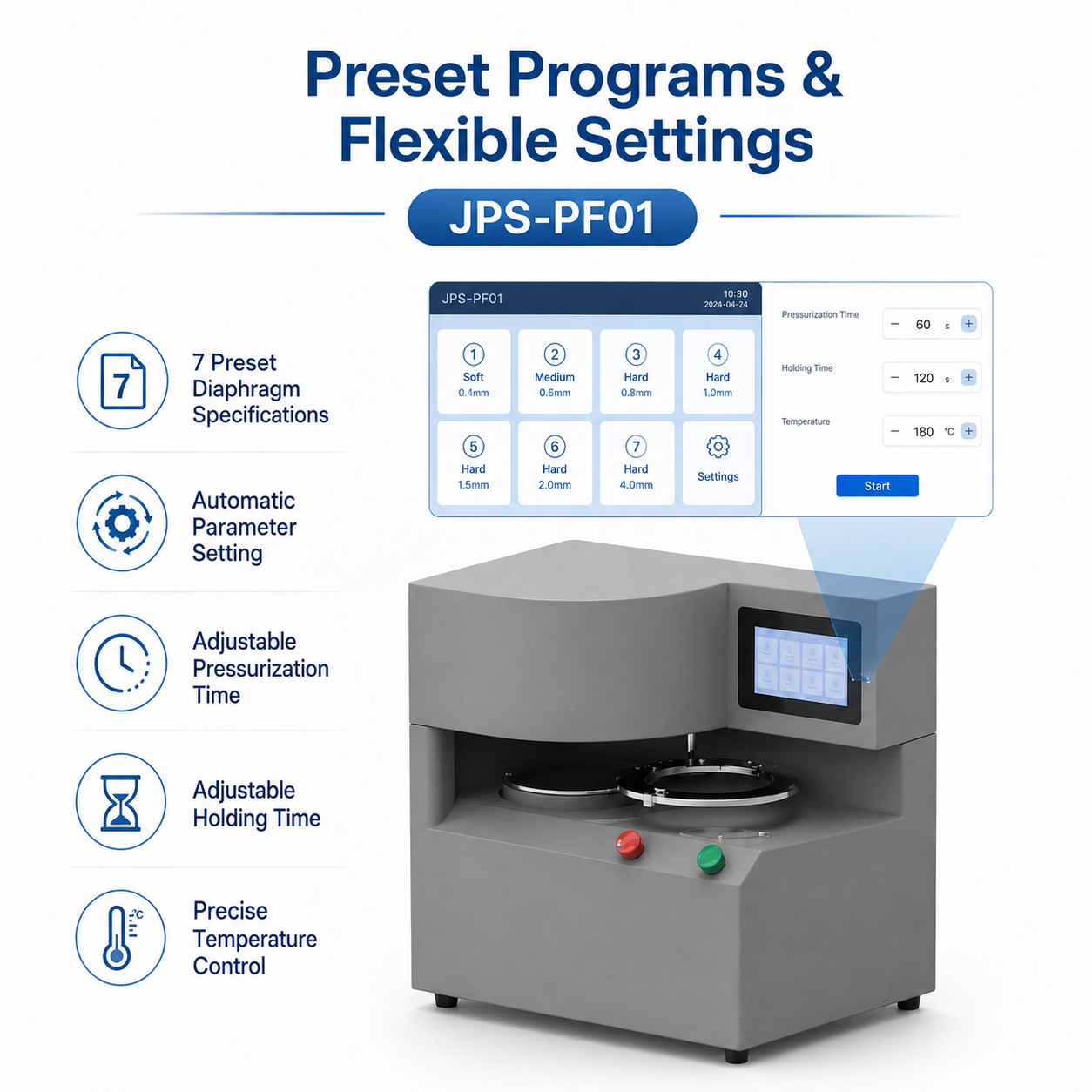

- Seven presets — Seven preset diaphragm programs with adjustable pressurization and holding time.
- Wide material range — Forms soft and hard diaphragms, 0.4–4 mm thick.

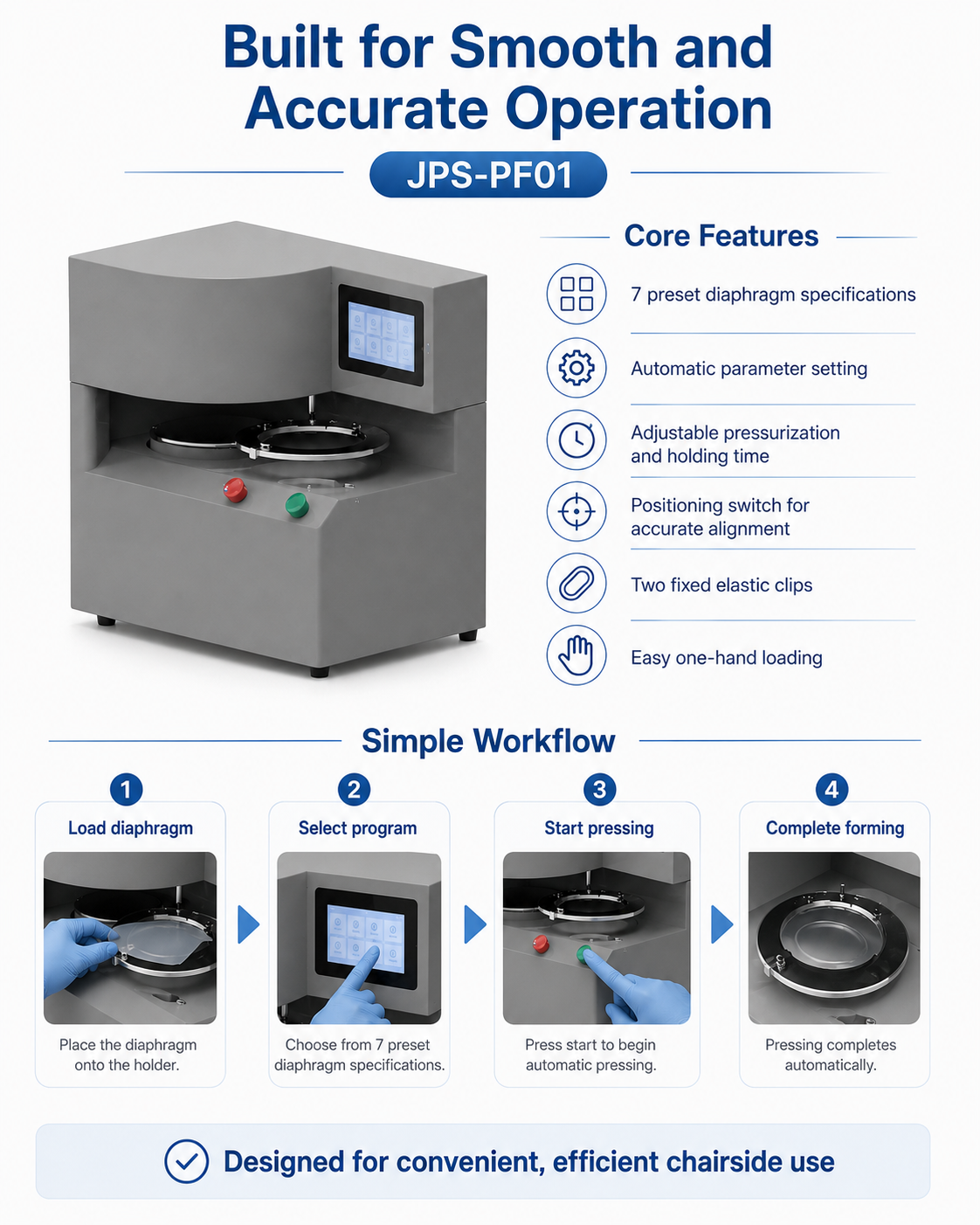

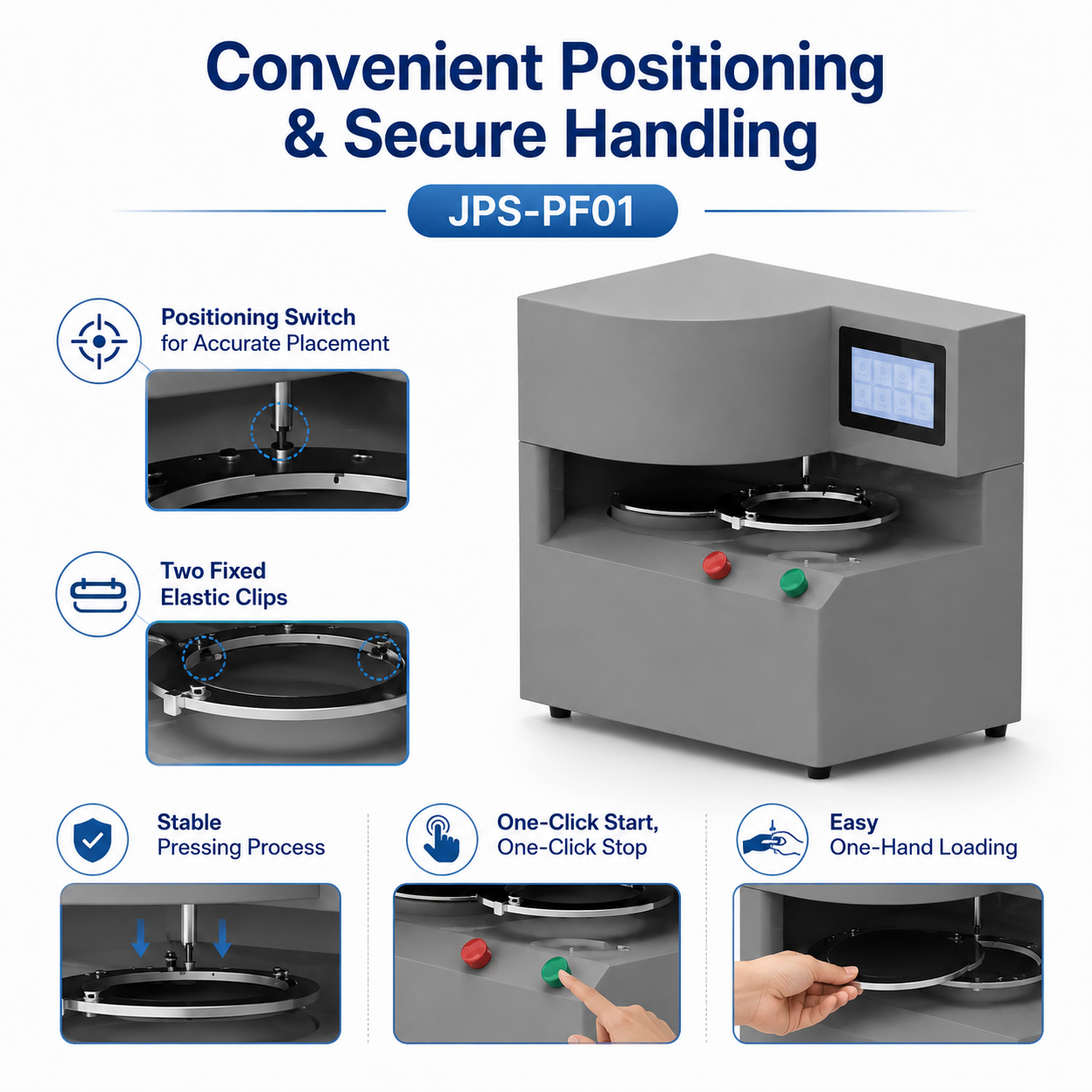

- Easy loading — One-hand loading with a positioning switch and two fixed elastic clips.

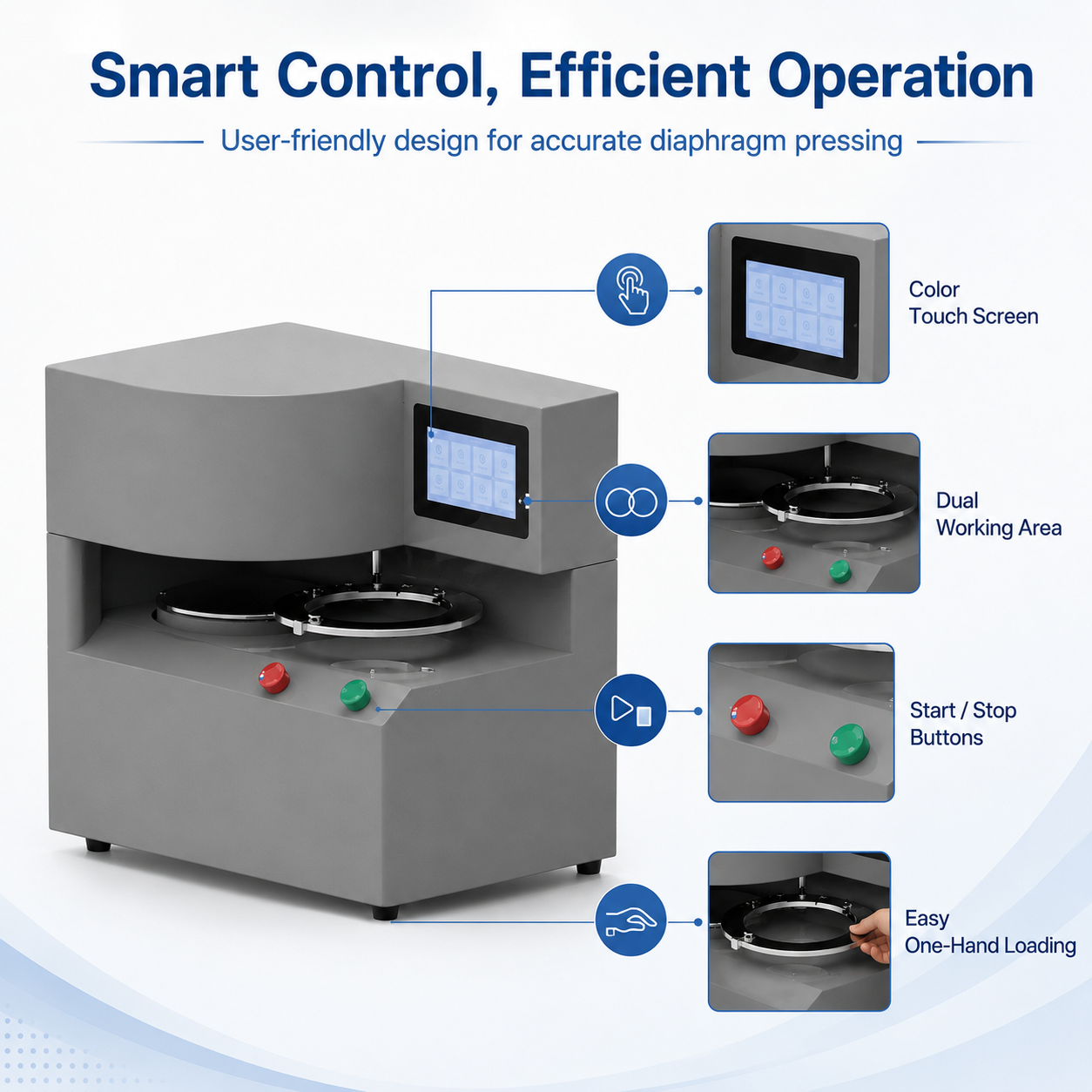

- Safe & simple — One-click start and one-click emergency stop via color touchscreen.
- Versatile — Compatible with compression molding of all dental diaphragms/films.

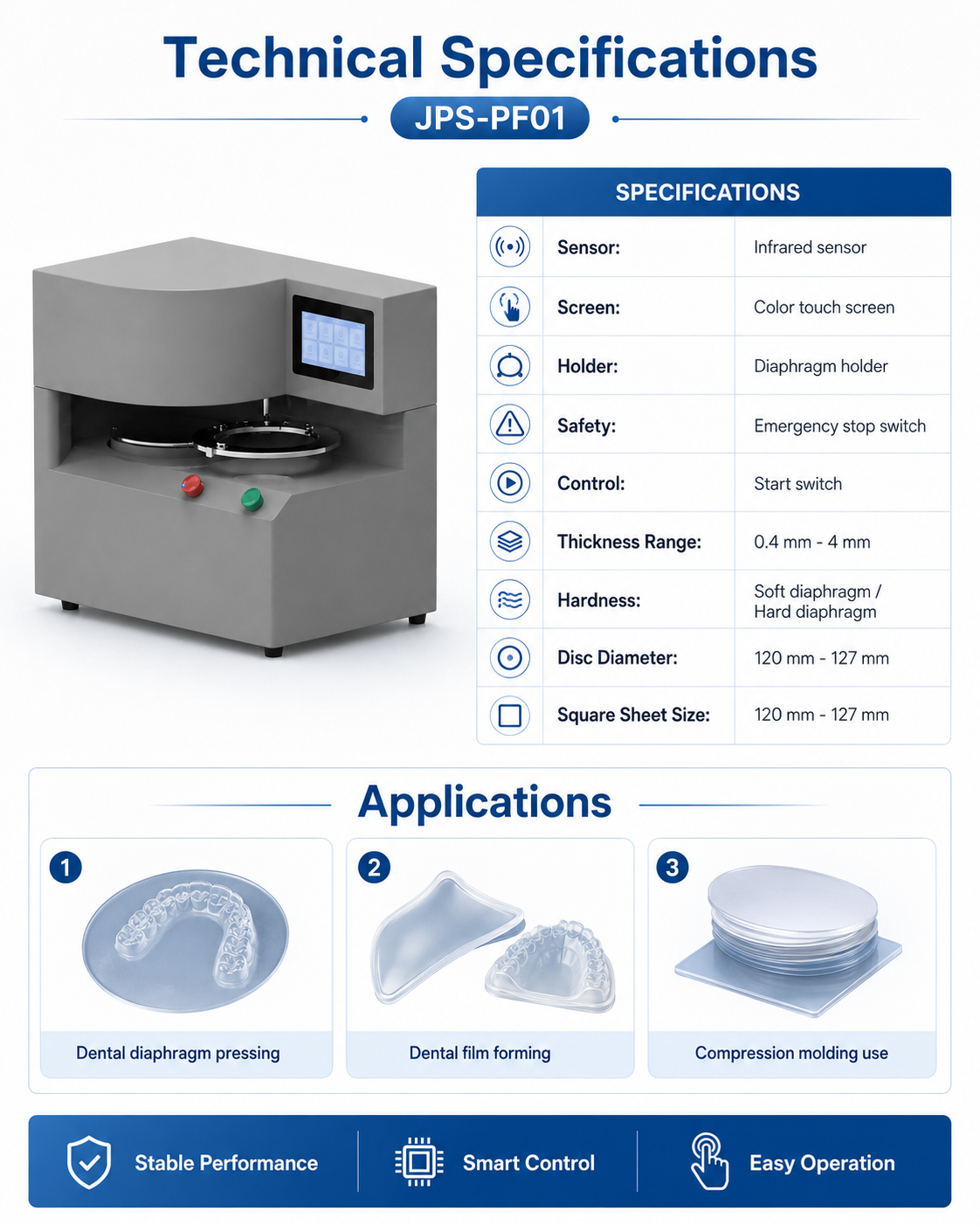

Standard Specifications
| Item | Specification |
|---|---|
| Sensor | Infrared |
| Interface | Color touchscreen |
| Diaphragm holder | Included |
| Emergency stop | Switch |
| Start | Switch |

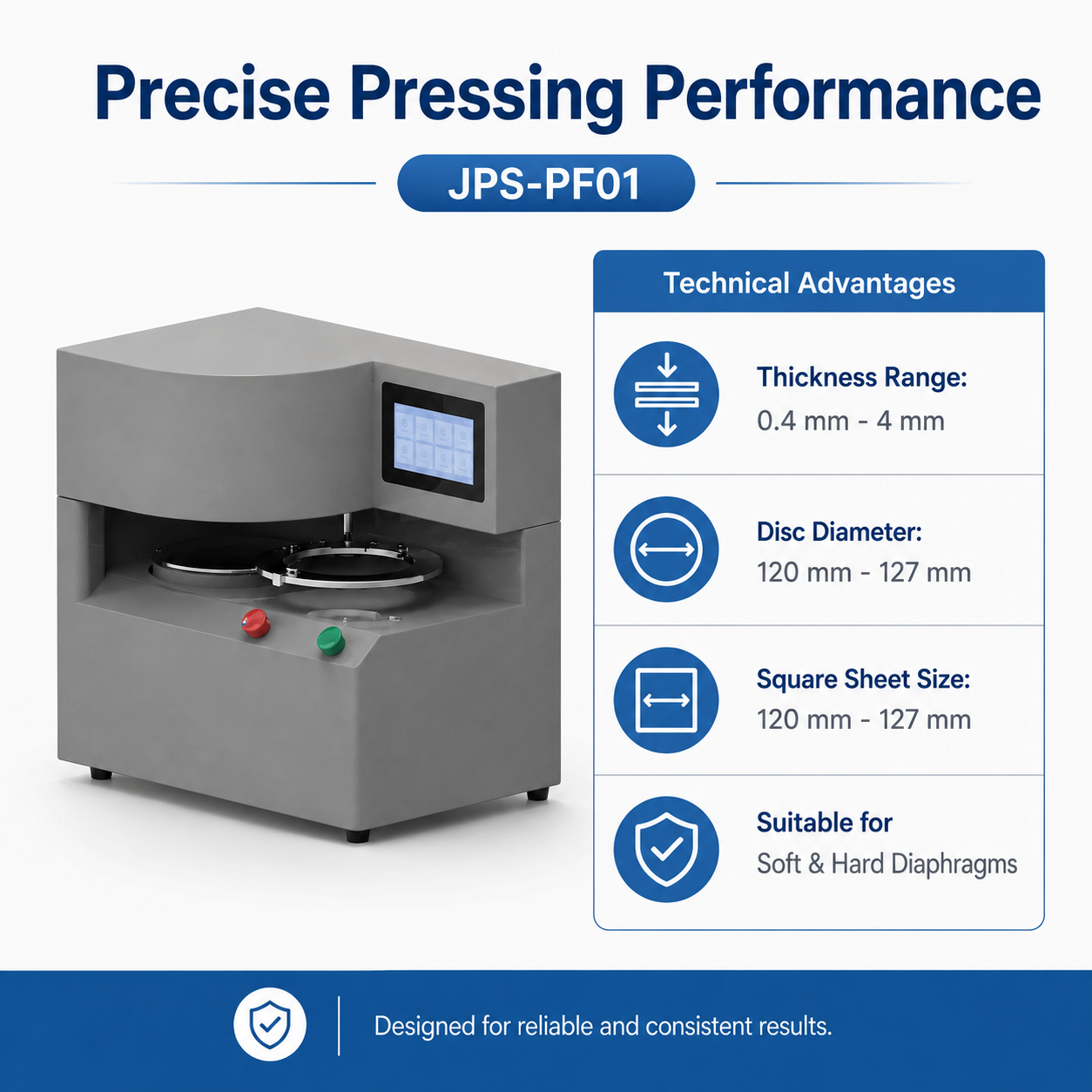

| Diaphragm thickness | 0.4–4 mm |
| Hardness | Soft and hard diaphragm |

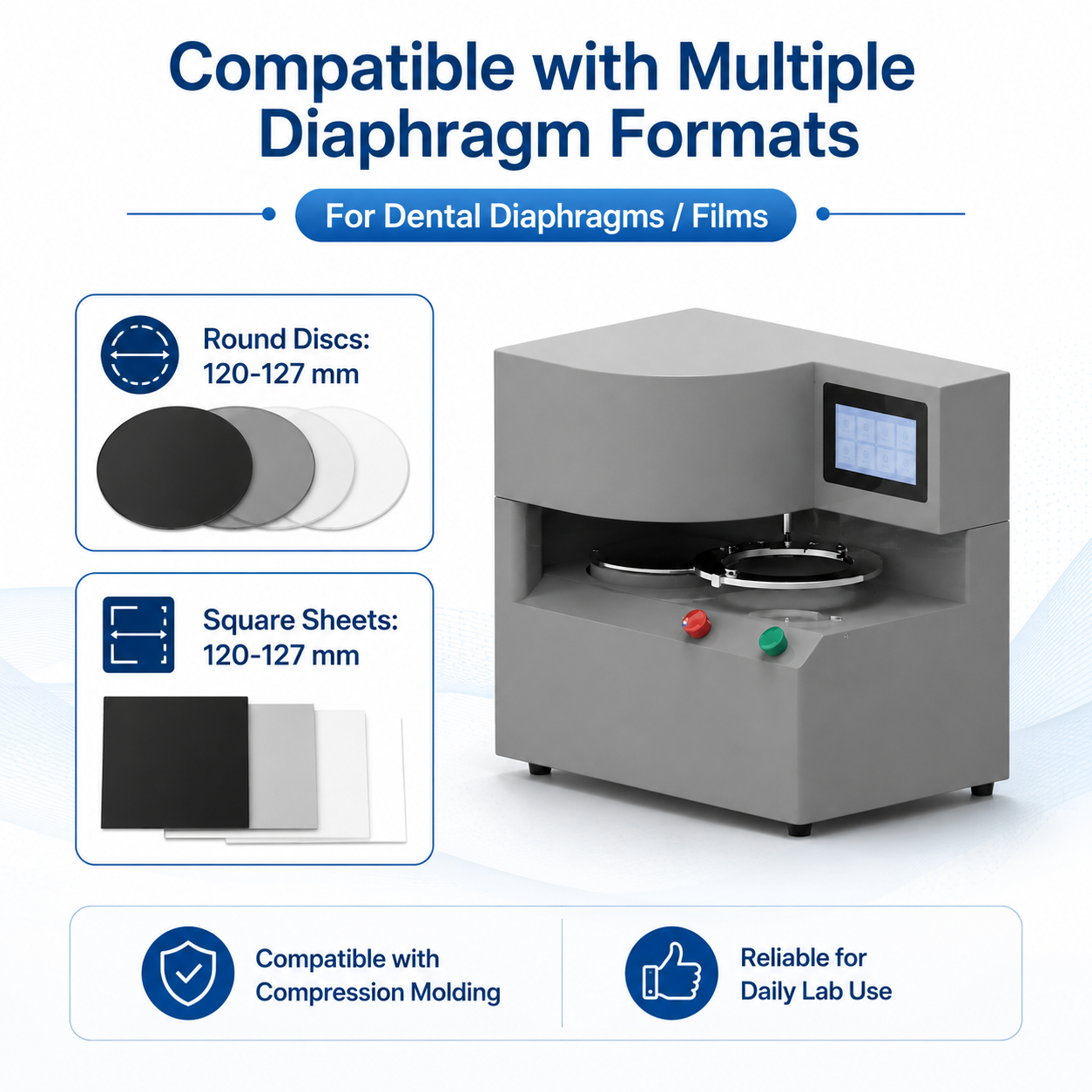

| Disc diameter | 120–127 mm |
| Square piece | Side length 120–127 mm |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Automatic pressure/diaphragm forming machine |
| Film thickness | 0.4–4 mm |
| Disc size | 120–127 mm diameter |
| Square size | 120–127 mm side |
| Presets | 7 diaphragm programs |
| Control | Color touchscreen; infrared sensor |
| Temperature | Diaphragm temperature detection for precise control |
| Loading | One-hand; positioning switch + 2 elastic clips |
Model: JPS-PF01 · Automatic dental pressure forming (diaphragm/film) machine.
Product Details
Get a Quote for Automatic Dental Pressing Diaphragm-Film Machine JPS-PF01
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
