Fully Automatic Five-Axis Milling Machine
Fully Automatic Five-Axis Aligner Milling Machine

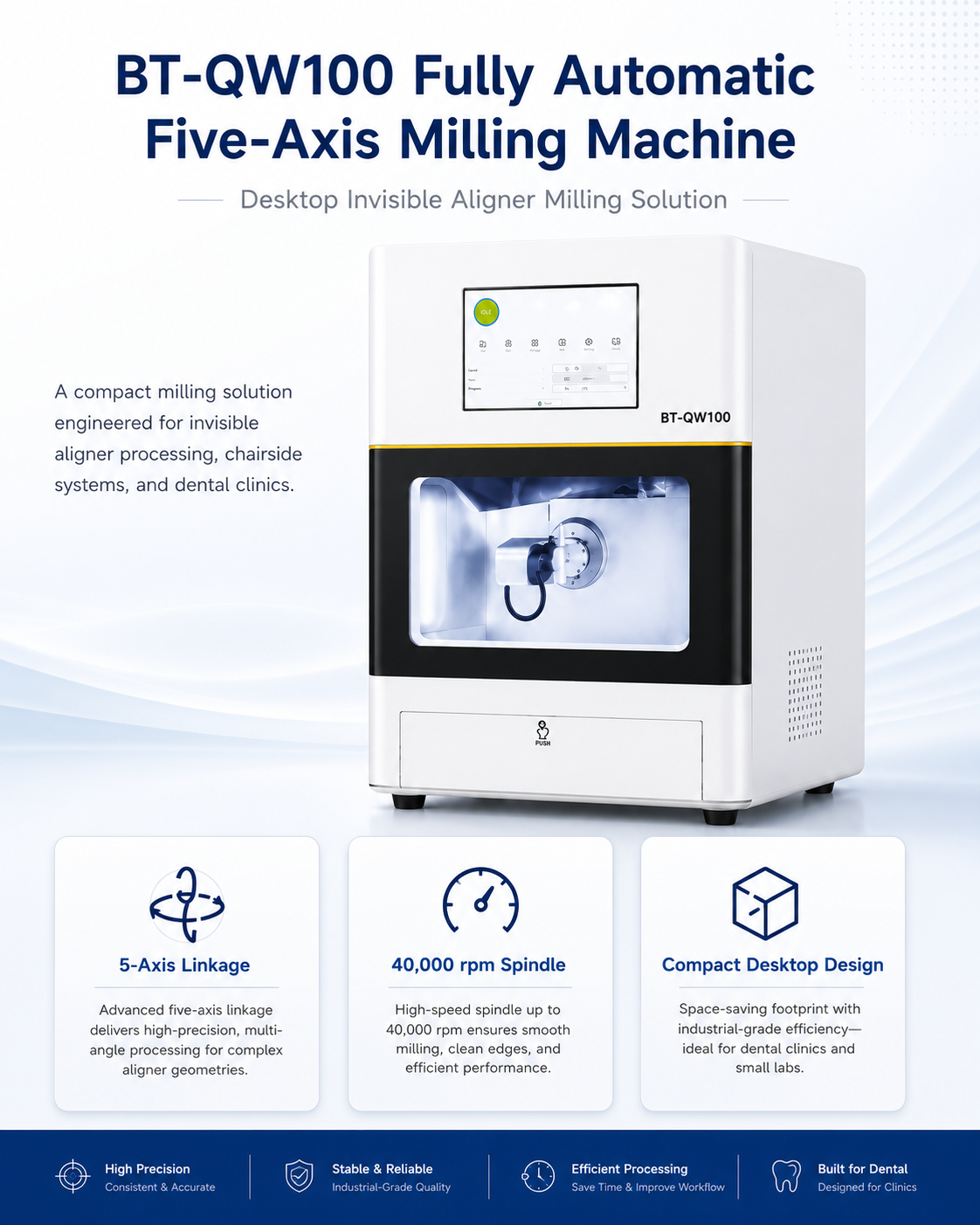

This fully automatic 5-axis, 5-linkage desktop milling machine is purpose-built for trimming invisible aligner films at the chairside or in the clinic. With a 40,000 rpm self-cooling spindle, wide rotational range, and no requirement for compressed air, it delivers industrial-grade precision in a compact desktop footprint. Integrated AI tooth-arrangement software processes an aligner in around 30 seconds and auto-generates cutting lines — eliminating third-party software and cutting operator time to under 10 seconds per batch.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights

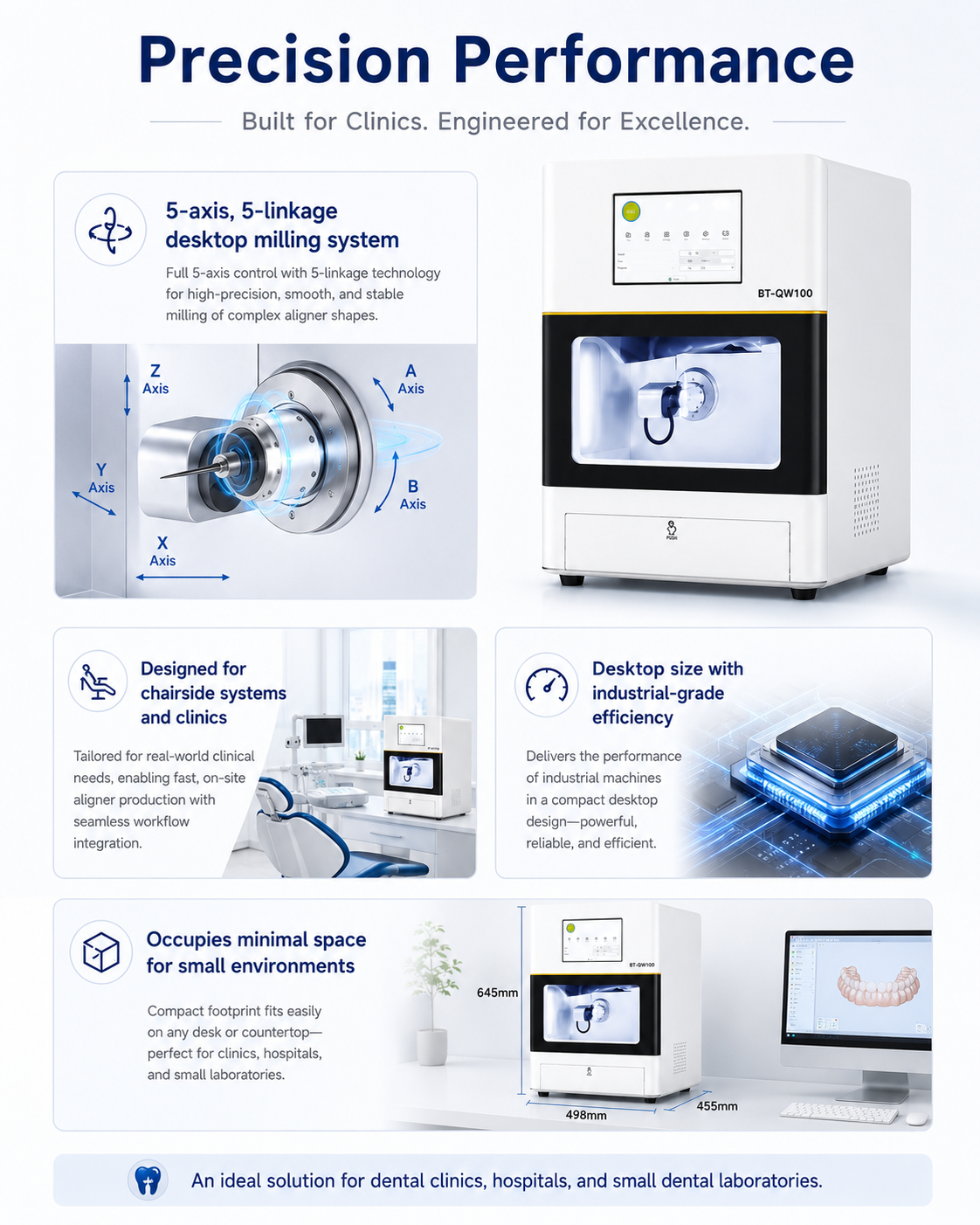

- 5-axis / 5-linkage — Full five-axis motion for precise aligner film trimming.
- No compressed air — Operates without an external air supply for easy installation.

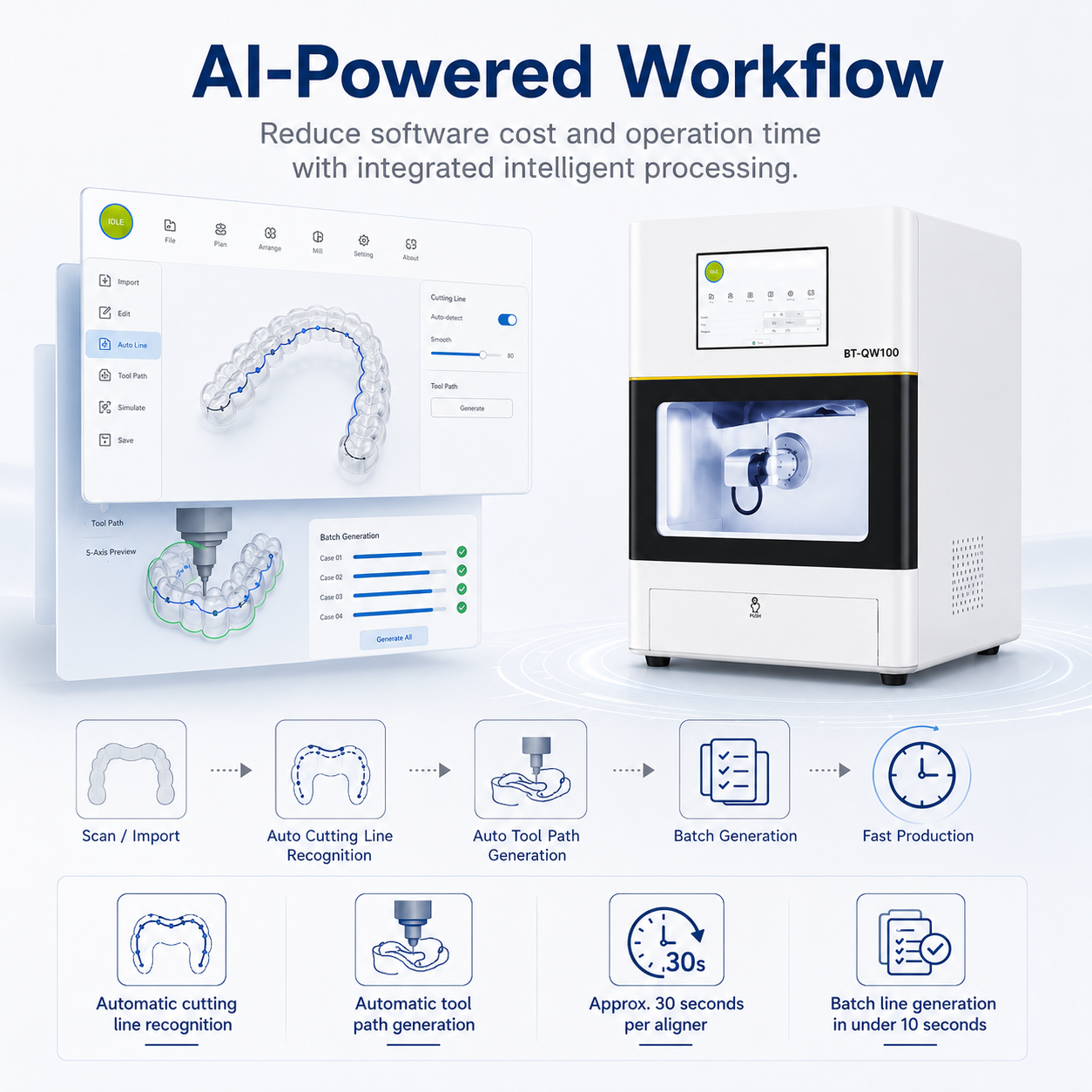

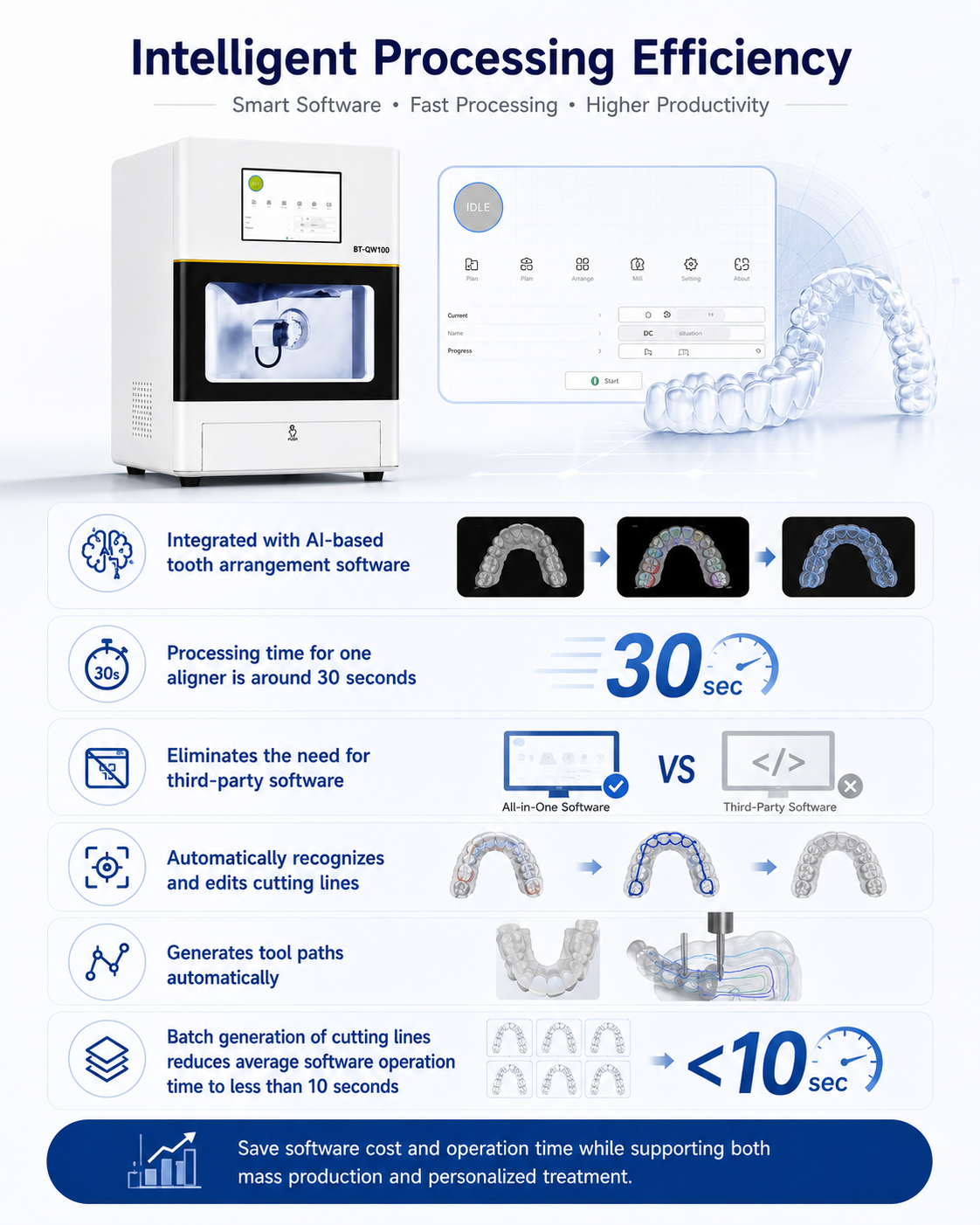

- AI-driven workflow — Built-in AI tooth-arrangement software; ~30 s processing per aligner, no third-party software needed.
- Auto cutting lines — Automatically recognizes and edits cutting lines and generates tool paths; batch operation under 10 s.

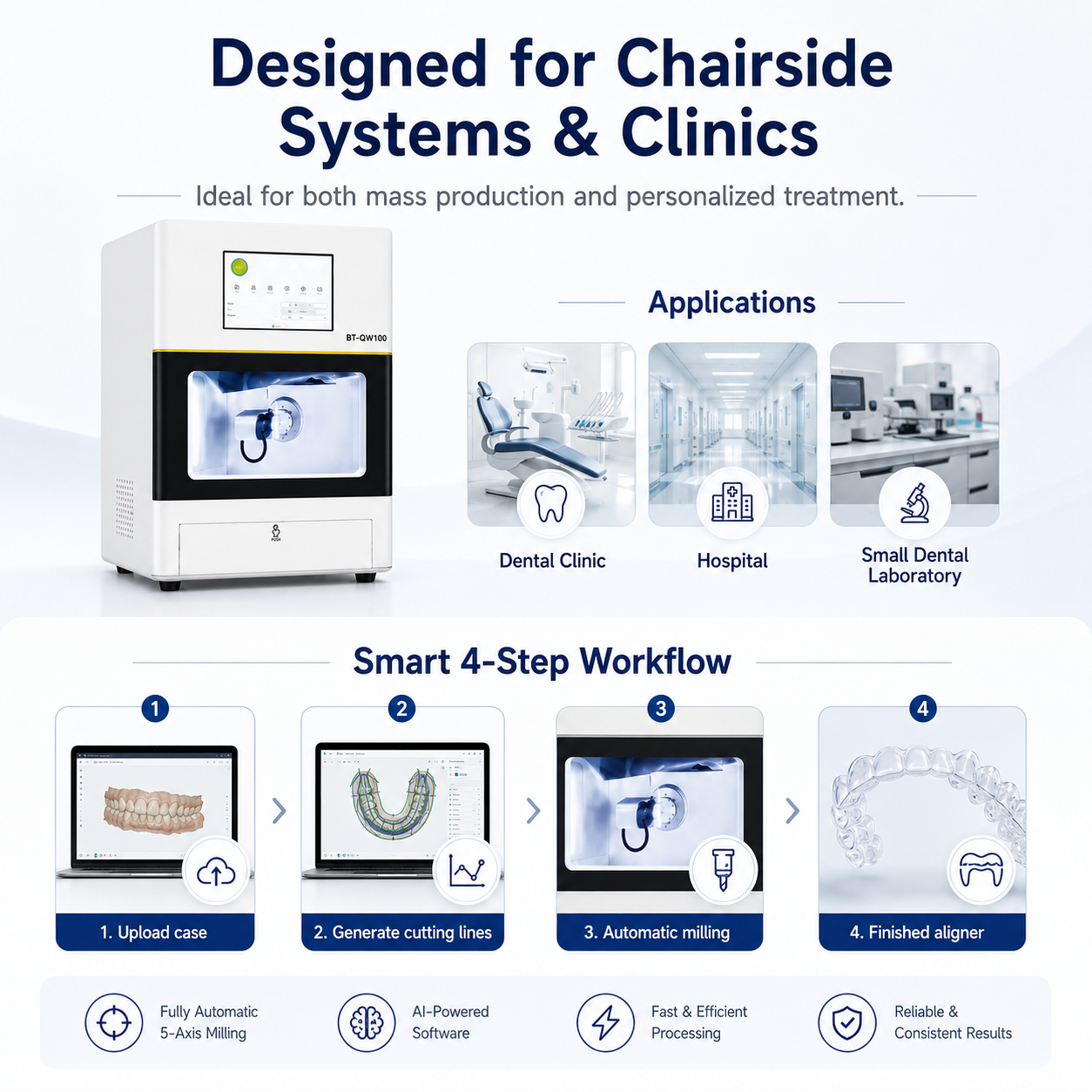

- Compact desktop — Industrial-grade efficiency in a small footprint, ideal for clinics, hospitals, and small labs.

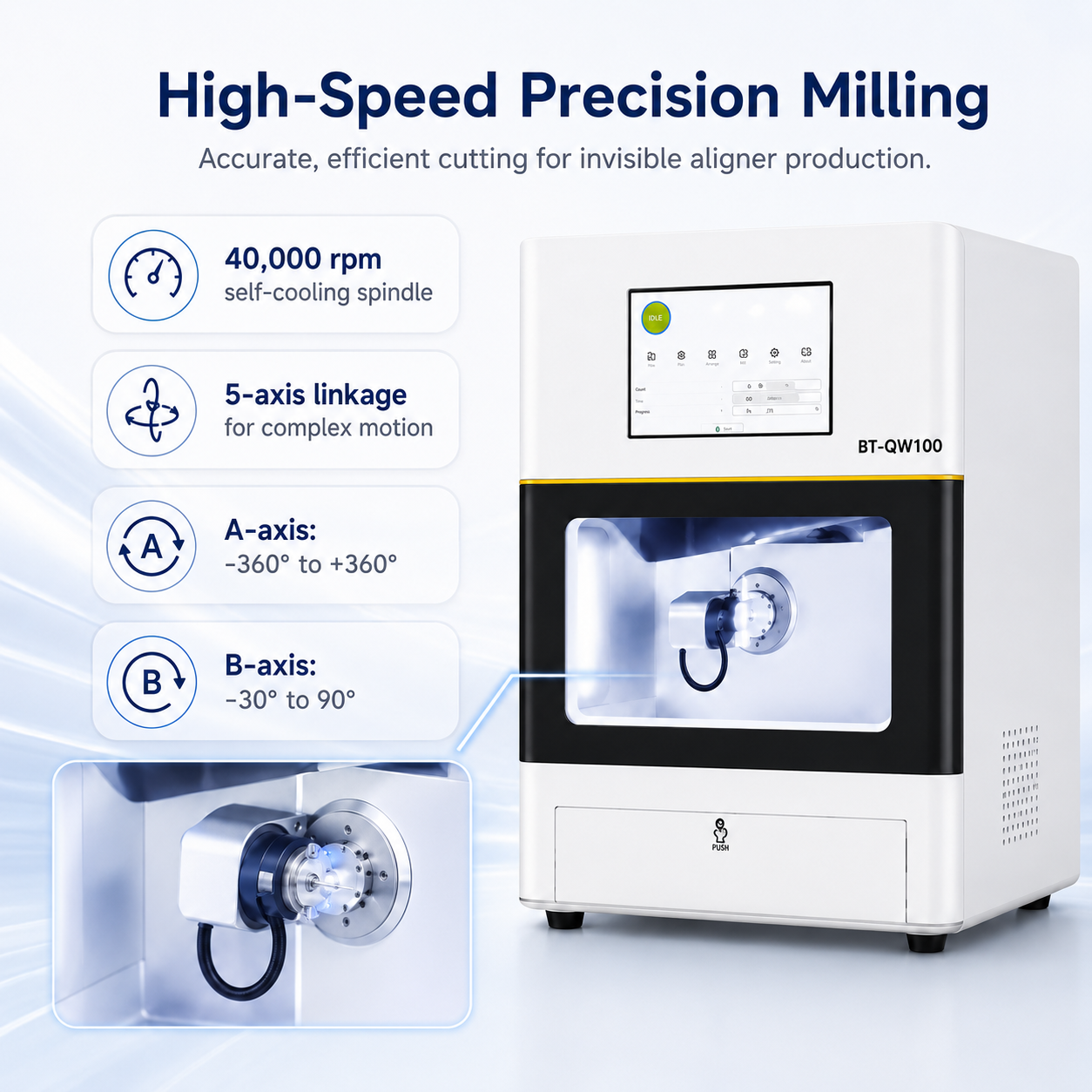

- Self-cooling spindle — 40,000 rpm self-cooling spindle for sustained operation.

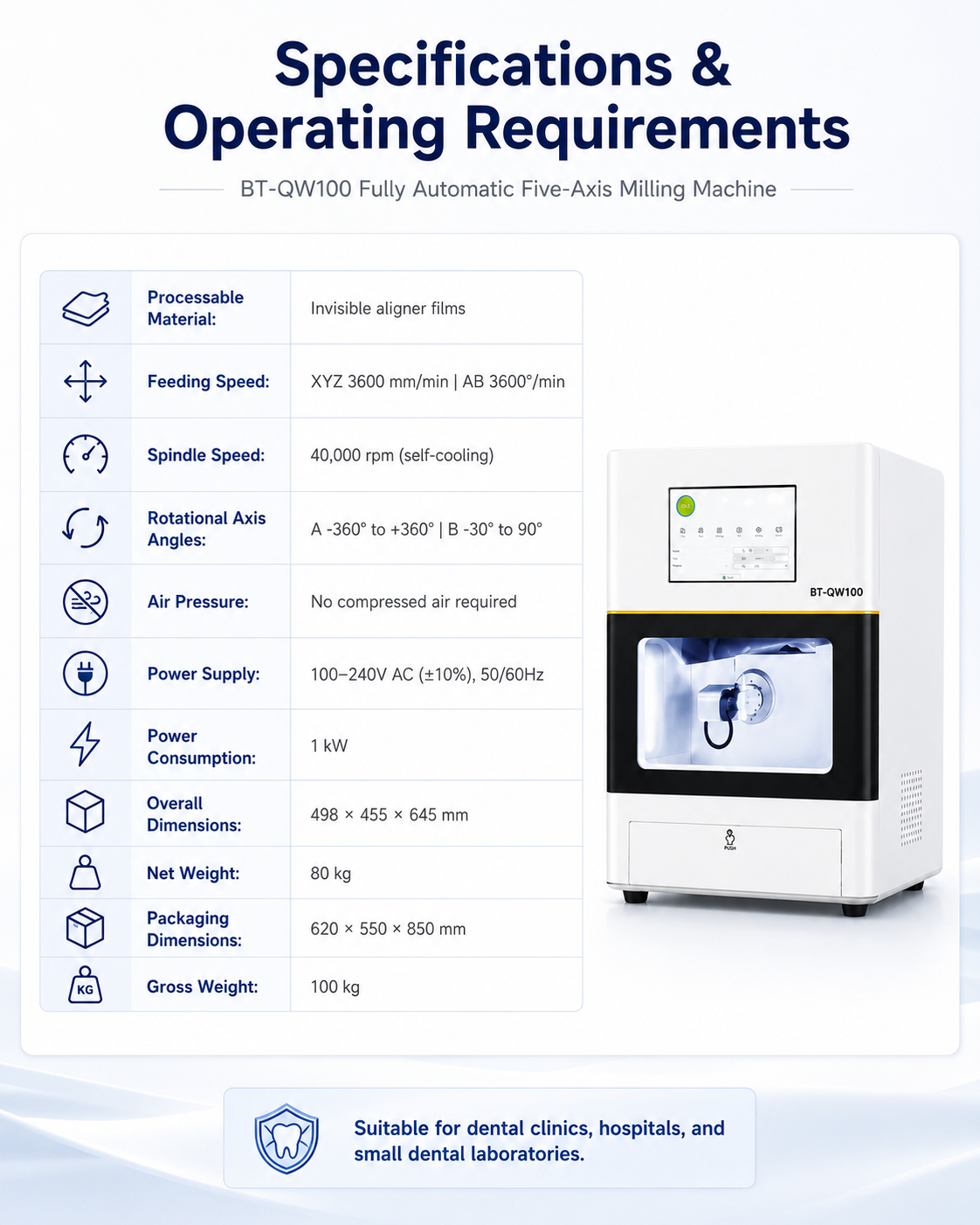

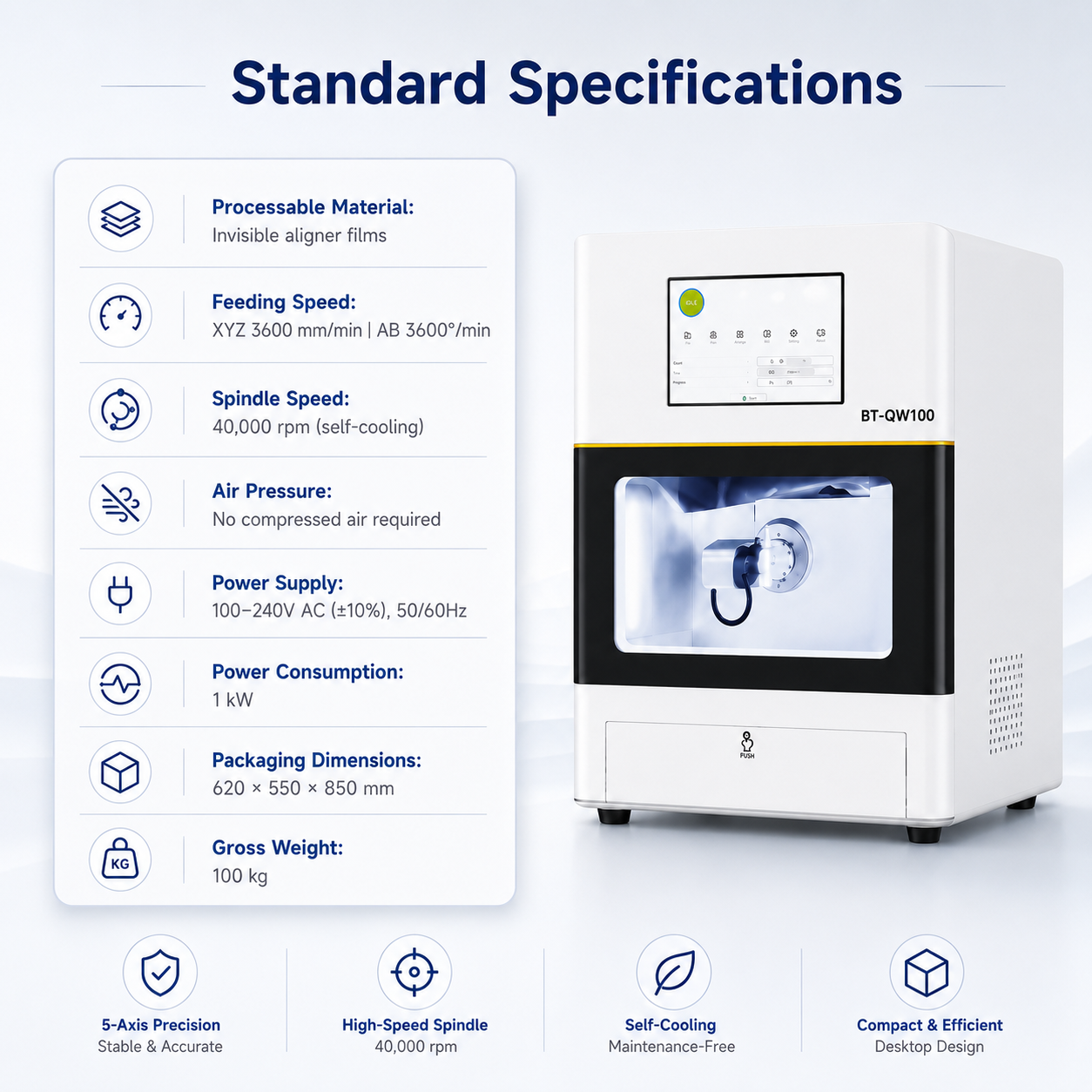

Standard Specifications
| Item | Specification |
|---|---|
| Processable material | Invisible aligner films |
| Feeding speed | XYZ 3600 mm/min; AB 3600 °/min |
| Spindle speed | 40,000 rpm (self-cooling) |
| Rotational axis | A: −360°…+360°; B: −30°…90° |
| Air pressure | No compressed air required |
| Power supply | 100–240V AC (±10%), 50/60Hz |
| Power consumption | 1 kW |

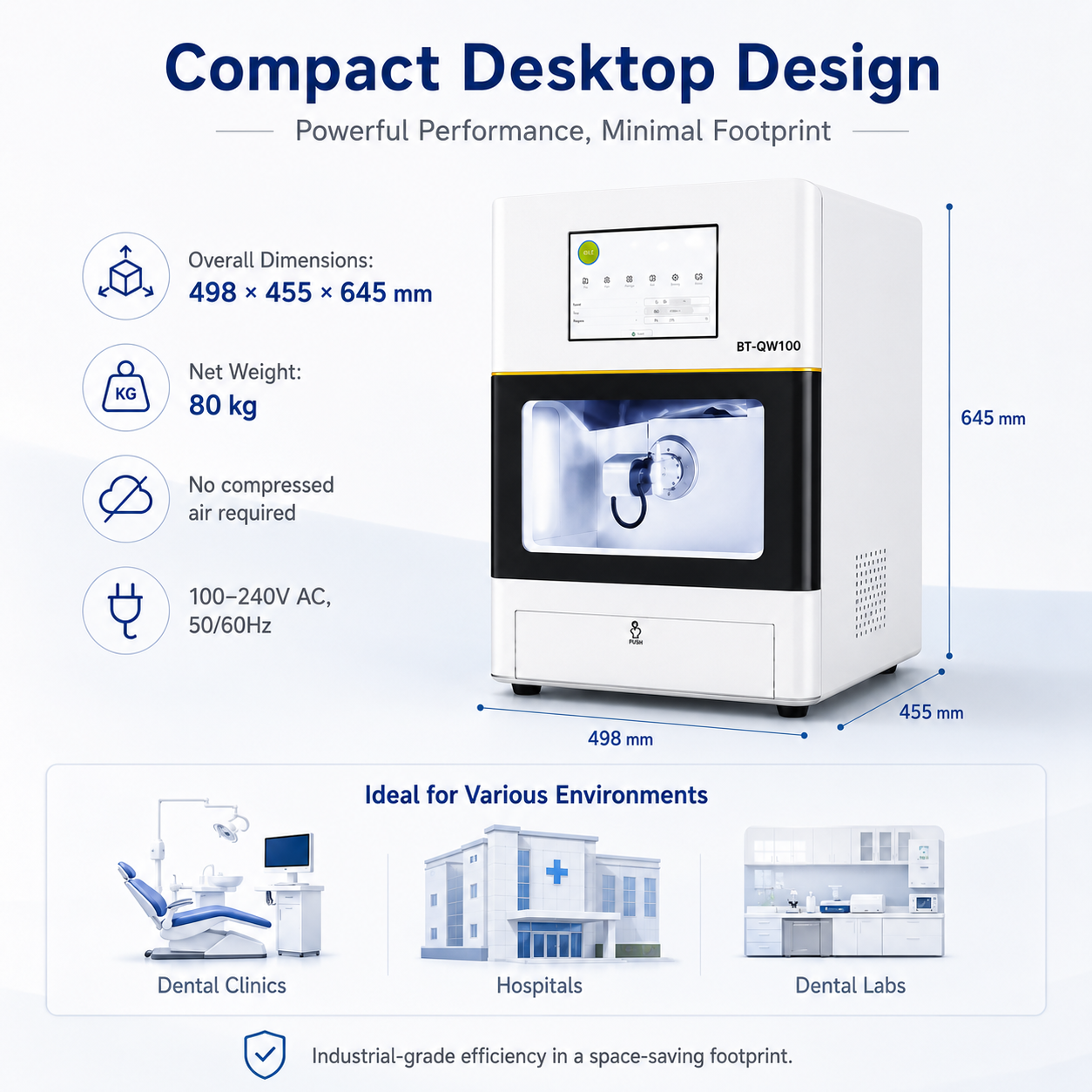

| Overall dimensions | 498 × 455 × 645 mm; N.W 80 kg |
| Packaging | 620 × 550 × 850 mm; G.W 100 kg |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | 5-axis / 5-linkage desktop aligner milling machine |
| Spindle | 40,000 rpm, self-cooling |
| Rotational range | A ±360°; B −30°…90° |
| Air | None required |
| Software | Integrated AI tooth-arrangement (~30 s/aligner) |
| Power | 100–240V, 1 kW |
| Weight | 80 kg |
Product: Fully Automatic Five-Axis Milling Machine · Desktop invisible-aligner milling machine.
Product Details
Get a Quote for Fully Automatic Five-Axis Milling Machine
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
