Orthodontic Thermoplastic Film (Aligner Film)

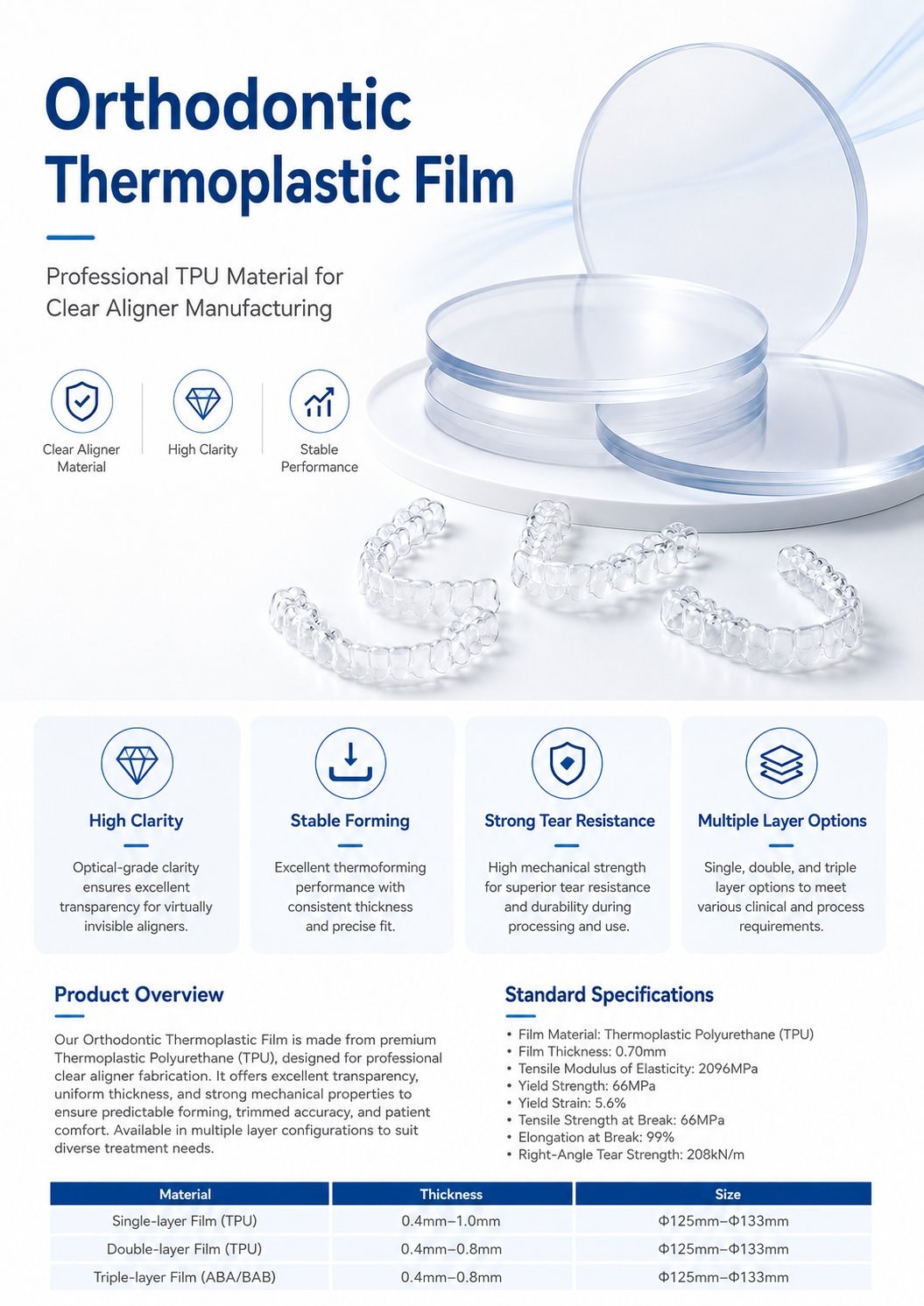

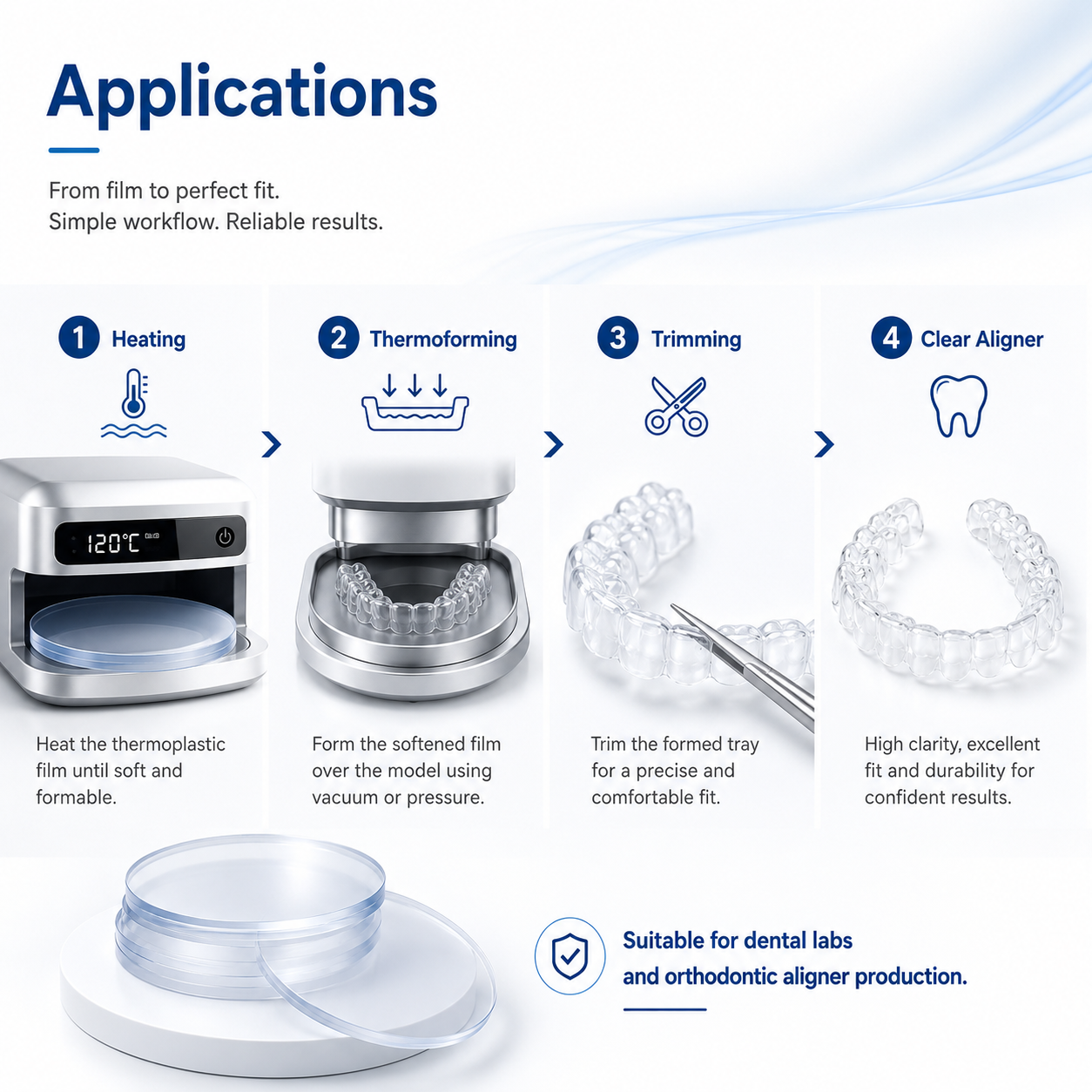

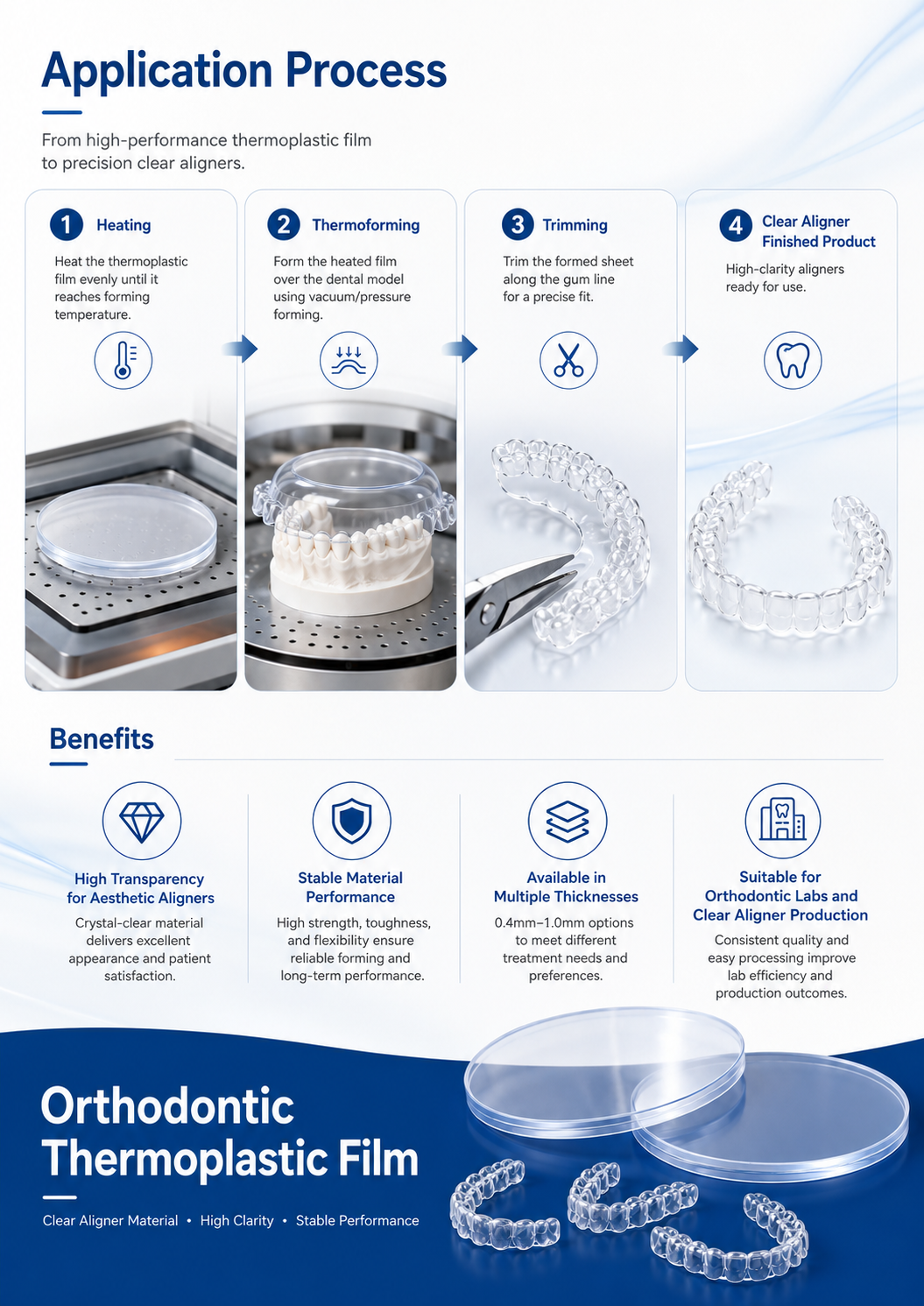

This orthodontic thermoplastic film is a high-performance TPU material for fabricating clear aligners and retainers. Strong and highly elastic — with a 2096 MPa tensile modulus, 66 MPa yield/break strength, and 99% elongation at break — it thermoforms cleanly to deliver durable, comfortable appliances. Available as single-layer (TPU), double-layer (TPU), and triple-layer (ABA/BAB) films in a range of thicknesses and Φ125–133 mm discs.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights
- High strength & elasticity — 2096 MPa tensile modulus, 66 MPa yield/break strength, 99% elongation at break.
- Tear resistant — Right-angle tear strength of 208 kN/m for durable aligners.

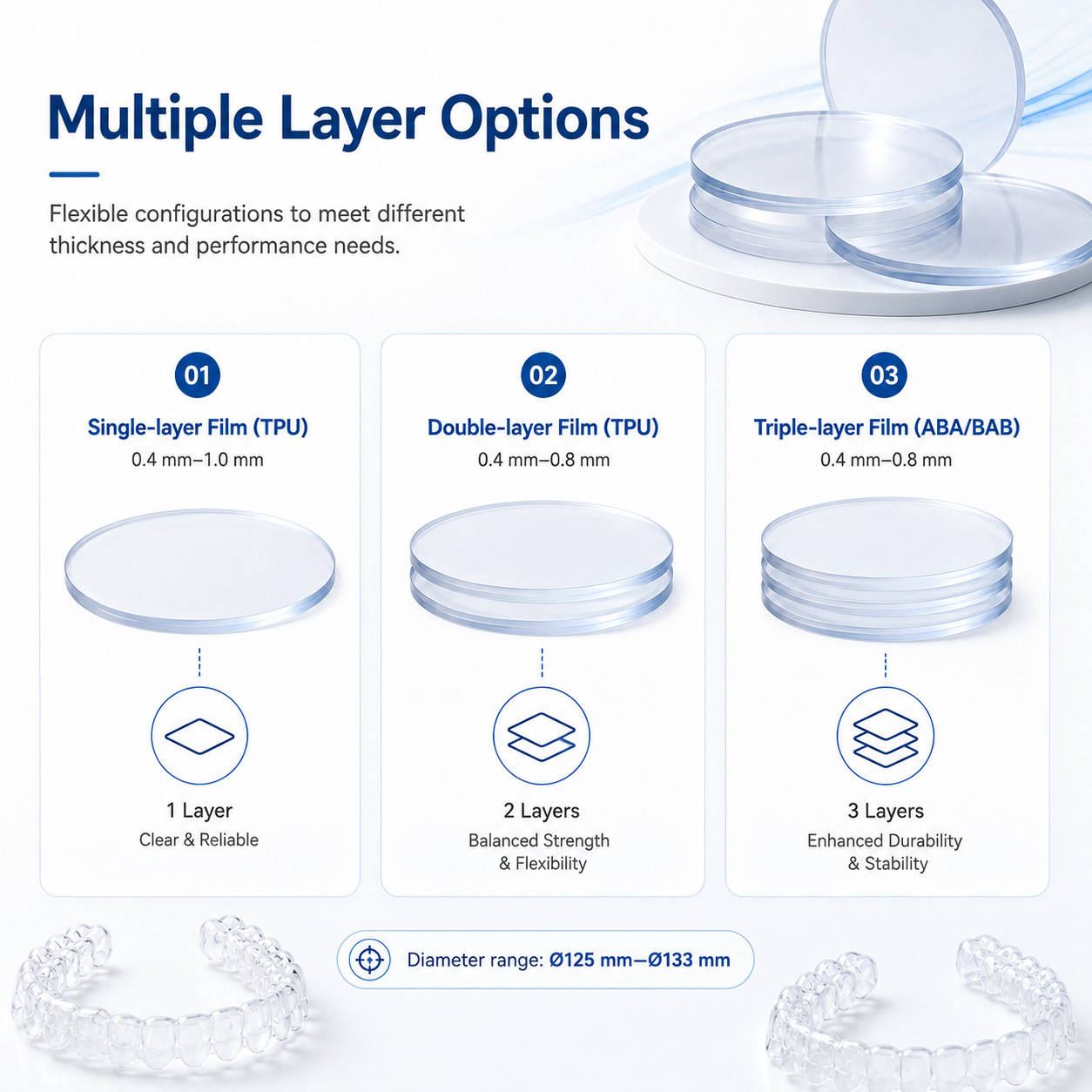

- Multiple constructions — Single-, double-, and triple-layer (ABA/BAB) options.
- Range of thicknesses — From 0.4 mm up to 1.0 mm to suit different stages.
- Standard disc sizes — Φ125–133 mm to fit common thermoforming machines.

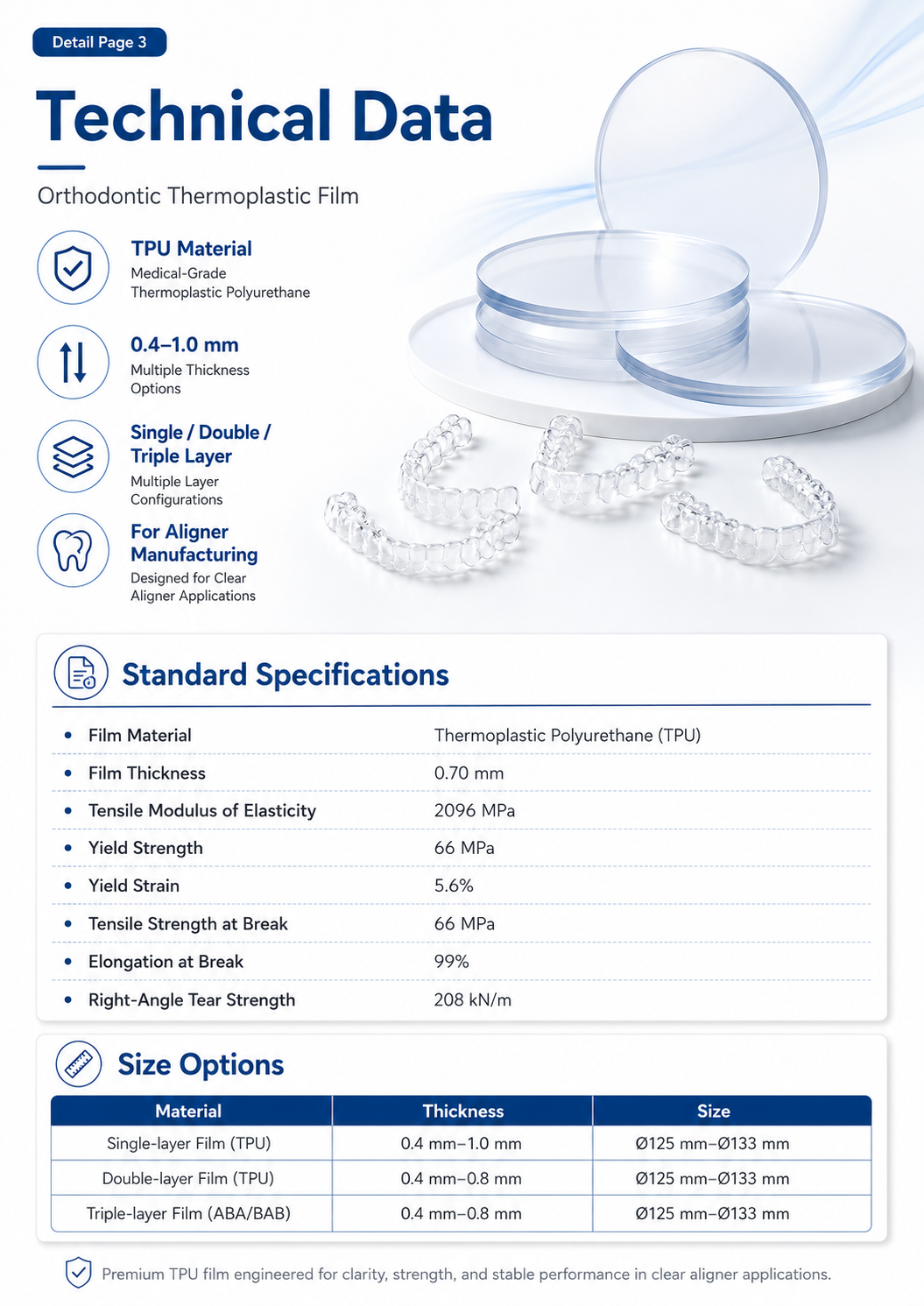

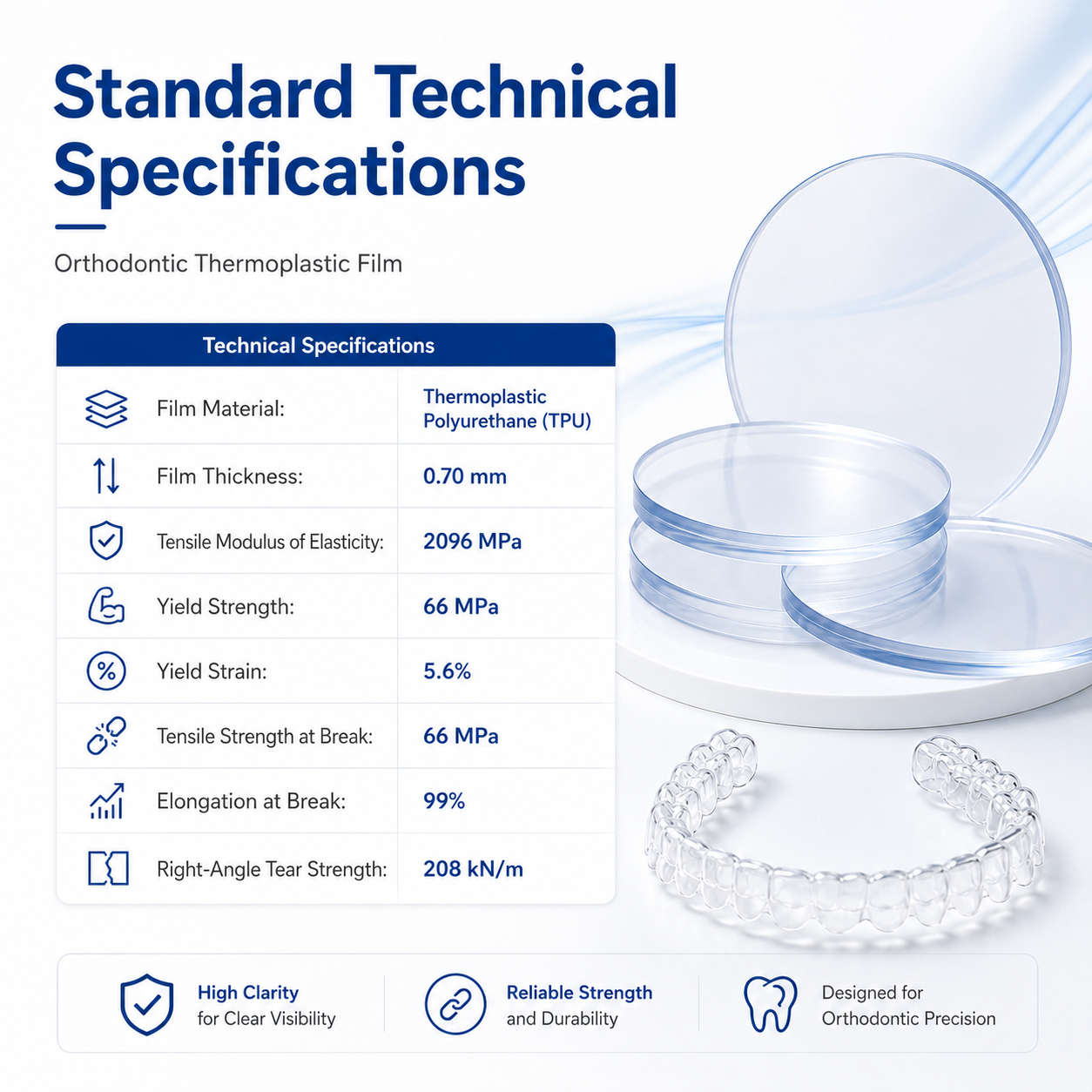

Standard Specifications
| Item | Specification |
|---|---|
| Film material | Thermoplastic polyurethane (TPU) |
| Film thickness | 0.70 mm (typical) |
| Tensile modulus of elasticity | 2096 MPa |
| Yield strength | 66 MPa |
| Yield strain | 5.6% |
| Tensile strength at break | 66 MPa |
| Elongation at break | 99% |
| Right-angle tear strength | 208 kN/m |

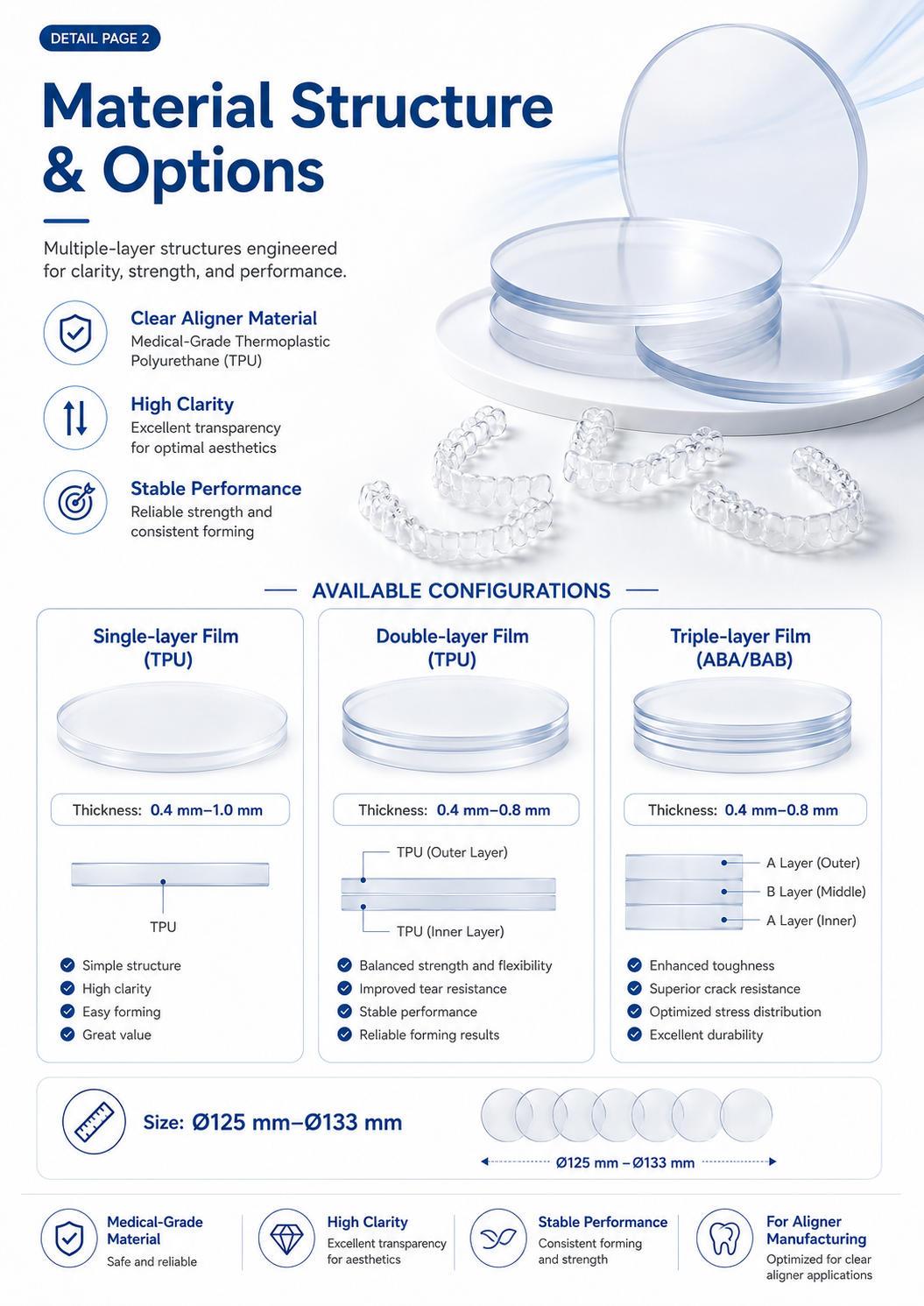

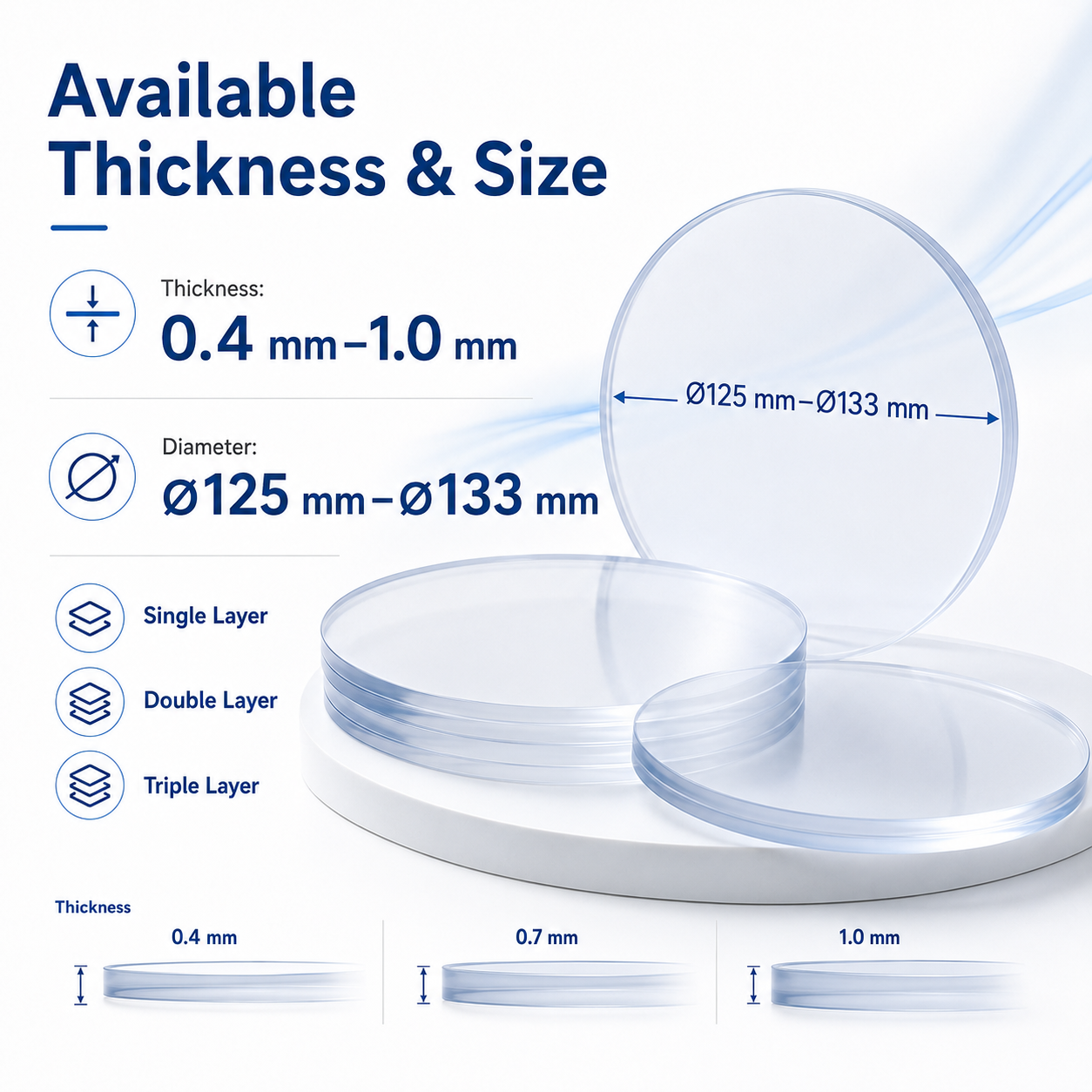

Available Variants
| Material | Thickness | Size |
|---|---|---|
| Single-layer film (TPU) | 0.4–1.0 mm | Φ125–133 mm |
| Double-layer film (TPU) | 0.4–0.8 mm | Φ125–133 mm |
| Triple-layer film (ABA/BAB) | 0.4–0.8 mm | Φ125–133 mm |
Technical Parameters
| Parameter | Specification |
|---|---|
| Material | TPU (and ABA/BAB multilayer) |
| Tensile modulus | 2096 MPa |
| Yield/break strength | 66 MPa |
| Elongation at break | 99% |
| Tear strength | 208 kN/m |
| Disc size | Φ125–133 mm |
Product: Orthodontic Thermoplastic Film · TPU/multilayer aligner & retainer film.
