Dental Electric Motor — Brushless LED JPS-CP+

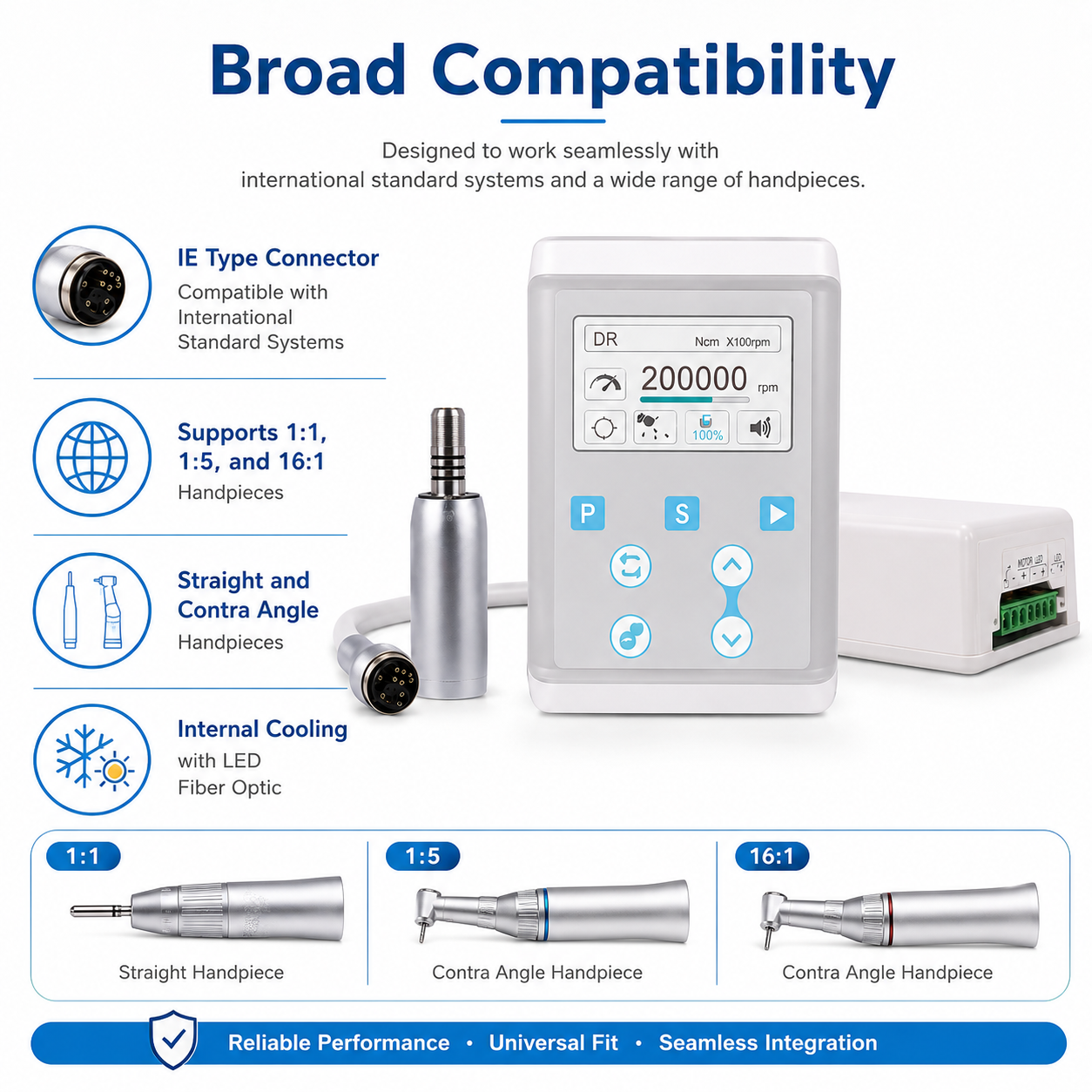

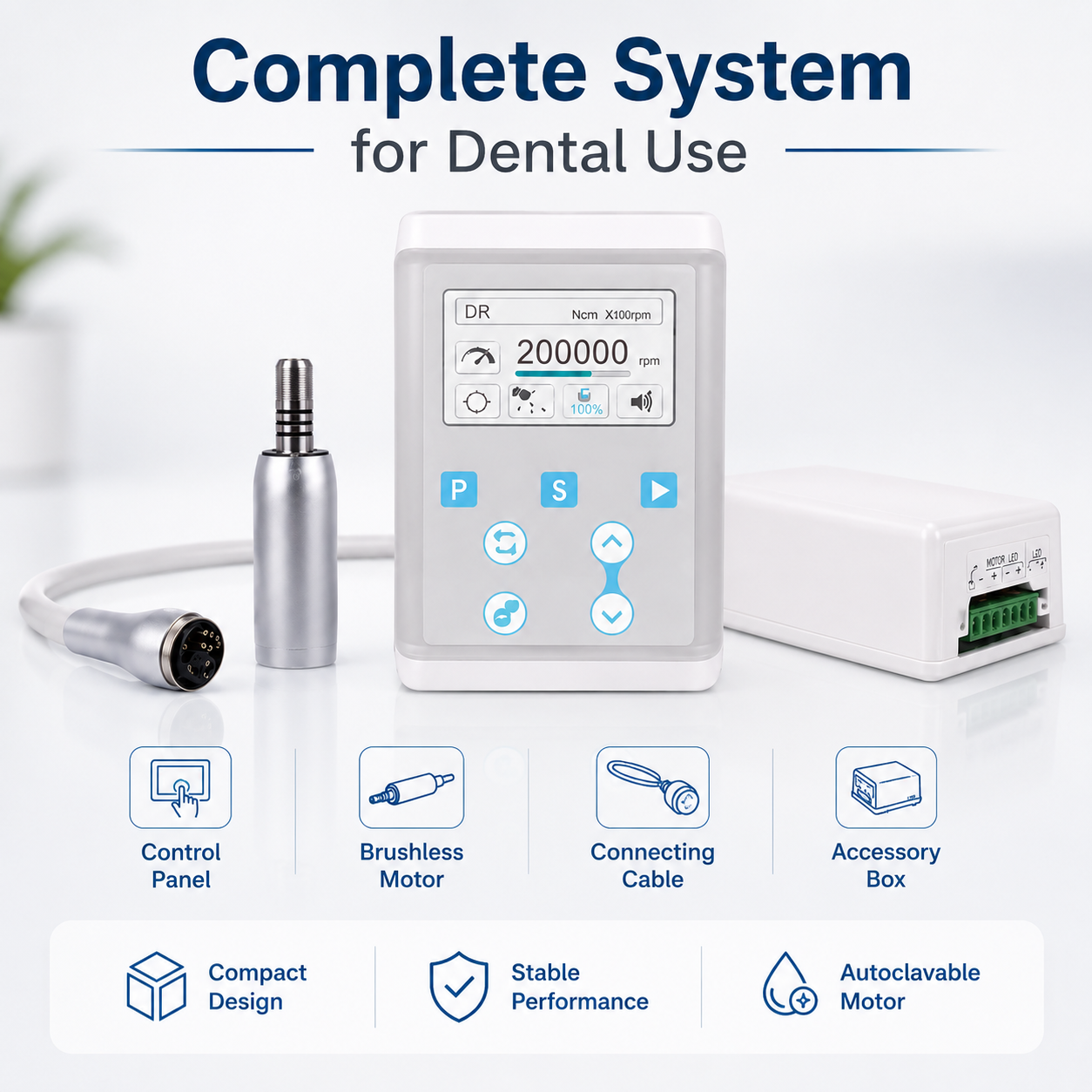

The JPS-CP+ is a brushless LED electric micromotor system with a wide-angle color LCD touchscreen for precise, programmable control. Its IE-type international connector accepts 1:1, 1:5, and 16:1 straight and contra-angle handpieces, covering speeds from 125 rpm up to 200,000 rpm with up to 250 gf·cm torque. Internal cooling with LED fiber optic, 7 program memories, and an autoclavable motor make it a versatile chairside workhorse.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights
- Brushless & powerful — Up to 200,000 rpm and 250 gf·cm torque across 1:1/1:5/16:1 handpieces.

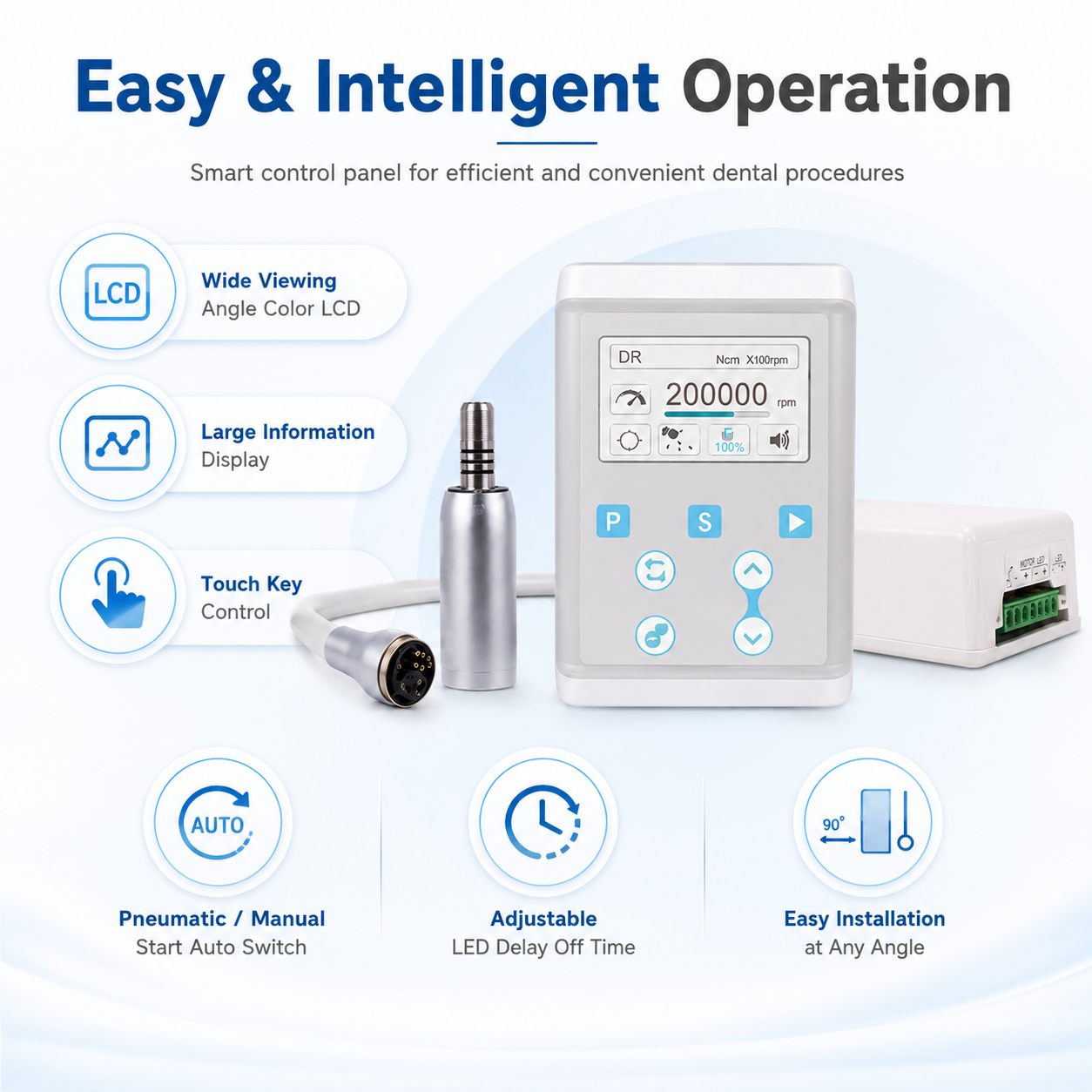

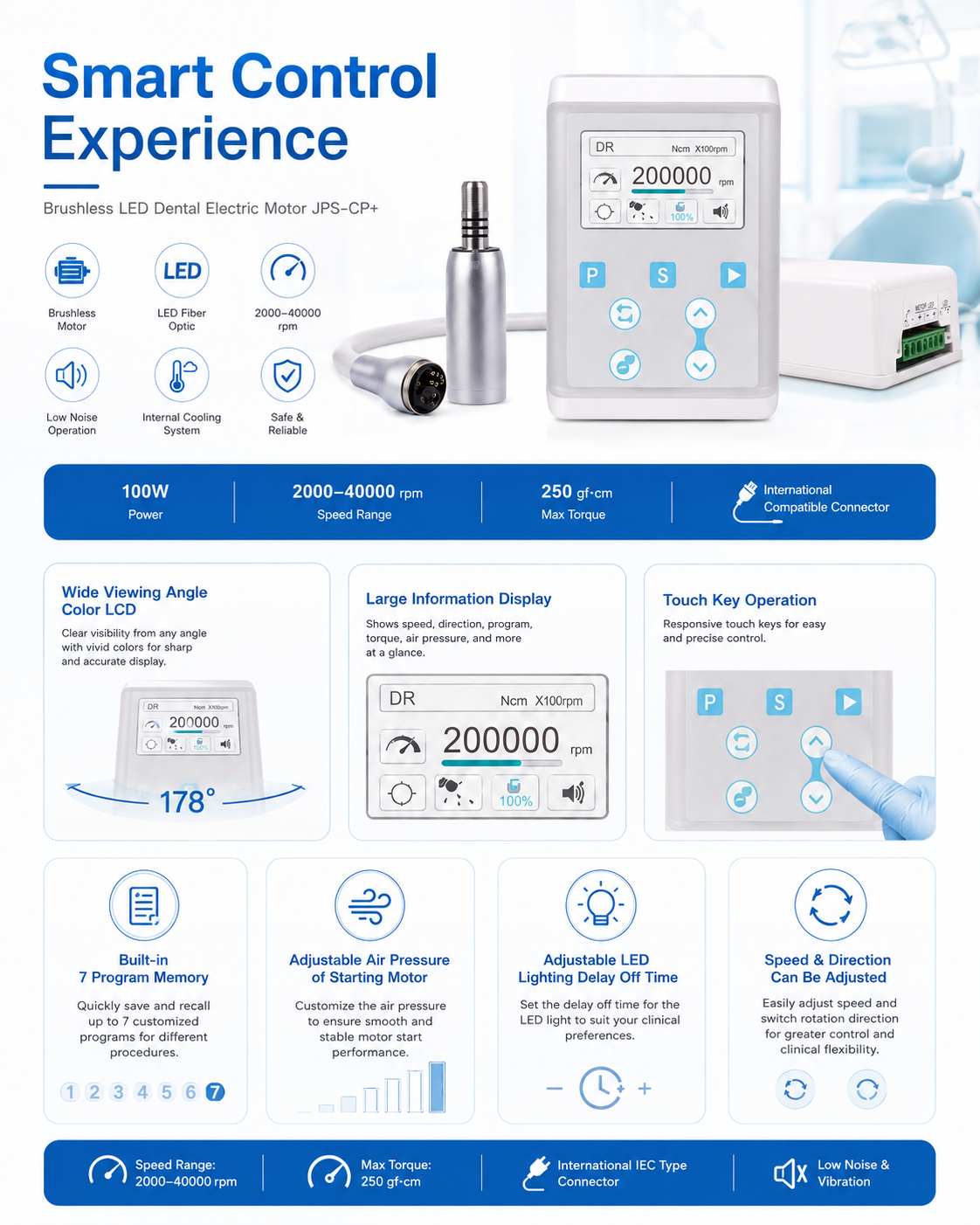

- Color touchscreen — Wide-angle LCD with touch-key control and 7 program memories.
- LED fiber optic — Internal cooling with illumination; adjustable light-off delay.

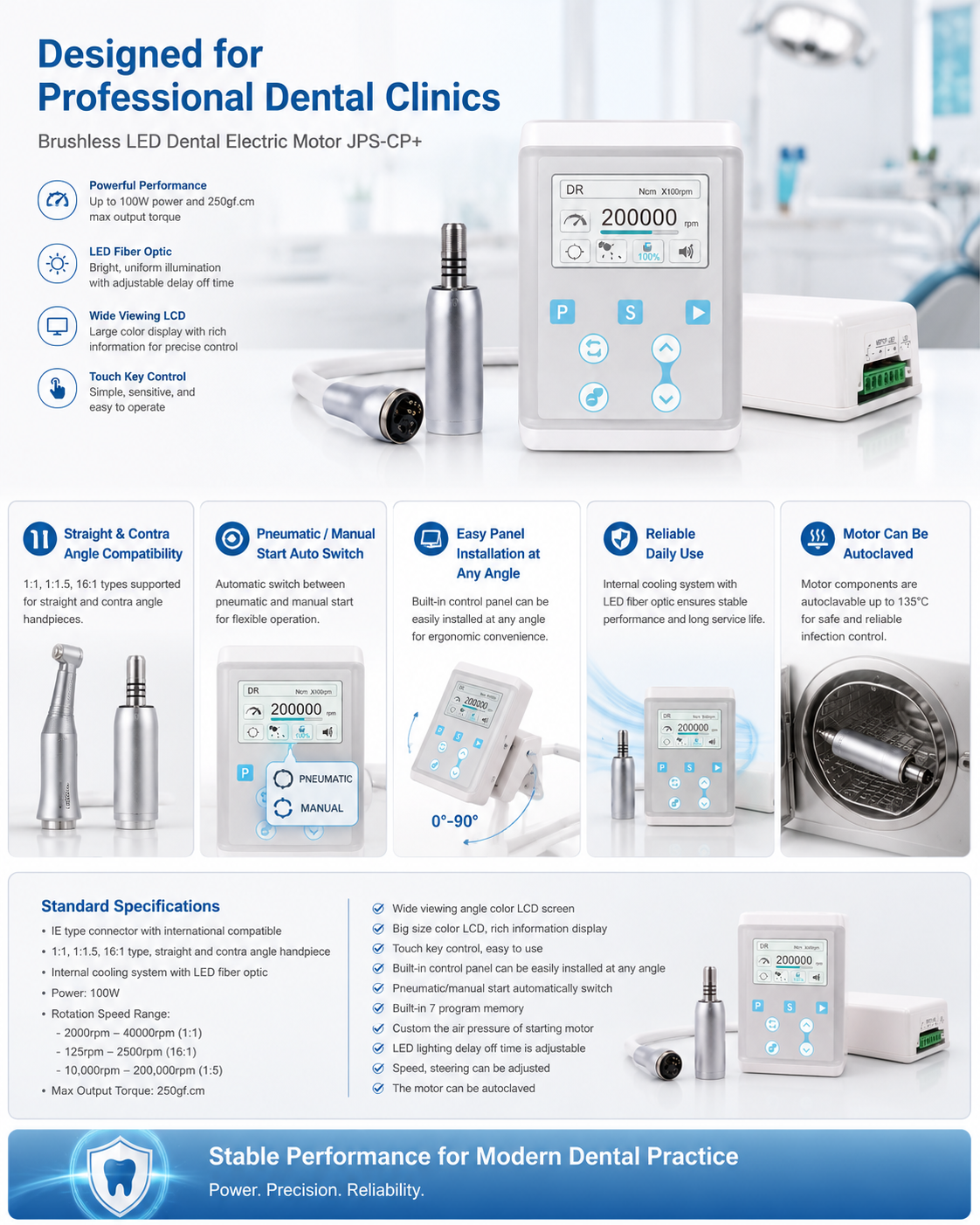

- Flexible & autoclavable — Panel mounts at any angle; pneumatic/manual auto-switch; sterilizable motor.

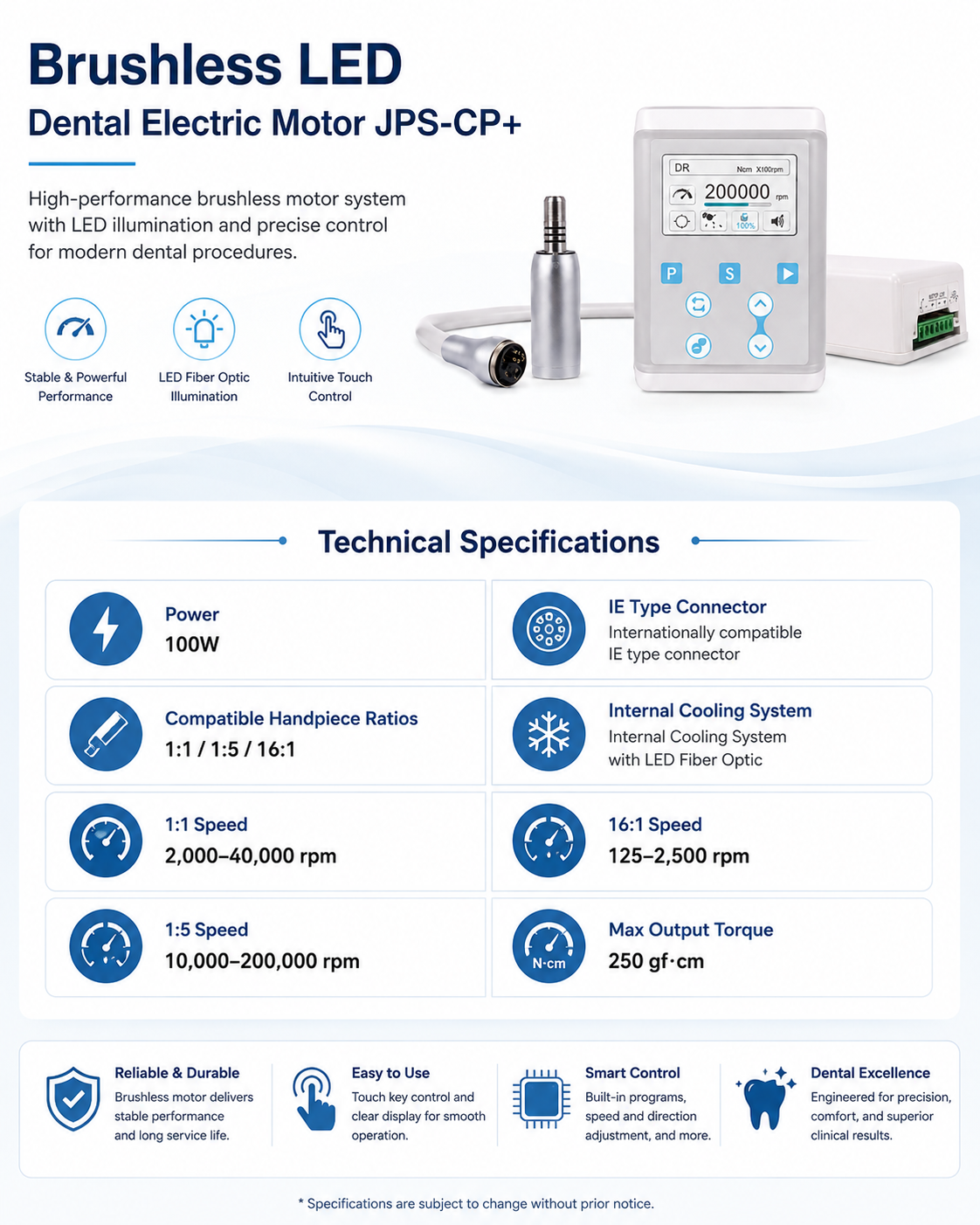

Standard Specifications
| Item | Specification |
|---|---|
| Connector | IE-type, international compatible (1:1, 1:5, 16:1) |
| Cooling | Internal system with LED fiber optic |
| Power | 100W |

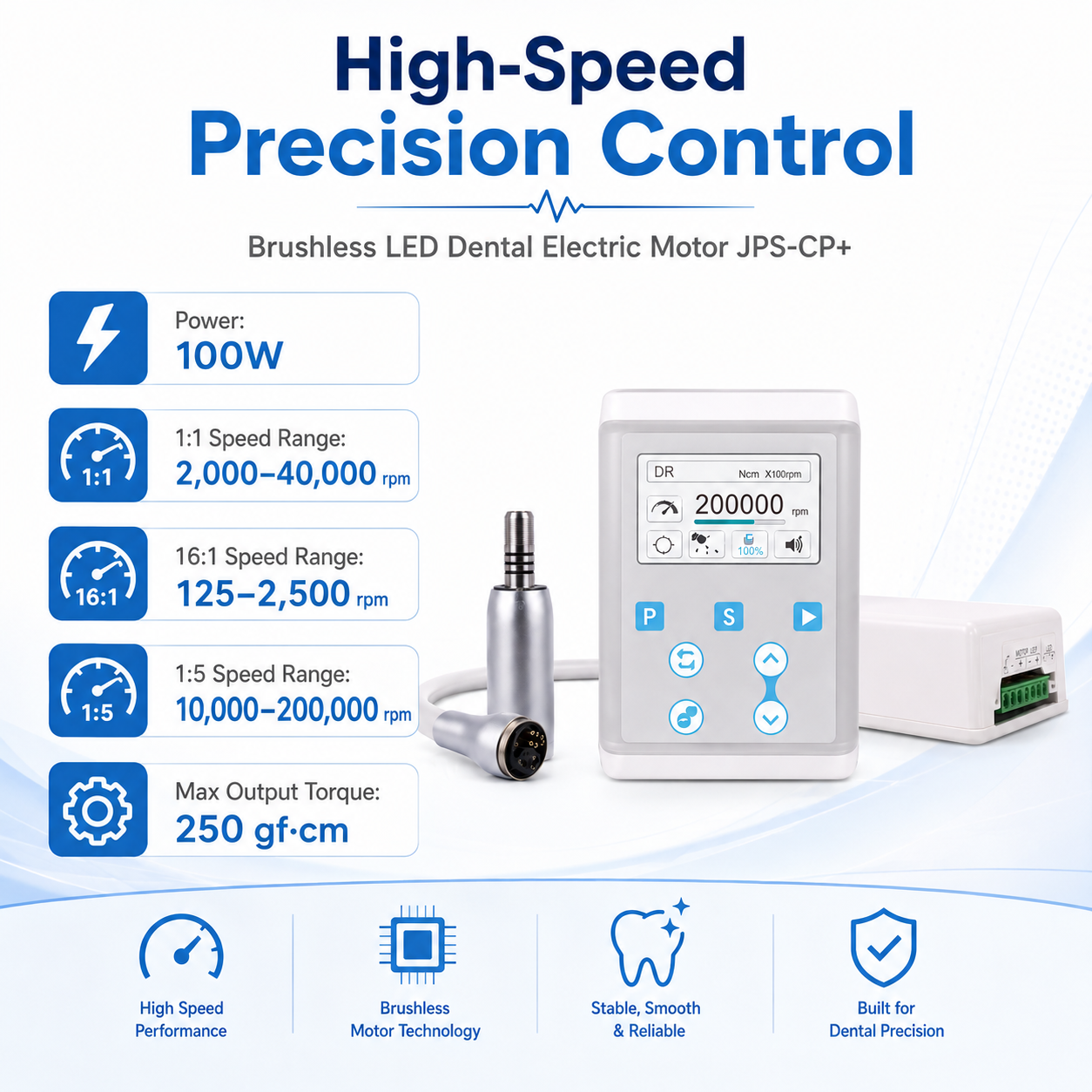

| Speed (1:1) | 2000–40,000 rpm |
| Speed (16:1) | 125–2500 rpm |
| Speed (1:5) | 10,000–200,000 rpm |
| Max output torque | 250 gf·cm |
| Display | Wide-angle color LCD, touch-key |
| Memory | 7 programs |
| Start | Pneumatic / manual auto-switch |
| Sterilization | Autoclavable motor |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Brushless LED electric micromotor |
| Power | 100 W |
| Speed range | 125–200,000 rpm |
| Torque | 250 gf·cm |
| Connector | IE-type (1:1 / 1:5 / 16:1) |
Model: JPS-CP+ · Brushless LED dental electric motor system.

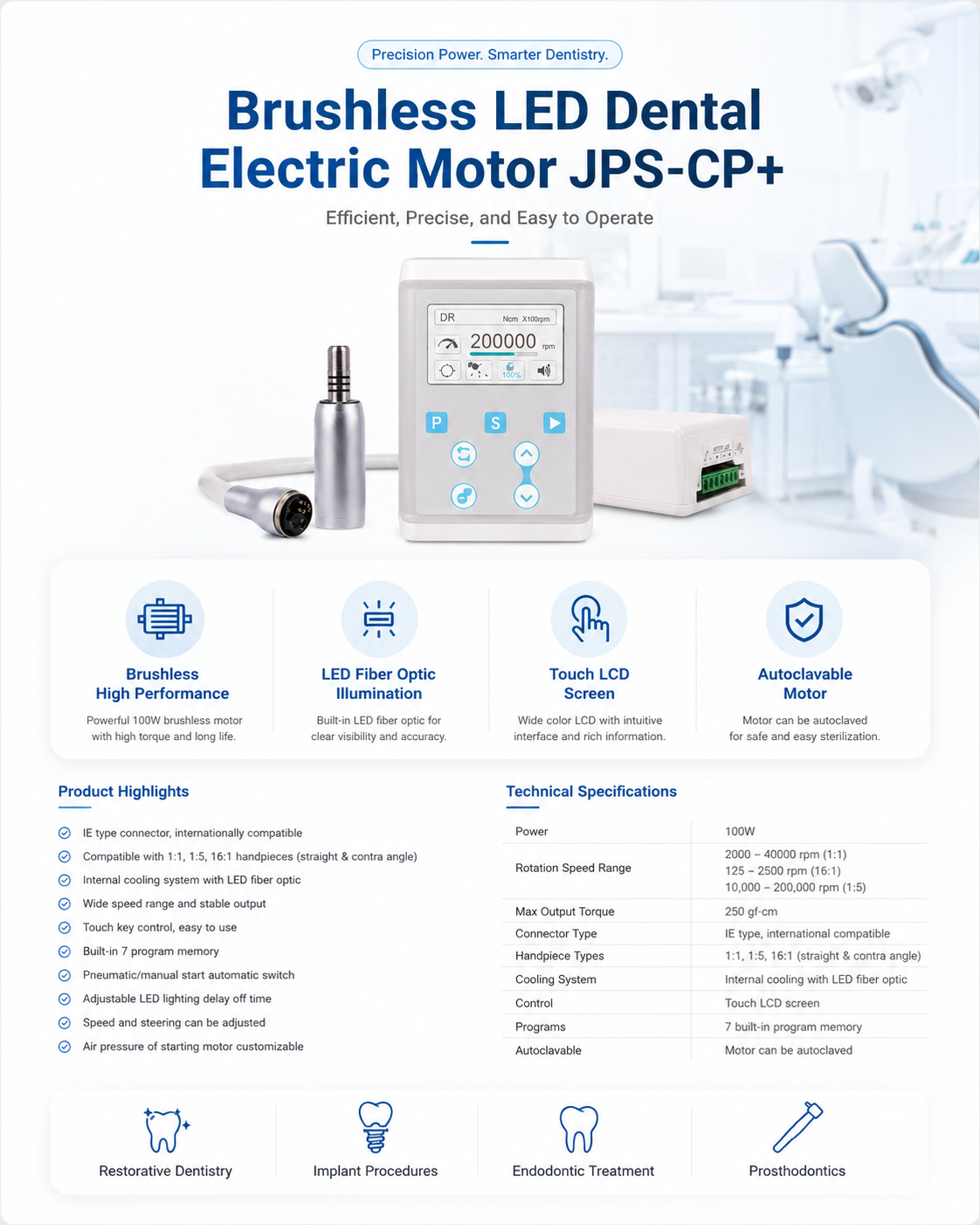

Product Details
Get a Quote for Dental electric motor Brushless LED JPS-CP+
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
