ROSE 3000 Brushless Micromotor
The ROSE 3000 is a brushless dental micromotor with digital step-less speed control up to 40,000 rpm and 250 gf·cm torque. Running on 24V AC/DC at 100 W, it features internal water spray and an ISO-E international connector for broad handpiece compatibility, with both manual and foot control. The motor head is fully autoclavable up to 135 °C for safe, repeatable sterilization.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights
- Brushless power — Step-less digital speed up to 40,000 rpm, 250 gf·cm torque.

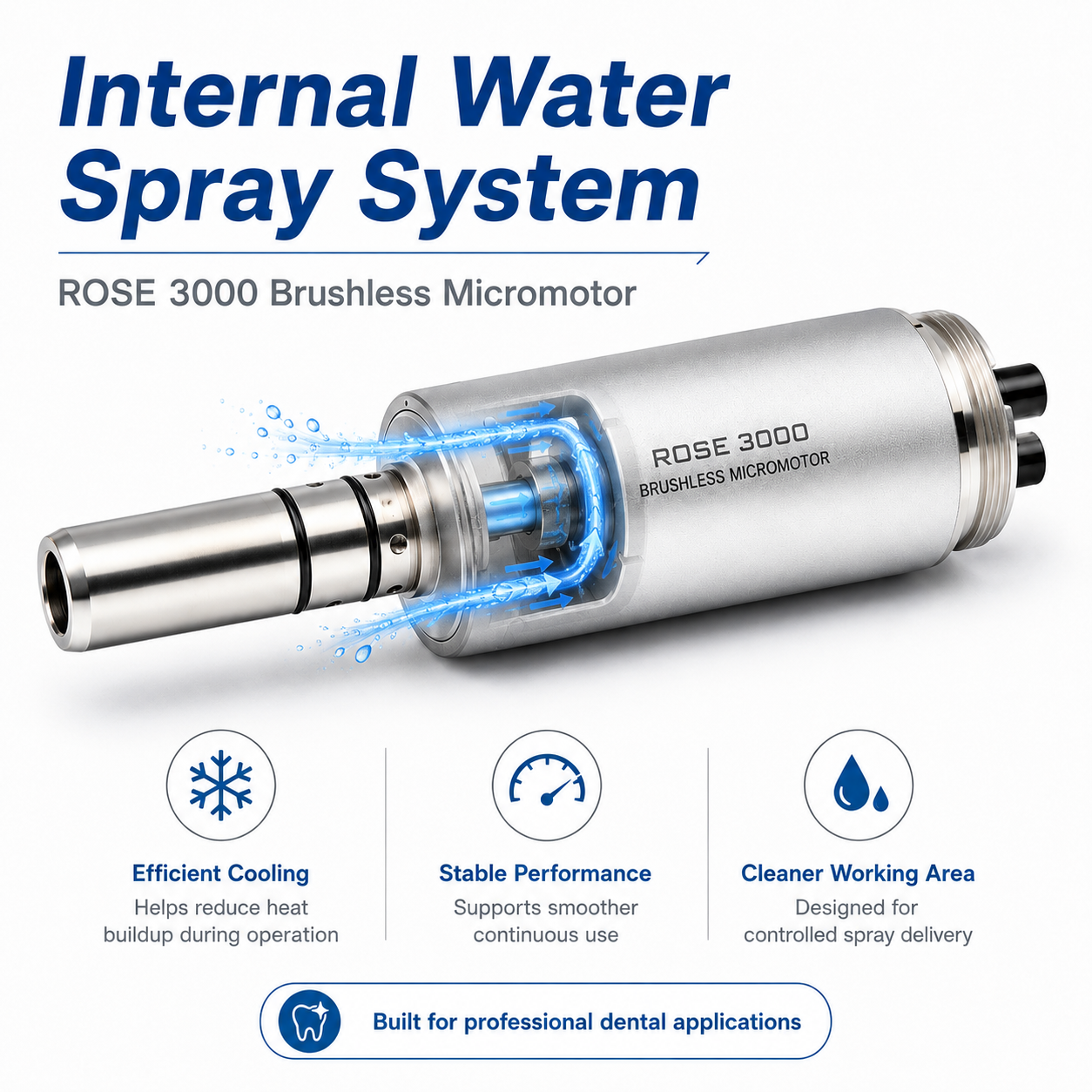

- Internal water spray — Built-in cooling during operation.
- Universal connector — ISO-E international fitting; manual/foot control.
- Autoclavable — Motor sterilizable up to 135 °C.

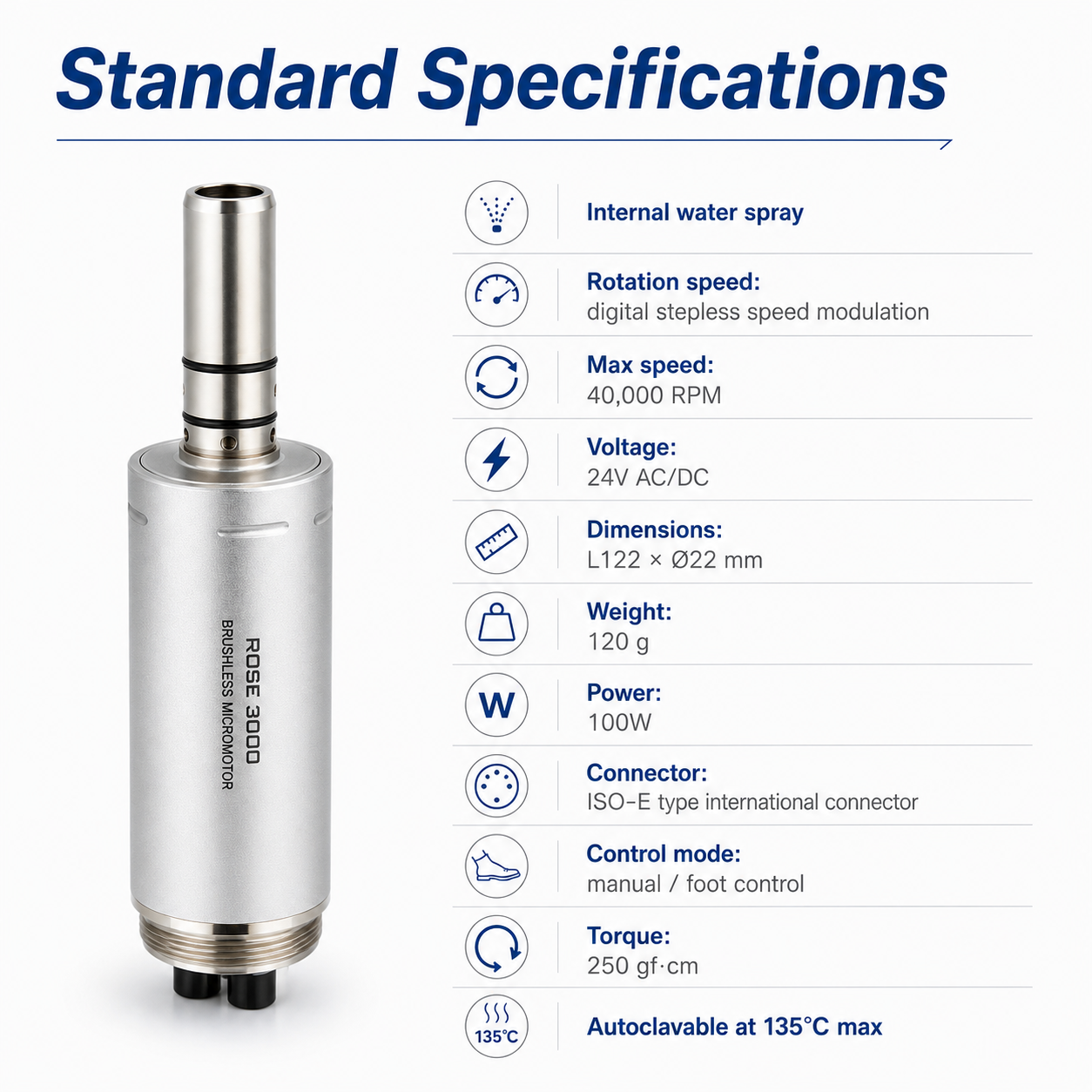

Standard Specifications
| Item | Specification |
|---|---|
| Water spray | Internal |
| Speed control | Digital step-less modulation |
| Top speed | Max 40,000 rpm |
| Voltage | 24V AC/DC |
| Dimensions | L122 × 22 mm |
| Weight | 120 g |
| Power | 100W |
| Connector | ISO-E international |
| Control | Manual / foot control |
| Torque | 250 gf·cm |
| Sterilization | Autoclavable at 135 °C max |

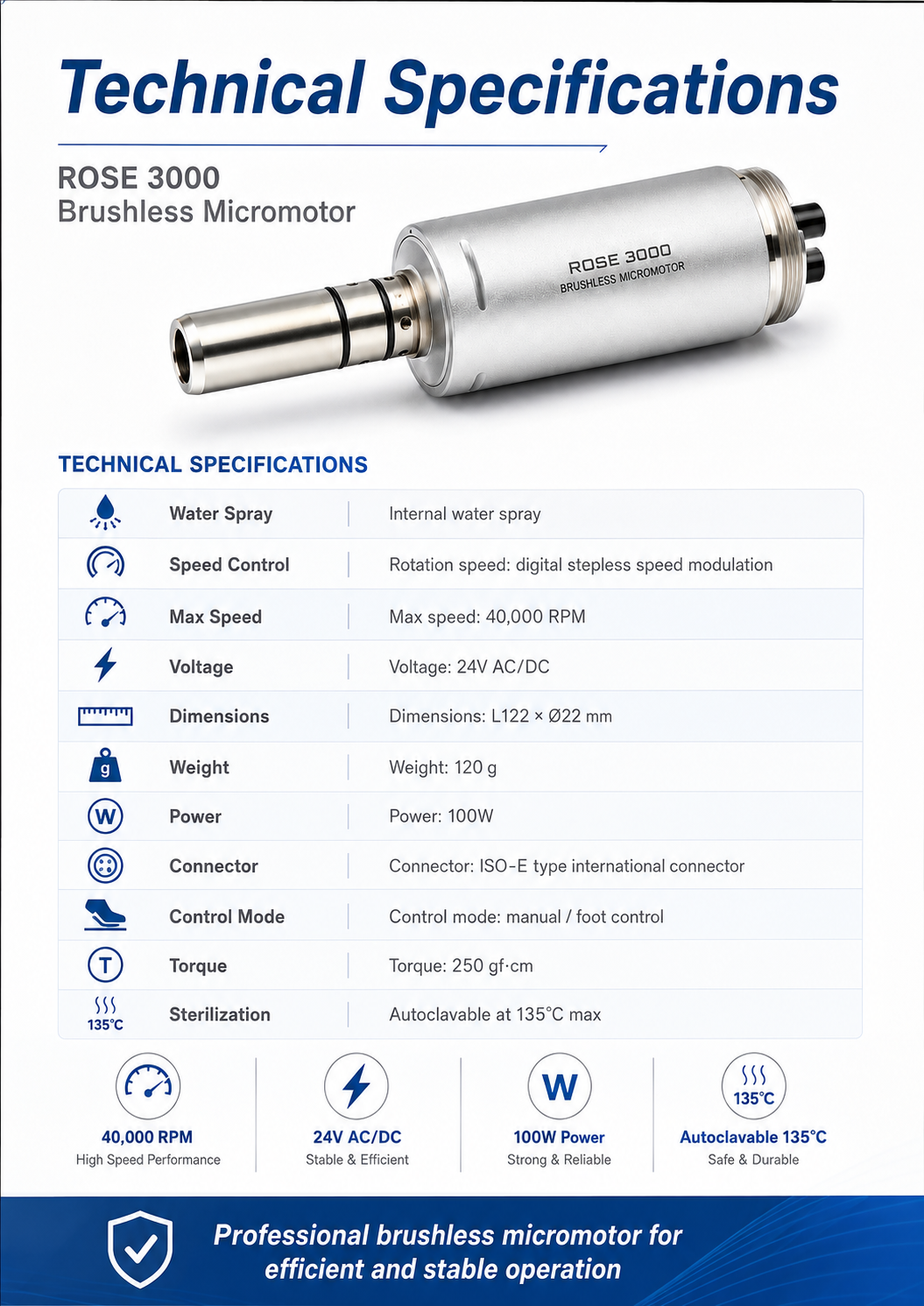

Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Brushless micromotor |
| Top speed | 40,000 rpm |
| Torque | 250 gf·cm |
| Power / voltage | 100 W / 24V AC/DC |
| Connector | ISO-E |
Model: ROSE 3000 · Brushless dental micromotor, 40,000 rpm.
Product Details
Get a Quote for ROSE 3000 Brushless Micromotor
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
