Imaging System

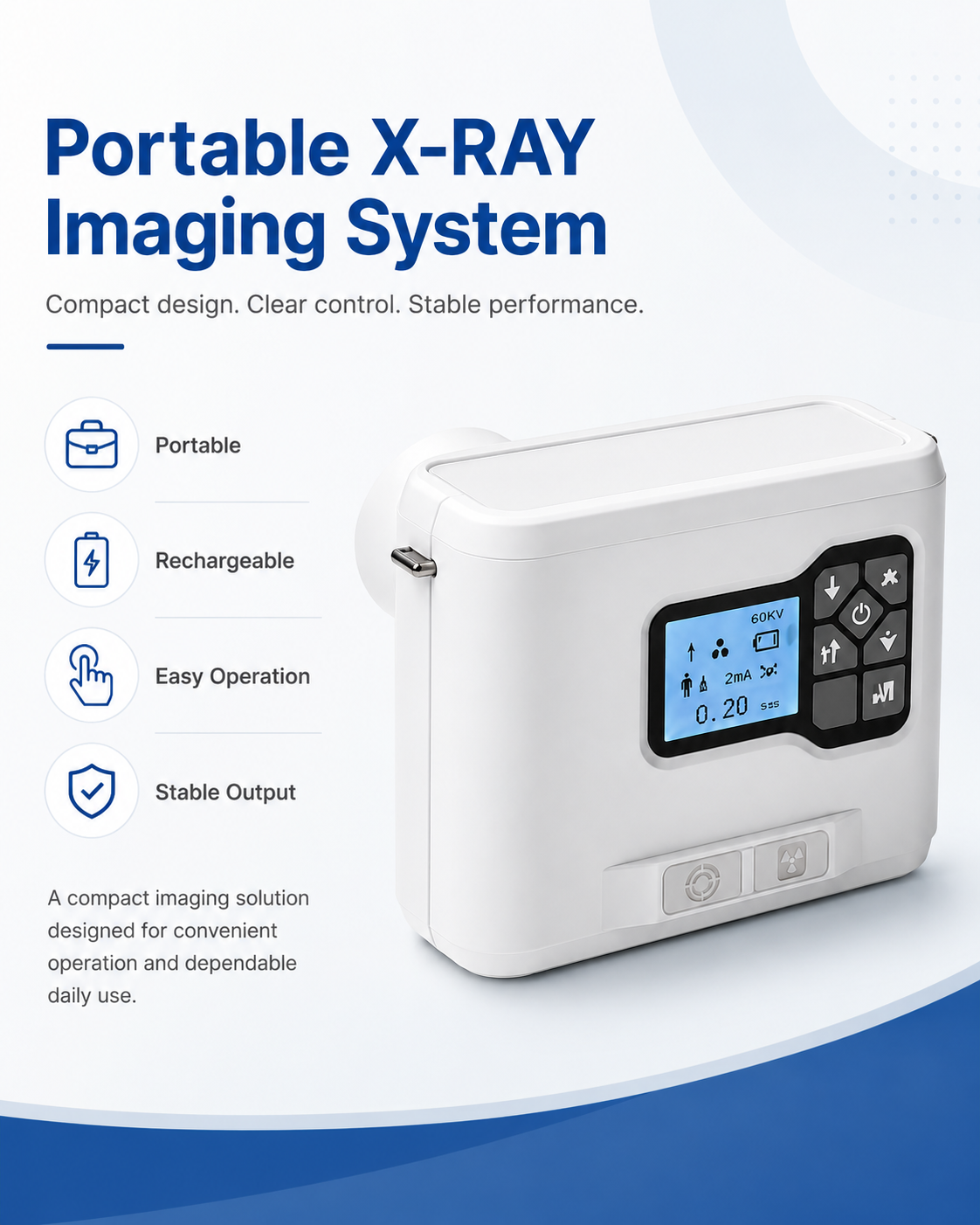

Portable Dental X-ray — Handheld
This handheld portable dental X-ray is a battery-powered intraoral imaging device for chairside, mobile, and field use. Running at 60 kV / 2 mA with a 0.8 mm focal point, it delivers clear intraoral radiographs while keeping leakage radiation within safe limits. A rechargeable 950 mAh battery and a fine-adjustable loading time (0.01–2.00 s) make it convenient and precise wherever it's needed.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

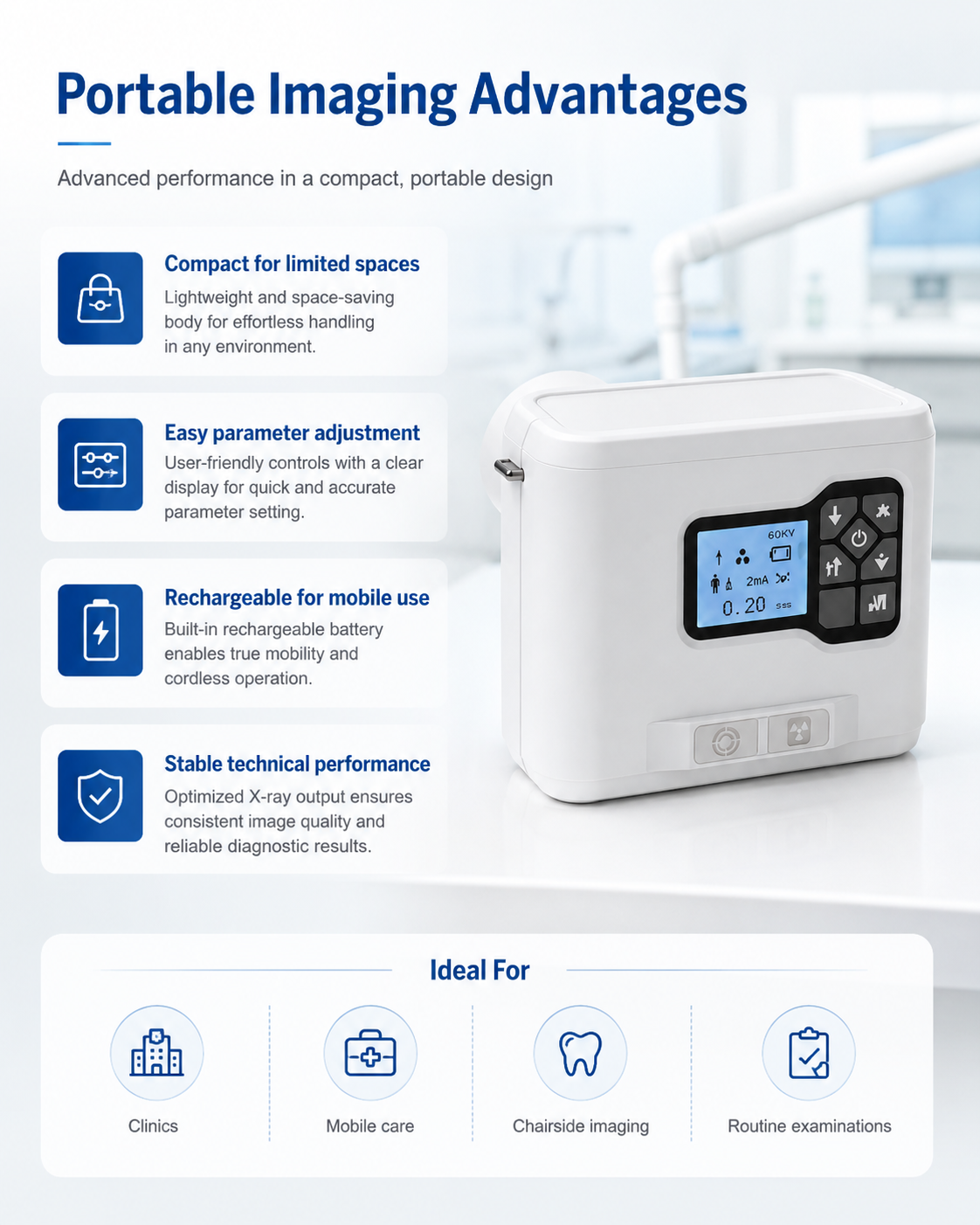

Key Highlights

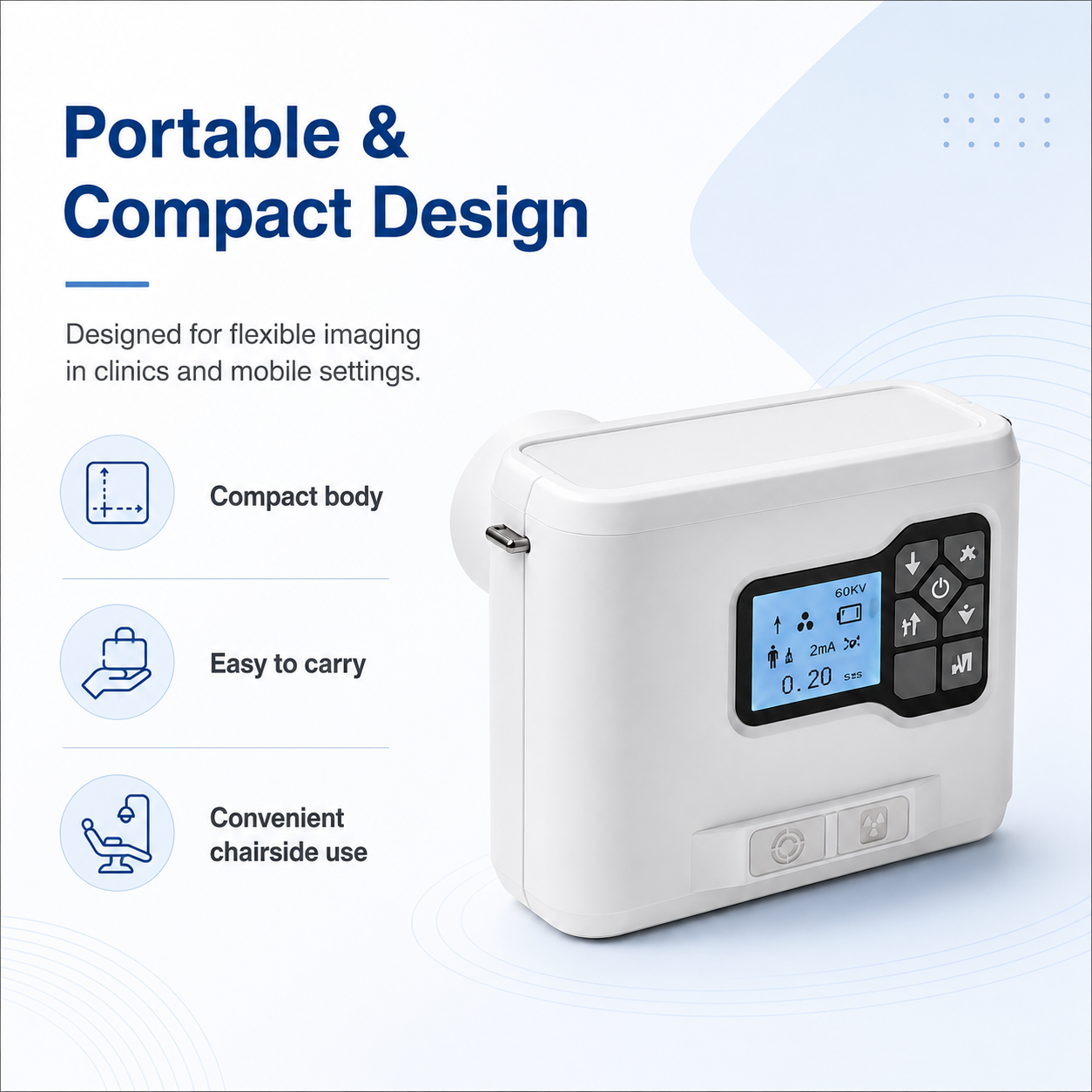

- Truly portable — Lightweight handheld design for chairside, mobile, and field radiography.

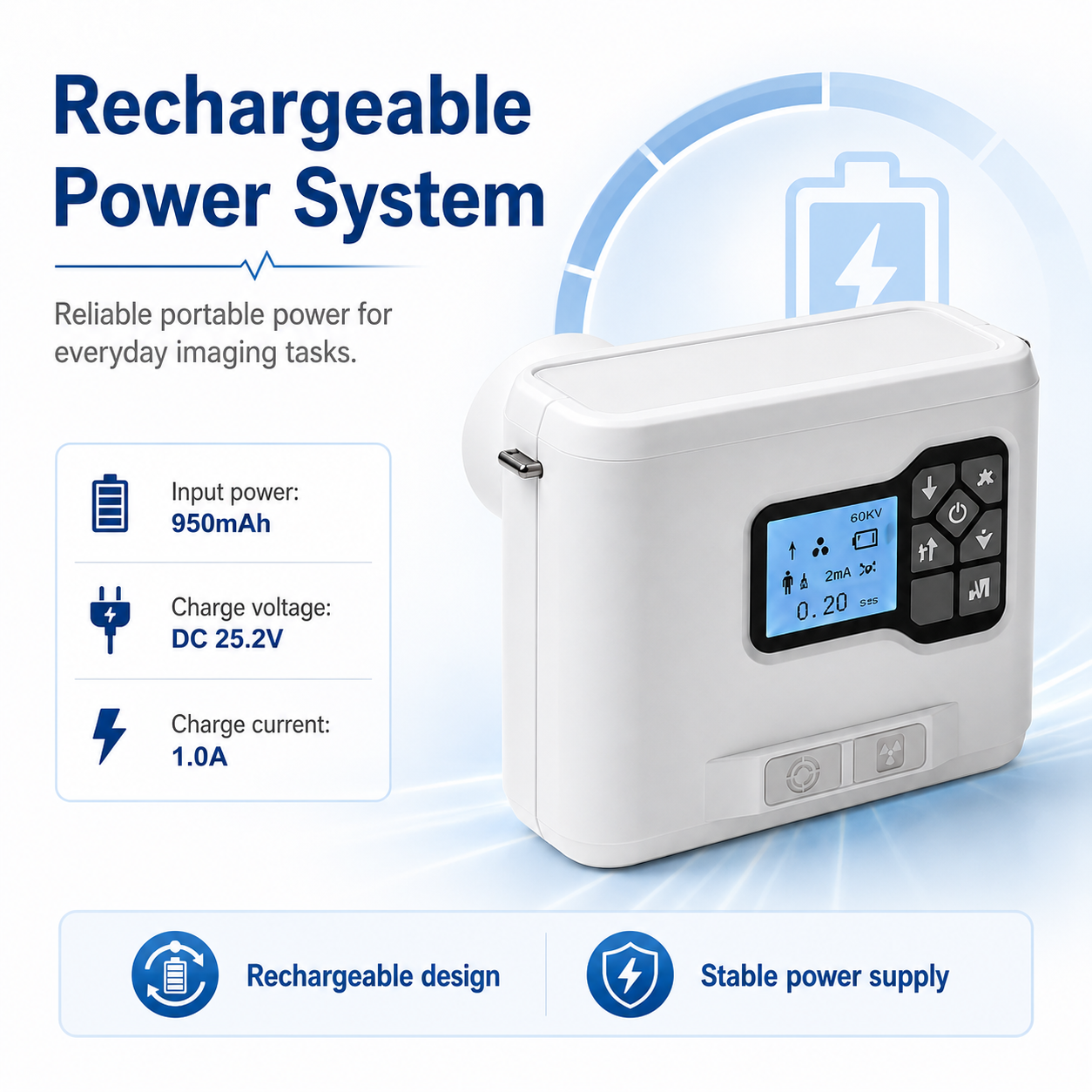

- Battery-powered — Rechargeable 950 mAh battery (DC 25.2V charging).
- Precise exposure — Loading time finely adjustable from 0.01 to 2.00 s.

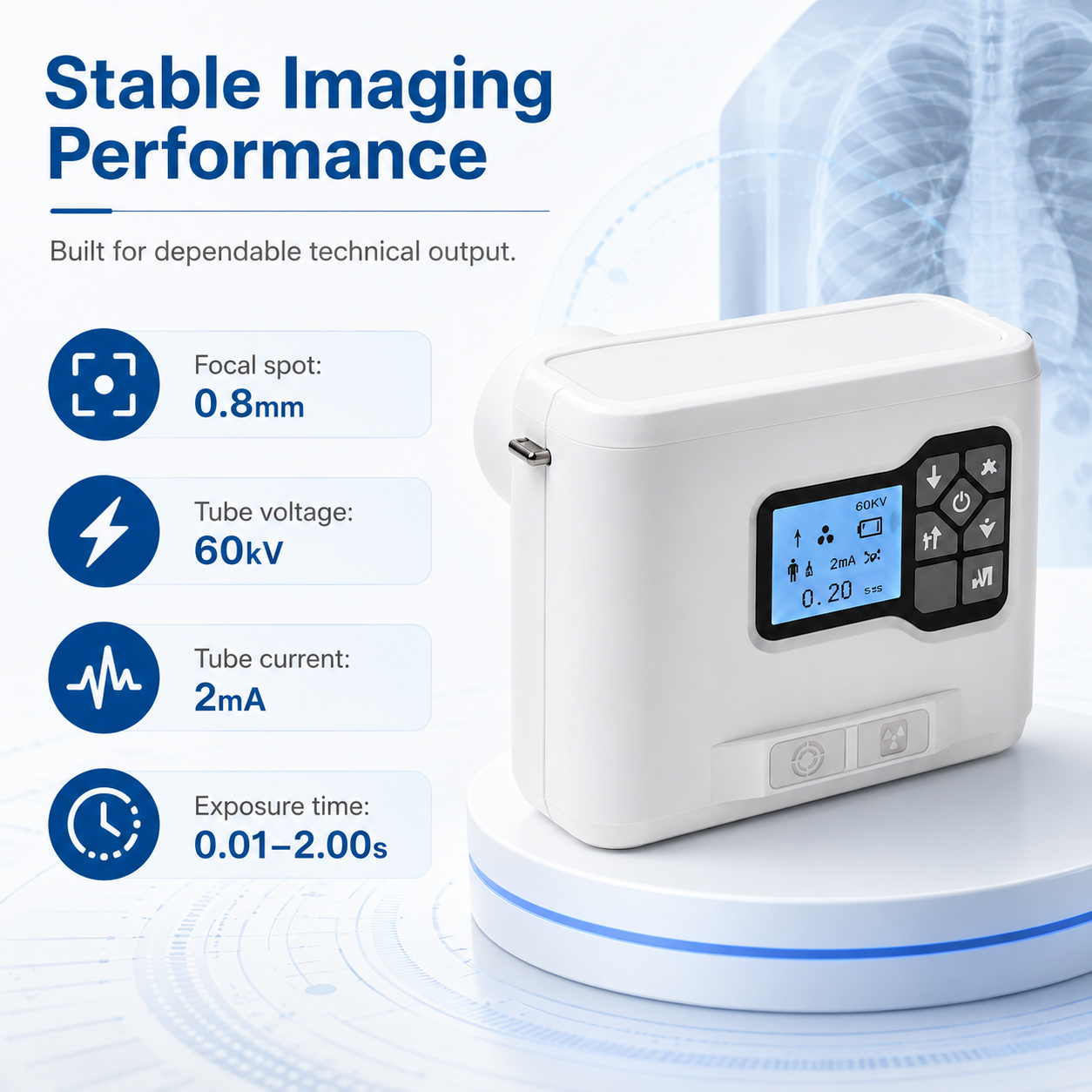

- Clear imaging — 60 kV / 2 mA with a 0.8 mm focal point.
- Safe — Leakage radiation ≤ 0.25 mGy/h (60 kV, 2 mA, load 2 s/60 s).

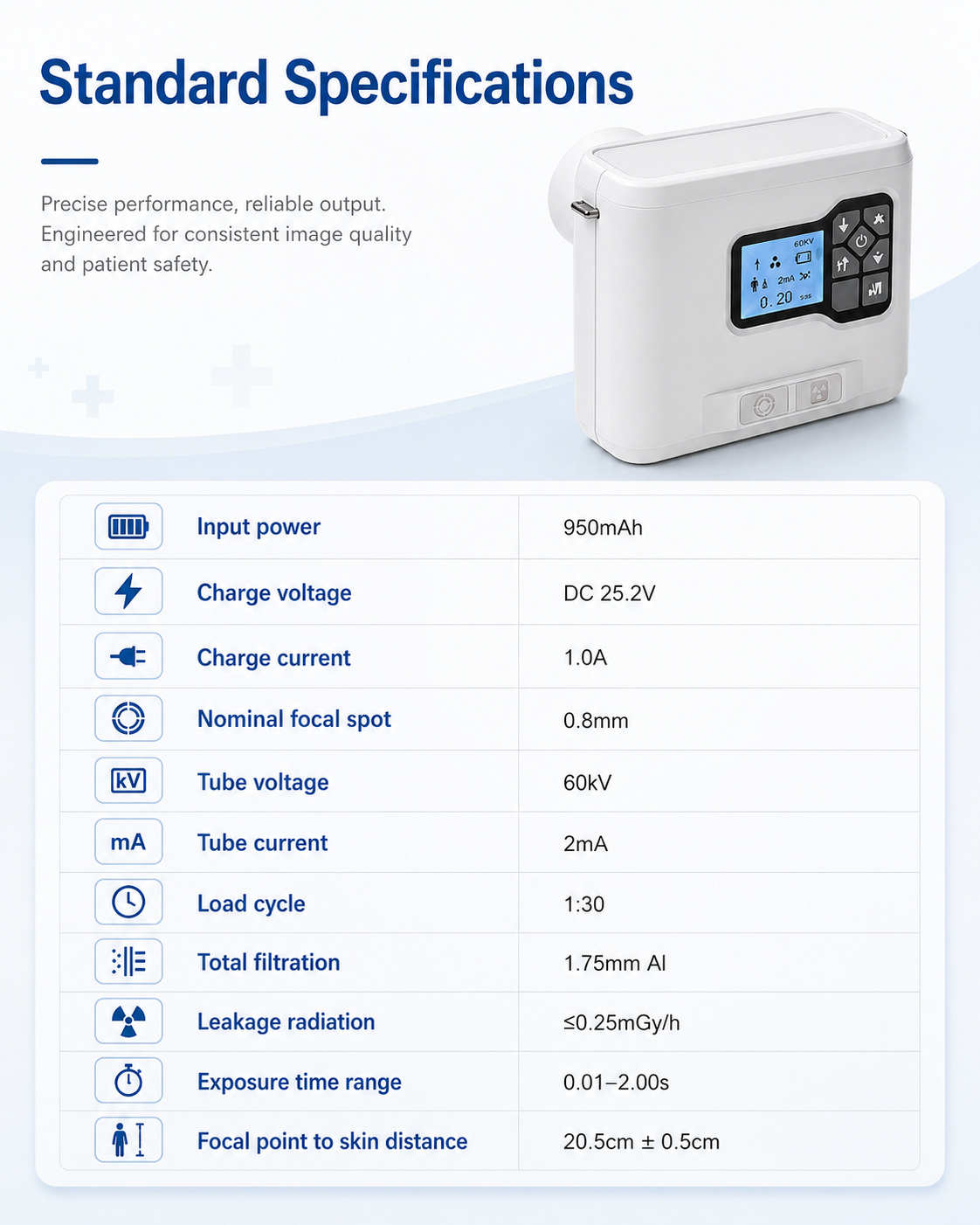

Standard Specifications
| Item | Specification |
|---|---|
| Input power | 950 mAh |
| Charge voltage | DC 25.2V |
| Charge current | 1.0A |
| Focal point | 0.8 mm |
| Tube voltage | 60 kV (±10%) |
| Tube current | 2 mA (±20%) |

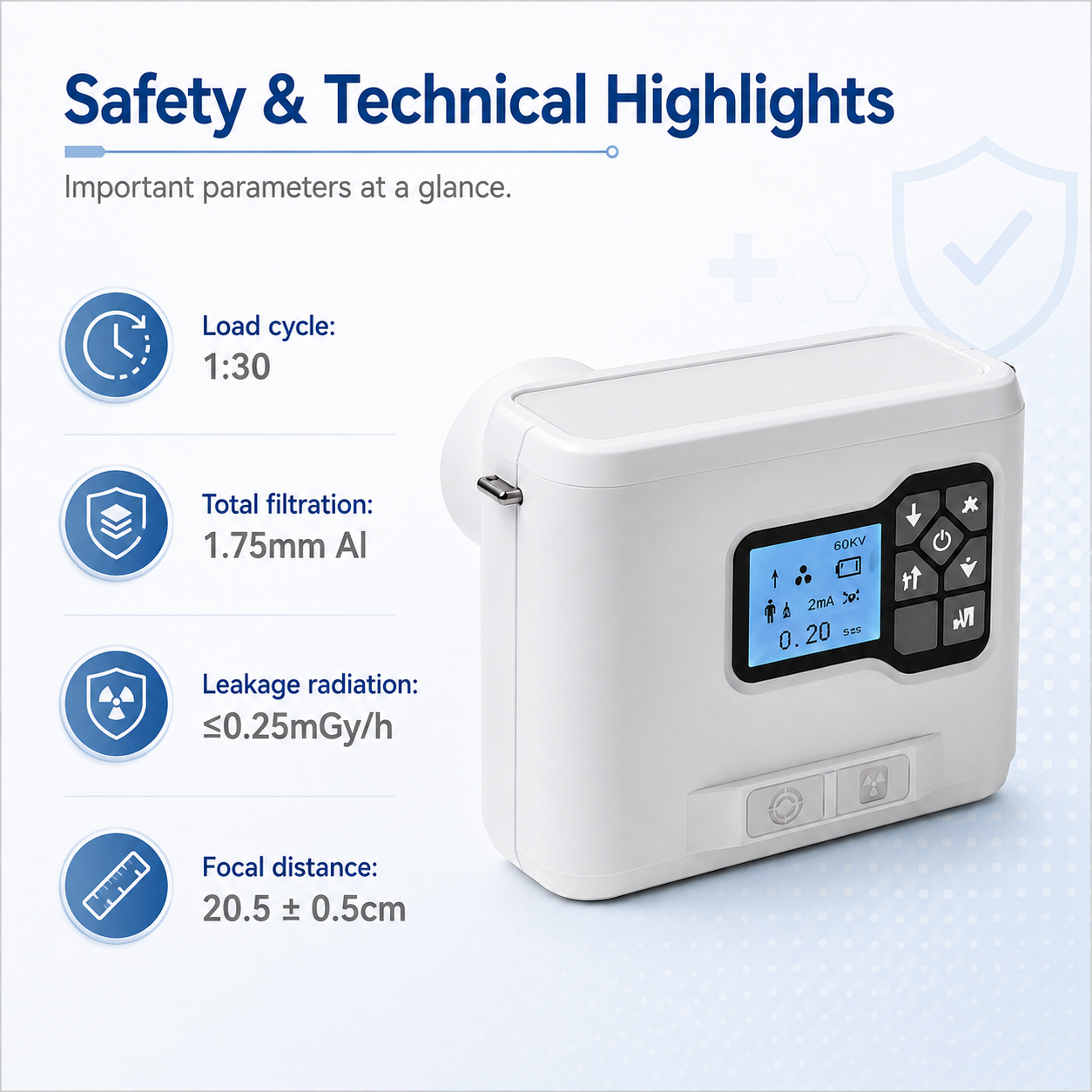

| Load cycle | 1:30 |
| Total filtration | 1.75 mm Al |
| Leakage radiation | ≤ 0.25 mGy/h (60 kV, 2 mA, 2 s, load 2 s/60 s) |
| Loading time range | 0.01–2.00 s |
| Focal point to skin | 20.5 cm ± 0.5 cm (0–5%) |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Handheld portable intraoral X-ray |
| Power | Rechargeable 950 mAh battery |
| Tube | 60 kV / 2 mA |
| Focal point | 0.8 mm |
| Filtration | 1.75 mm Al |
| Loading time | 0.01–2.00 s |
| Focal-to-skin | 20.5 cm ± 0.5 cm |
Product: Portable X-RAY · Handheld battery-powered dental X-ray.
Product Details
Get a Quote for Portable X-RAY
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
