Imaging System
Digital Intraoral X-ray Sensor — 500A / 600A
This digital intraoral X-ray sensor delivers sharp, instant radiographs using a CMOS APS chip with a fiber-optic plate and GOS scintillator. Available in two sizes — the 500A (size 1) and 600A (size 2) — it offers an 18.5 µm pixel size and high-resolution imaging, with a theoretical resolution of 27 lp/mm. The USB sensor runs on Windows 7/10 and is compatible with leading imaging software including KODAK, SIRONA, and SCHICK.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

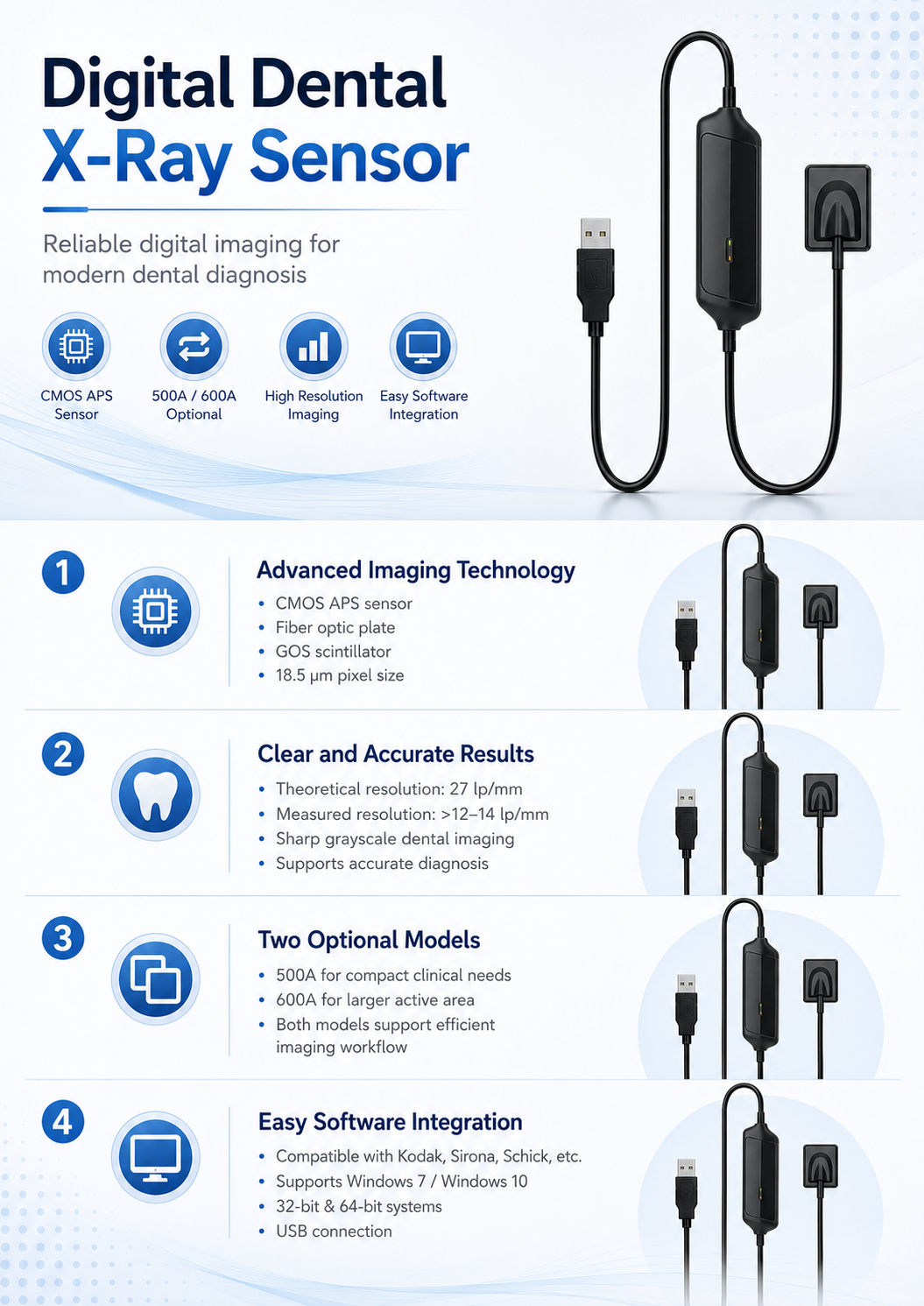

Key Highlights

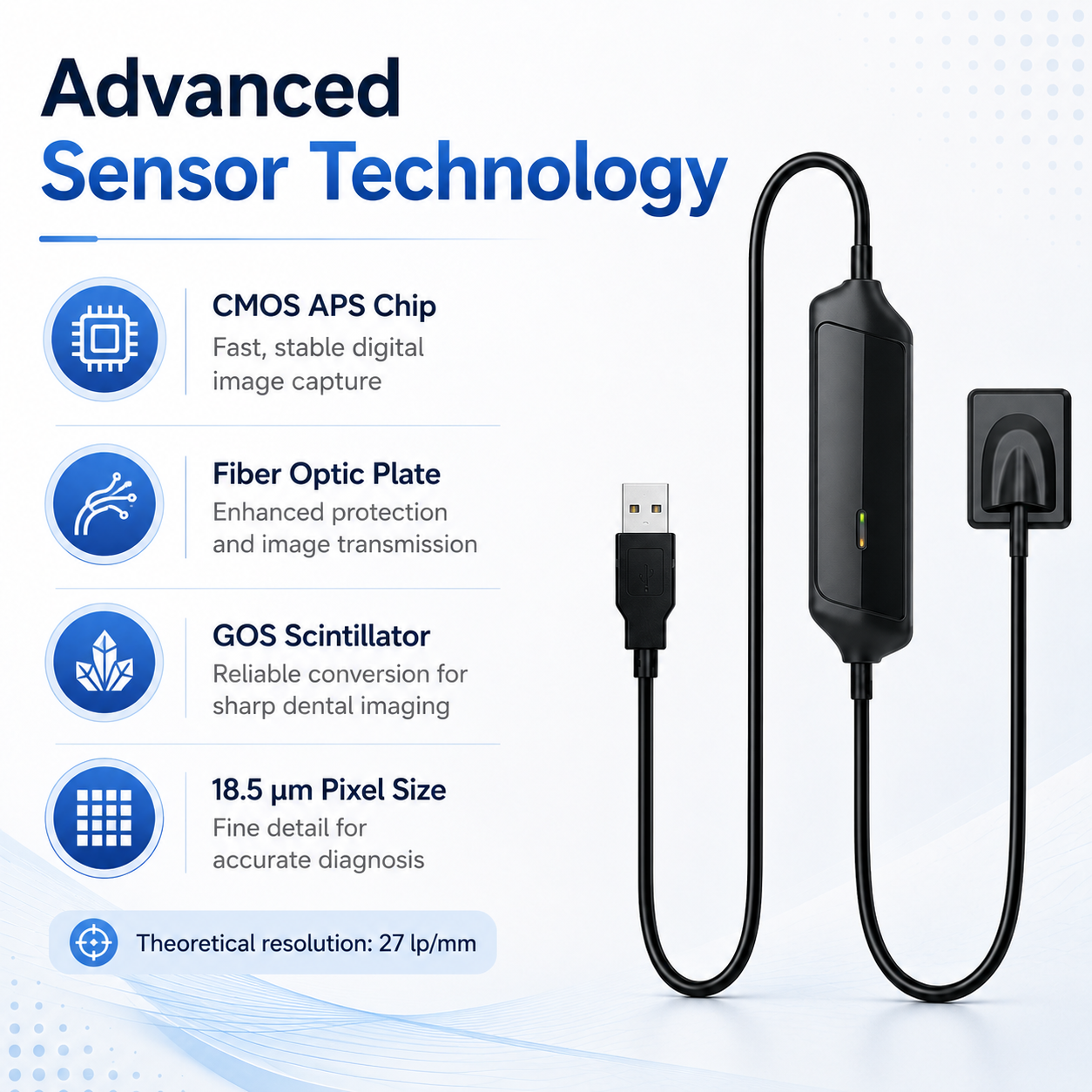

- Sharp CMOS imaging — CMOS APS chip with fiber-optic plate and GOS scintillator for clear images.

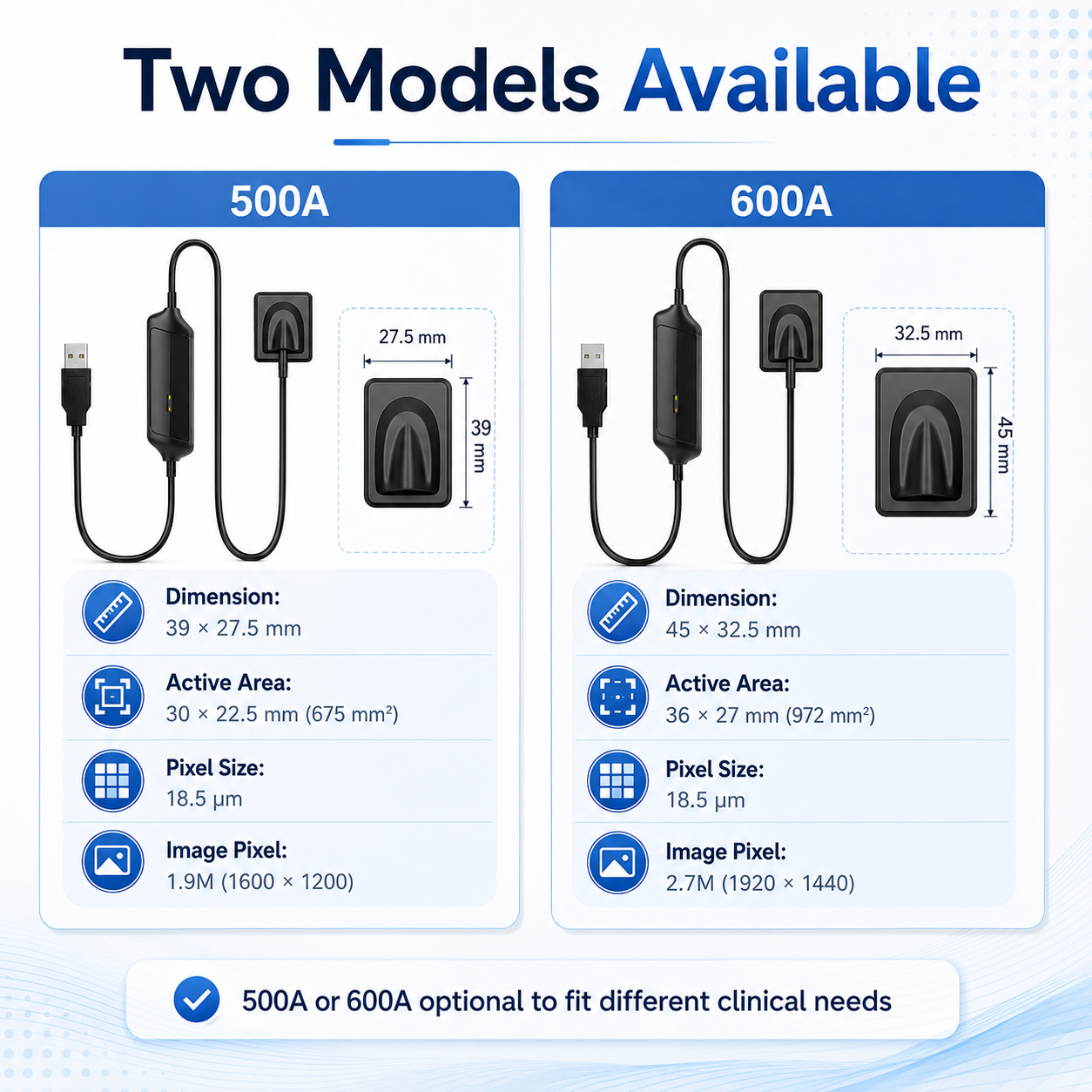

- Two sizes — 500A (size 1) and 600A (size 2), optional to suit different patients.

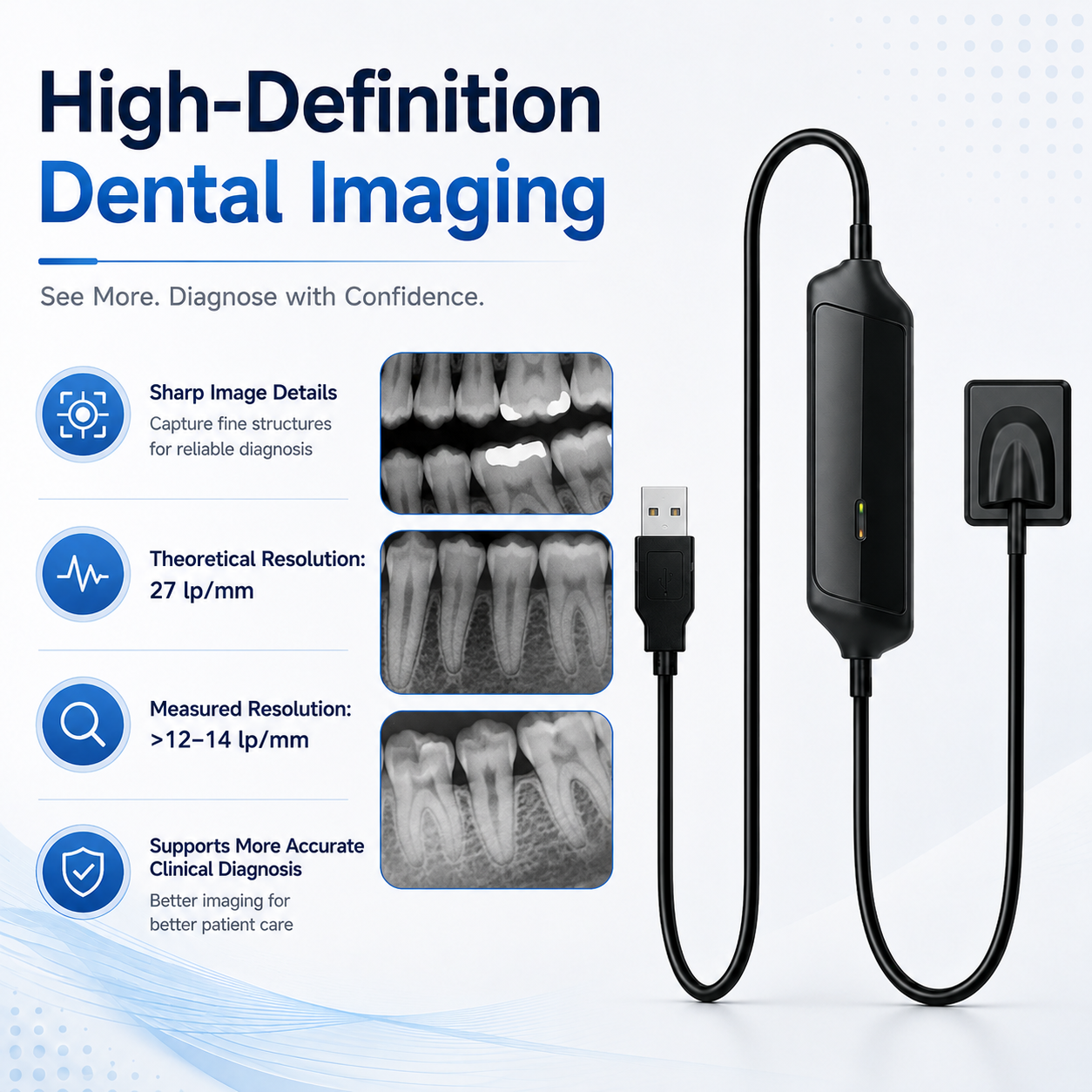

- Fine detail — 18.5 µm pixel size; theoretical resolution 27 lp/mm (measured >12–14 lp/mm).
- Plug-and-play USB — Runs on Windows 7/10 (32-bit & 64-bit).

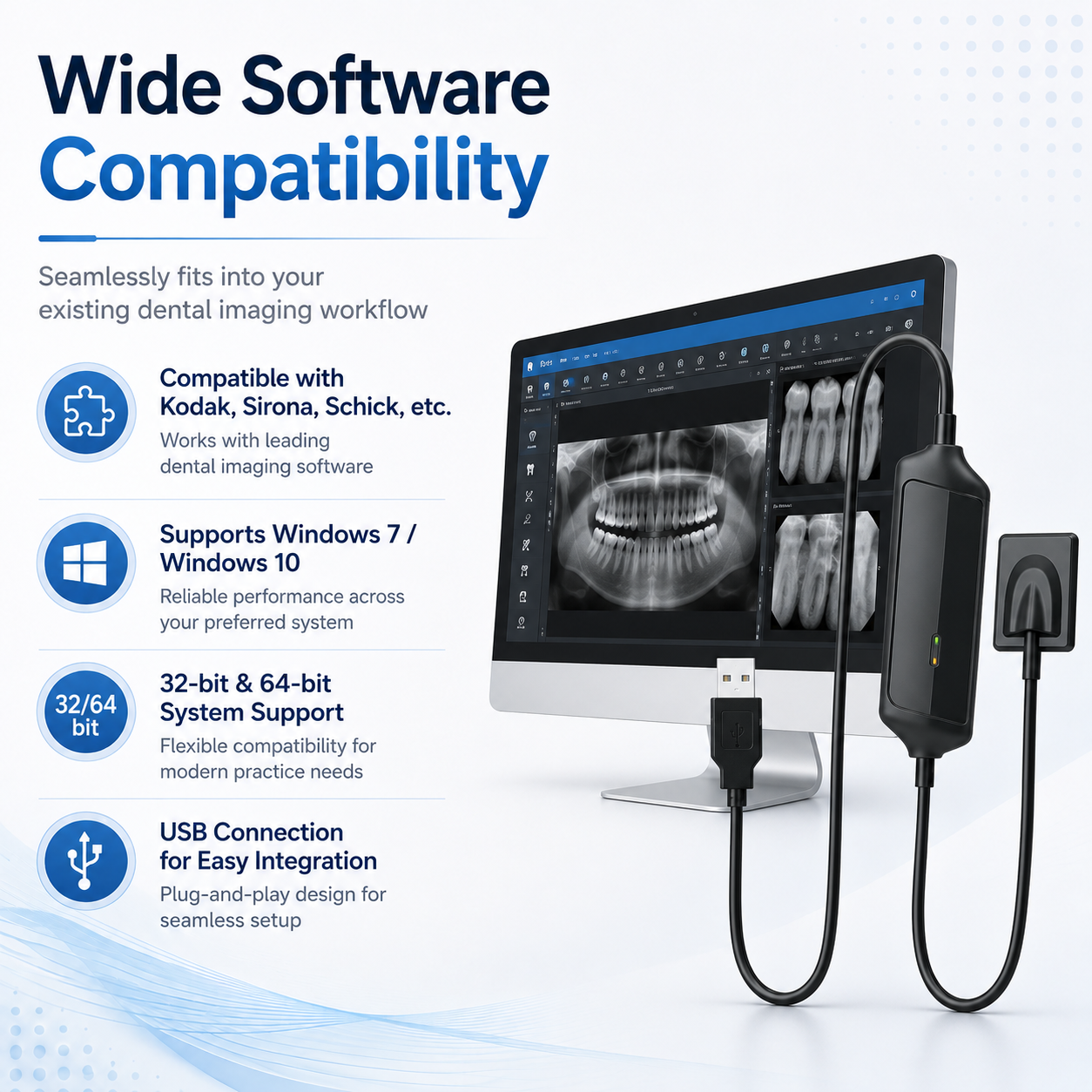

- Broadly compatible — Works with KODAK, SIRONA, SCHICK, and other imaging software.

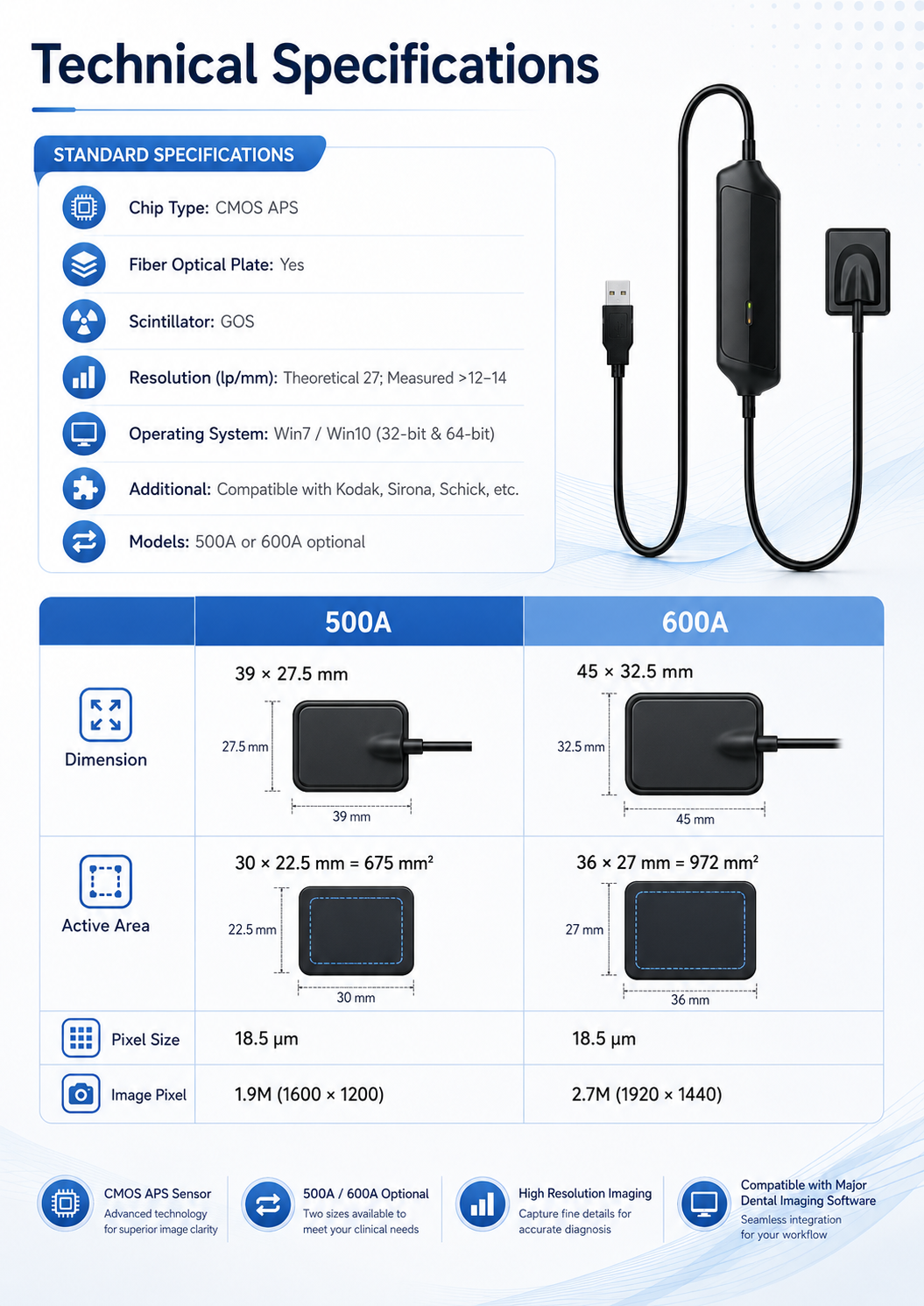

Standard Specifications
| Item | Specification |
|---|---|
| Chip type | CMOS APS |
| Fiber-optic plate | Yes |
| Scintillator | GOS |
| 500A dimension | 39 × 27.5 mm |
| 500A active area | 30 × 22.5 mm (675 mm²) |
| 500A image pixel | 1.9 M (1600 × 1200) |
| 600A dimension | 45 × 32.5 mm |
| 600A active area | 36 × 27 mm (972 mm²) |
| 600A image pixel | 2.7 M (1920 × 1440) |
| Pixel size | 18.5 µm |
| Resolution | 27 lp/mm theoretical (>12–14 lp/mm measured) |
| Operating system | Win 7 / Win 10 (32 & 64-bit) |
| Software compatibility | KODAK, SIRONA, SCHICK, etc. |
Technical Parameters
| Parameter | Specification |
|---|---|
| Sensor type | CMOS APS, fiber-optic plate, GOS scintillator |
| Models | 500A (size 1) / 600A (size 2) |
| Pixel size | 18.5 µm |
| 500A resolution | 1.9 M (1600 × 1200) |
| 600A resolution | 2.7 M (1920 × 1440) |
| Interface | USB |
| OS | Windows 7 / 10 |
Product: Digital Intraoral X-ray Sensor · 500A / 600A.
