AX-88 Laser Pin (Pindex Drilling Machine)

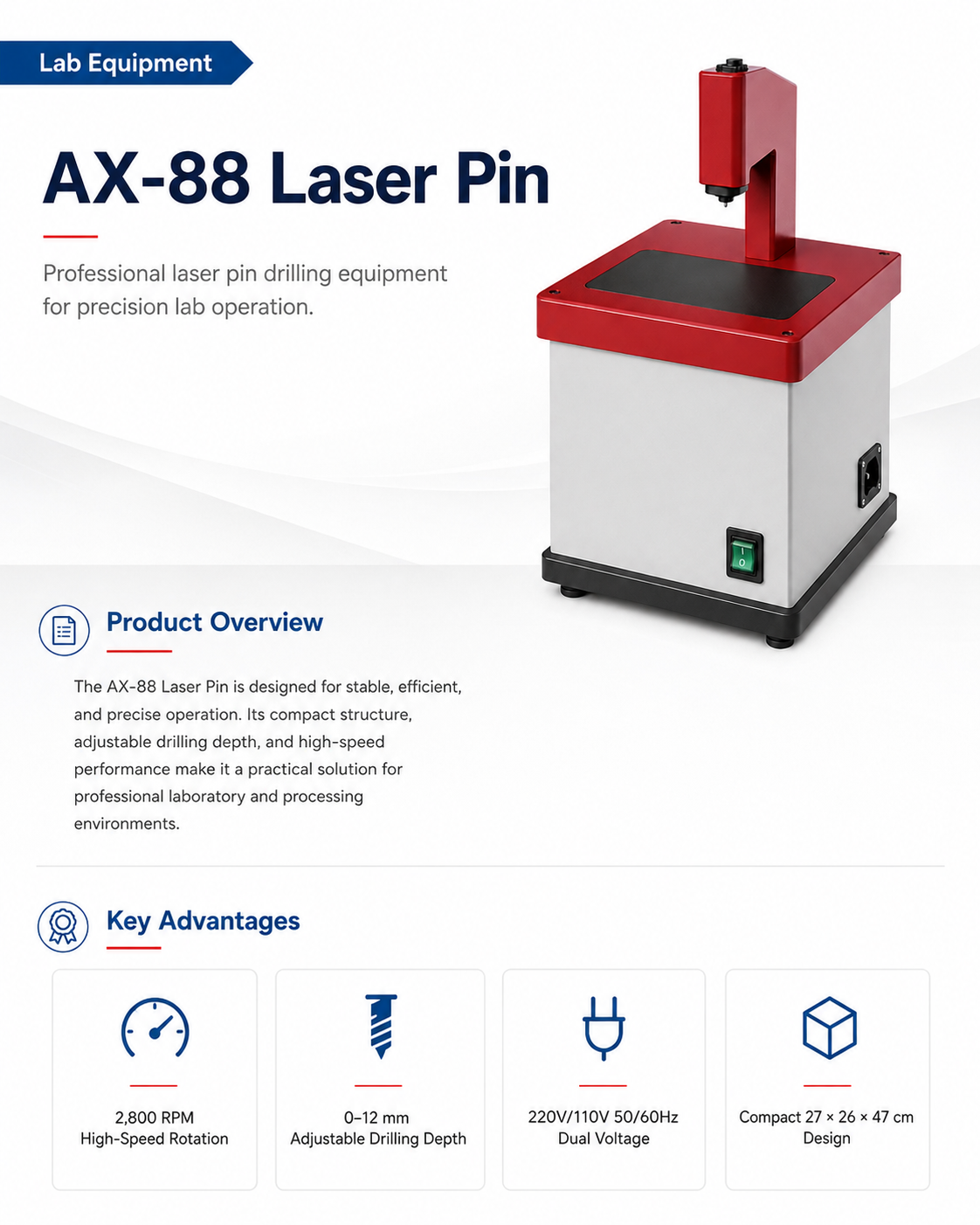

The AX-88 is a laser-guided pin drilling machine (pindex) for accurate dowel-pin placement in dental cast work. A laser pointer marks the exact drill position while a 2,800 rpm spindle bores clean holes to an adjustable 0–12 mm depth. Compact at 27×26×47 cm and 14 kg, it runs on universal 220V/110V power for everyday lab use.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

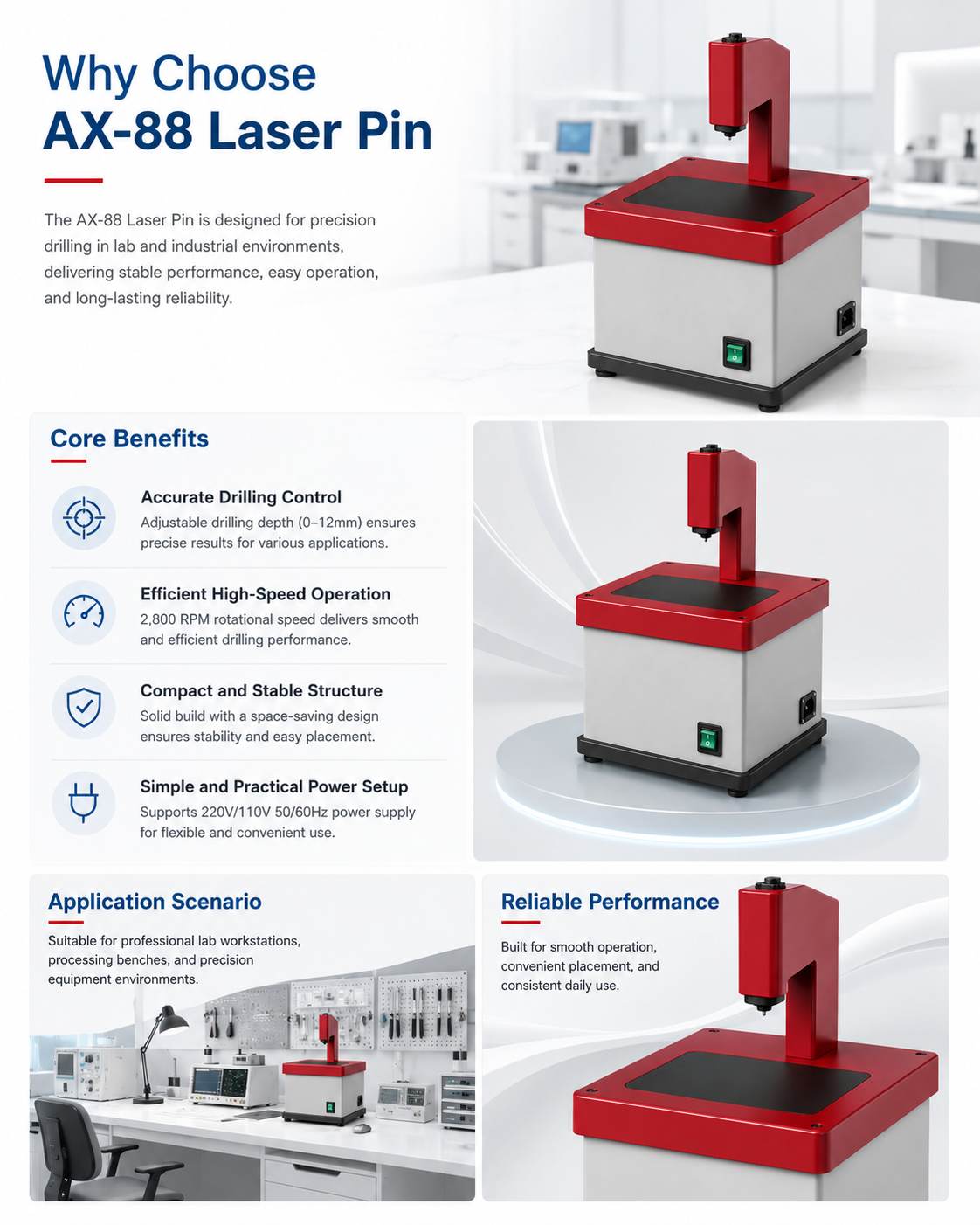

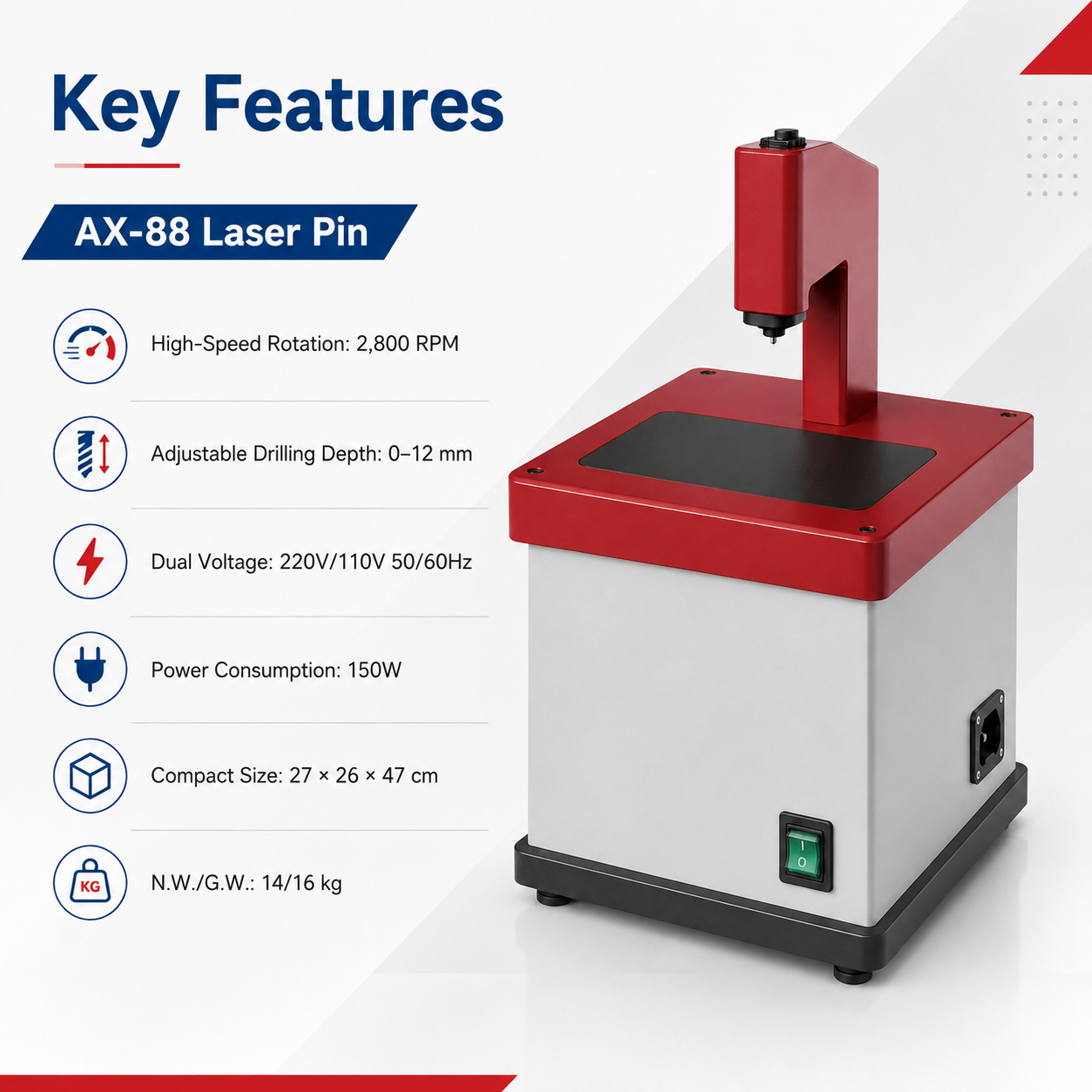

Key Highlights
- Laser-guided — Precise pin-hole positioning via laser pointer.

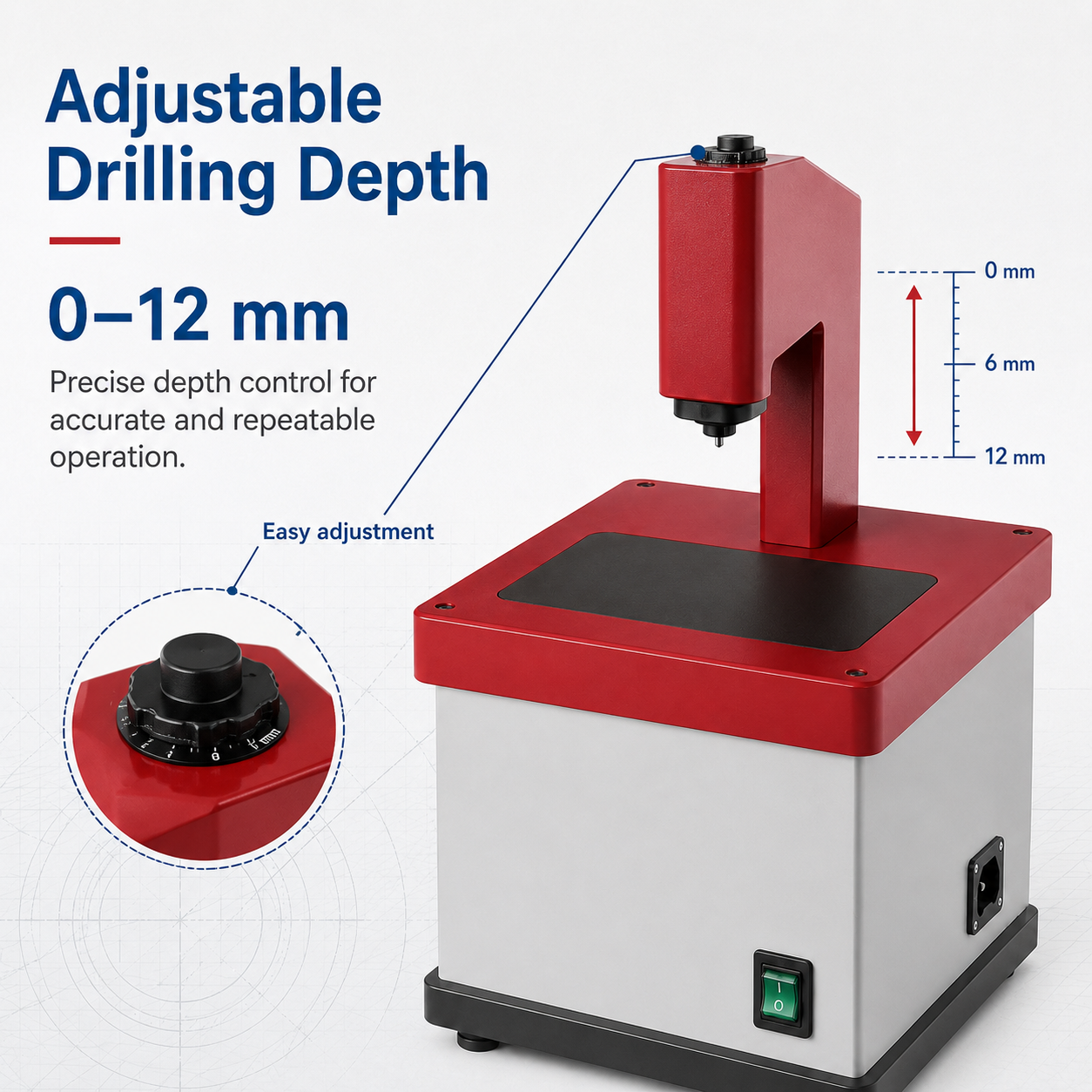

- Adjustable depth — 0–12 mm drilling depth.

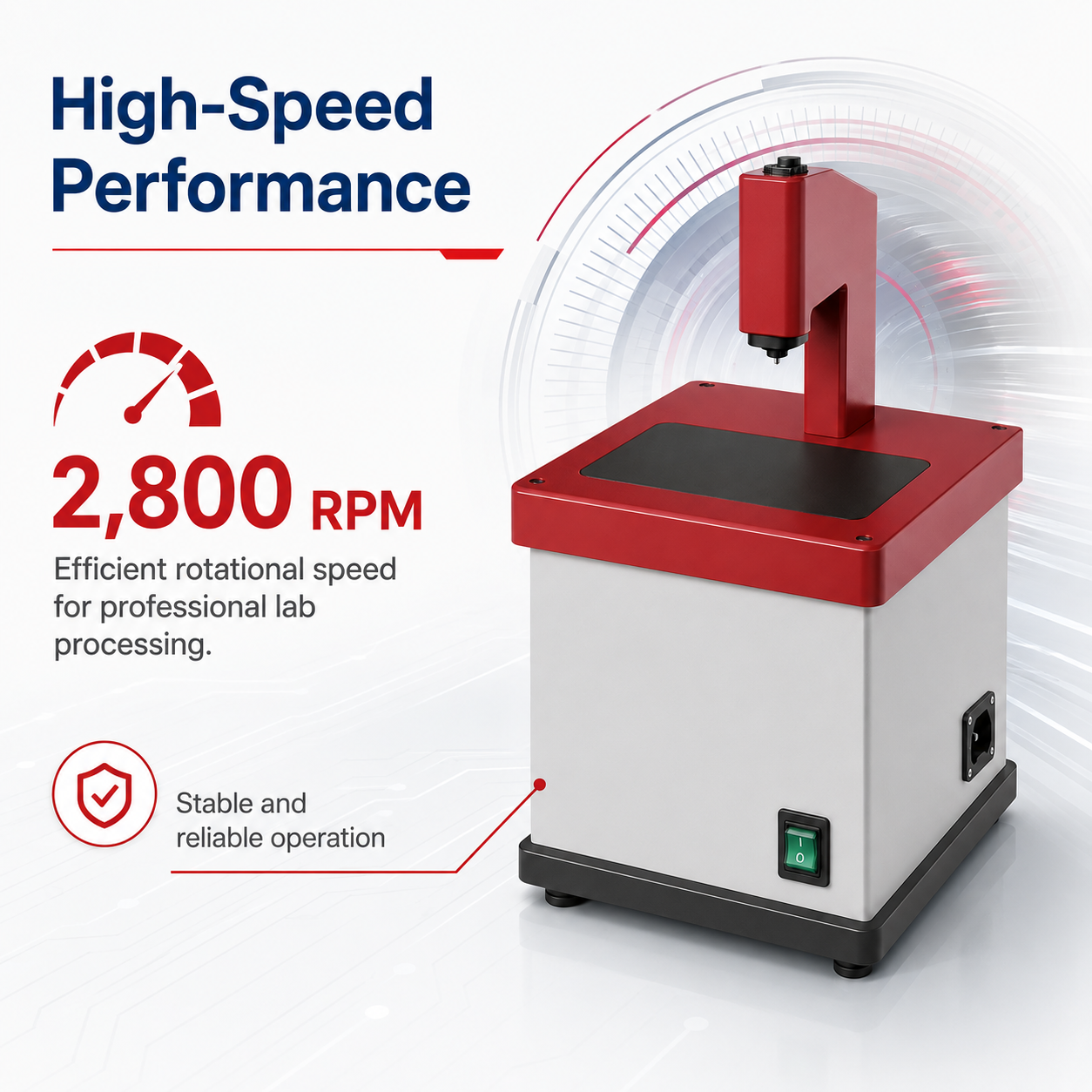

- Fast & accurate — 2,800 rpm spindle.

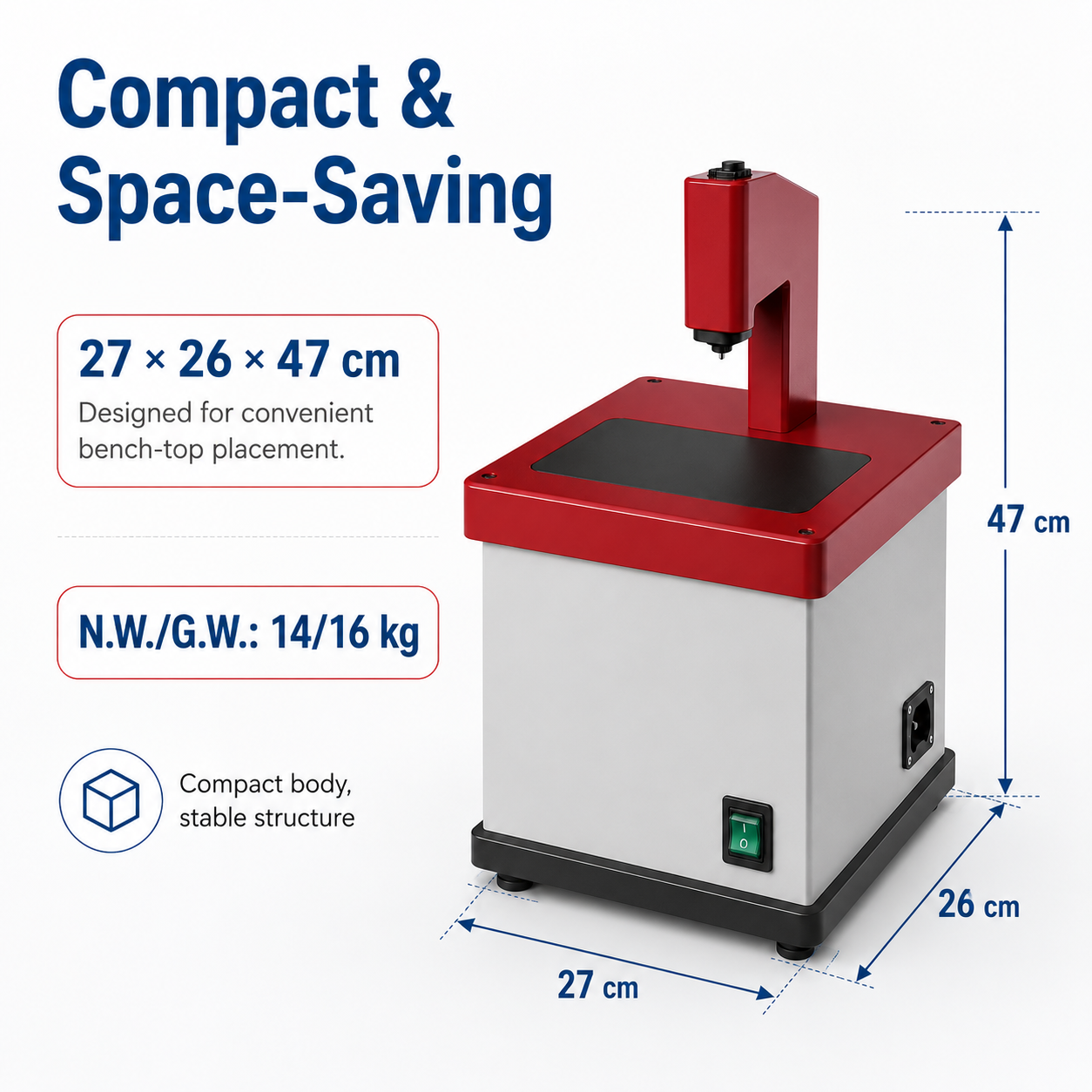

- Compact — 27×26×47 cm, 14 kg; universal power.

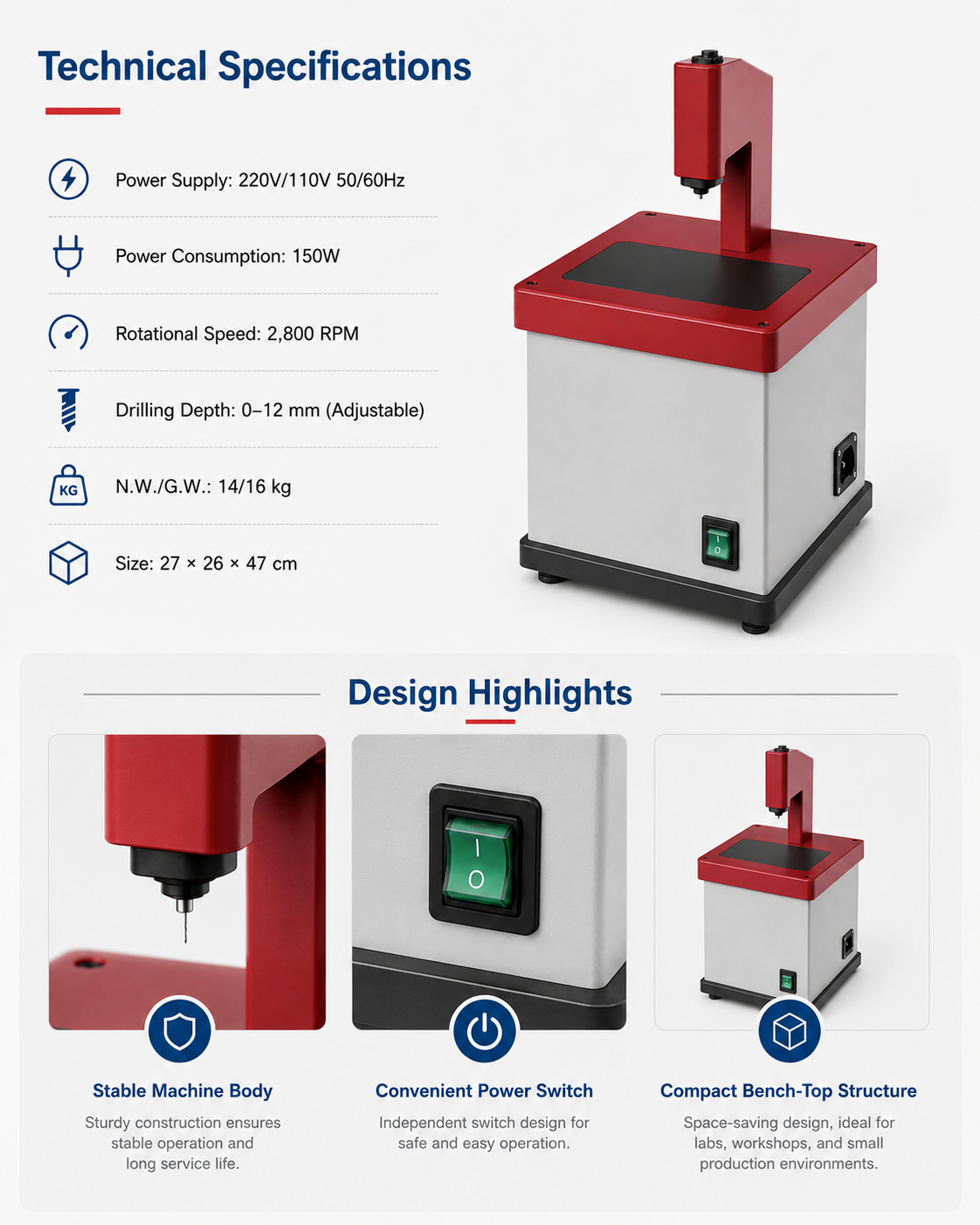

Standard Specifications
| Item | Specification |
|---|---|

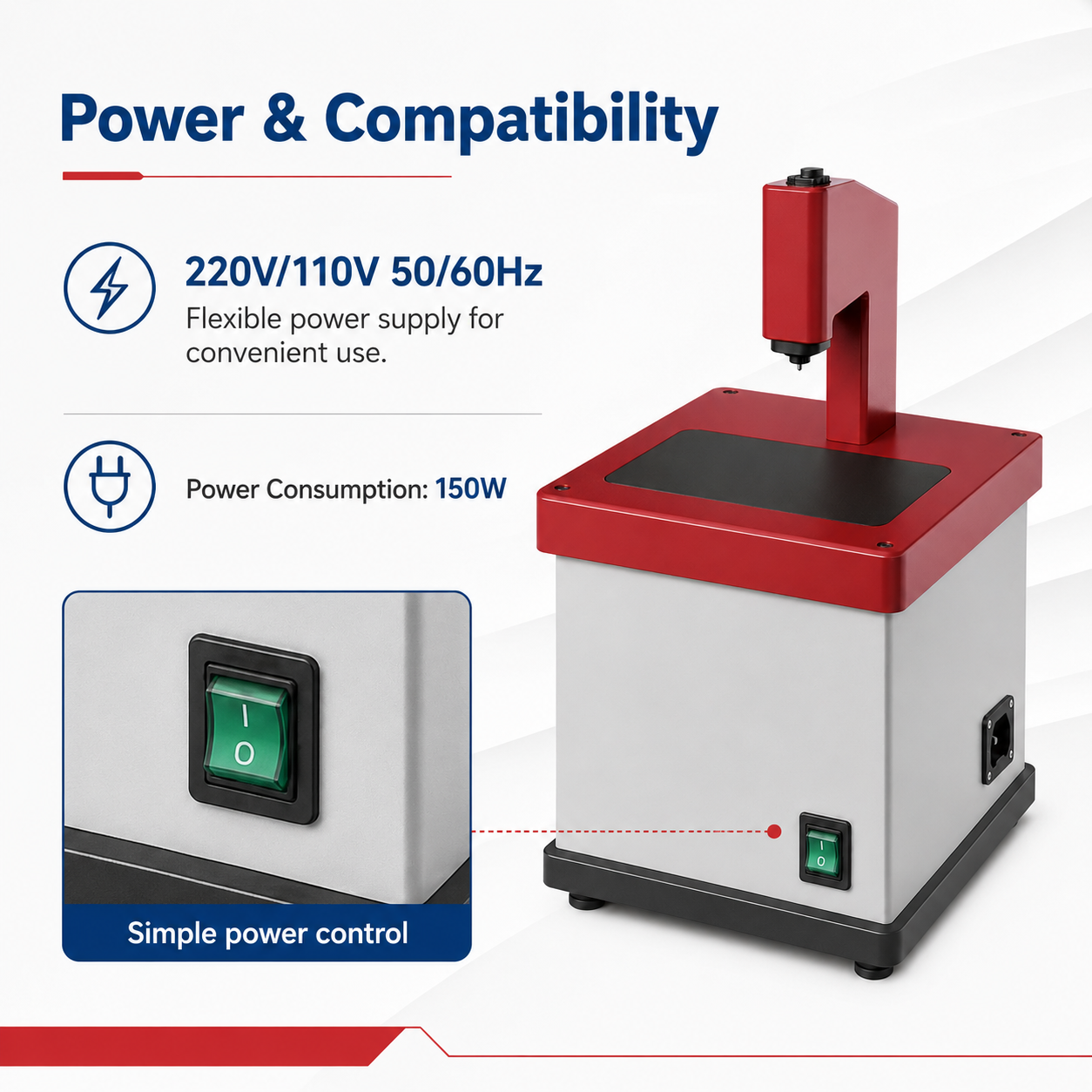

| Power supply | 220V/110V, 50/60Hz |
| Power consumption | 150W |
| Rotational speed | 2,800 rpm |
| Drilling depth | 0–12 mm (adjustable) |
| Net / gross weight | 14 / 16 kg |
| Size | 27 × 26 × 47 cm |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Laser pin (pindex) drilling machine |
| Power | 150 W |
| Speed | 2,800 rpm |
| Depth | 0–12 mm adjustable |
| Guidance | Laser pointer |
Model: AX-88 · Laser-guided dental pin drilling machine.
Product Details
Get a Quote for AX-88 Laser Pin
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
