Oil-free Compressor

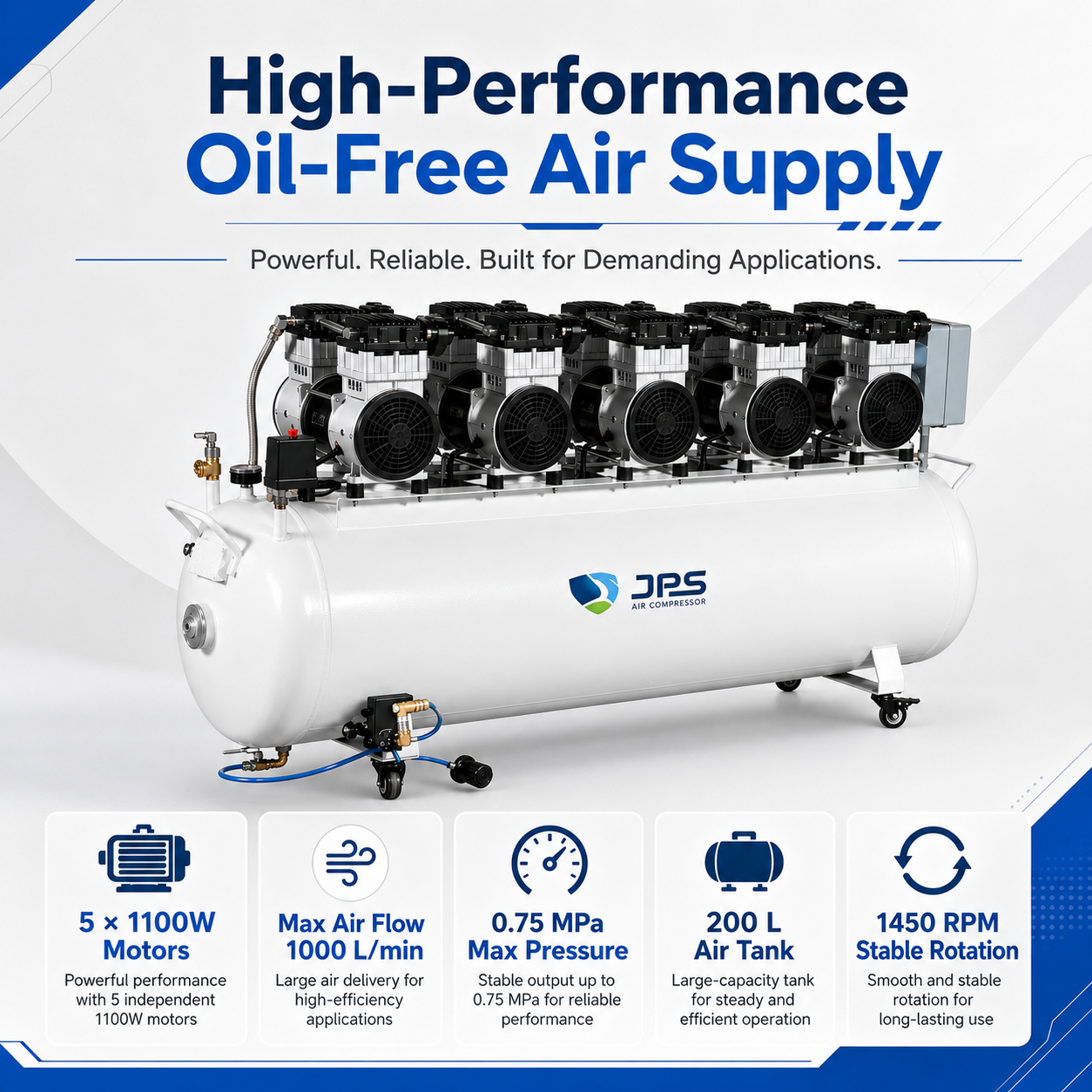

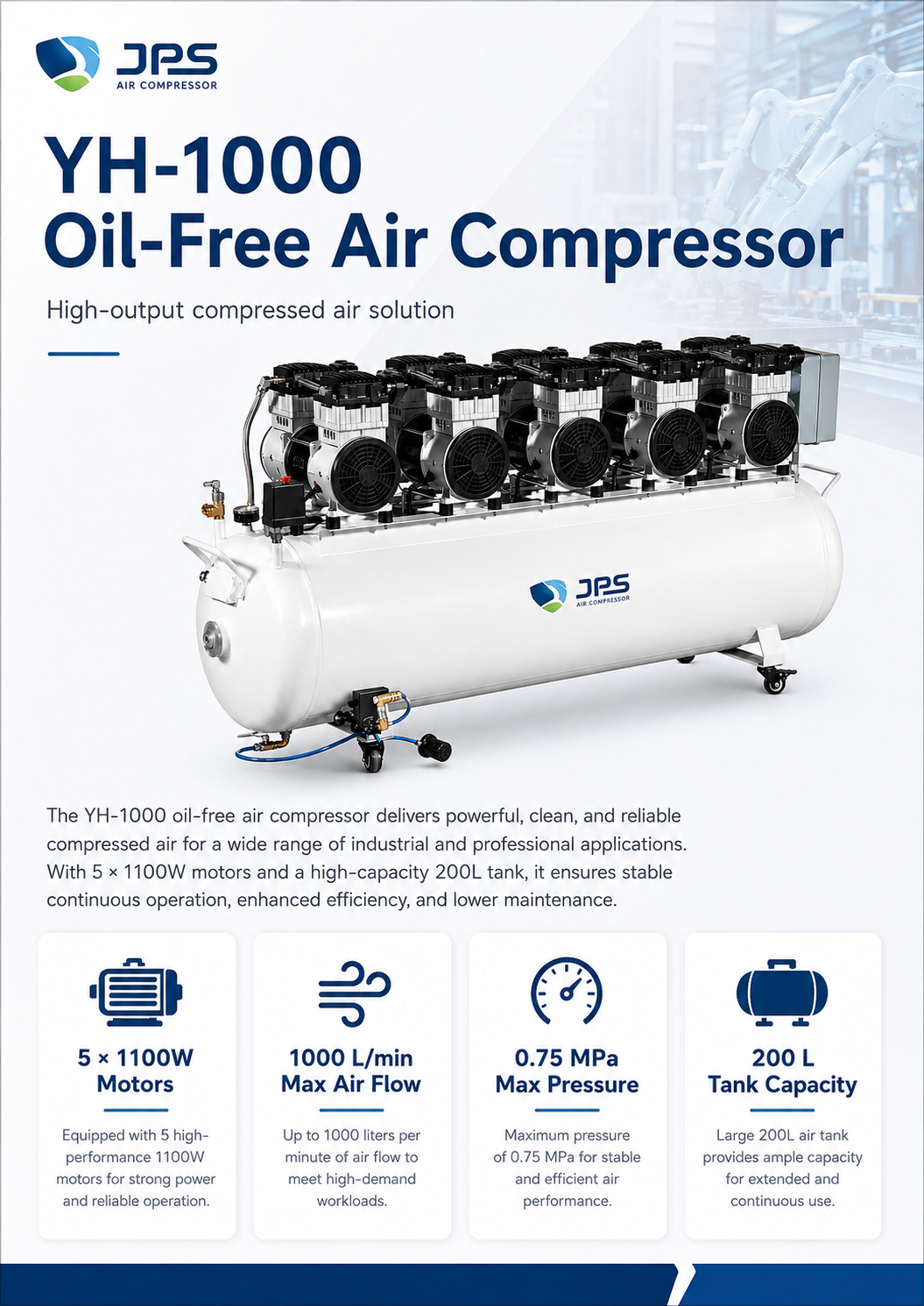

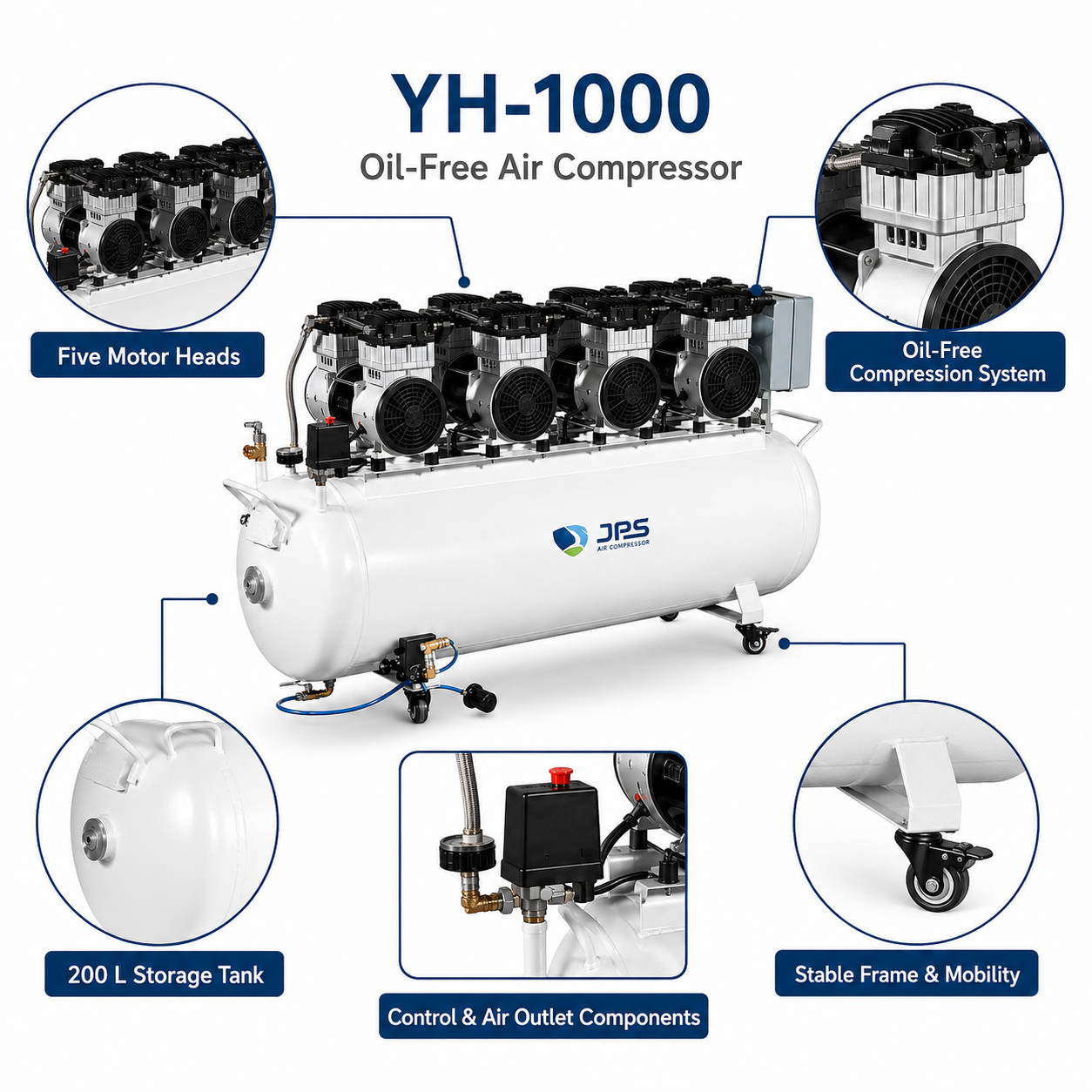

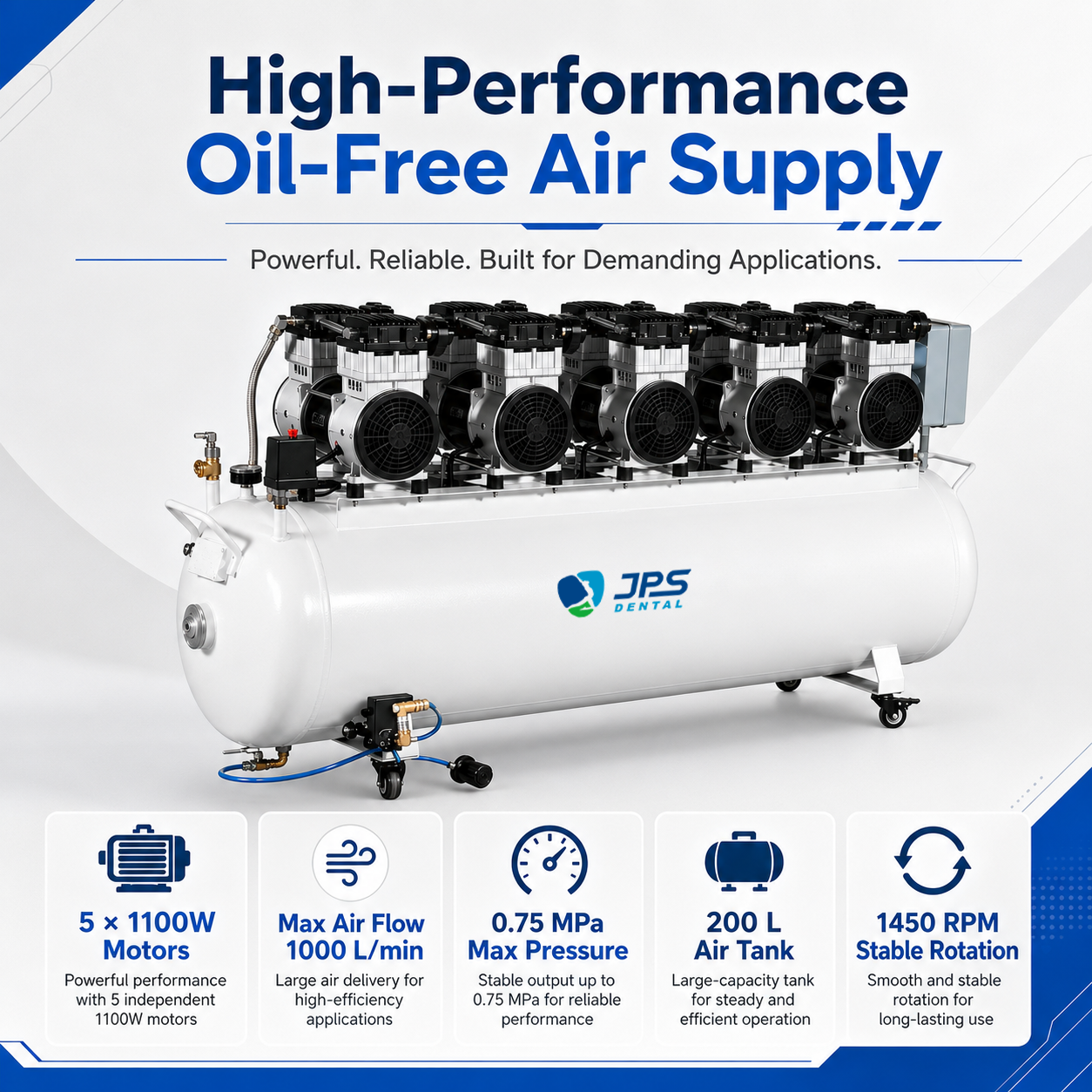

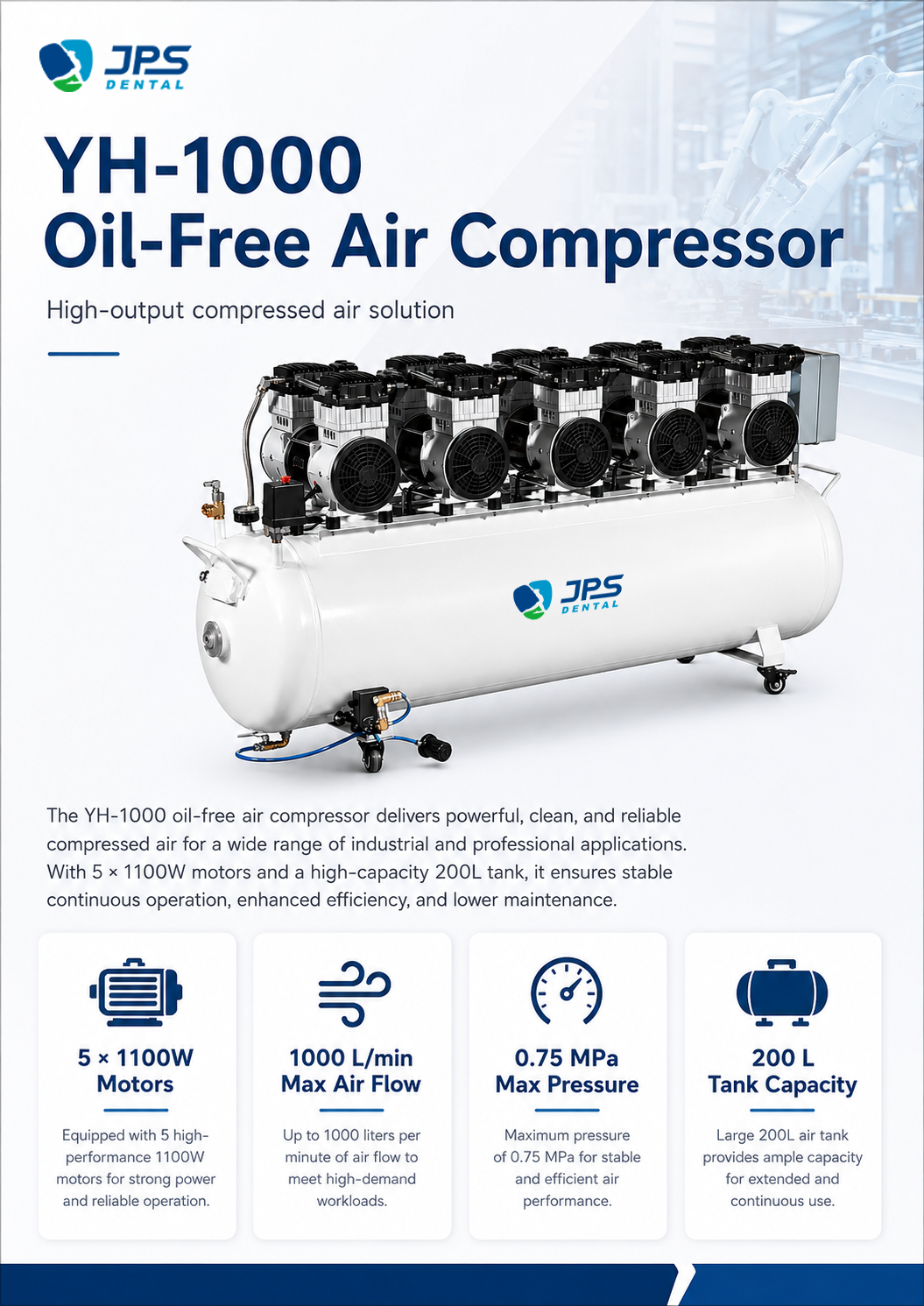

Dental Air Compressor — YH-1000 (Penta Head)

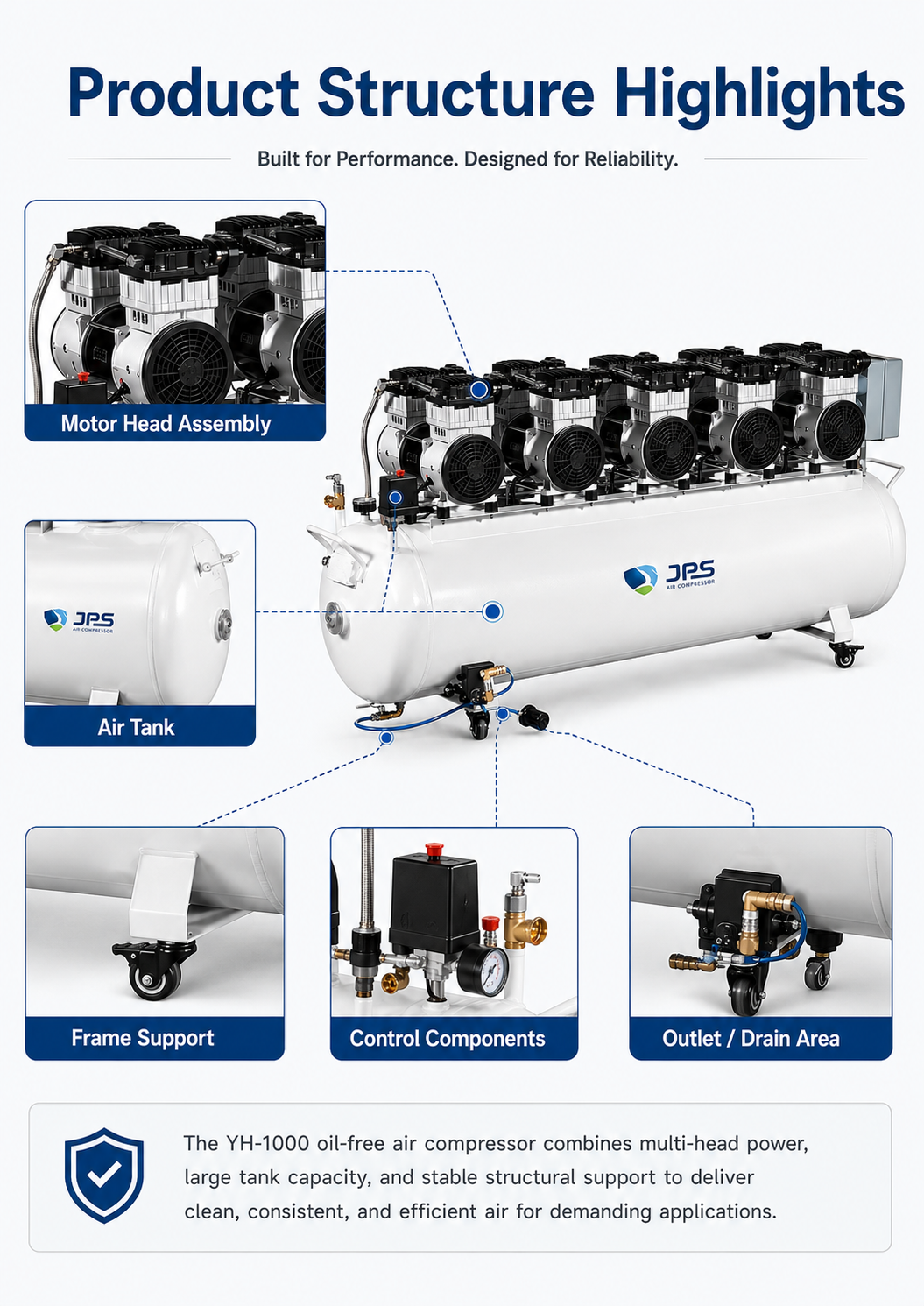

The YH-1000 is a top-capacity five-head oilless dental air compressor (1100 W × 5) with a 200 L air tank, built for large multi-chair clinics and hospitals. It delivers clean, oil-free air up to 1000 L/min (700 L/min at 0.4 MPa), with an adjustable pressure switch range of 0.5–0.7 MPa, while maintaining oil-free, dry air. Quiet 1450 rpm operation and a robust build make it a dependable central air source.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

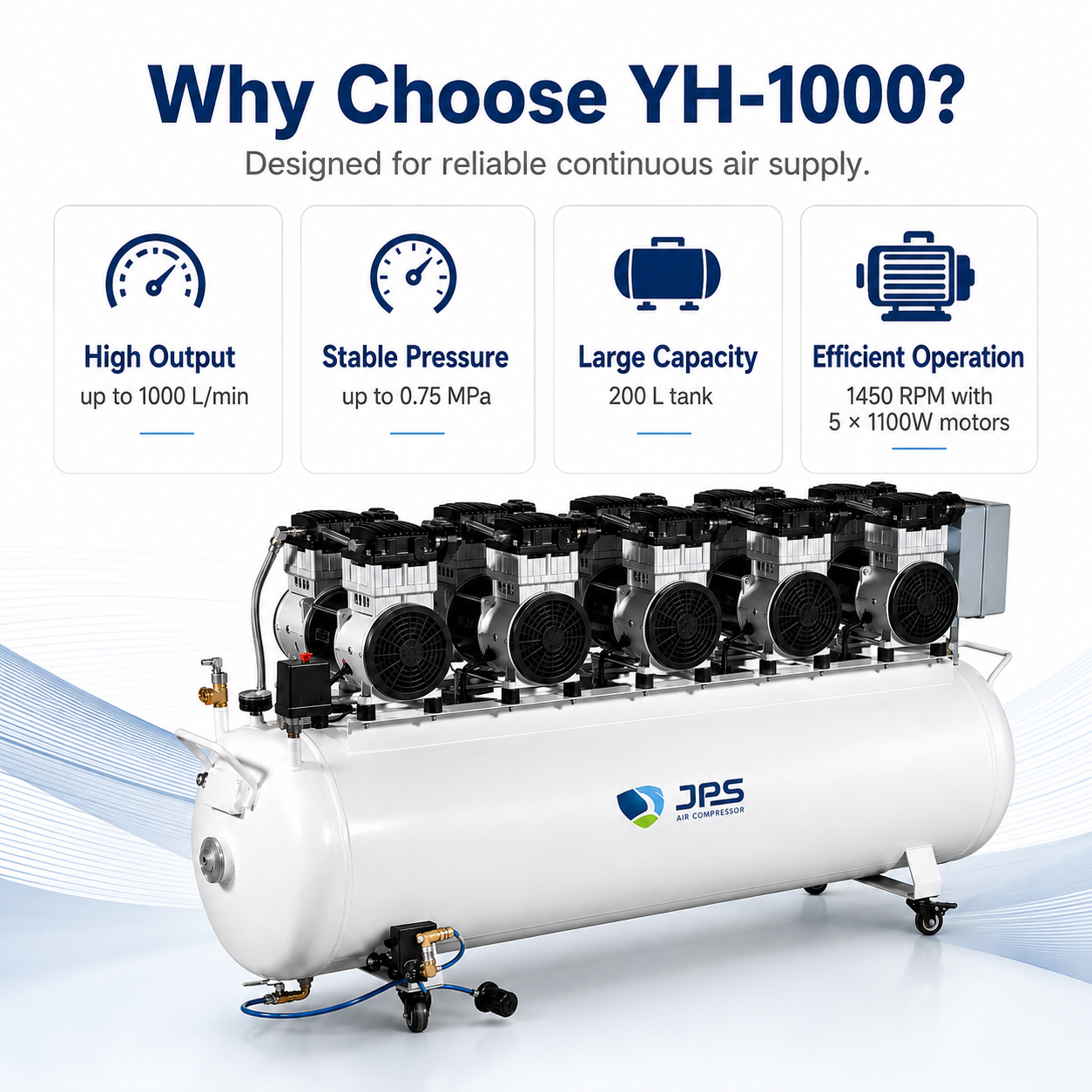

Key Highlights
- Penta-head power — Five 1100 W oilless pumps for maximum airflow.
- High capacity — Up to 1000 L/min, ideal for large clinics and hospitals.
- Adjustable pressure — Switch adjust range 0.5–0.7 MPa to match demand.
- Clean, oilless air — Oil-free compression delivers dry, contaminant-free air.
- Large 200 L tank — Ample reserve for many simultaneous users.

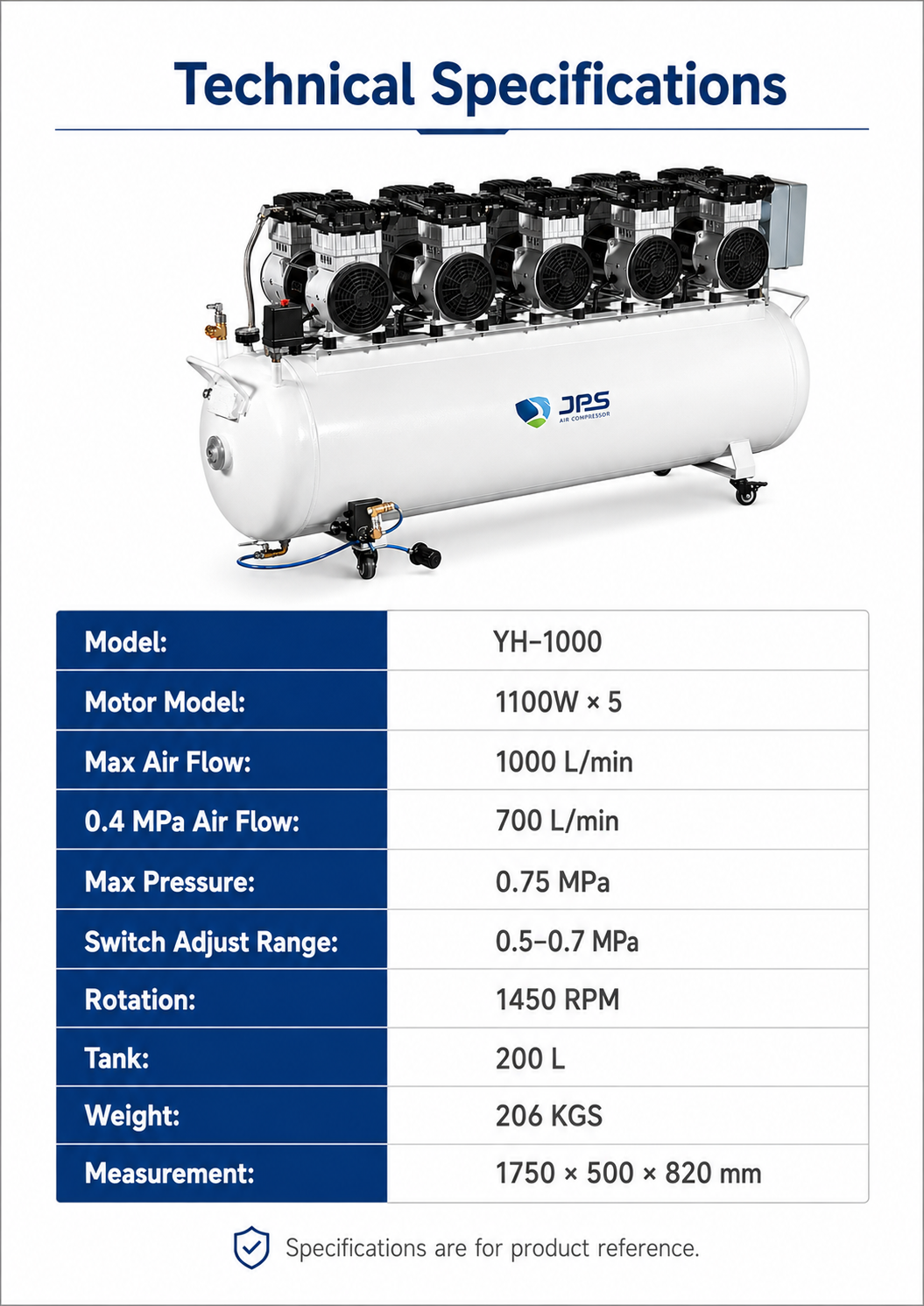

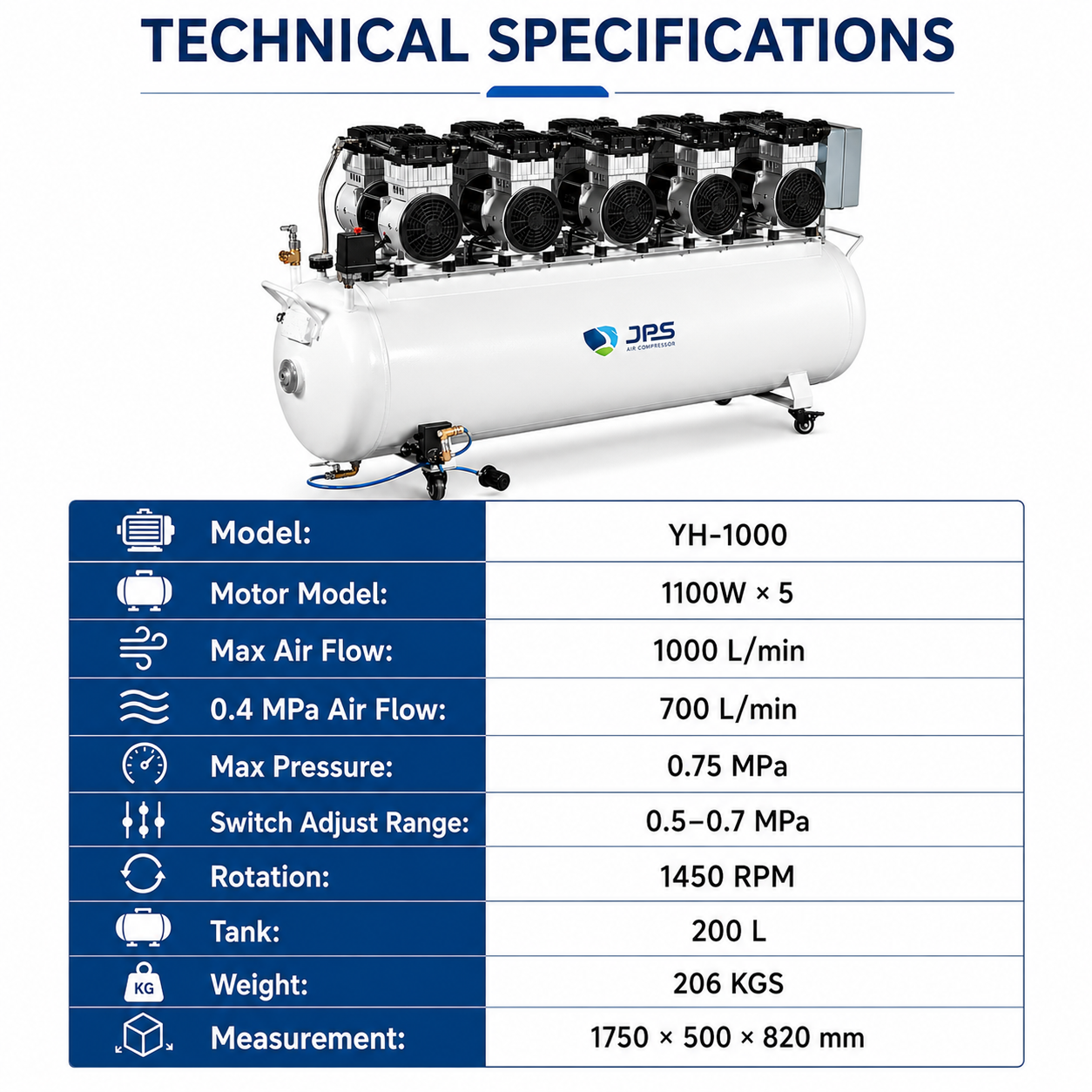

Standard Specifications
| Item | Specification |
|---|---|
| Motor | 1100 W × 5 |
| Max air flow | 1000 L/min |
| Air flow at 0.4 MPa | 700 L/min |
| Max pressure | 0.75 MPa |
| Switch adjust range | 0.5–0.7 MPa |
| Speed | 1450 rpm |
| Air tank | 200 L |
| Weight | 206 kg |

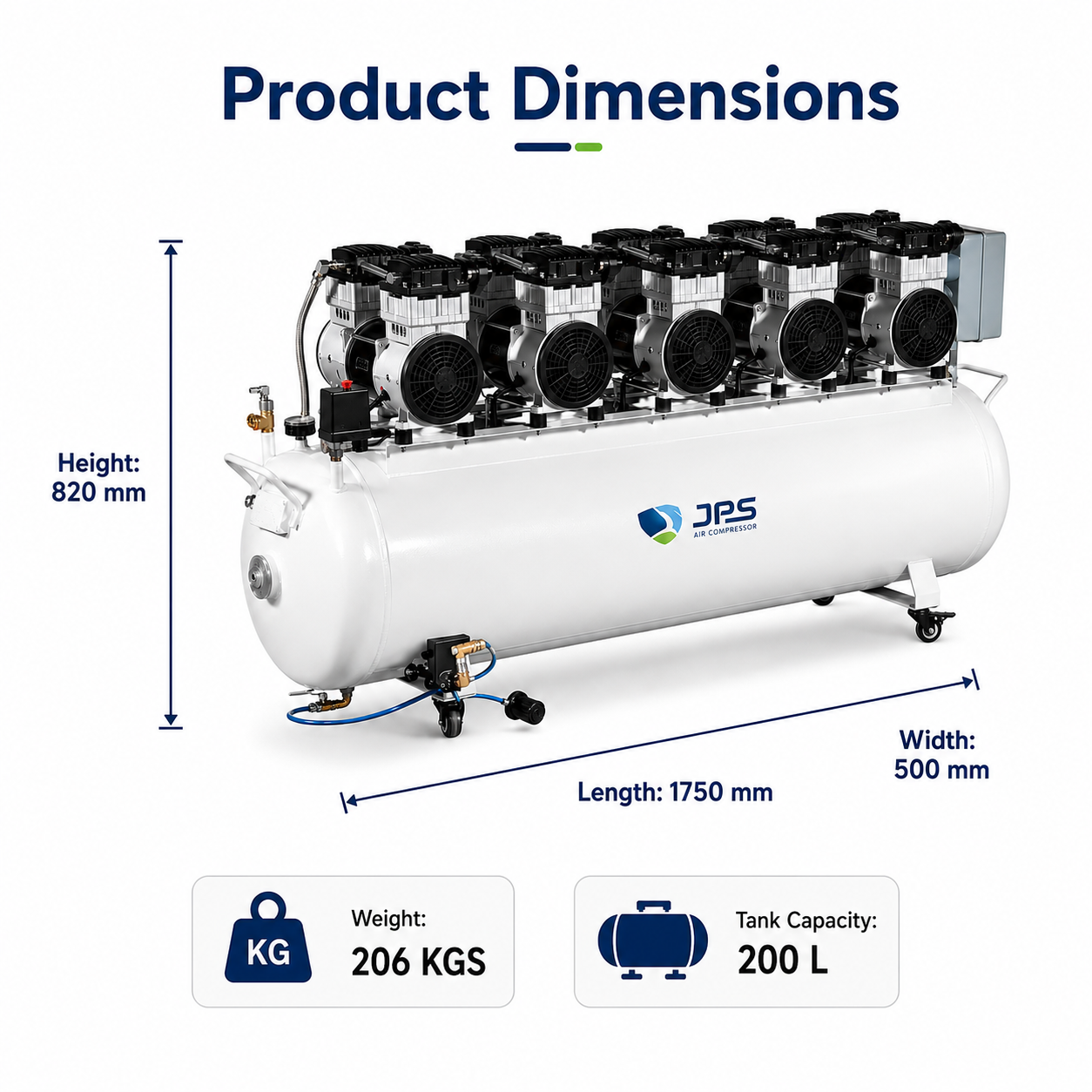

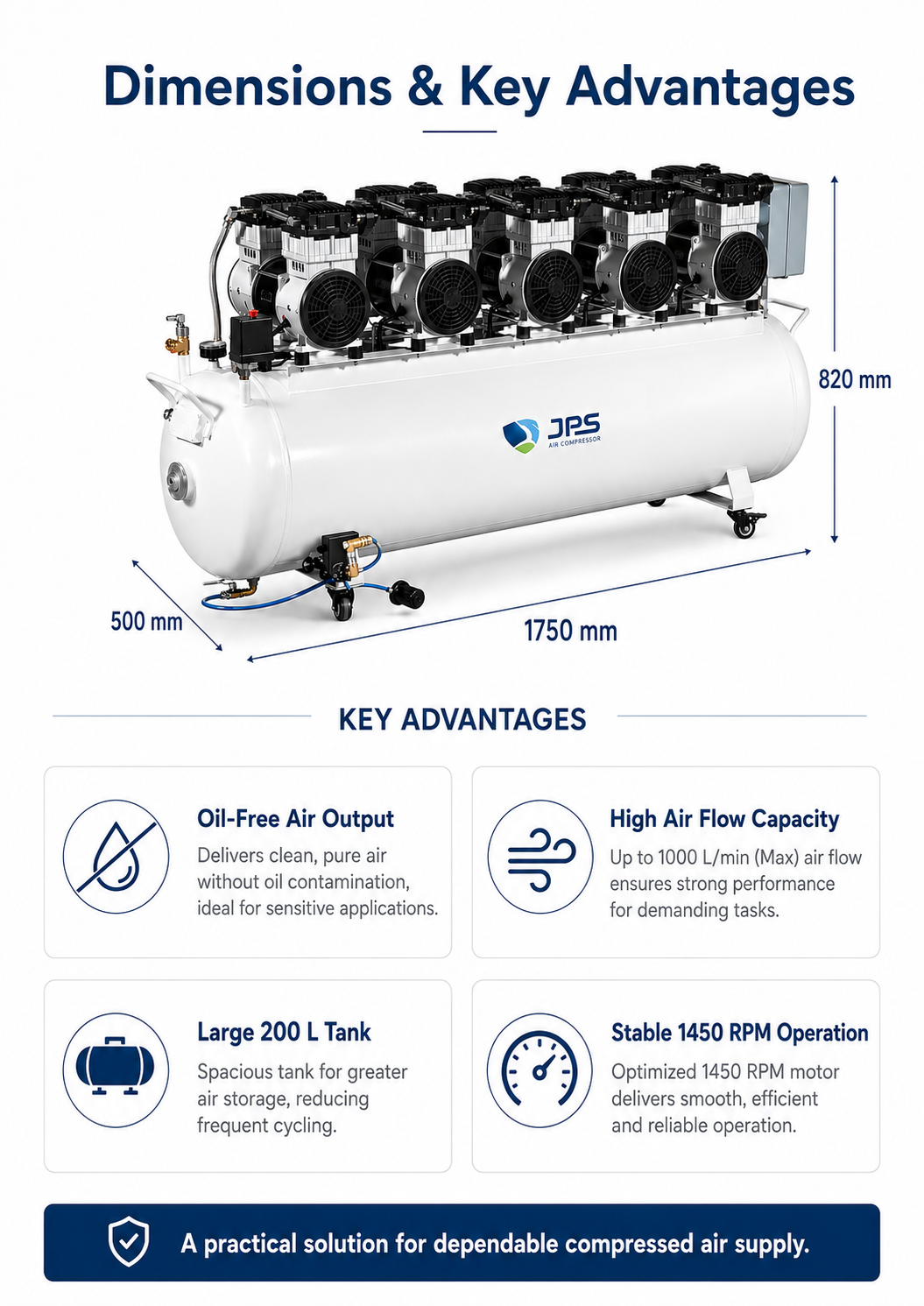

| Measurement | 1750 × 500 × 820 mm |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Five-head oilless air compressor |
| Power | 1100 W × 5 |
| Max air flow | 1000 L/min (700 L/min @ 0.4 MPa) |
| Pressure | 0.75 MPa max; switch 0.5–0.7 MPa |
| Air tank | 200 L |
| Speed | 1450 rpm |
| Weight | 206 kg |
Model: YH-1000 · Five-head oilless dental air compressor (200 L).
Product Details
Get a Quote for YH-1000
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
