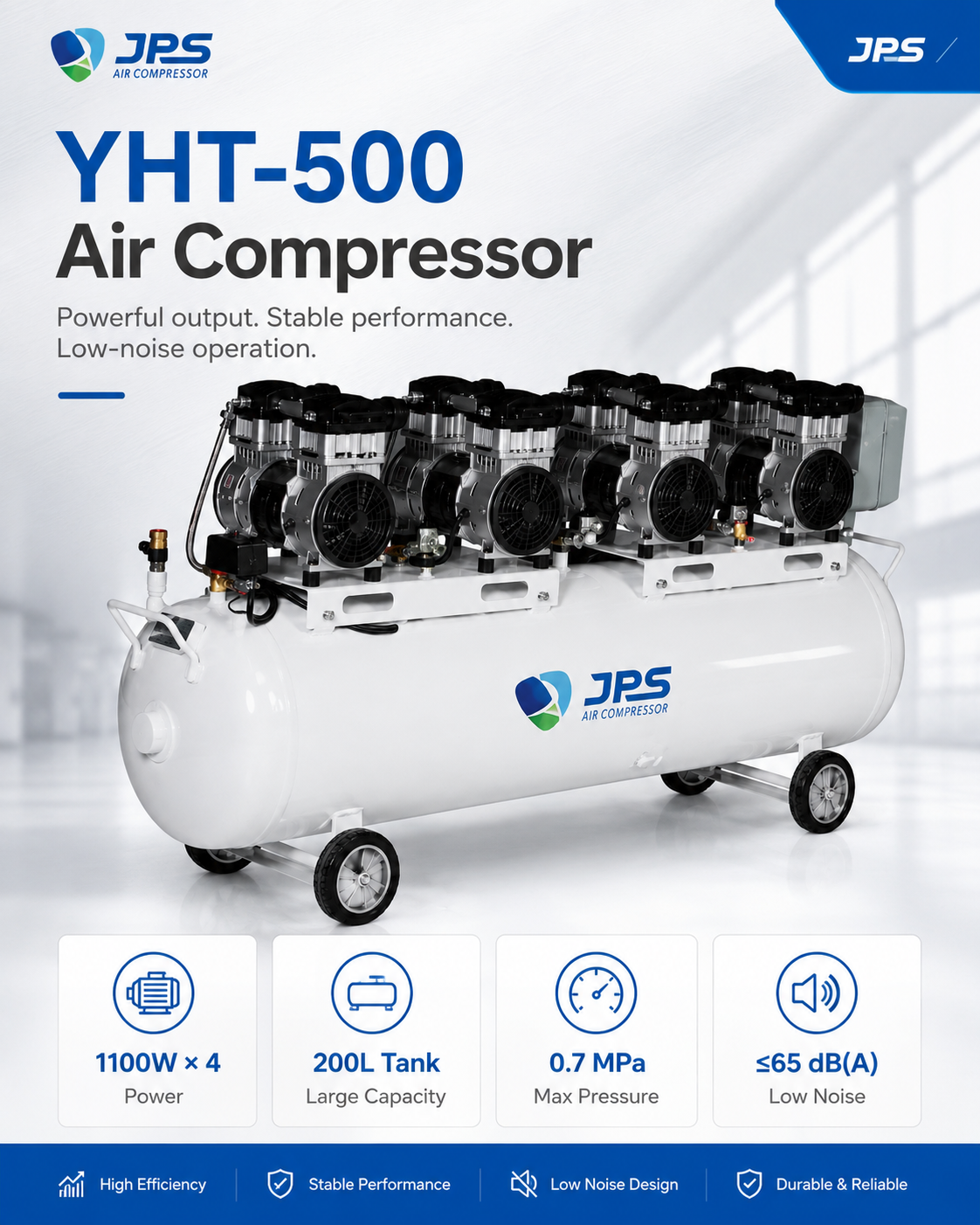

Dental Air Compressor — YHT-500 (Quad Head)

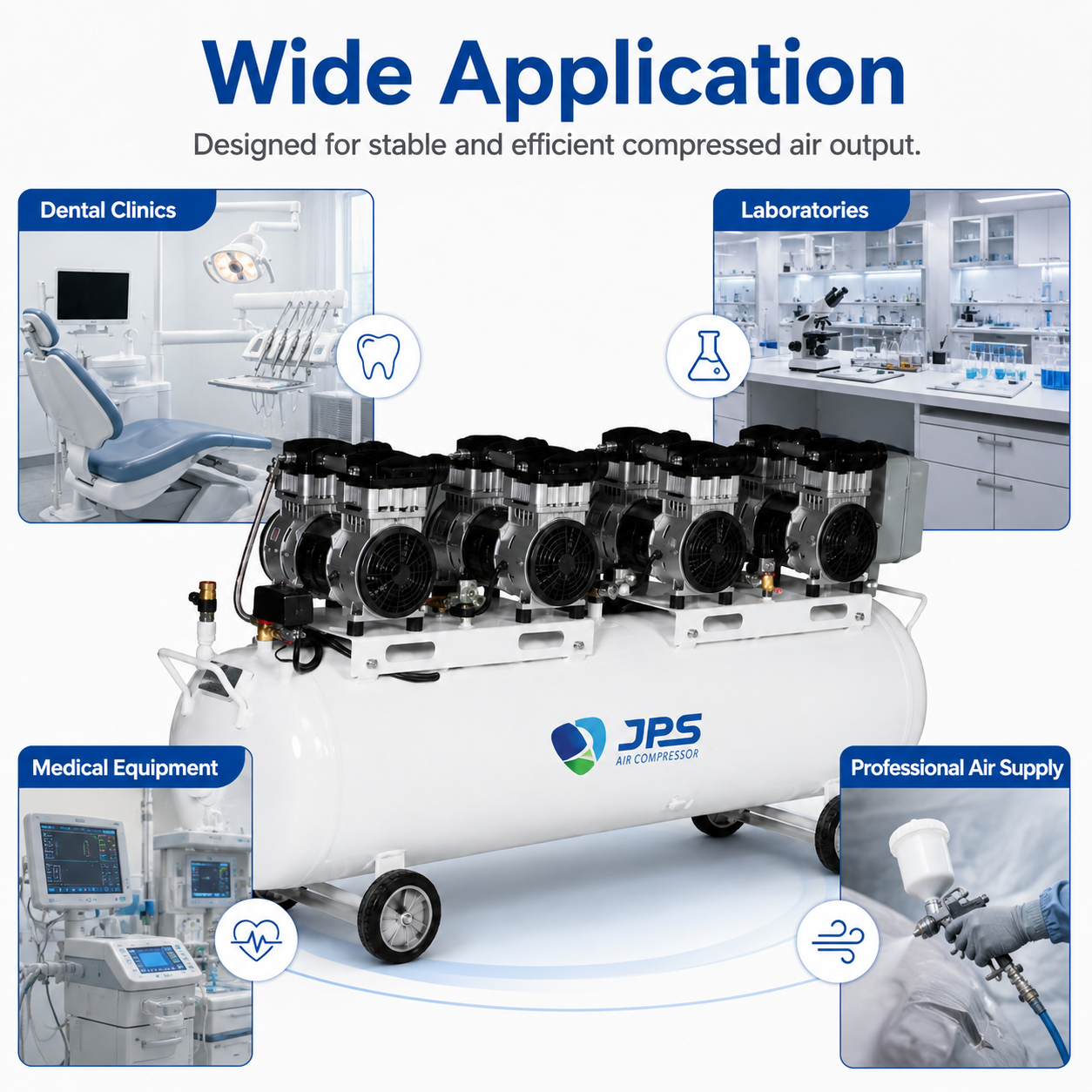

The YHT-500 is a high-capacity quad-head oilless dental air compressor (1100 W × 4) with a 200 L air tank, built to supply a multi-chair clinic. It delivers clean, oil-free air up to 800 L/min, with a rated output above 560 L/min at 0.4 MPa, while running quietly at ≤65 dB(A). Oilless operation provides dry, contaminant-free air for dental handpieces and instruments.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights

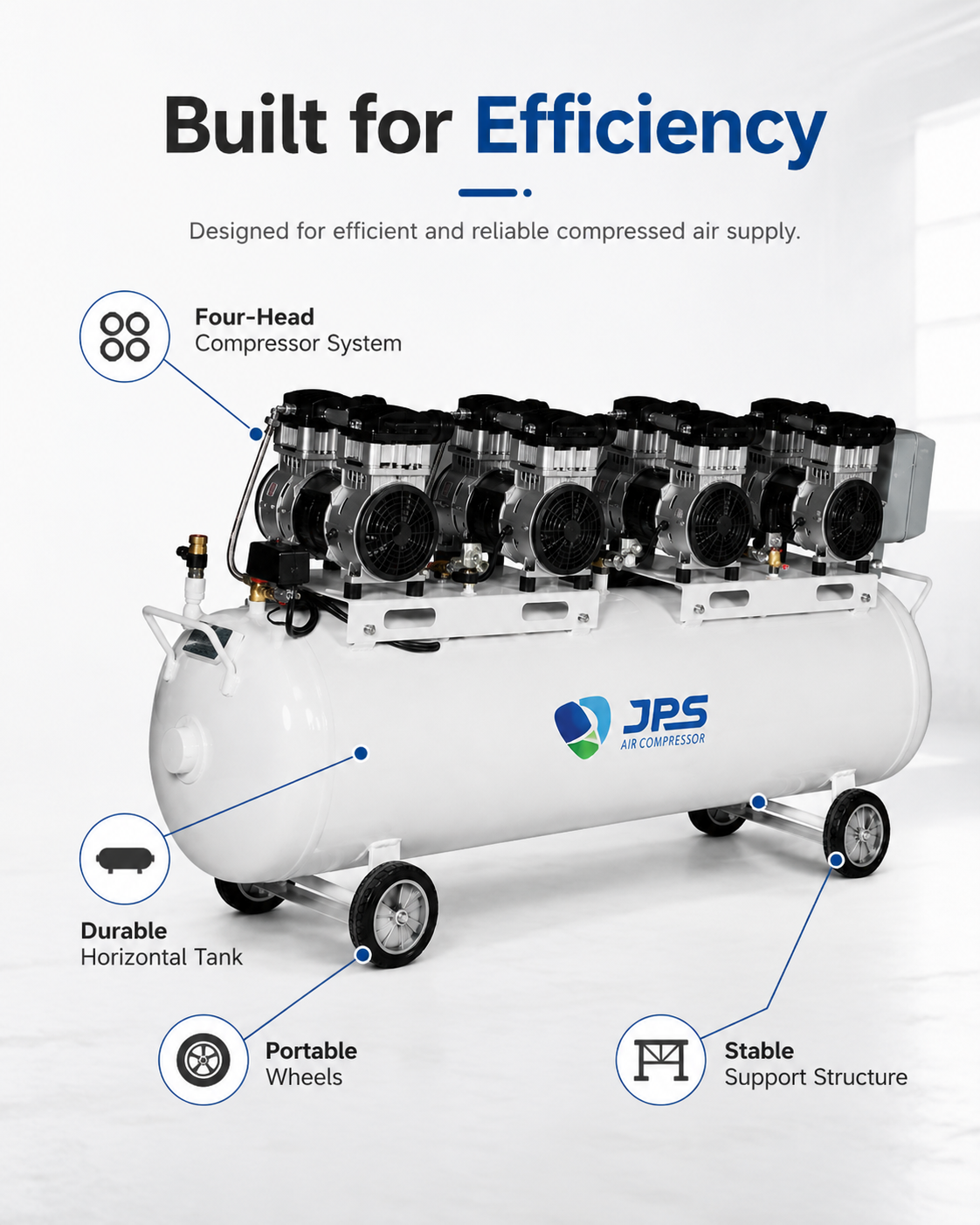

- Quad-head power — Four 1100 W oilless pumps for very high airflow.

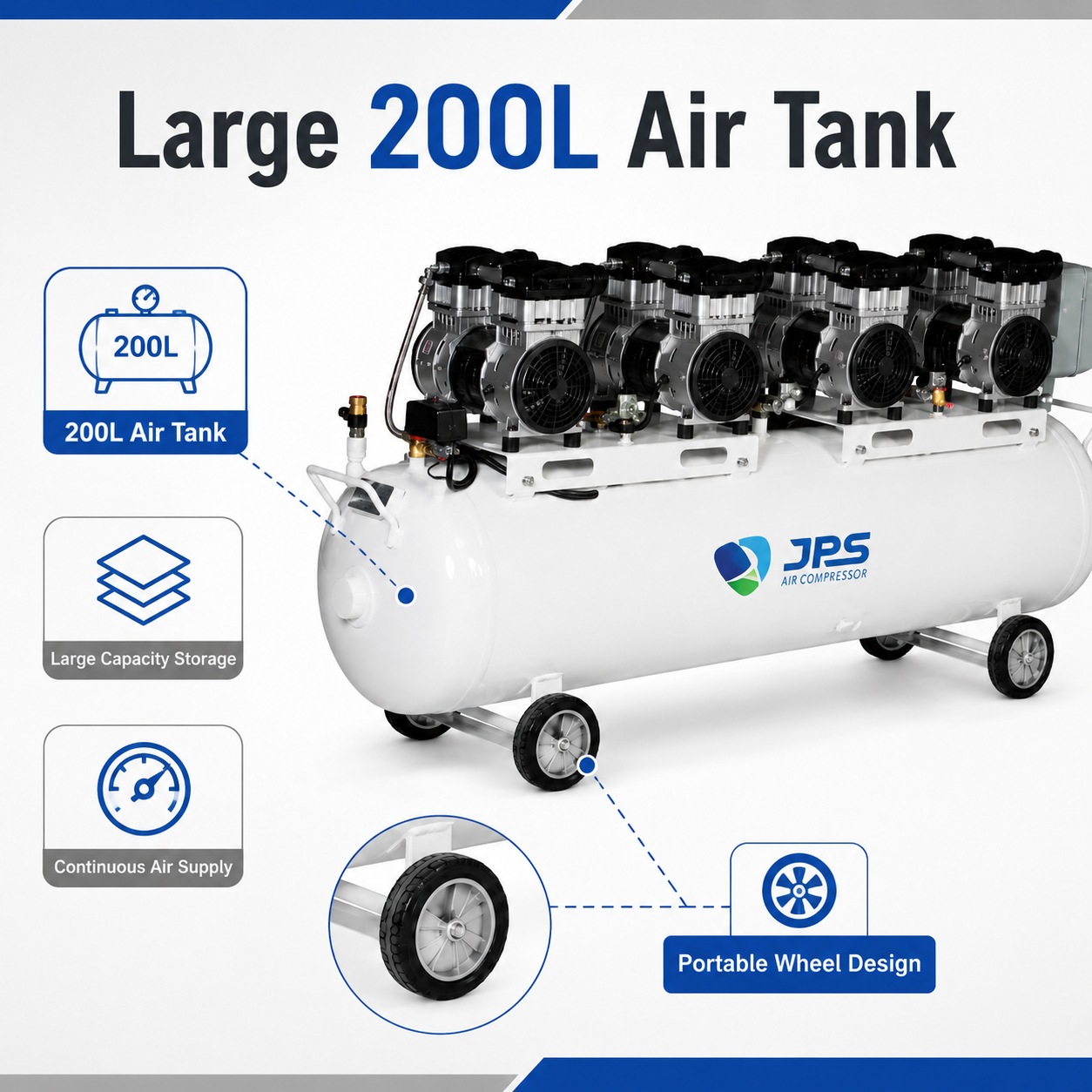

- Large 200 L tank — Substantial reserve for busy multi-chair clinics.
- Clean, oilless air — Oil-free compression delivers dry, contaminant-free air.

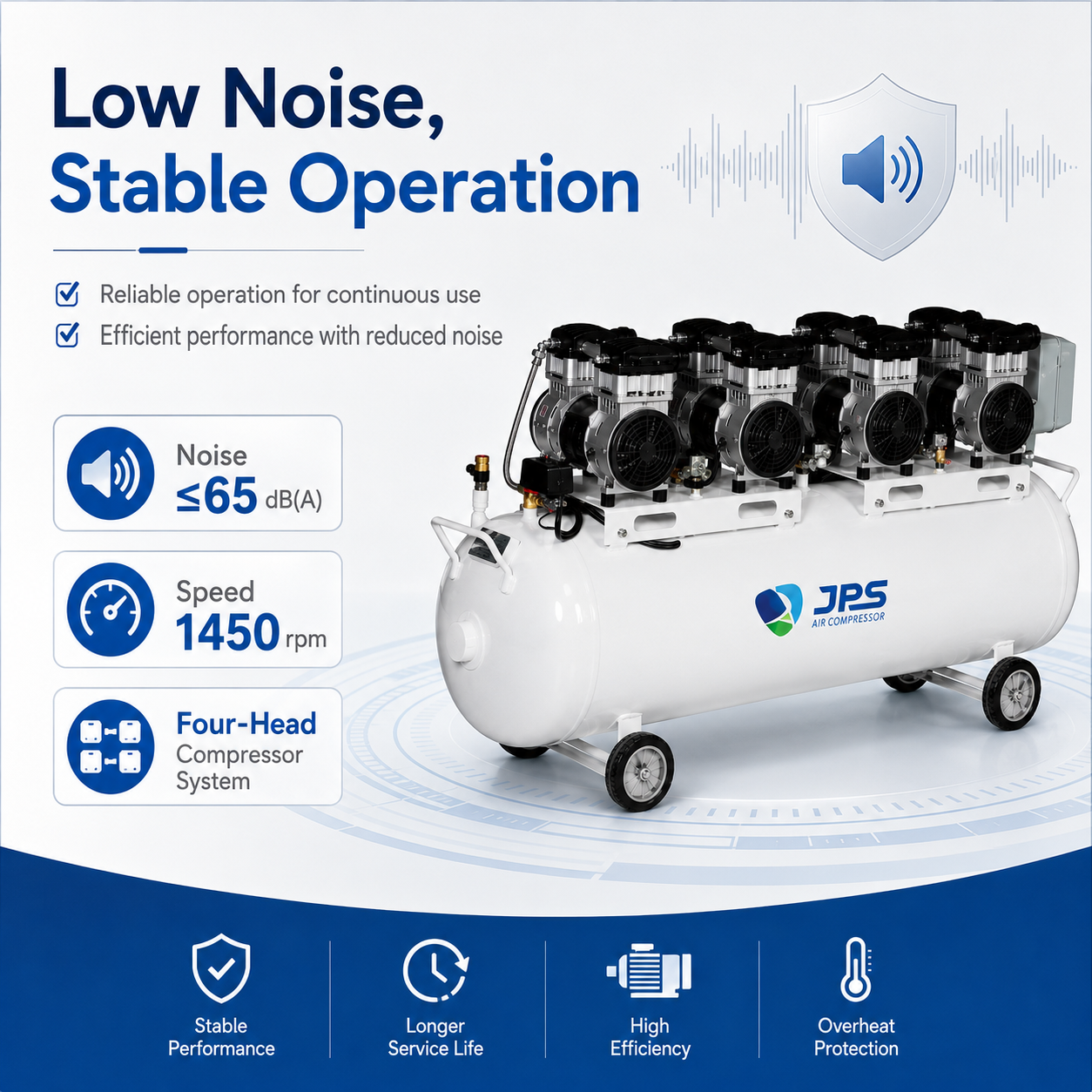

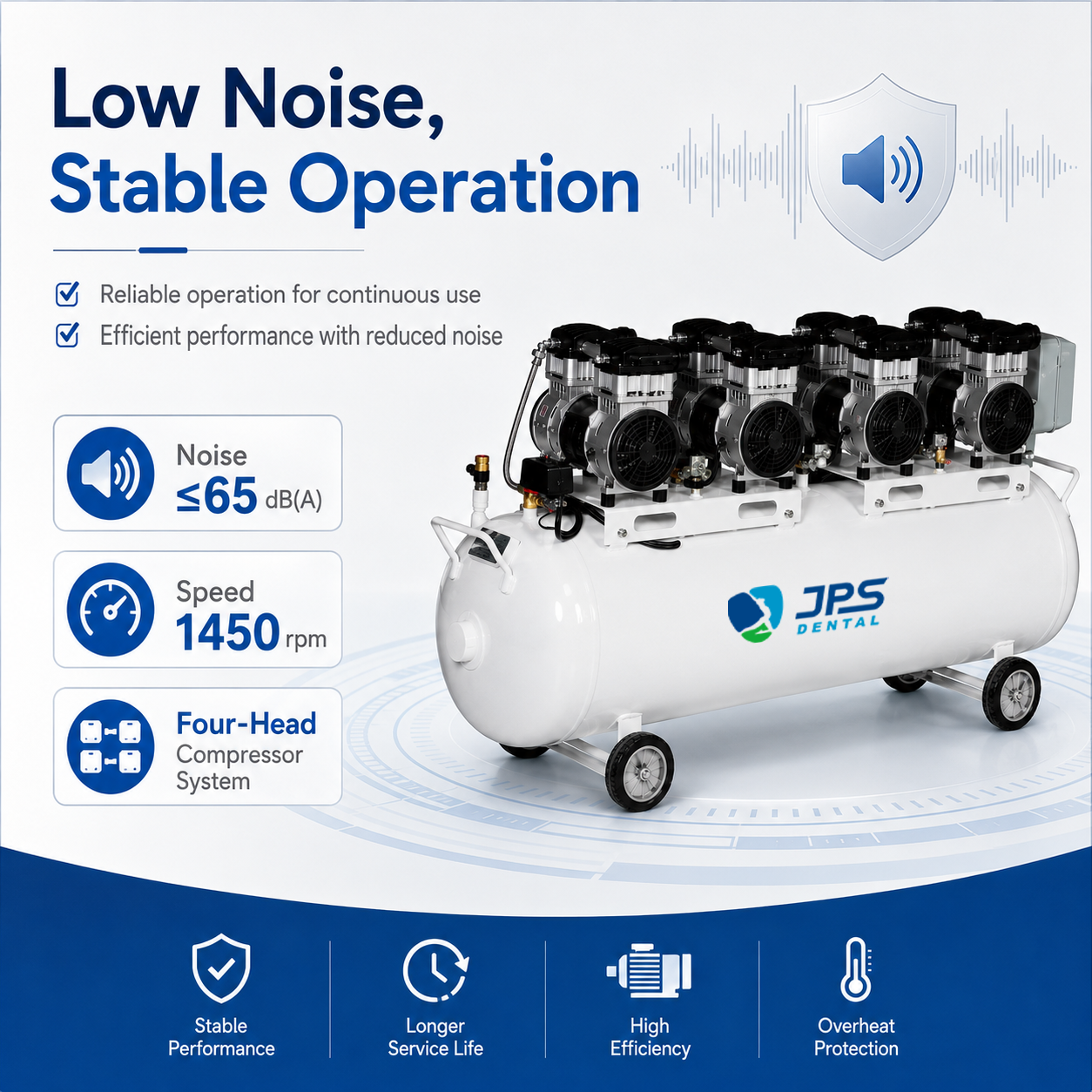

- Quiet — Noise level ≤ 65 dB(A).

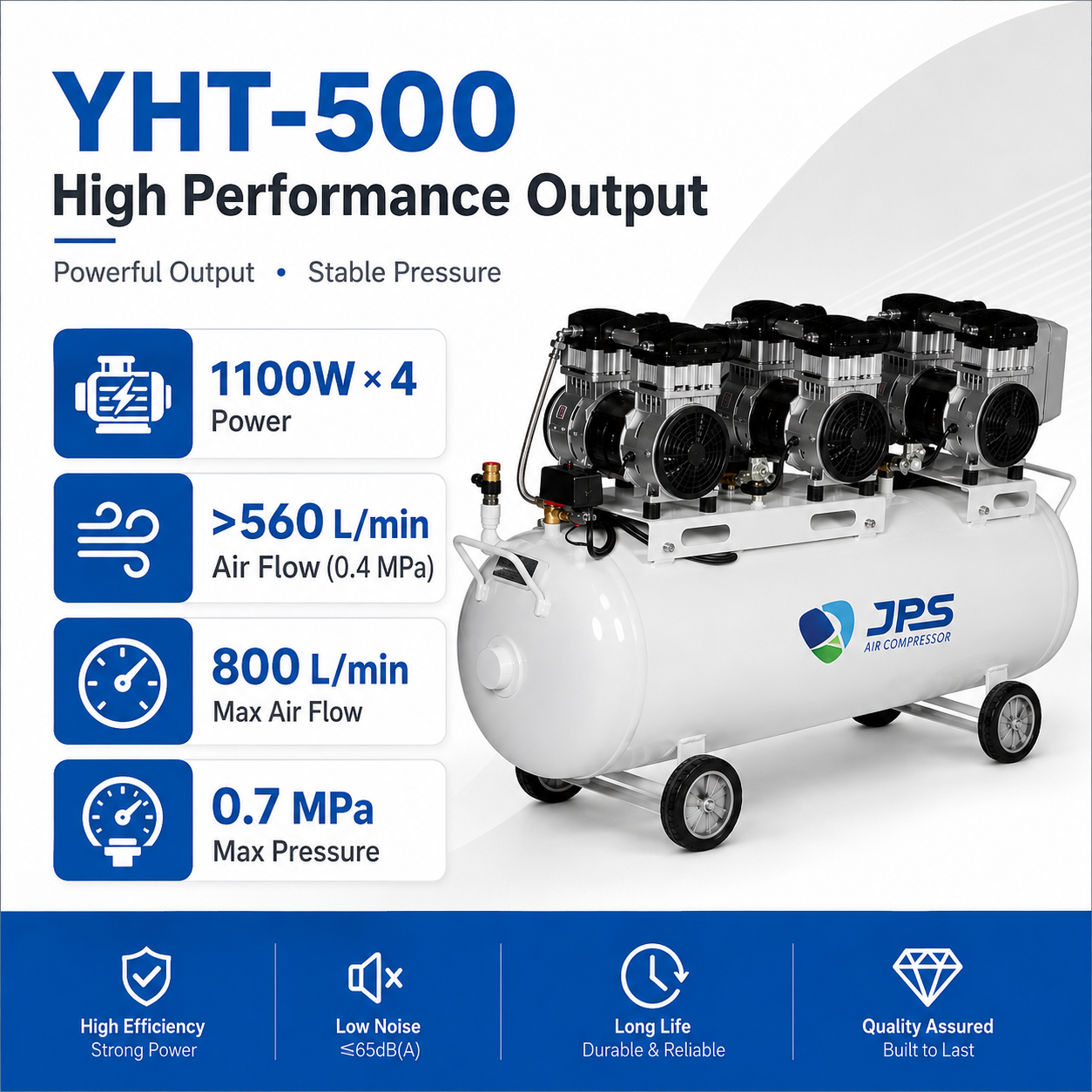

- High output — Up to 800 L/min, rated >560 L/min at 0.4 MPa.

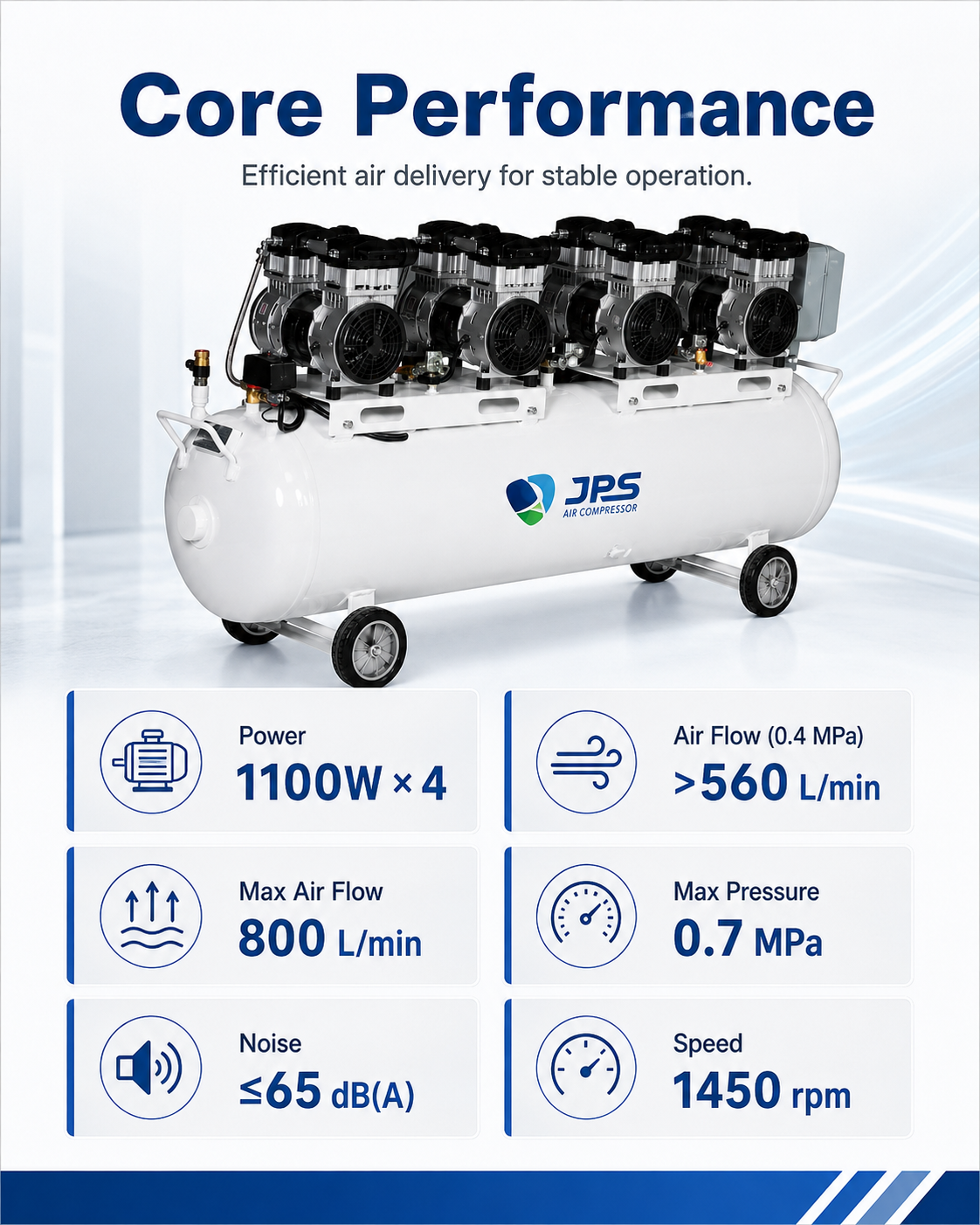

Standard Specifications
| Item | Specification |
|---|---|
| Power | 1100 W × 4 |
| Air flow (rated) | >560 L/min (at 0.4 MPa) |
| Max pressure | 0.7 MPa |
| Max air flow | 800 L/min |
| Noise | ≤ 65 dB(A) |
| Speed | 1450 rpm |
| Air tank | 200 L |

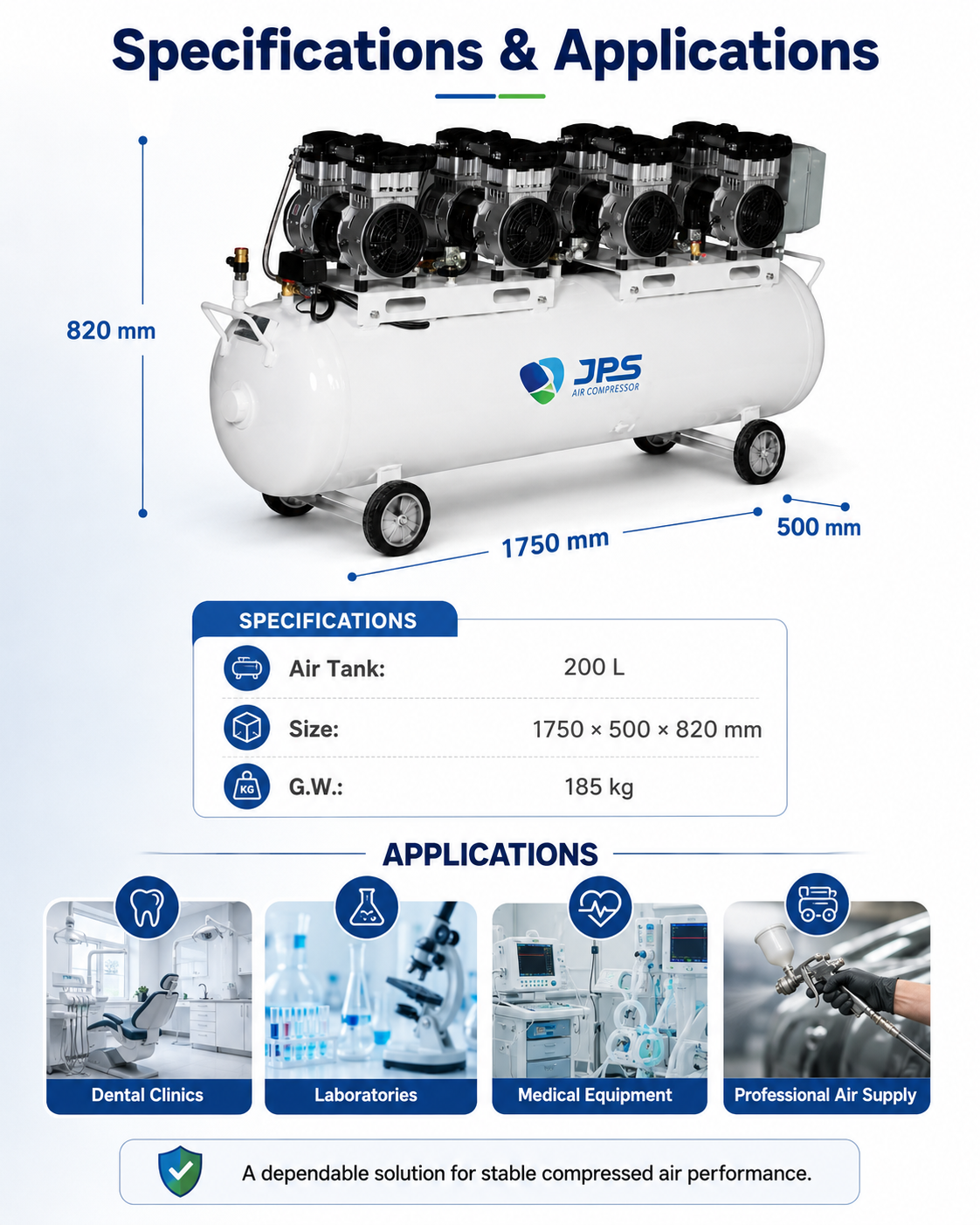

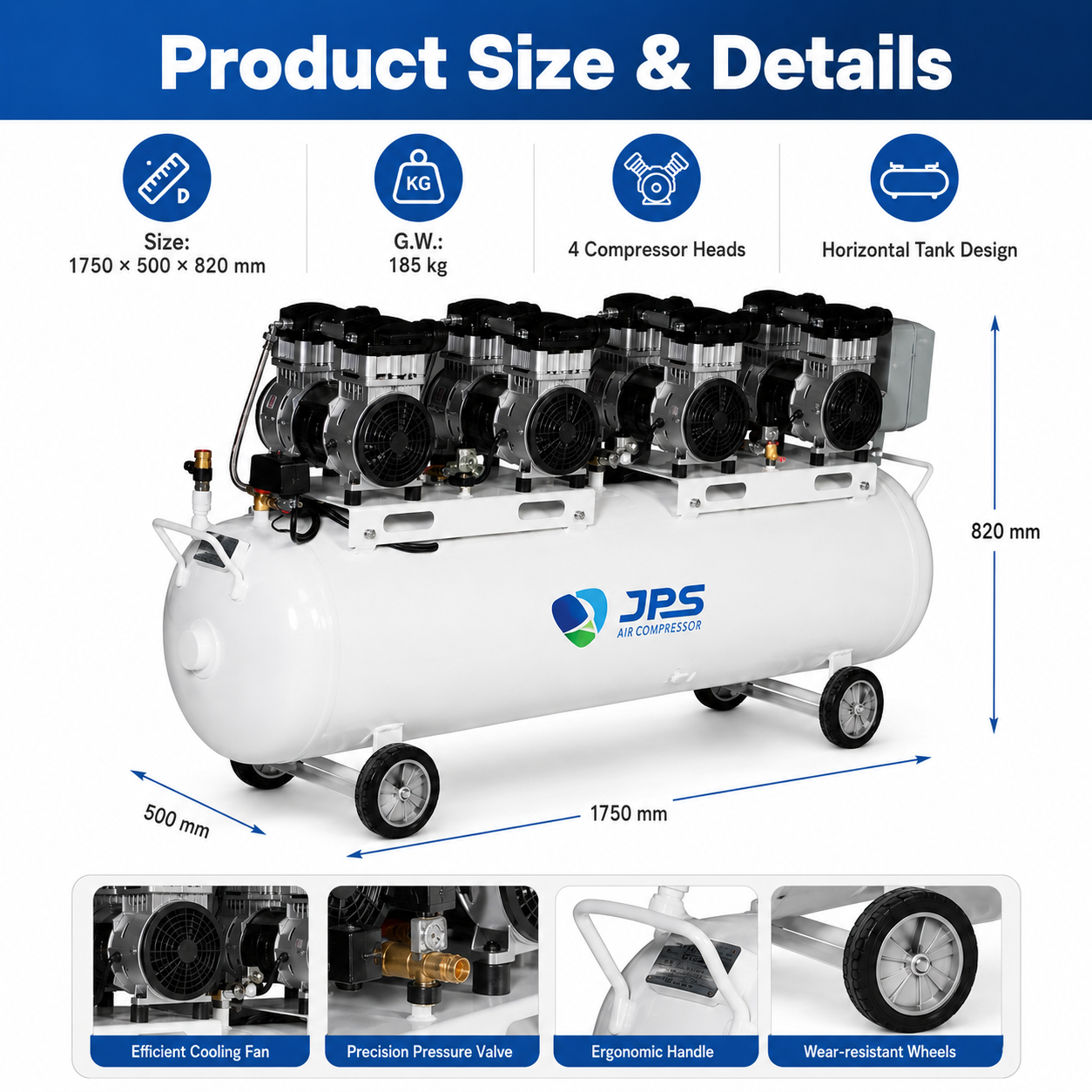

| Size | 1750 × 500 × 820 mm |
| Gross weight | 185 kg |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Quad-head oilless air compressor |
| Power | 1100 W × 4 |
| Max air flow | 800 L/min |
| Max pressure | 0.7 MPa |
| Air tank | 200 L |
| Noise | ≤ 65 dB(A) |
| Speed | 1450 rpm |
Model: YHT-500 · Quad-head oilless dental air compressor (200 L).
