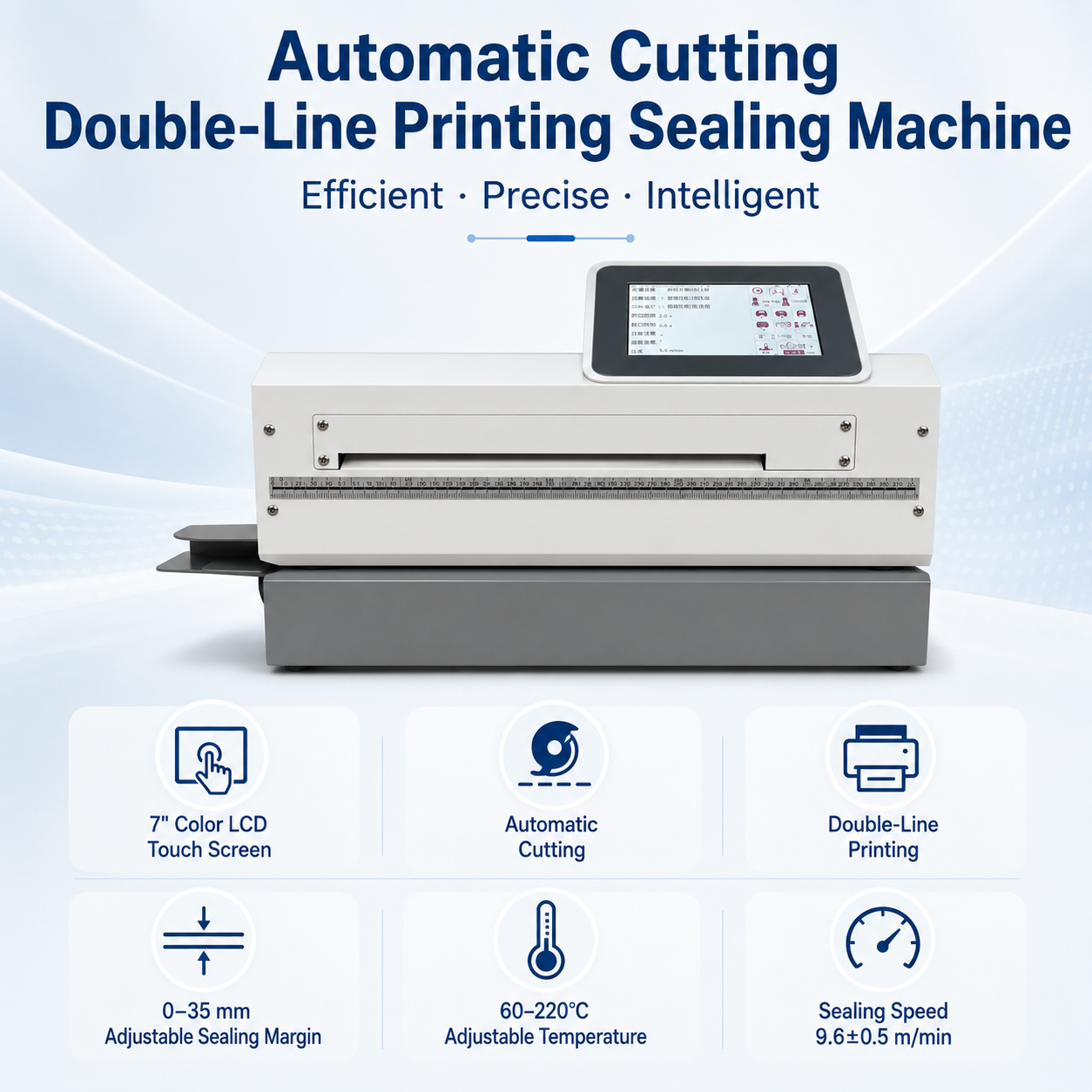

Automatic Cutting Double-Line Printing Sealing Machine

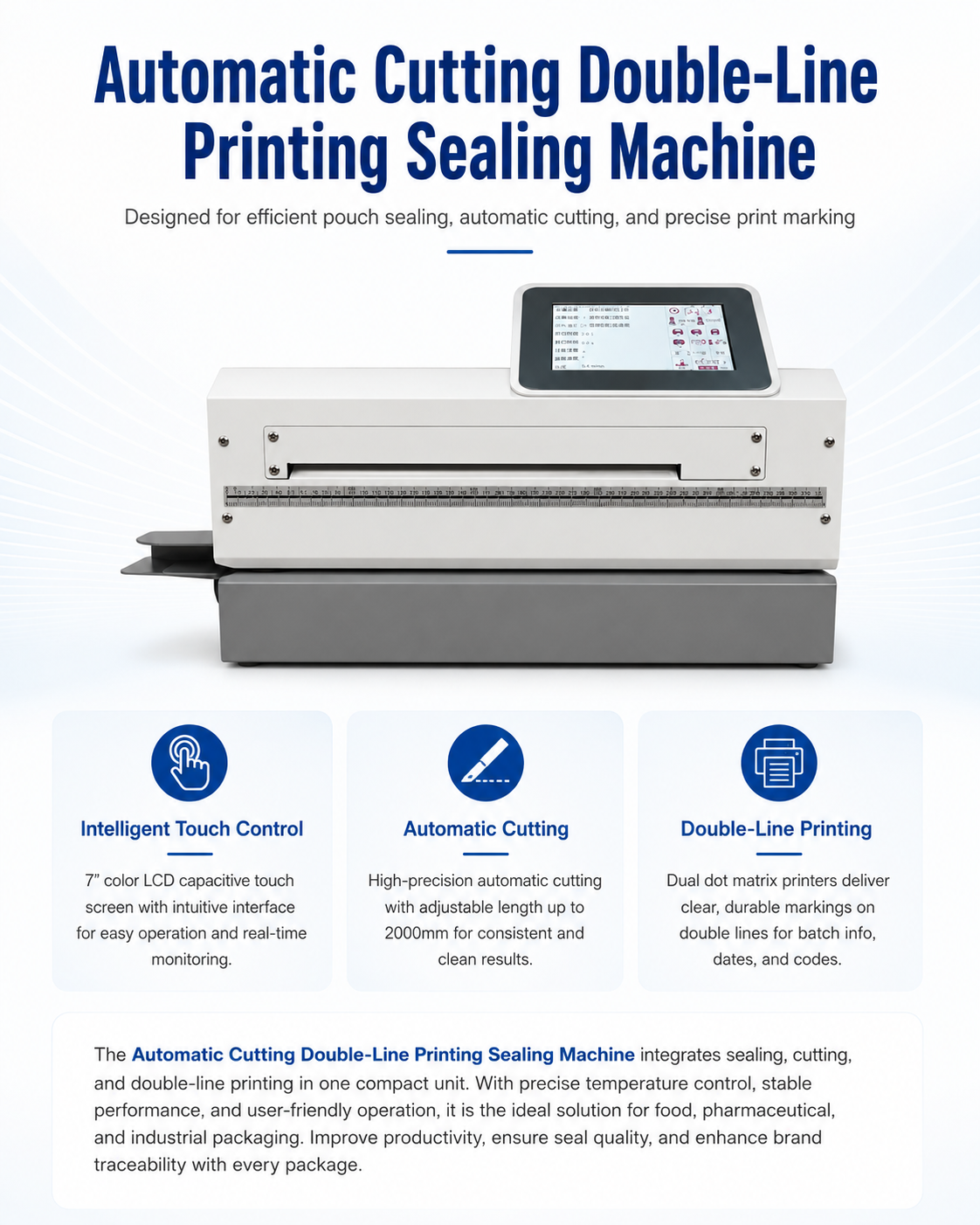

This automatic cutting and sealing machine combines high-speed pouch sealing, automatic cutting, and dual dot-matrix printing in one bench-top unit. Operated from a 7-inch color LCD capacitive touch screen, it seals at 9.6 m/min with an adjustable 60–220 °C temperature and prints two lines of traceability data (date, batch, operator) on each pouch. Cutting length is programmable from 50 to 2000 mm for high-volume central sterilization rooms.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

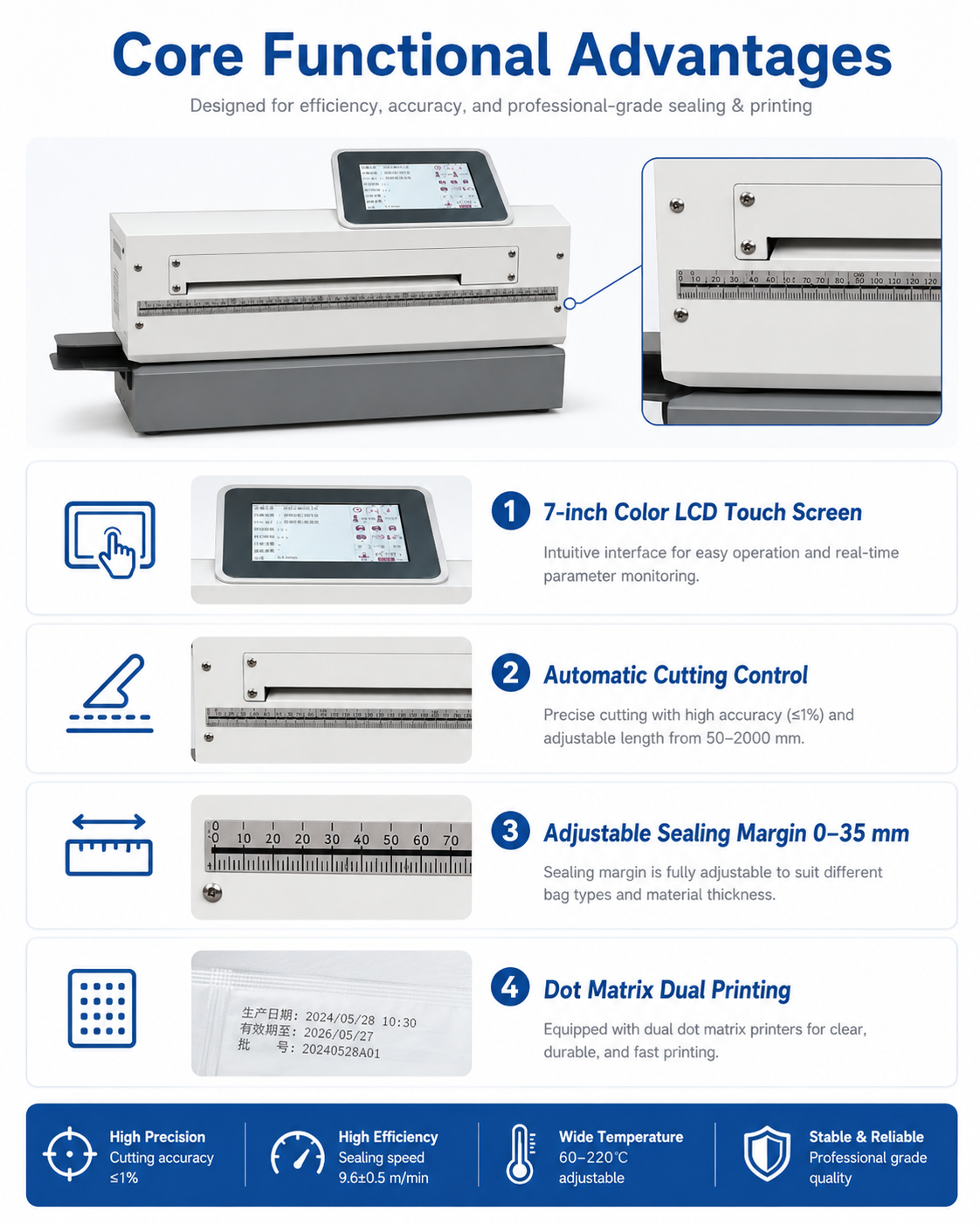

Key Highlights
- All-in-one — Automatic cutting, high-speed sealing, and double-line printing in one unit.

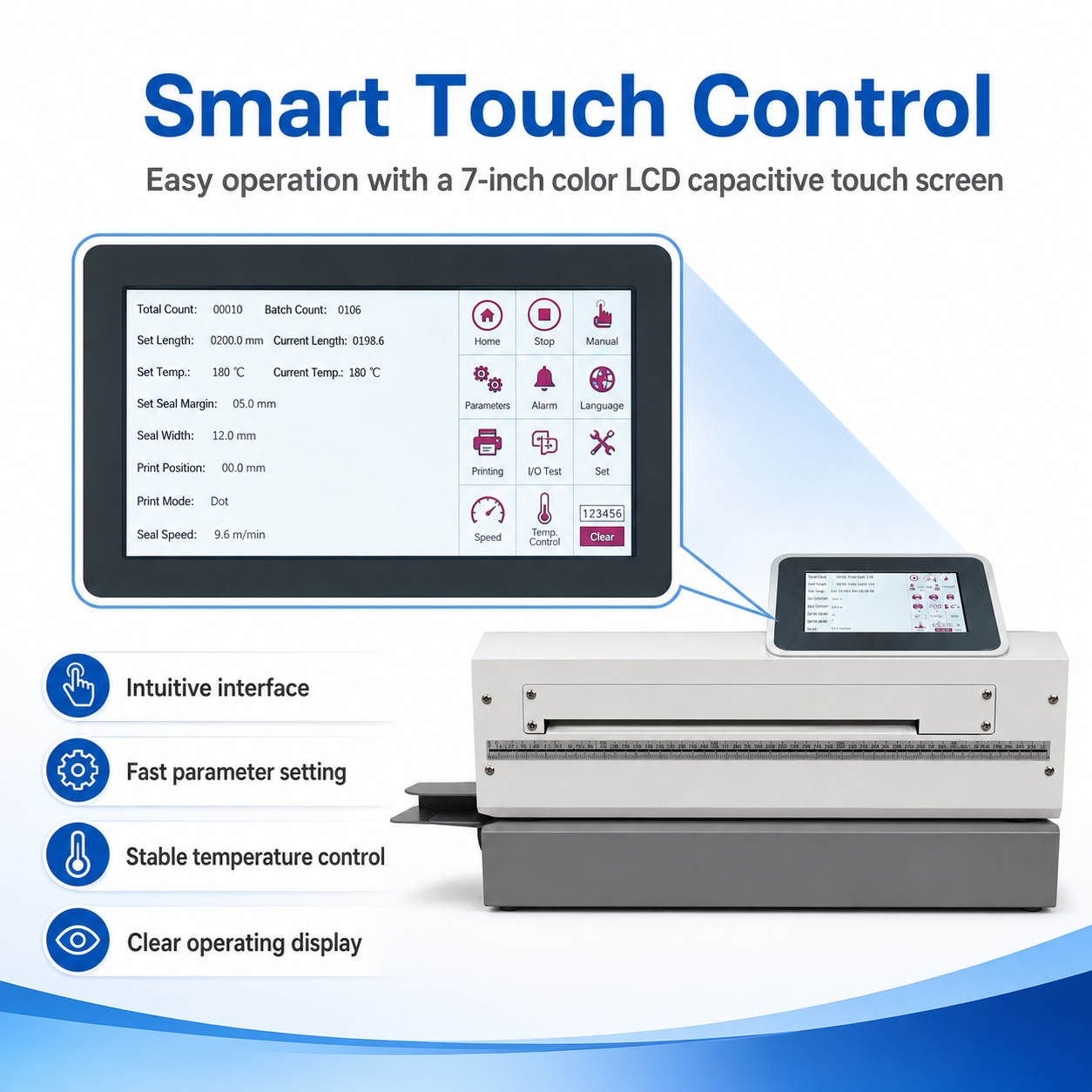

- Touchscreen control — 7" color LCD capacitive touch screen.

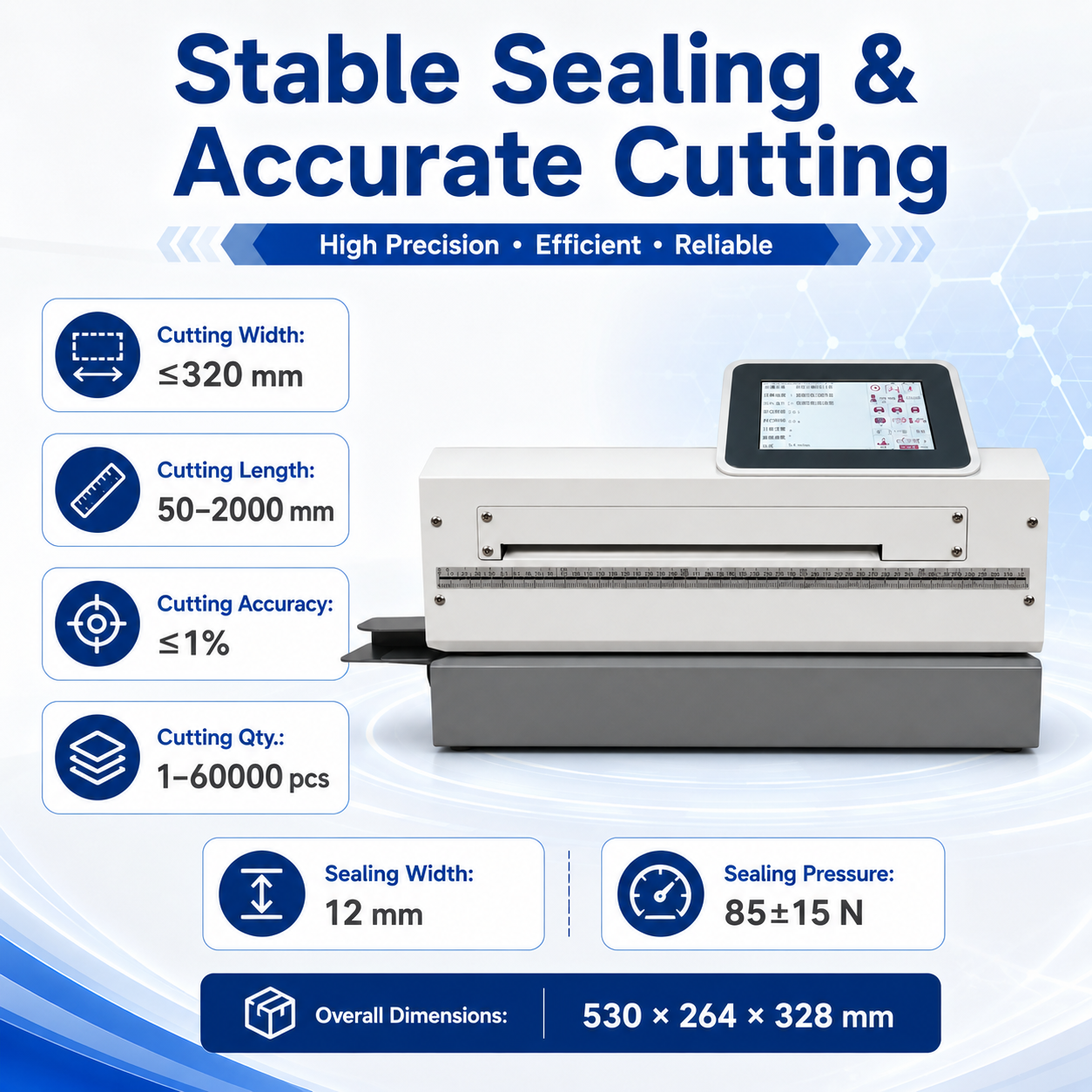

- Fast & precise — 9.6 ±0.5 m/min sealing; cutting accuracy ≤1%, length 50–2000 mm.

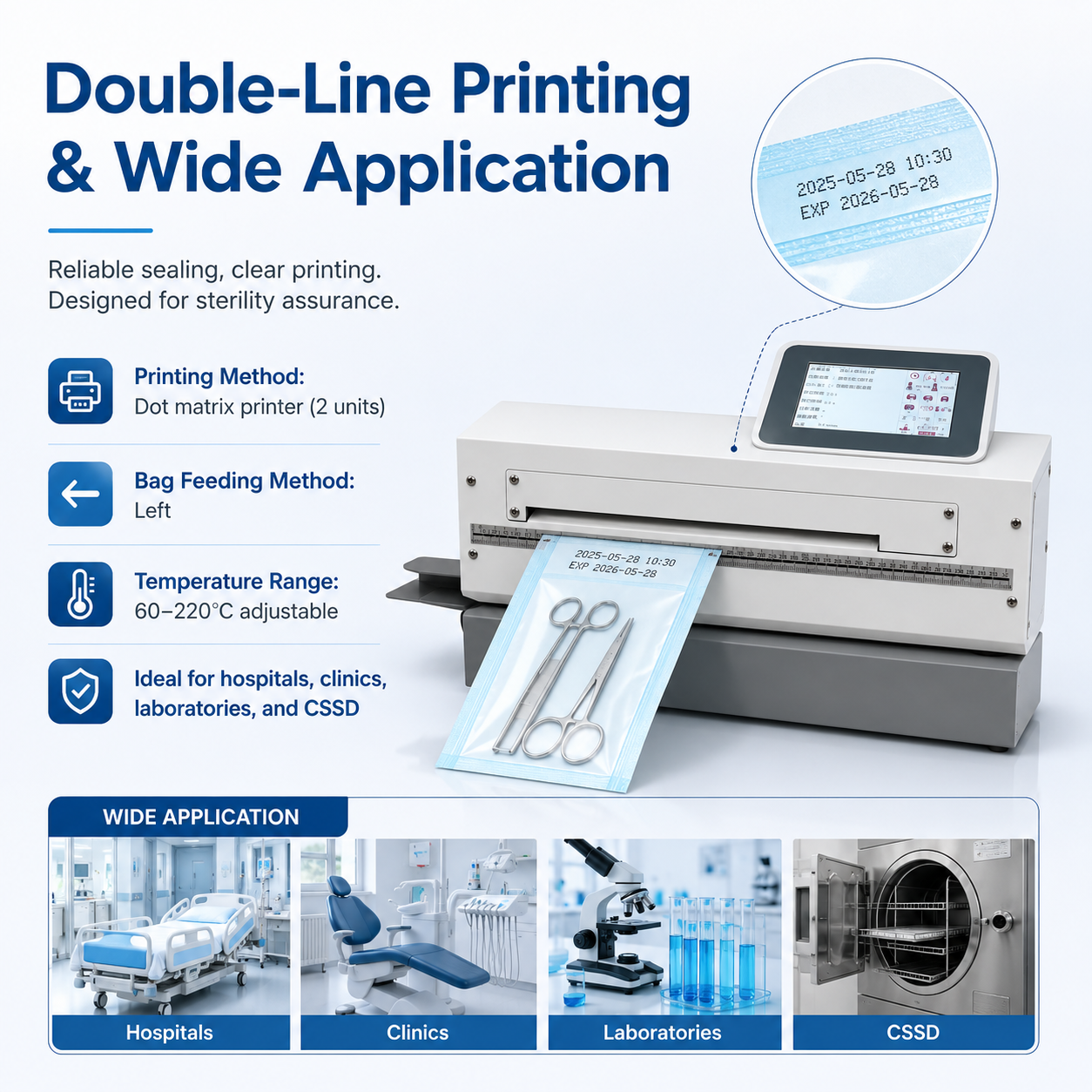

- Full traceability — Dual dot-matrix printers with adjustable 60–220 °C sealing.

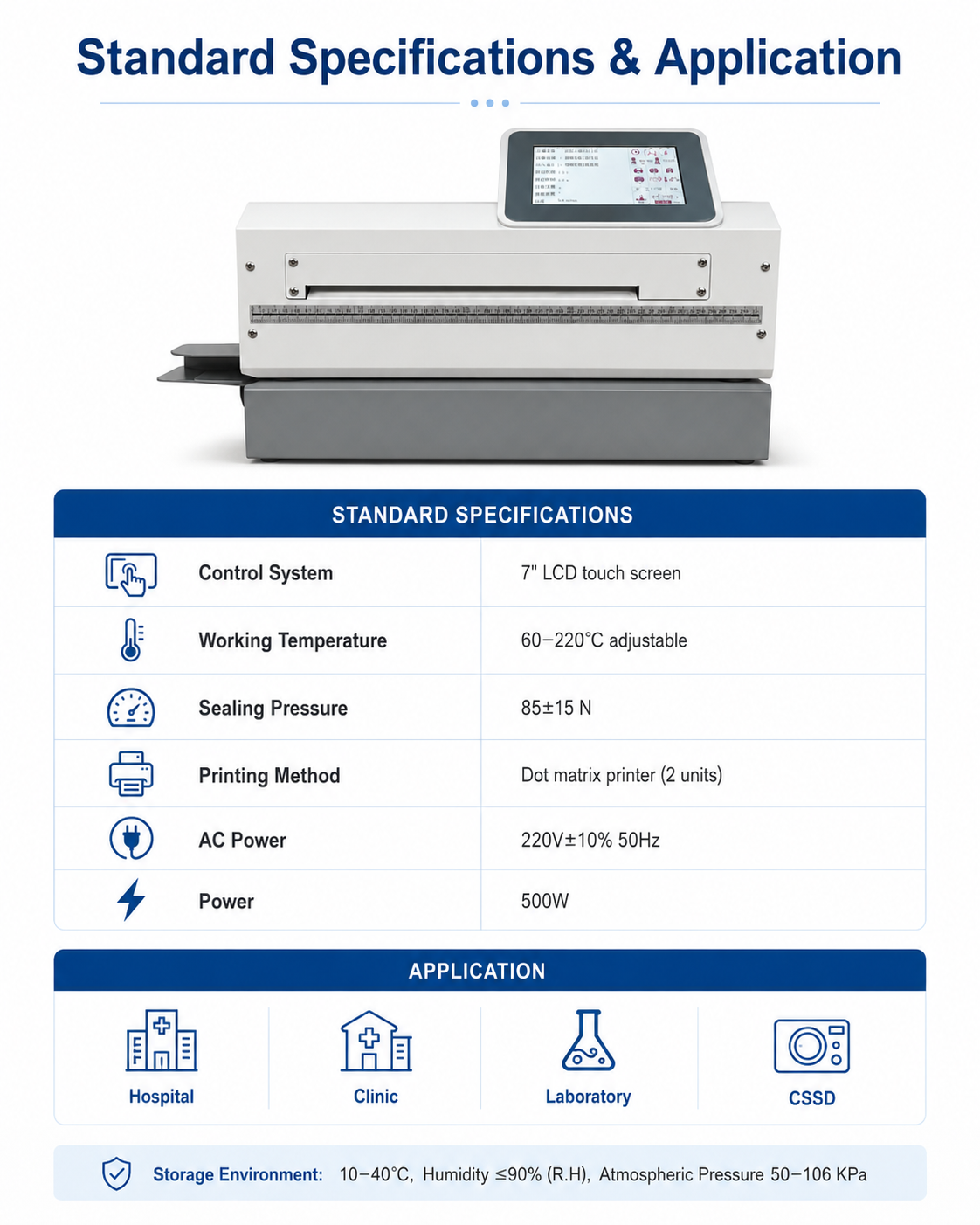

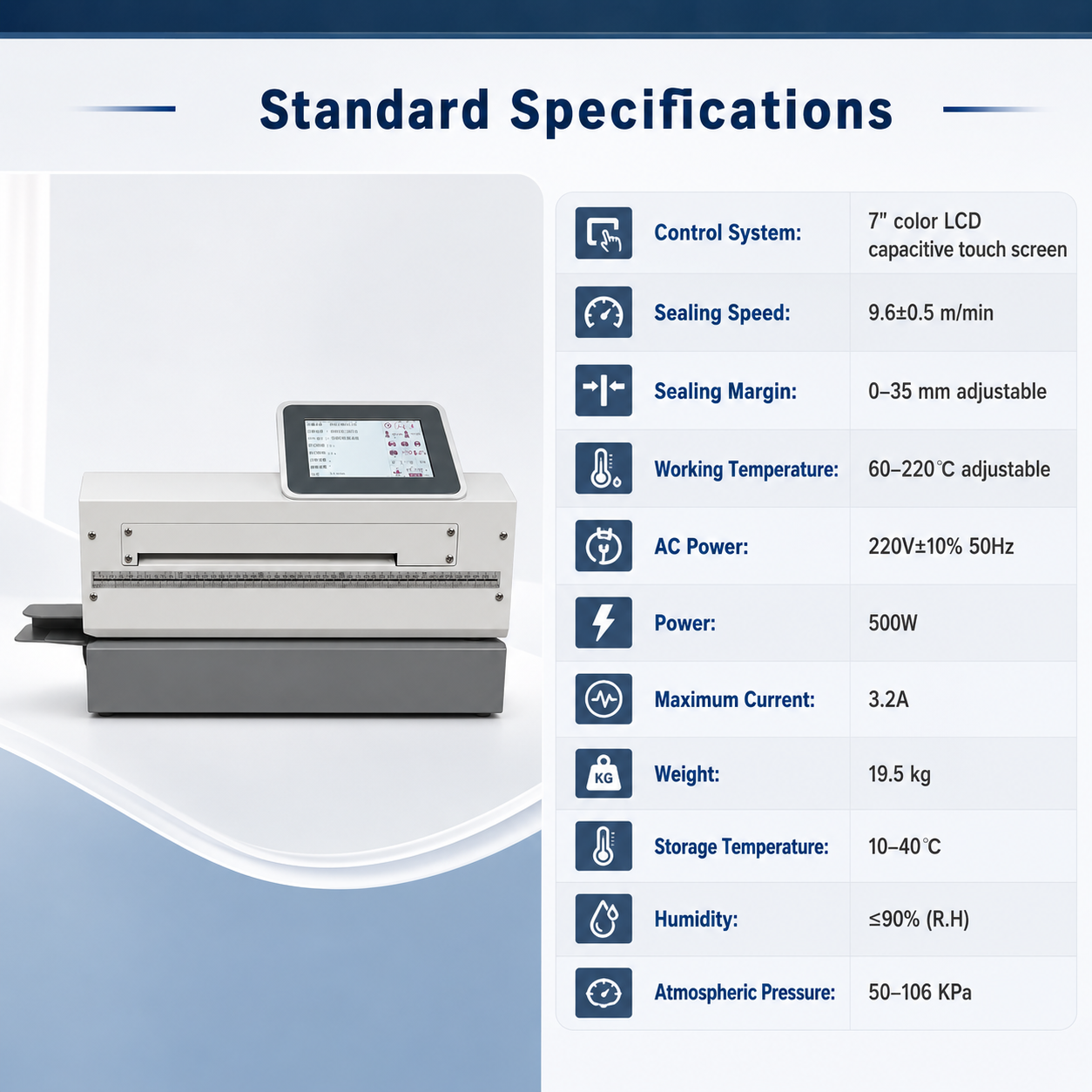

Standard Specifications
| Item | Specification |
|---|---|
| Control system | 7" color LCD capacitive touch screen |
| Cutting width | ≤320 mm |
| Cutting length | 50–2000 mm |
| Cutting accuracy | ≤1% |
| Cutting quantity | 1–60000 pcs |
| Sealing speed | 9.6 ±0.5 m/min |
| Sealing margin | 0–35 mm adjustable |
| Sealing width | 12 mm |
| Working temperature | 60–220 °C adjustable |
| Sealing pressure | 85 ±15 N |
| Printing method | Dot matrix printer (2 units) |
| AC power | 220V ±10%, 50Hz |
| Power | 500W |
| Maximum current | 3.2A |
| Weight | 19.5 kg |
| Overall dimensions | 530 × 264 × 328 mm (excluding guide plate) |

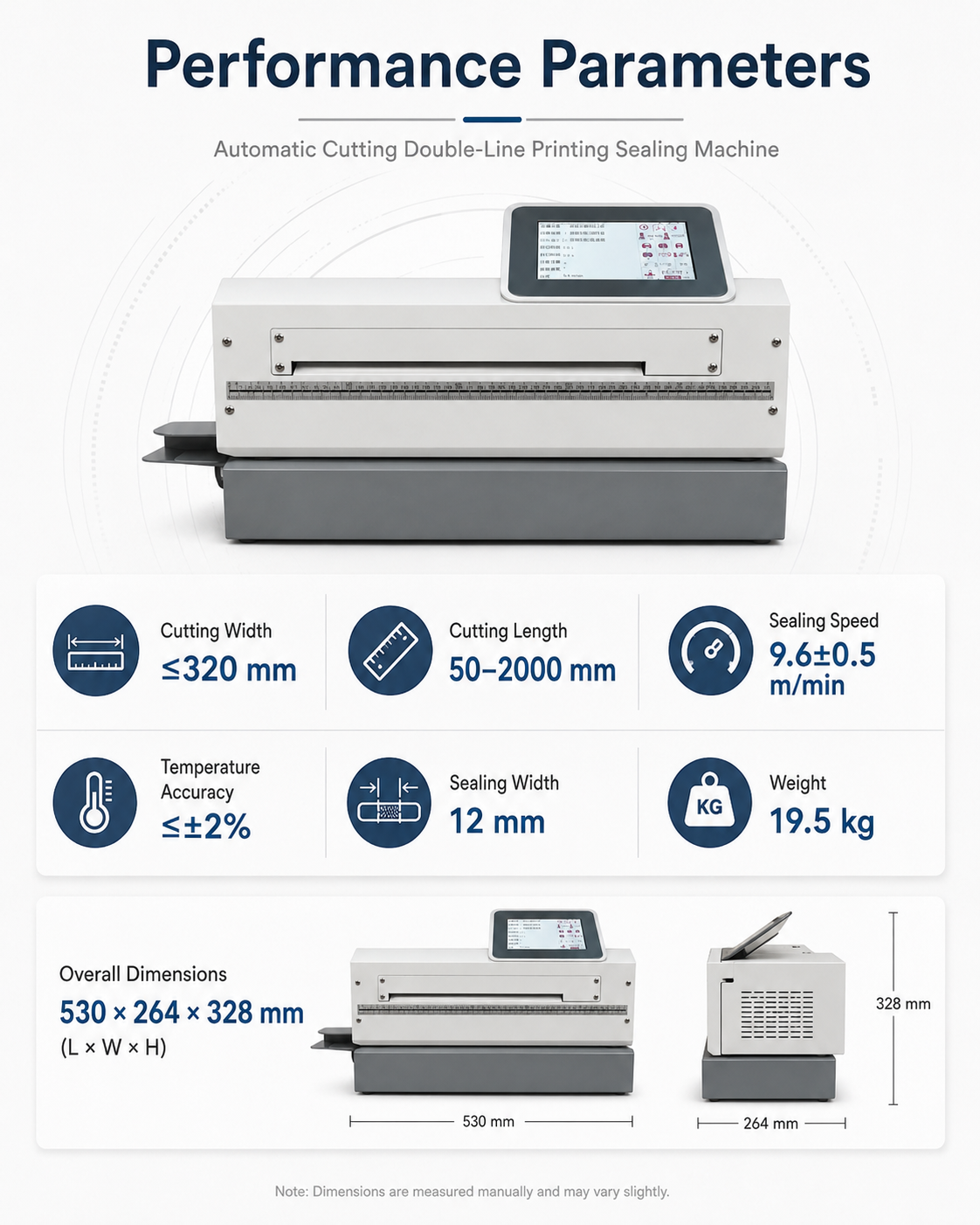

Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Automatic cutting + double-line printing sealer |
| Power | 500 W |
| Sealing speed | 9.6 ±0.5 m/min |
| Cutting range | 50–2000 mm, ≤320 mm width |
| Temperature accuracy | ≤±2% |
| Storage environment | 10–40 °C, ≤90% R.H, 50–106 KPa |
Automatic Cutting Double-Line Printing Sealing Machine · 7" touchscreen, 500 W.
