Suction Motor

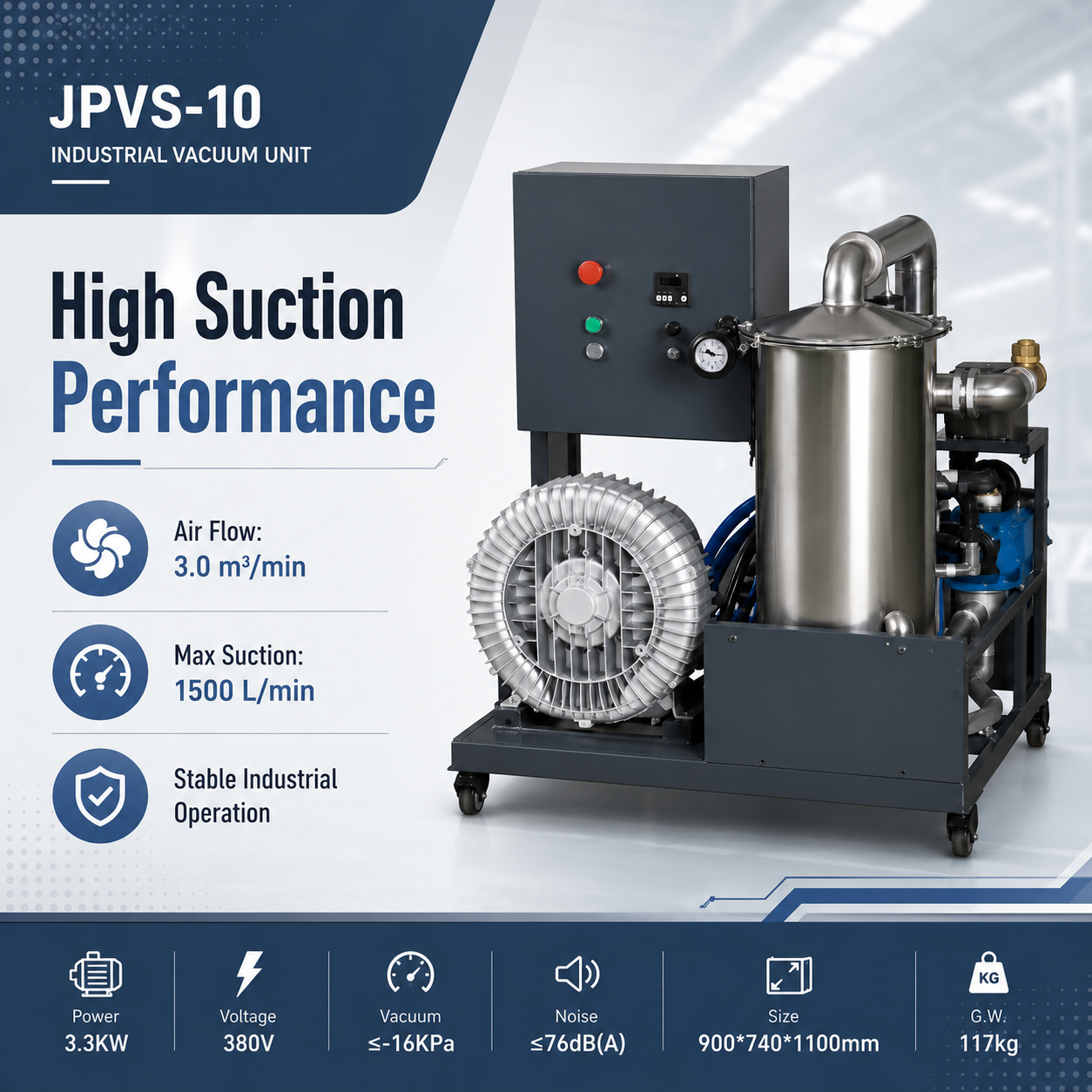

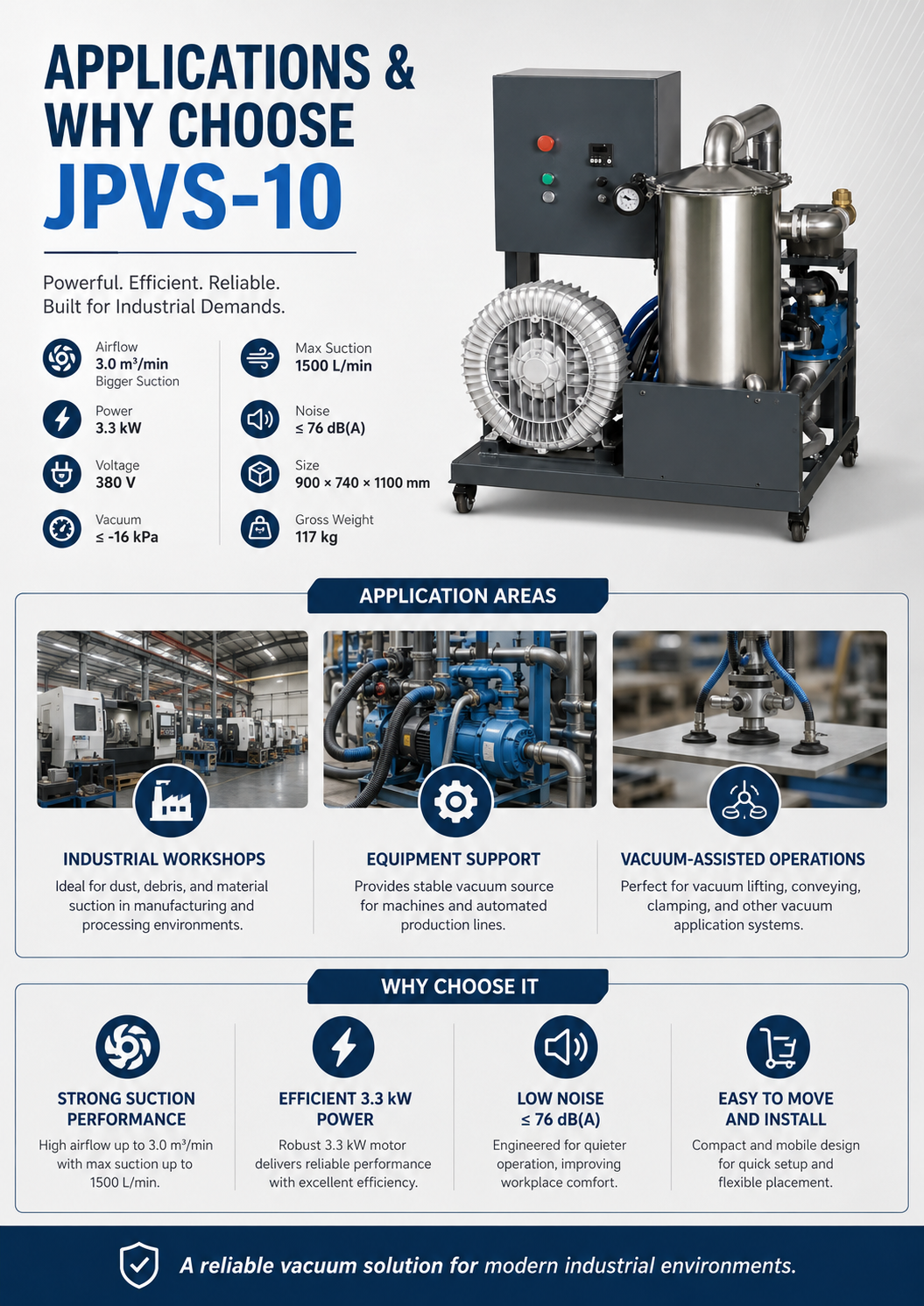

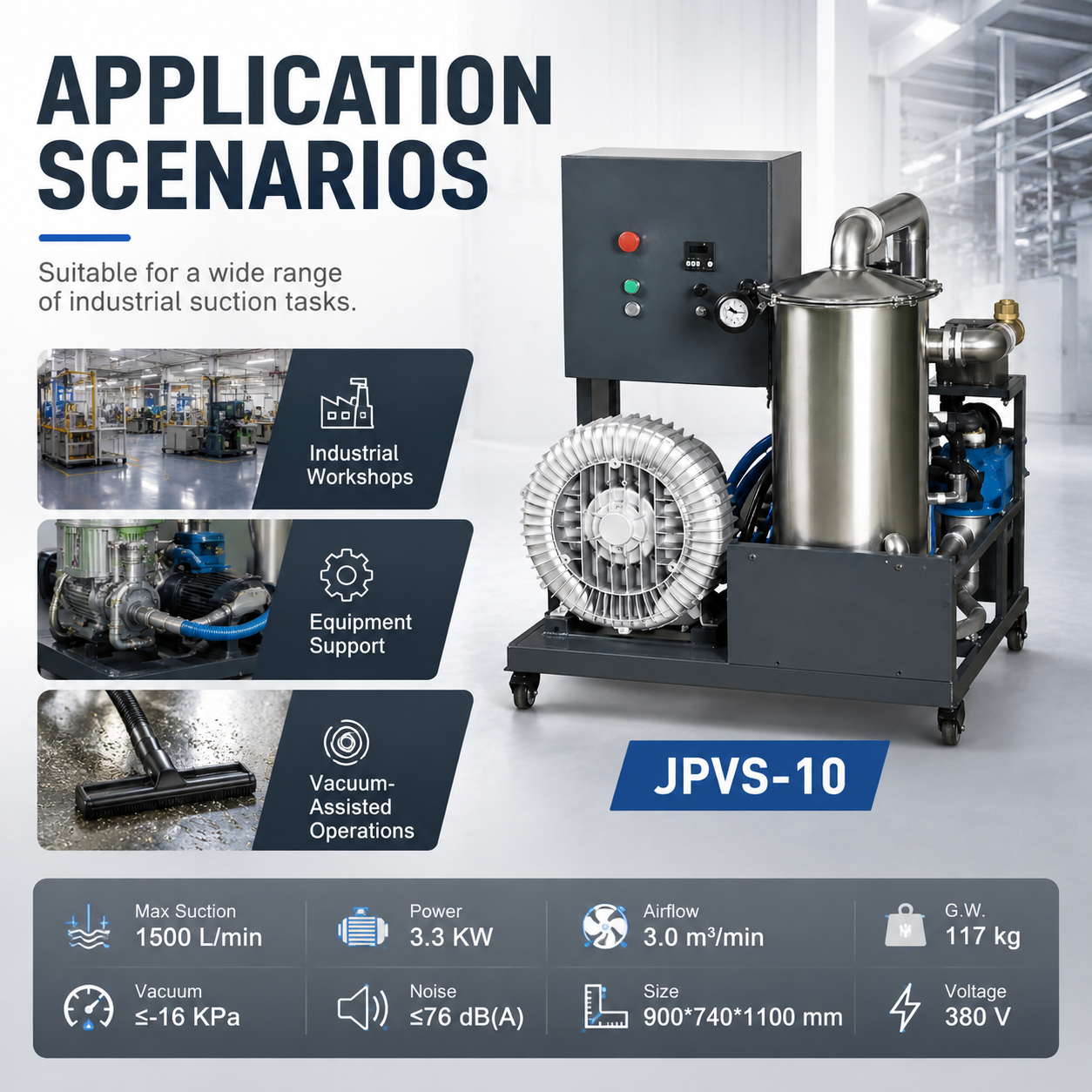

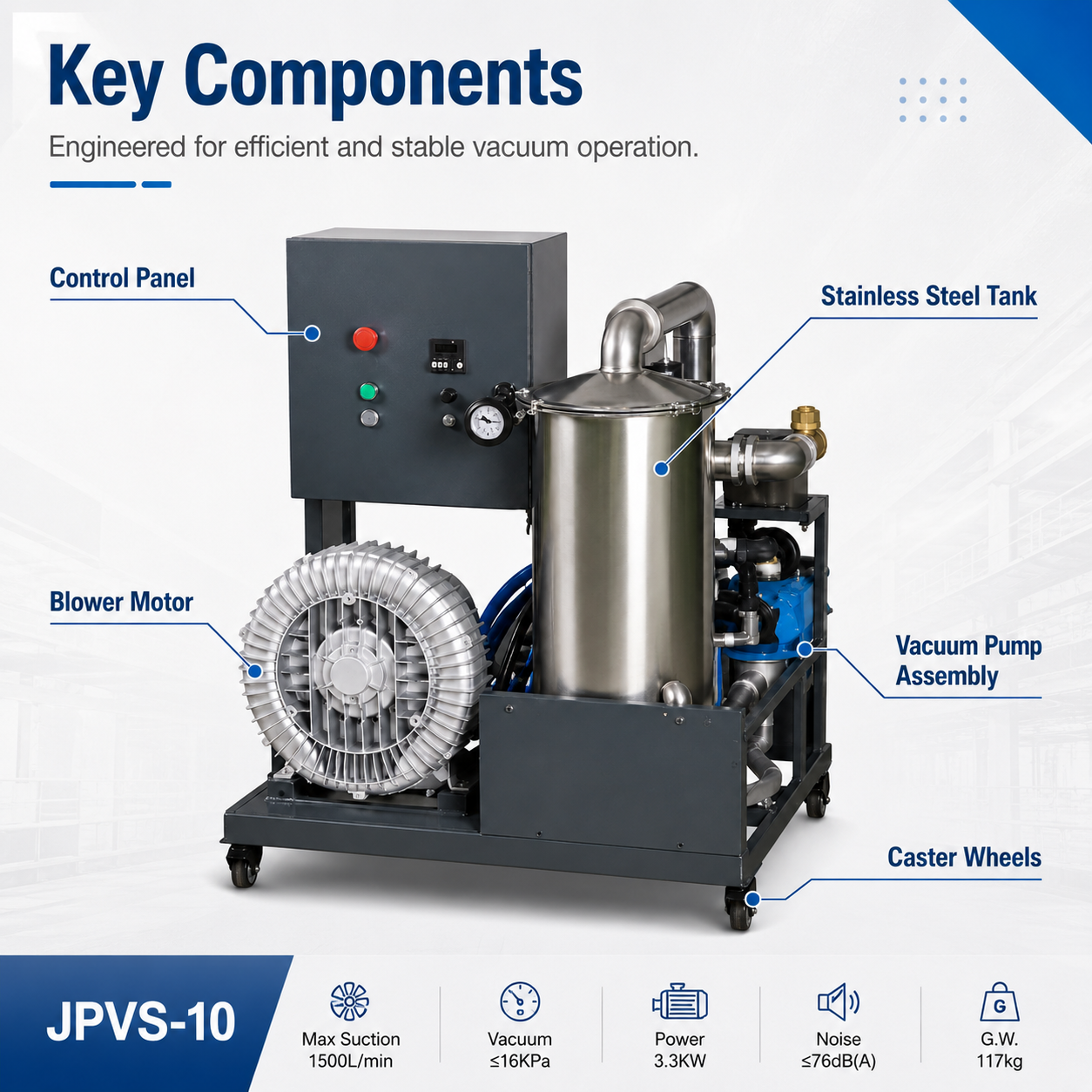

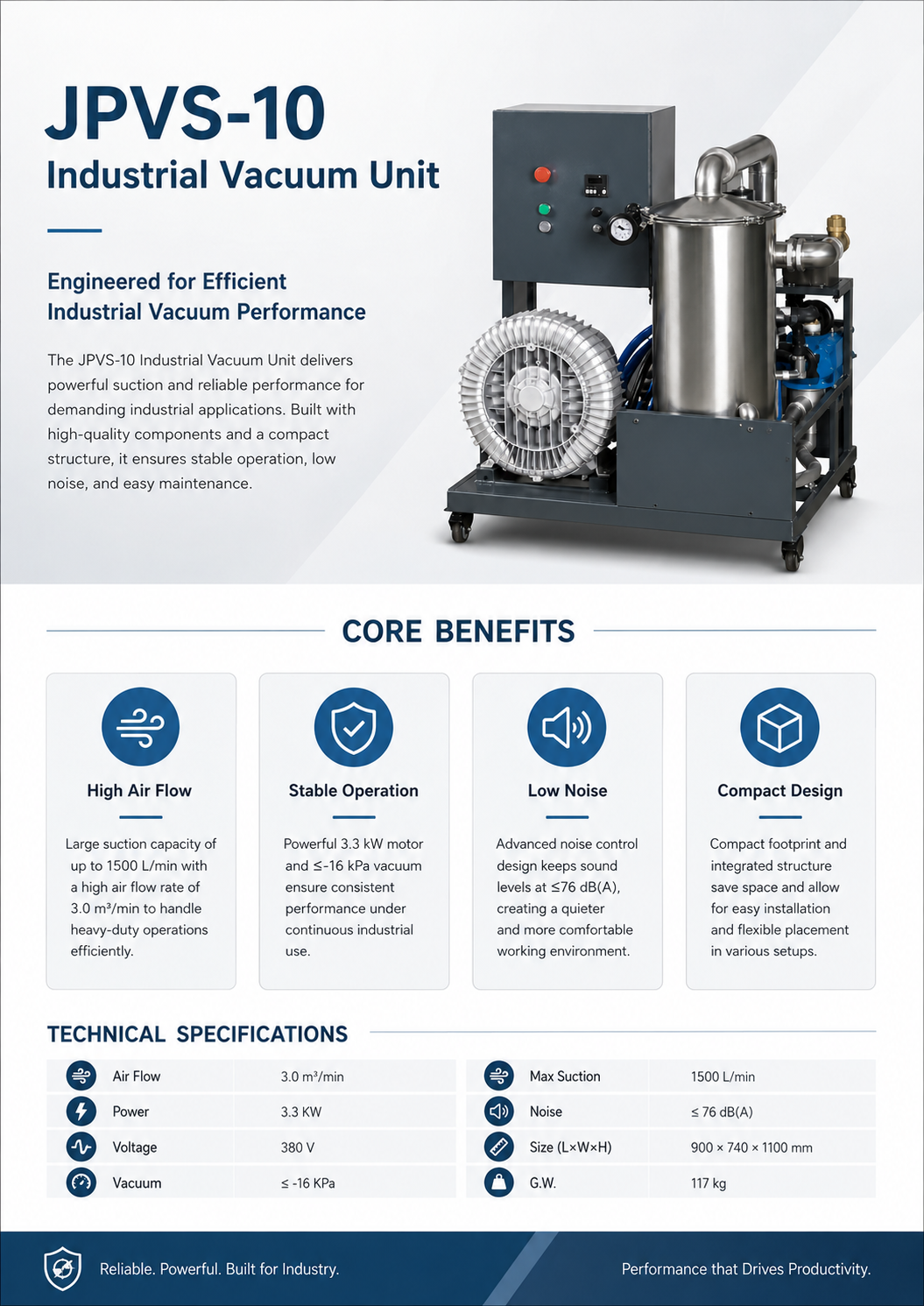

Dental Vacuum Suction Unit — JPVS-10 (10 Chairs)
The JPVS-10 is the top-capacity central dental vacuum suction unit in the series, sized for up to ten dental chairs. Powered by a 3.3 kW, 380V motor, it delivers up to 3.0 m³/min of suction at a vacuum of ≤ -16 kPa. Mounted on a sturdy wheeled frame, it provides strong, stable central suction for large clinics and hospitals.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

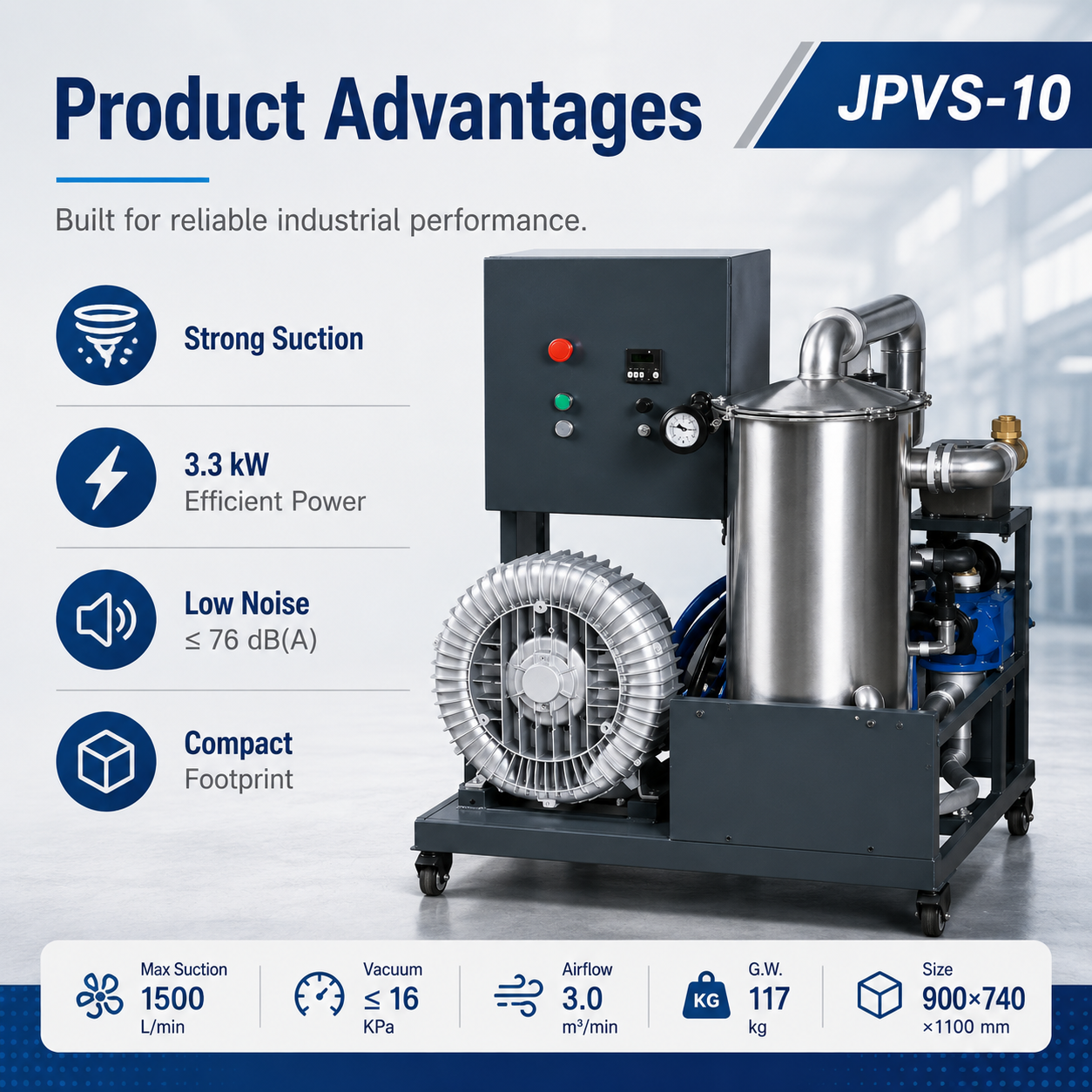

Key Highlights
- Ten-chair capacity — Central suction for up to ten dental units.
- High suction — Up to 3.0 m³/min at ≤ -16 kPa vacuum.
- Powerful three-phase motor — 3.3 kW, 380V for sustained, reliable performance.
- Mobile frame — Wheeled base for easy installation and servicing.

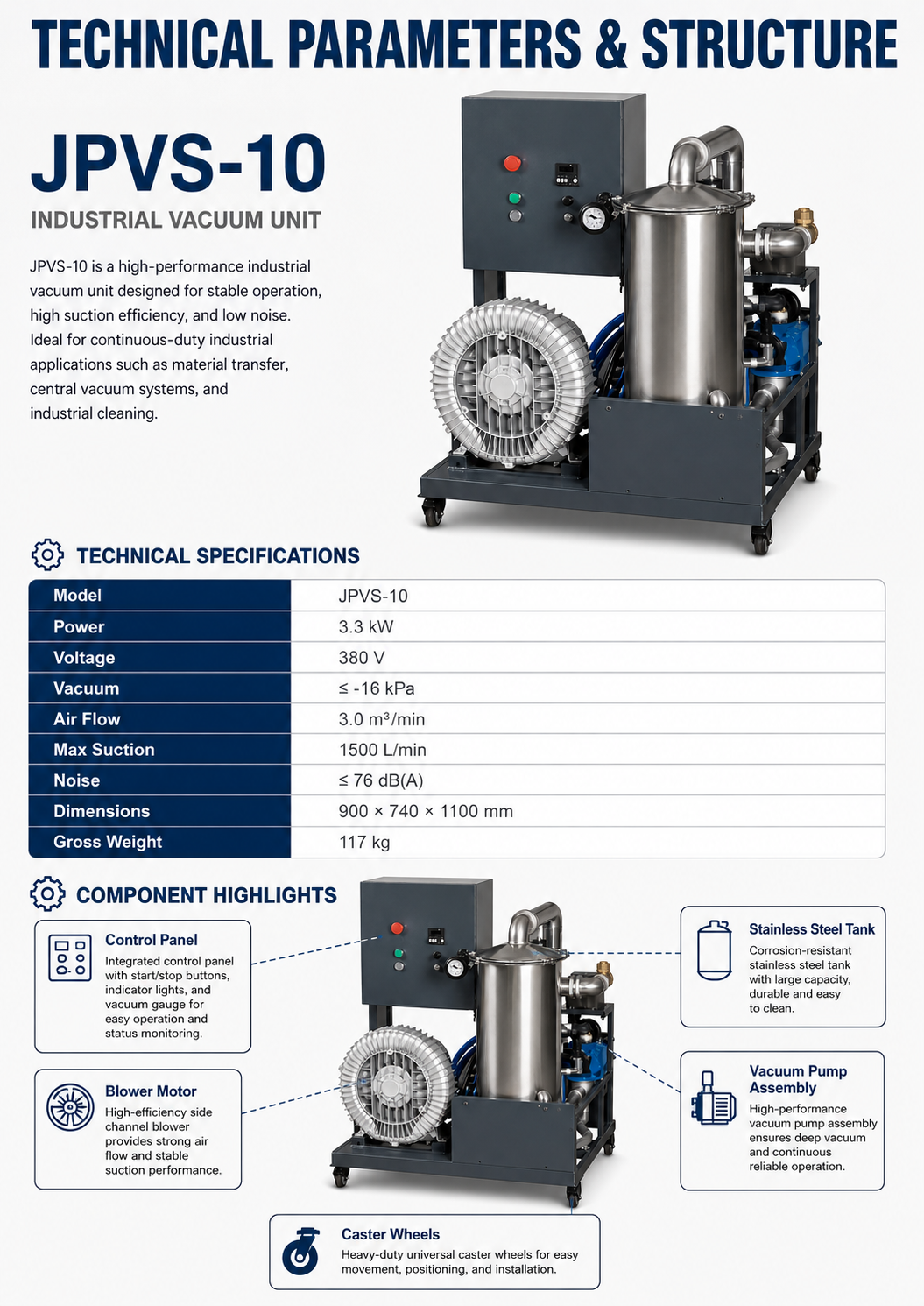

Standard Specifications
| Item | Specification |
|---|---|
| Max suction | 3.0 m³/min |
| Power | 3.3 kW |
| Voltage | 380V |
| Vacuum | ≤ -16 kPa |
| Max suction (flow) | 1500 L/min |
| Noise | ≤ 76 dB(A) |
| Size | 900 × 740 × 1100 mm |
| Gross weight | 117 kg |
Technical Parameters
| Parameter | Specification |
|---|---|
| Capacity | 10 dental chairs |
| Suction | 3.0 m³/min |
| Power | 3.3 kW, 380V |
| Vacuum | ≤ -16 kPa |
| Noise | ≤ 76 dB(A) |
| Weight | 117 kg |
Model: JPVS-10 · Ten-chair central dental vacuum suction unit.
