CBCT Pro-3DE
Dental CBCT System — Pro-3DE (CBCT + Pano + Ceph)
The Pro-3DE is a 3-in-1 dental imaging system combining CBCT (3D cone-beam), panoramic, and cephalometric radiography in a single floor-standing unit. A high-frequency tube (60–90 kV, 2–10 mA) with a 0.5 × 0.5 mm focal spot and hybrid pulsed X-ray technology delivers detailed 3D and 2D images while reducing effective patient dose — a CT scan completes in 20 seconds with only 8.7 seconds of effective irradiation. Runs on a Windows 10 platform for streamlined diagnostics.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights

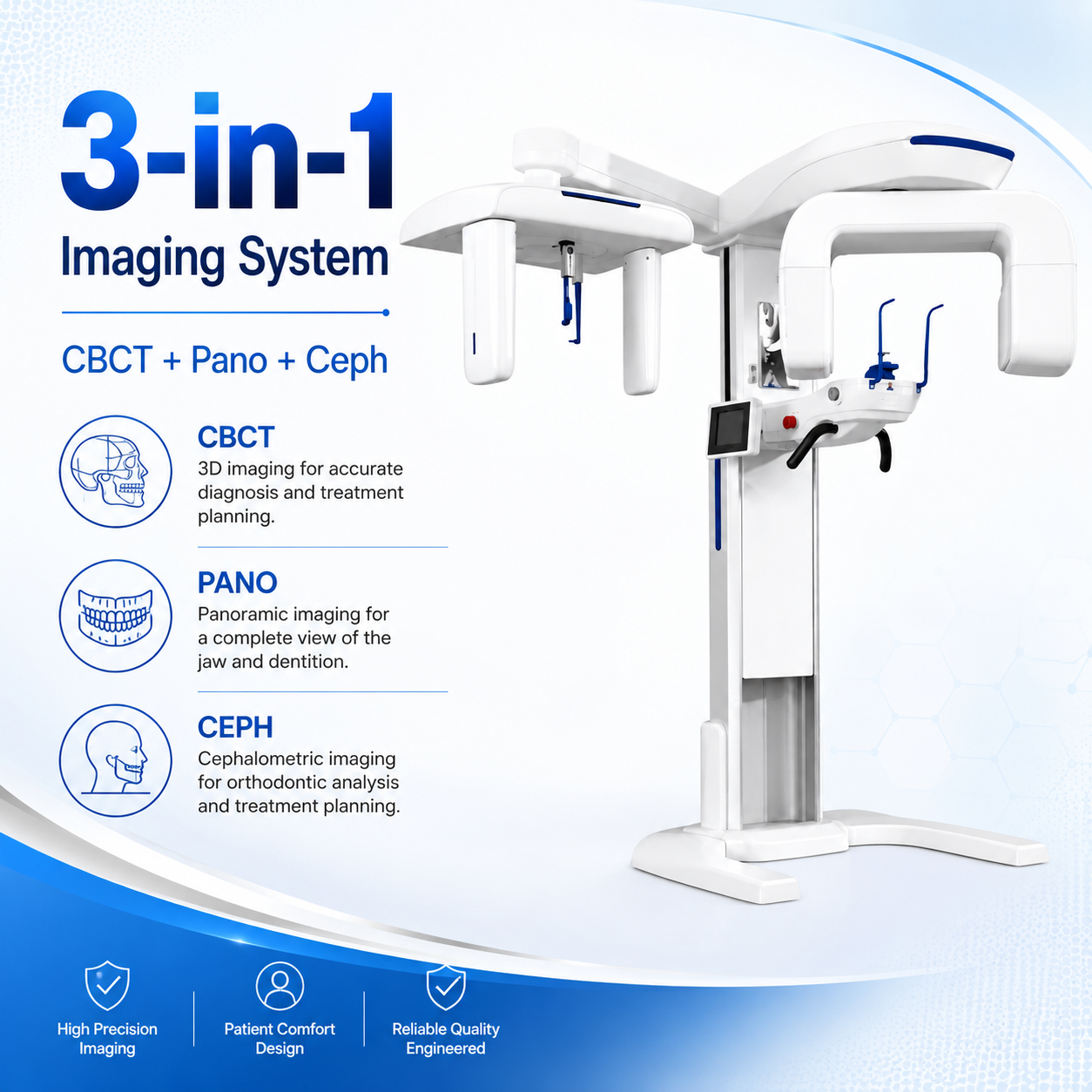

- 3-in-1 imaging — CBCT (3D), panoramic, and cephalometric in one system.
- Low-dose CT — Hybrid pulsed X-ray technology: 20 s CT scan with only 8.7 s effective irradiation.
- Sharp detail — 0.5 × 0.5 mm focal spot for high-resolution 3D and 2D imaging.
- Flexible exposure — 60–90 kV, 2–10 mA tube range.
- Windows 10 platform — Familiar OS for image capture and review.

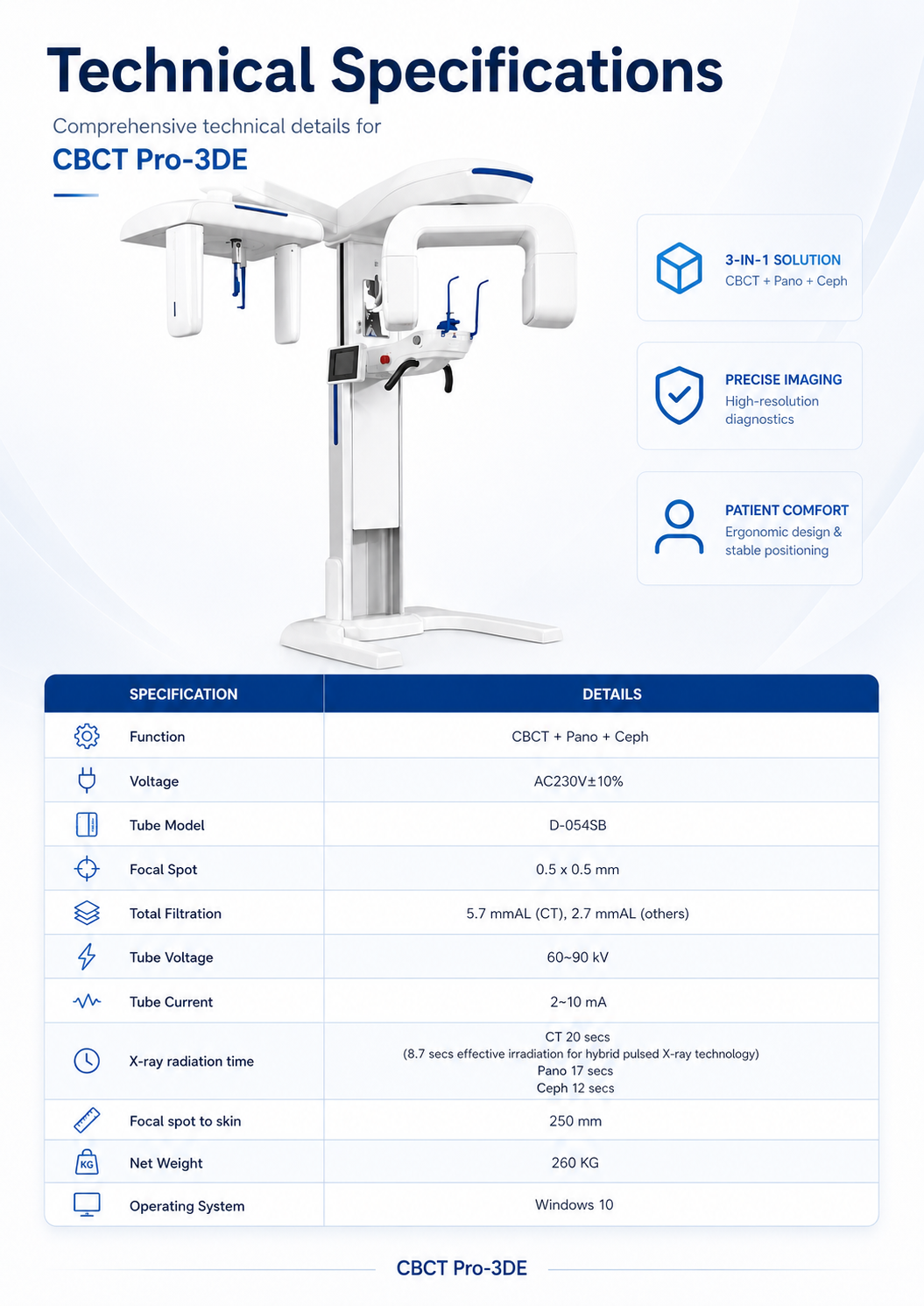

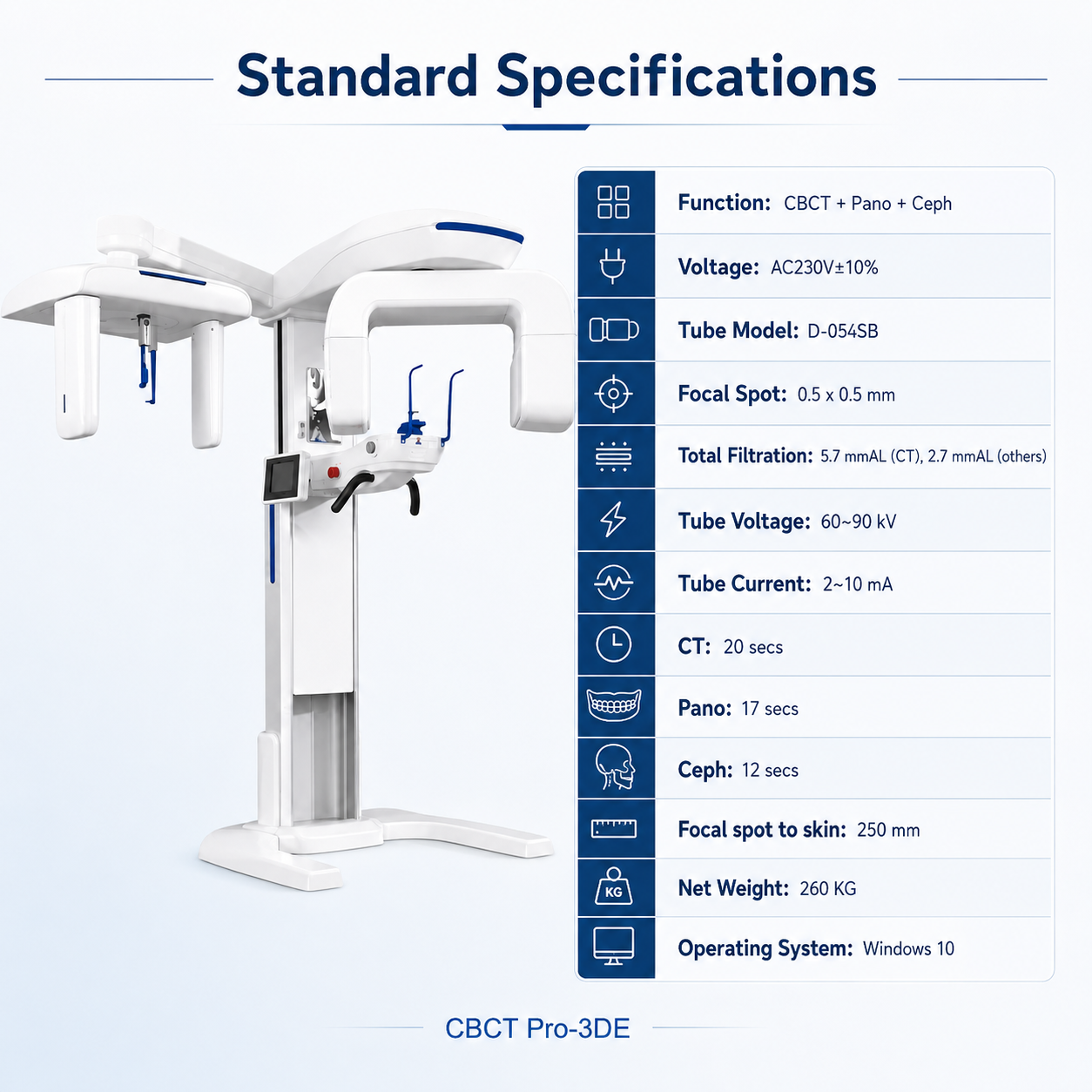

Standard Specifications
| Item | Specification |
|---|---|
| Function | CBCT + Pano + Ceph |
| Voltage | AC 230V ±10% |
| Tube model | D-054SB |
| Focal spot | 0.5 × 0.5 mm |
| Total filtration | 5.7 mm AL (CT); 2.7 mm AL (others) |
| Tube voltage | 60–90 kV |
| Tube current | 2–10 mA |
| Radiation time | CT 20 s (8.7 s effective, hybrid pulsed); Pano 17 s; Ceph 12 s |
| Focal spot to skin | 250 mm |
| Net weight | 260 kg |
| Operating system | Windows 10 |
Technical Parameters
| Parameter | Specification |
|---|---|
| Modalities | CBCT (3D), panoramic, cephalometric |
| Focal spot | 0.5 × 0.5 mm |
| Tube range | 60–90 kV, 2–10 mA |
| CT scan time | 20 s (8.7 s effective irradiation) |
| Filtration | 5.7 mm AL (CT) / 2.7 mm AL (others) |
| Software | Windows 10 |
| Weight | 260 kg |
Model: Pro-3DE · Dental CBCT + panoramic + cephalometric imaging system.
