X-ray Unit

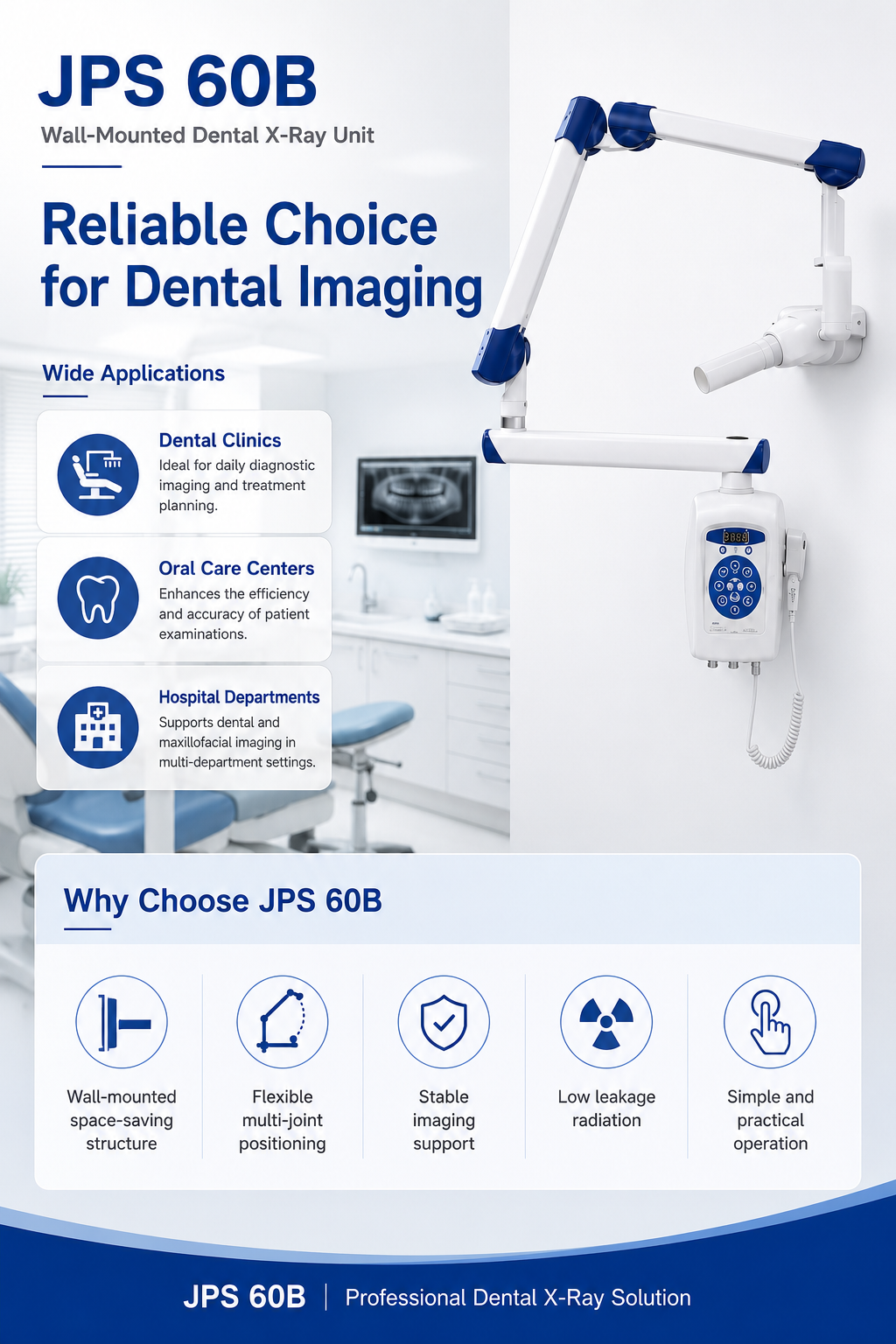

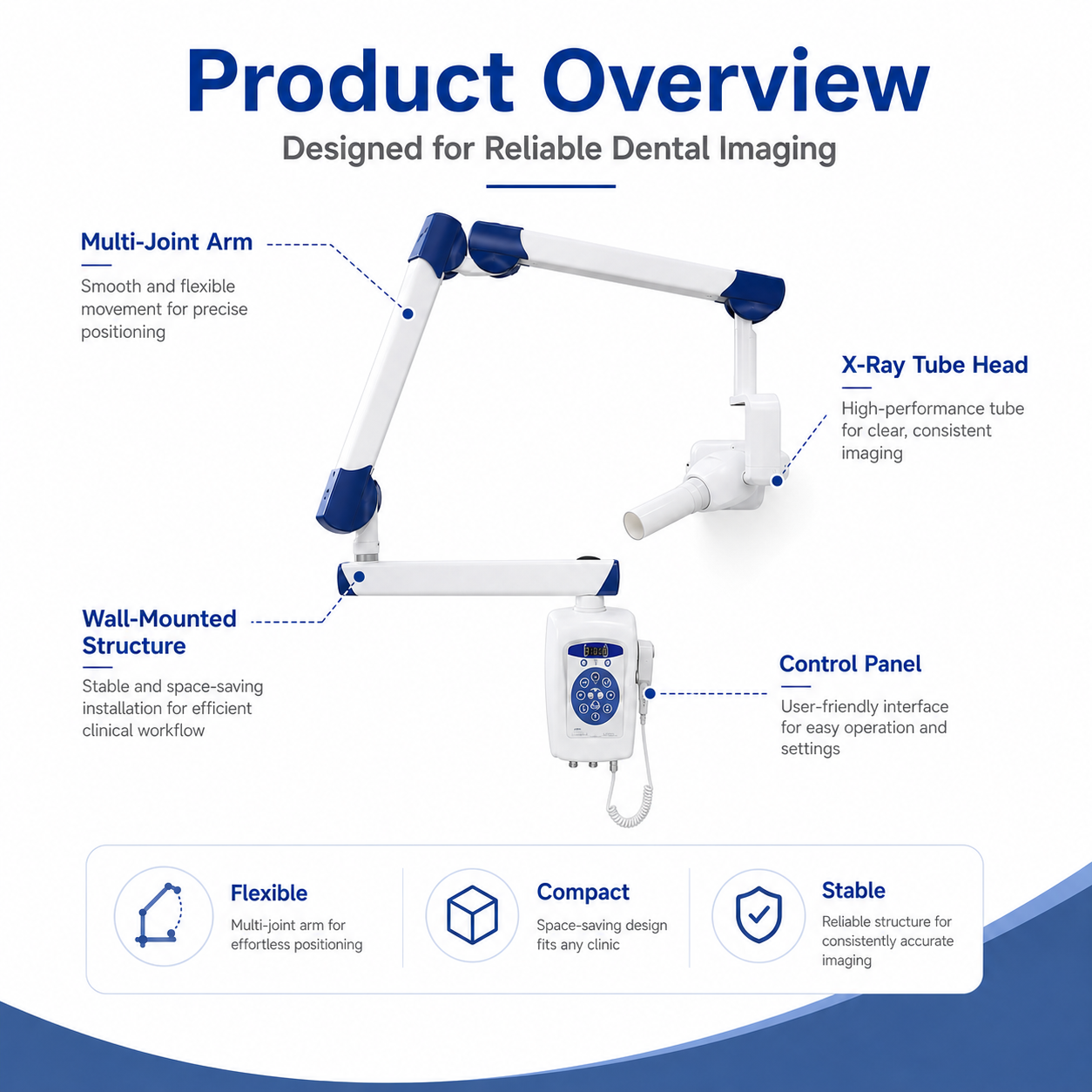

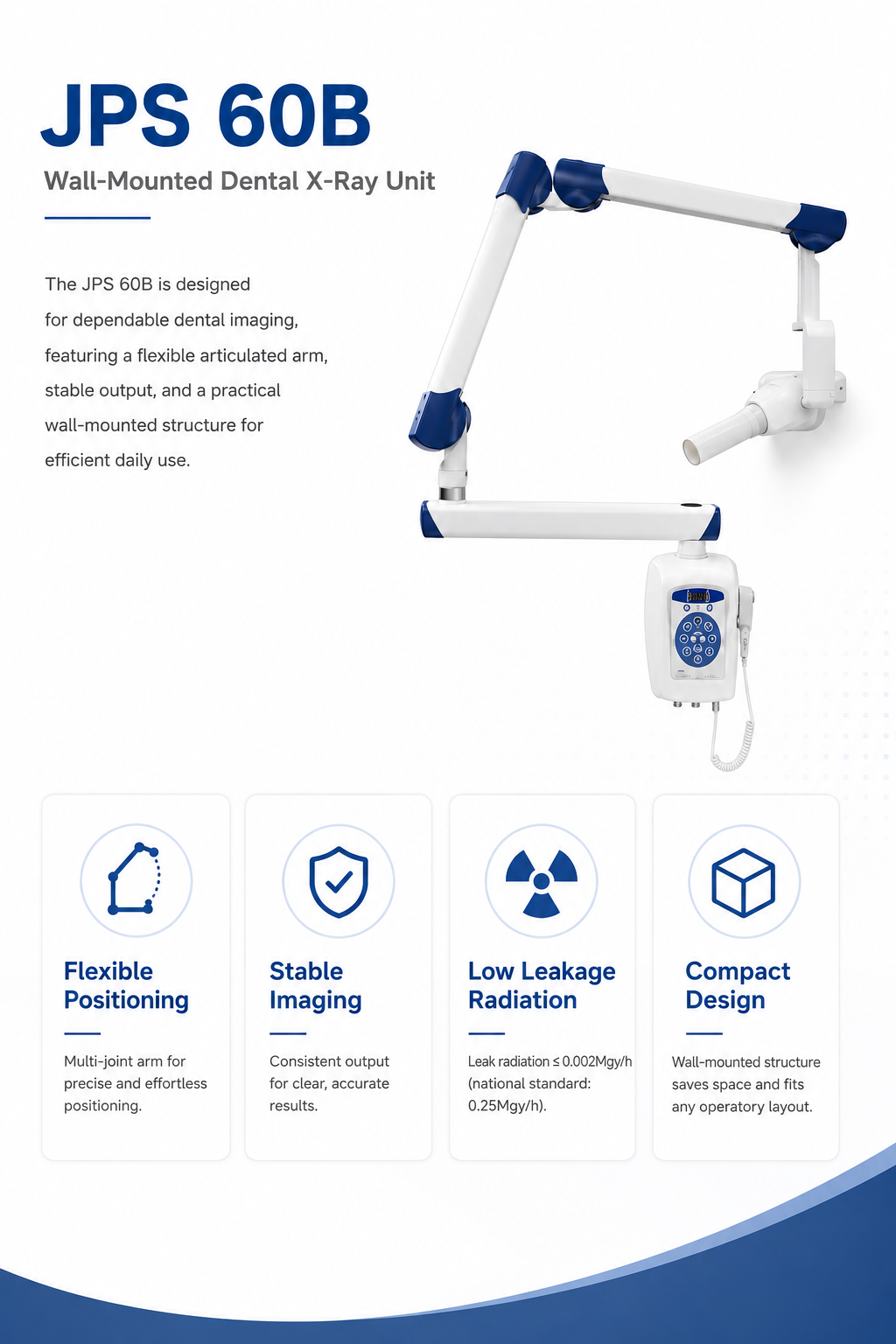

Dental X-ray Unit — JPS 60B (Wall-Mounted)
The JPS 60B is a wall-mounted dental X-ray unit for intraoral radiography, ideal for clinics that want to save floor space. Operating at 70 kVp / 8 mA with a fine 1.5 mm focal spot and an adjustable 0.2–4 second exposure, it produces clear intraoral images while keeping leak radiation far below the national standard. A long, articulated scissor arm gives easy reach to any chair position.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support
Key Highlights

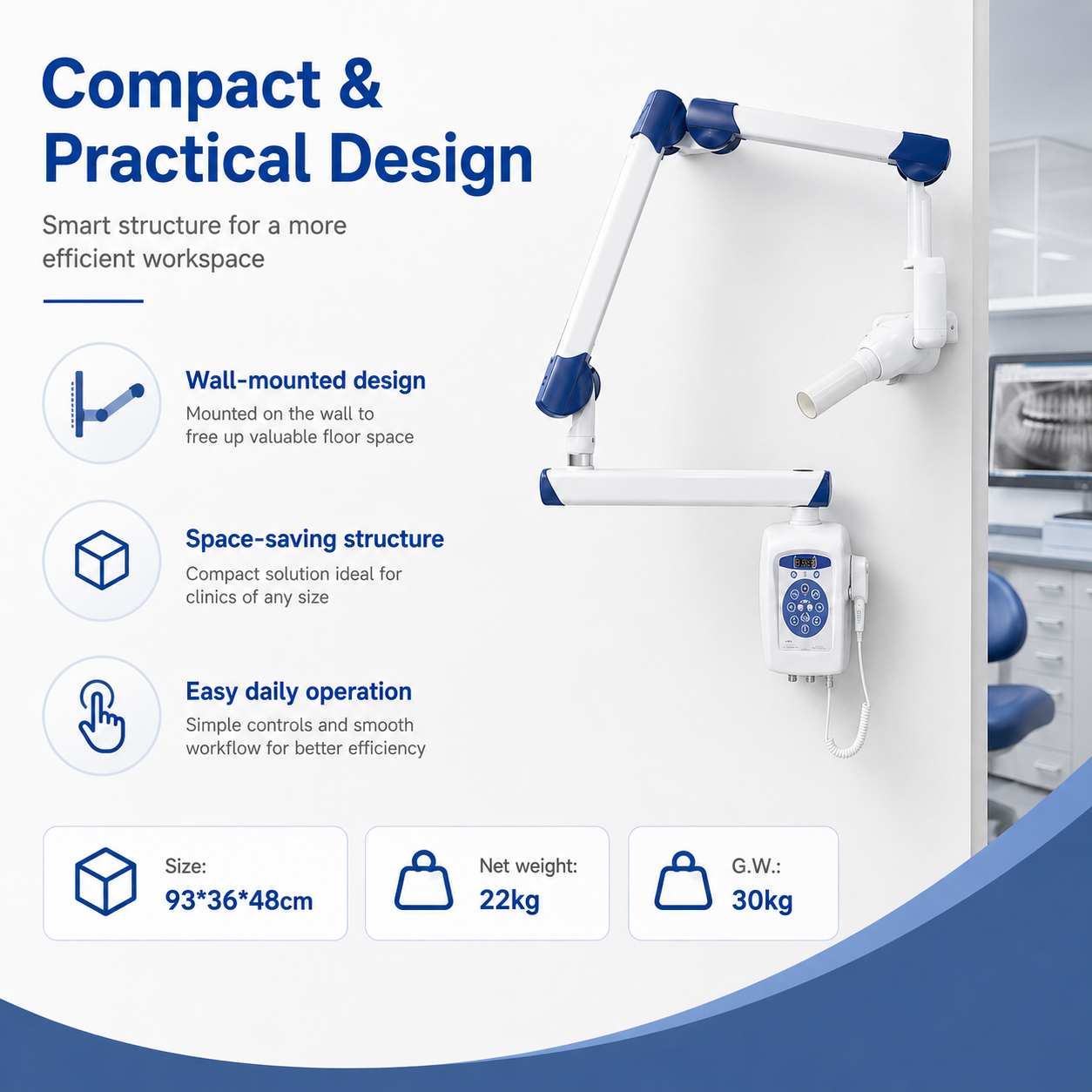

- Space-saving wall mount — Frees floor space while serving the operatory.

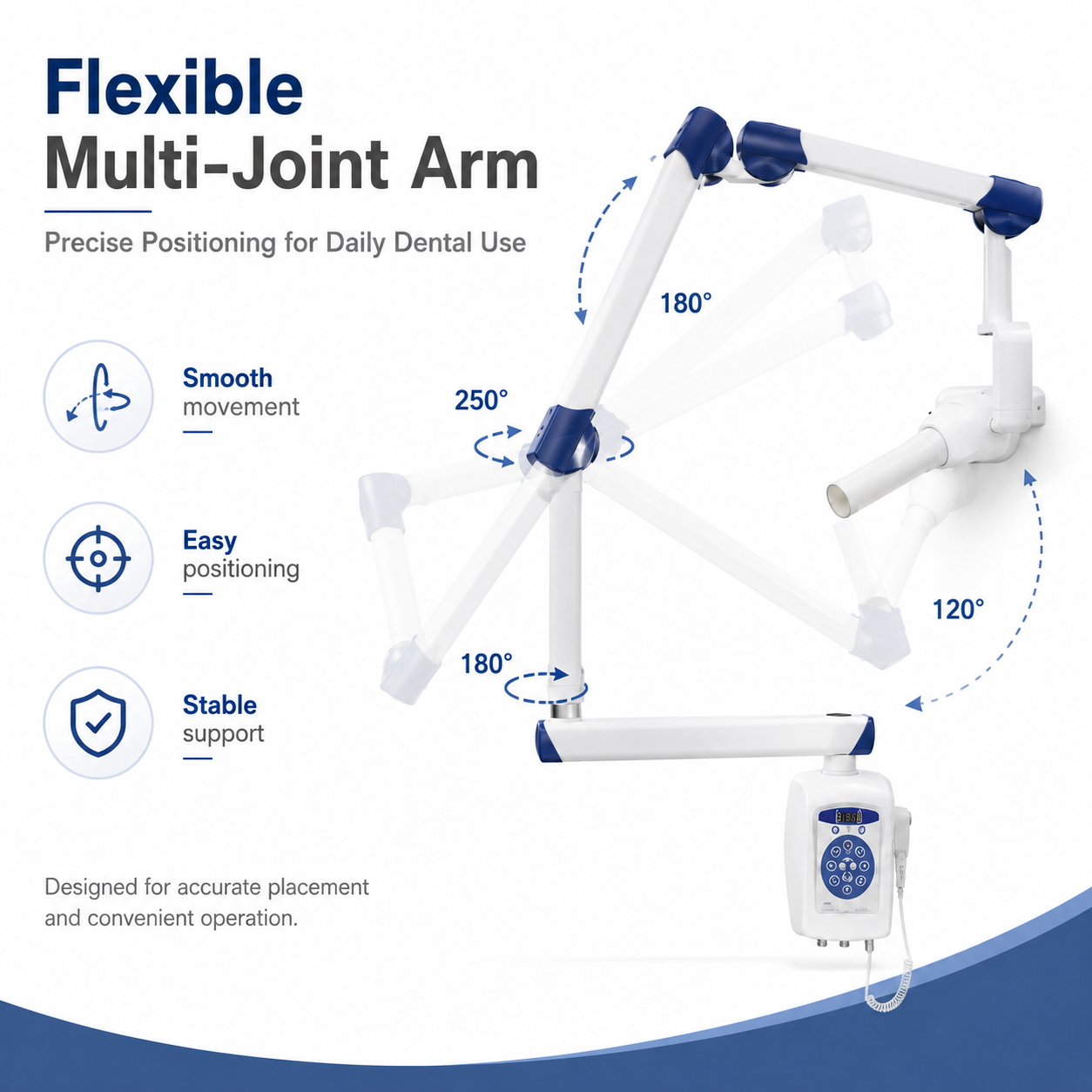

- Long reach — Articulated scissor arm positions the tube head precisely.

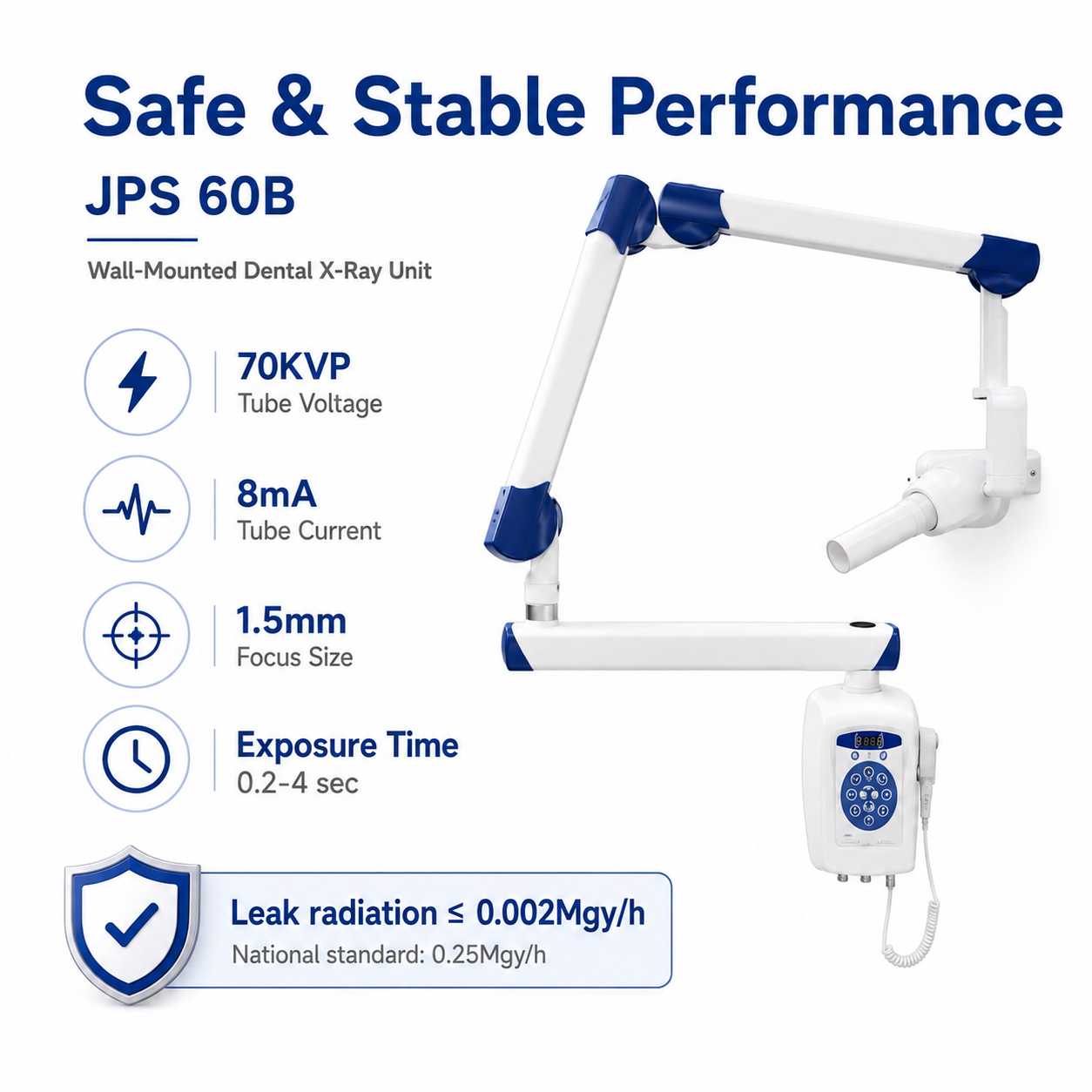

- Clear imaging — 70 kVp / 8 mA with a 1.5 mm focal spot.
- Adjustable exposure — 0.2–4 second exposure time.
- Low leakage — Leak radiation ≤ 0.002 mGy/h at 1 m (national standard 0.25 mGy/h).
- Lightweight — Net weight 22 kg.

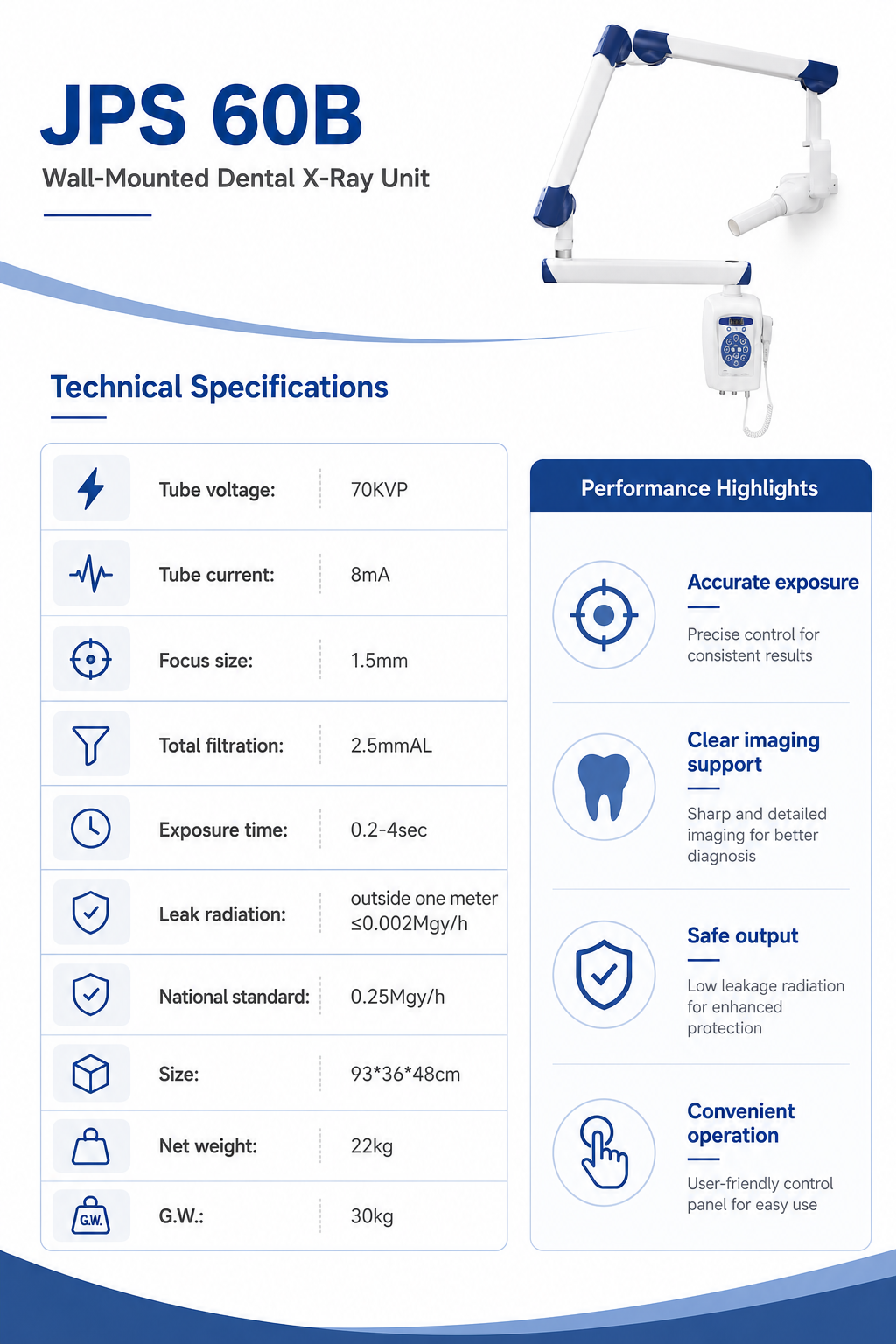

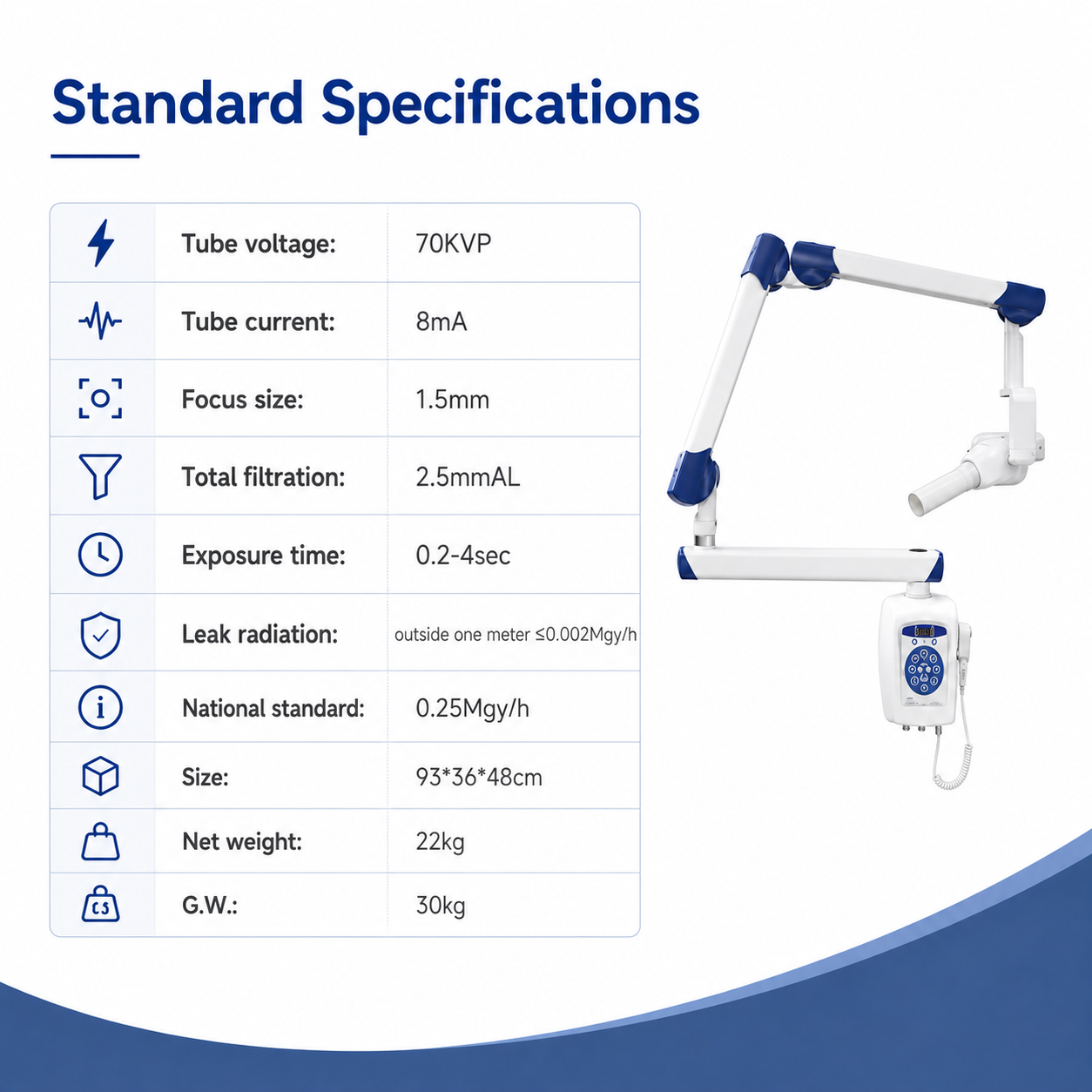

Standard Specifications
| Item | Specification |
|---|---|
| Tube voltage | 70 kVp |
| Tube current | 8 mA |
| Focus size | 1.5 mm |
| Total filtration | 2.5 mm AL |
| Exposure time | 0.2–4 s |
| Leak radiation | ≤ 0.002 mGy/h at 1 m (std. 0.25 mGy/h) |
| Size | 93 × 36 × 48 cm |
| Net weight | 22 kg (gross 30 kg) |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Wall-mounted intraoral X-ray |
| Tube voltage | 70 kVp |
| Tube current | 8 mA |
| Focal spot | 1.5 mm |
| Filtration | 2.5 mm AL |
| Exposure | 0.2–4 s |
| Net weight | 22 kg |
Model: JPS 60B · Wall-mounted dental X-ray unit.
