X-ray Unit
Dental X-ray Unit — JPS 60G (Mobile / Floor-Standing)

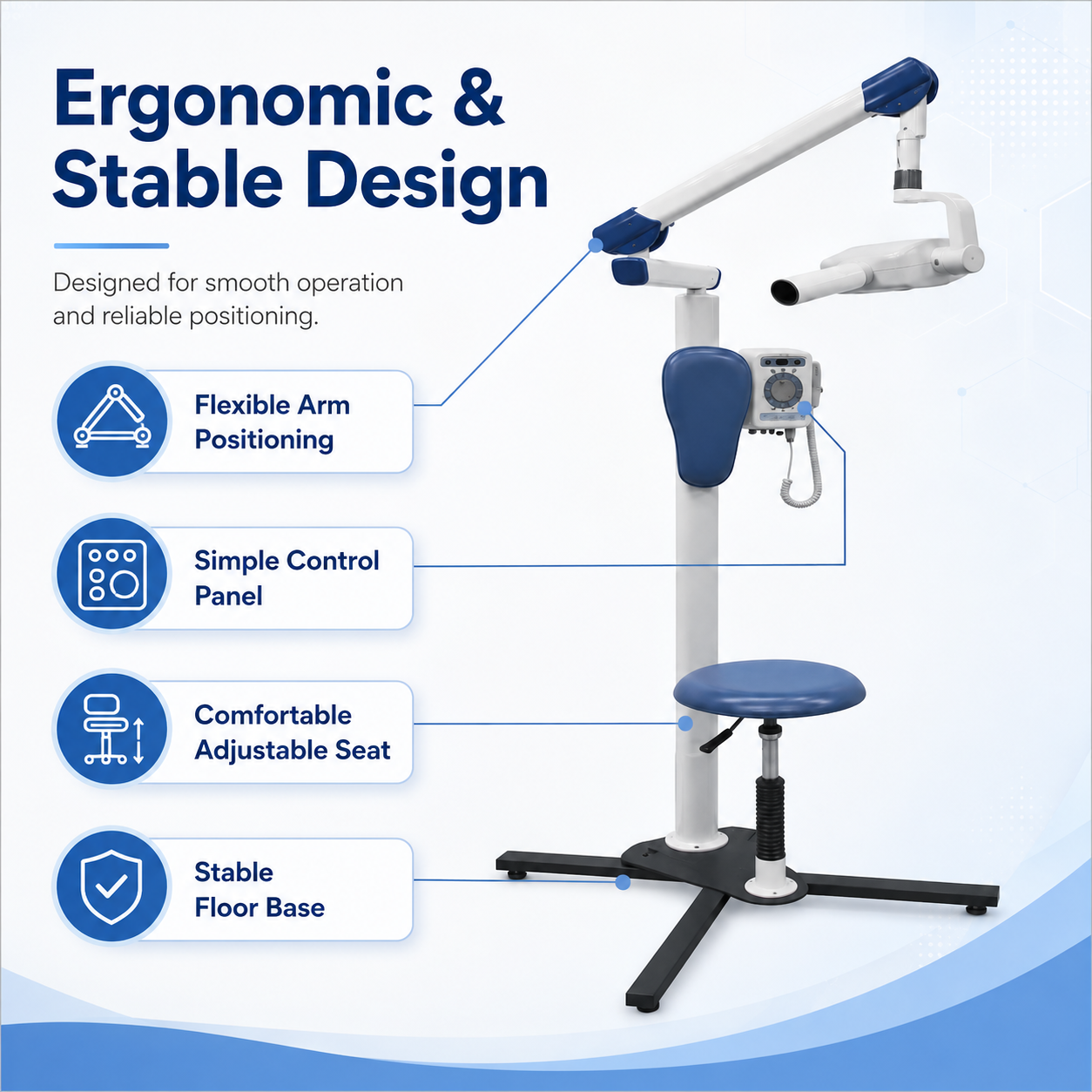

The JPS 60G is a mobile, floor-standing dental X-ray unit for intraoral radiography. Operating at 70 kVp / 8 mA with a fine 1.5 mm focal spot and an adjustable 0.2–4 second exposure, it produces clear intraoral images while keeping leak radiation far below the national standard. Its mobile base and articulated arm make it easy to position at any chair.
MOQNegotiable
Lead Time15-30 days
CertificationCE / ISO 13485 / FDA
OEM / ODMAvailable
PaymentT/T, L/C
Loading PortShanghai, China
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

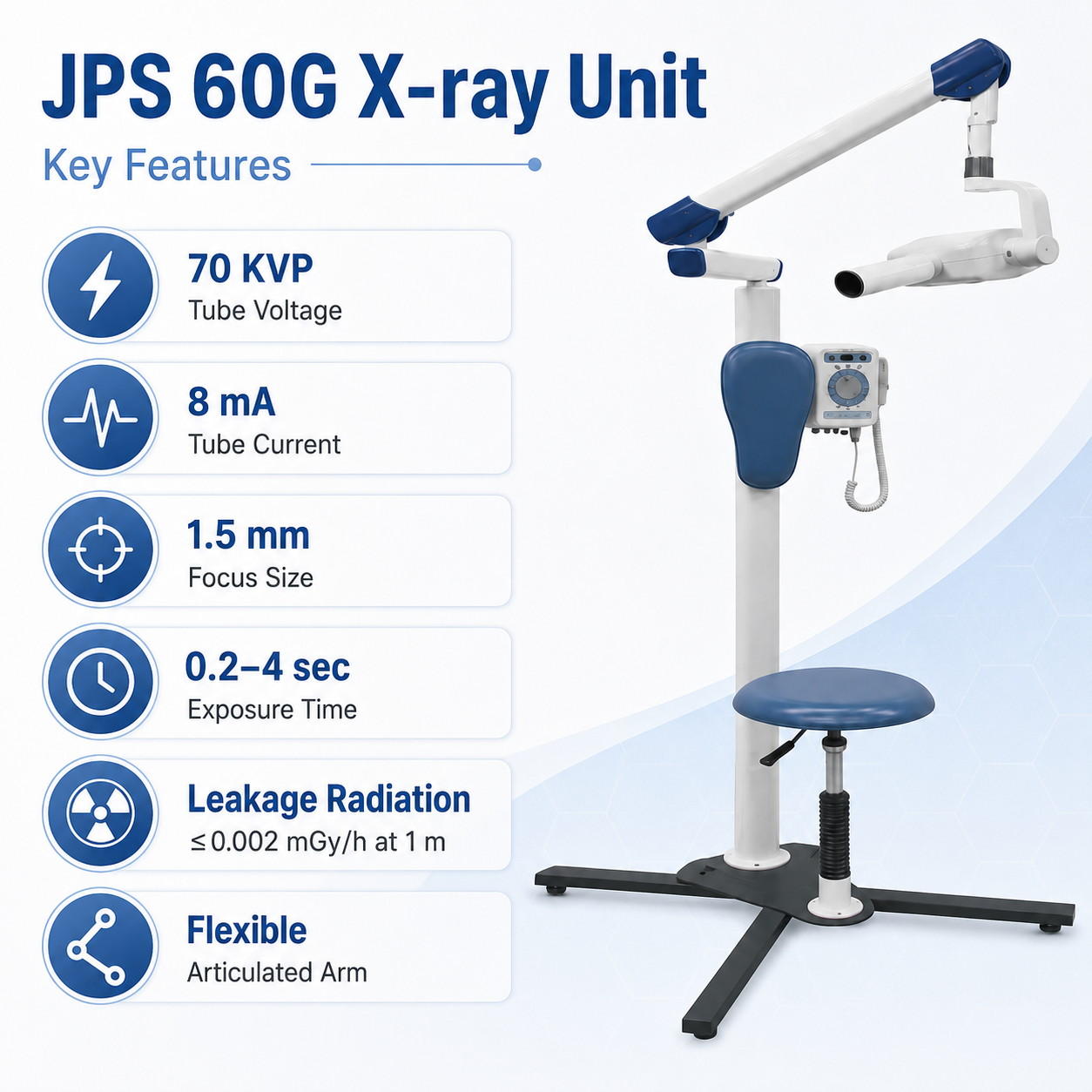

Key Highlights
- Mobile floor-standing design — Wheeled base with an articulated arm for flexible positioning.
- Clear imaging — 70 kVp / 8 mA with a 1.5 mm focal spot.
- Adjustable exposure — 0.2–4 second exposure time for varied techniques.

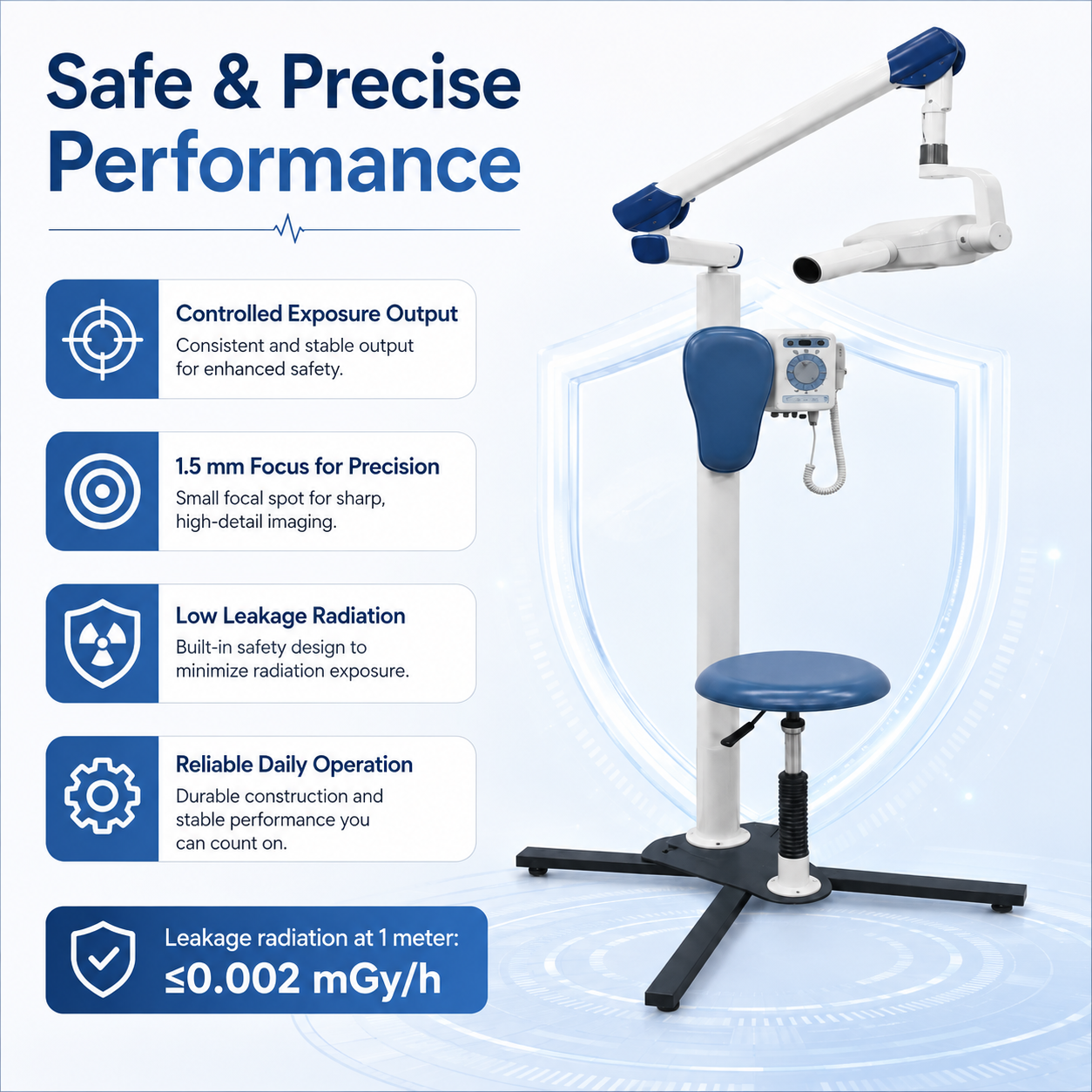

- Low leakage — Leak radiation ≤ 0.002 mGy/h at 1 m (national standard 0.25 mGy/h).
- Compact & light — 57 kg in a 152 × 57 × 26 cm footprint.

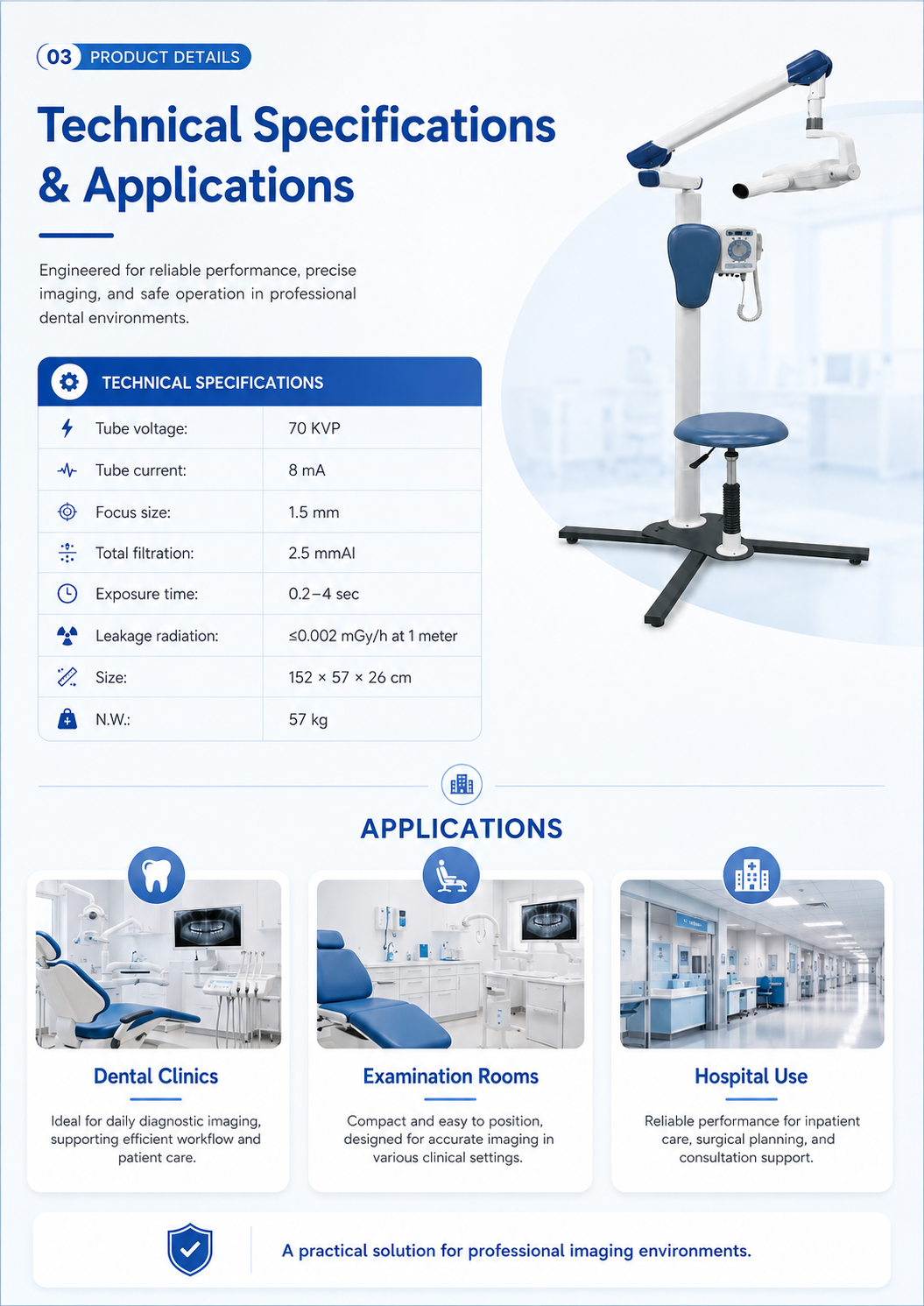

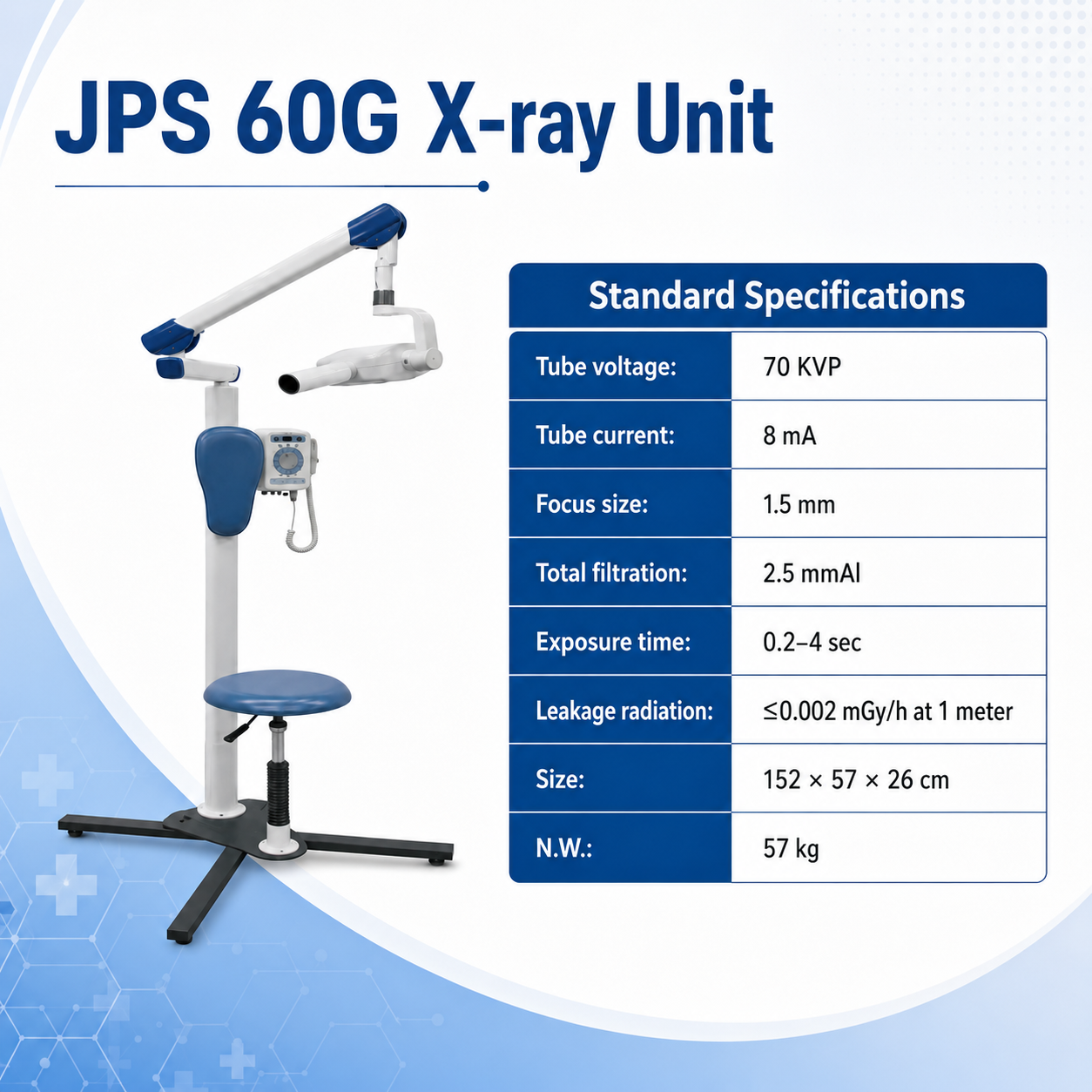

Standard Specifications
| Item | Specification |
|---|---|
| Tube voltage | 70 kVp |
| Tube current | 8 mA |
| Focus size | 1.5 mm |
| Total filtration | 2.5 mm AL |
| Exposure time | 0.2–4 s |
| Leak radiation | ≤ 0.002 mGy/h at 1 m (std. 0.25 mGy/h) |
| Size | 152 × 57 × 26 cm |
| Net weight | 57 kg |
Technical Parameters
| Parameter | Specification |
|---|---|
| Type | Mobile / floor-standing intraoral X-ray |
| Tube voltage | 70 kVp |
| Tube current | 8 mA |
| Focal spot | 1.5 mm |
| Filtration | 2.5 mm AL |
| Exposure | 0.2–4 s |
| Weight | 57 kg |
Model: JPS 60G · Mobile floor-standing dental X-ray unit.
Product Details
Get a Quote for JPS 60G
Share your target quantity and destination — our B2B team replies within one business day with pricing, lead time and OEM options.
