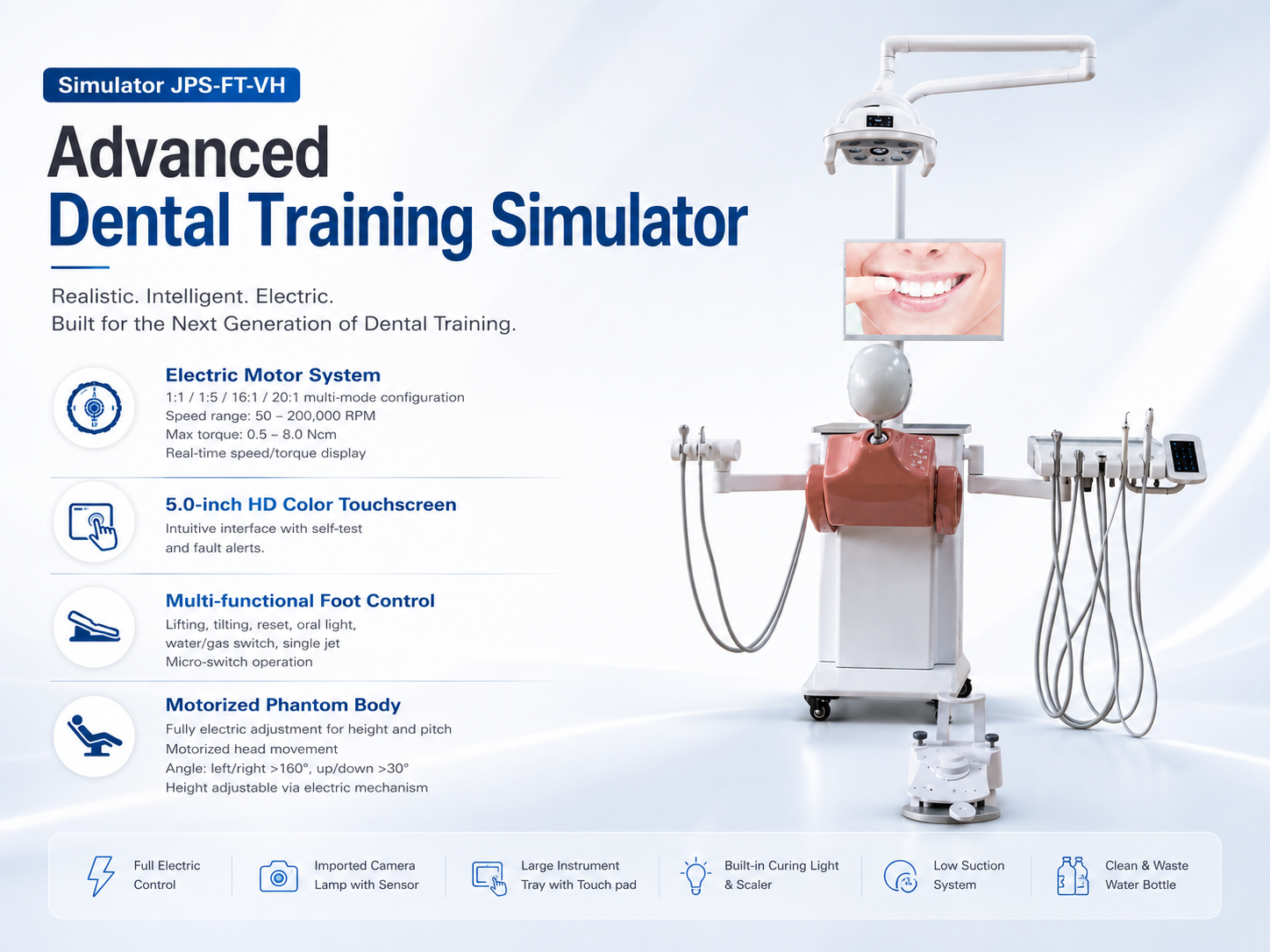

Dental Simulator — Model JPS-FT-VH (Fully Electric)
The JPS-FT-VH is the fully electric, top-tier model in the JPS-FT simulator range. Built around a motorized Advanced II phantom body and a professional electric motor system with a 5-inch HD touchscreen, it lets dental students rehearse the complete clinical workflow — restorative, endodontic, and implant training — with real-time speed and torque feedback. Touch-pad chair control, a built-in curing light and scaler, and an imported sensor camera lamp make it a true all-in-one pre-clinical training station.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

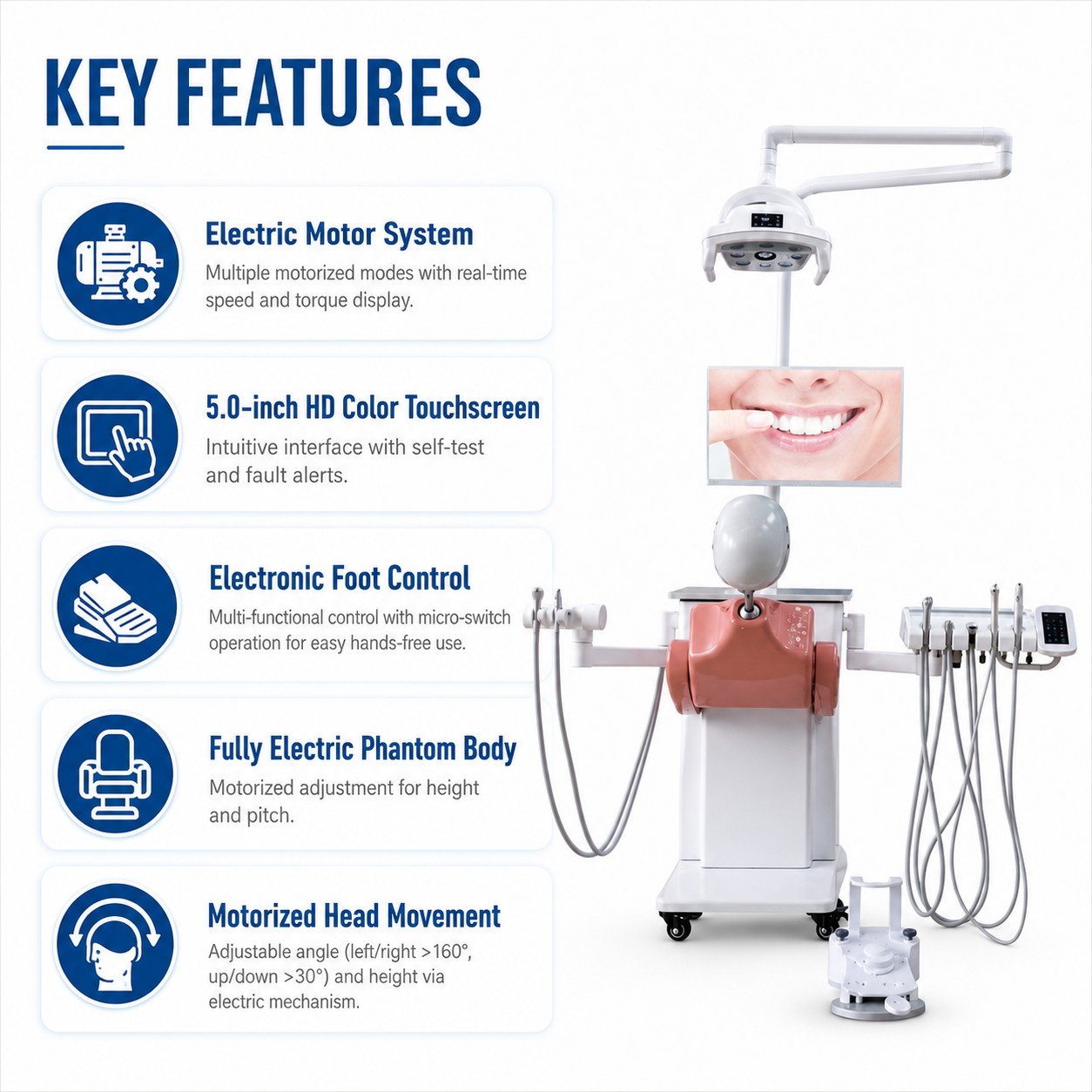

Key Highlights

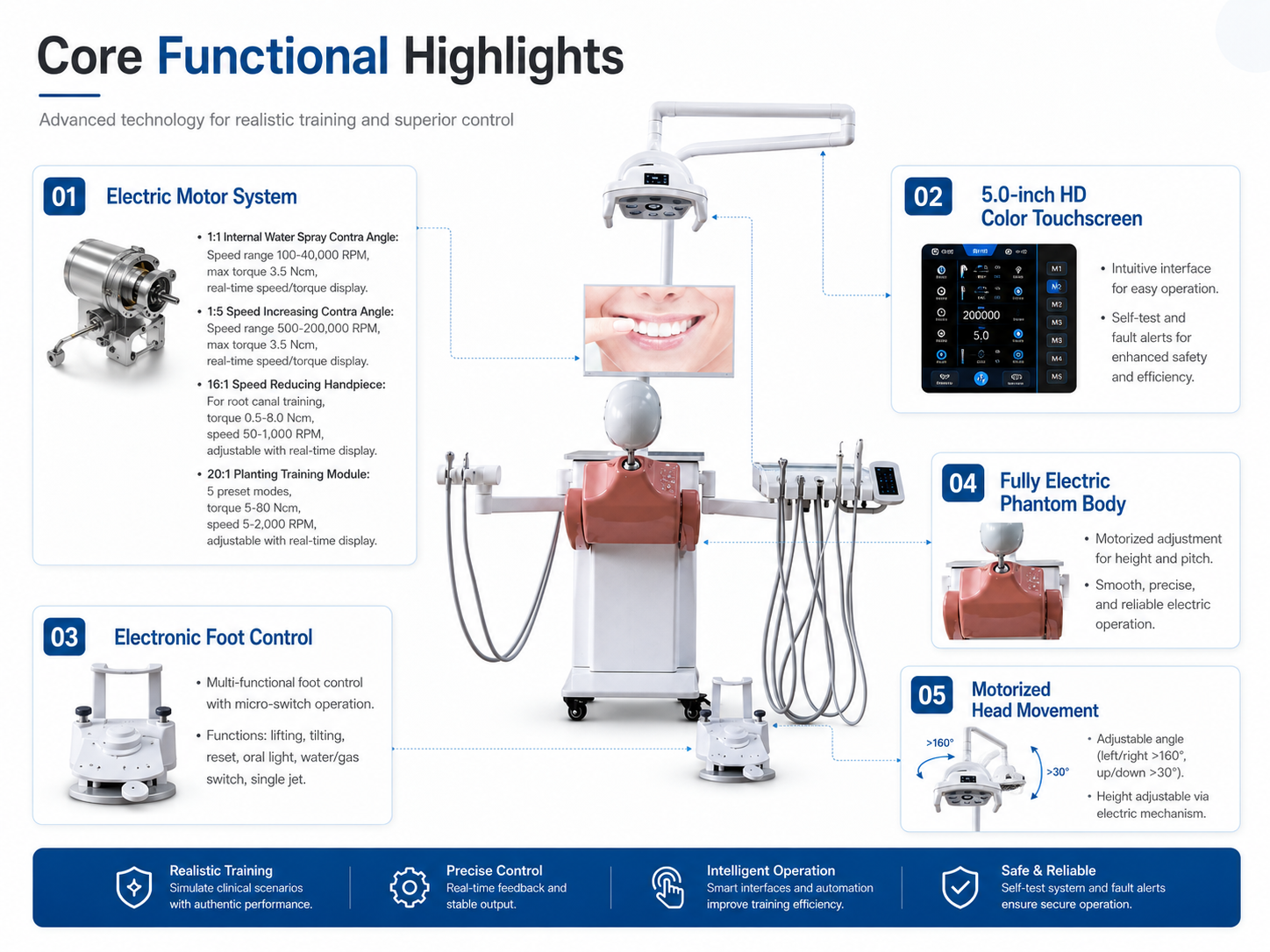

- Fully electric, motorized body — Powered Advanced II phantom head and body with motorized height and pitch adjustment for a precise, repeatable training posture.
- Professional electric motor system — Multiple contra-angle and handpiece modes covering restorative, root-canal, and implant training, each with real-time speed/torque display.

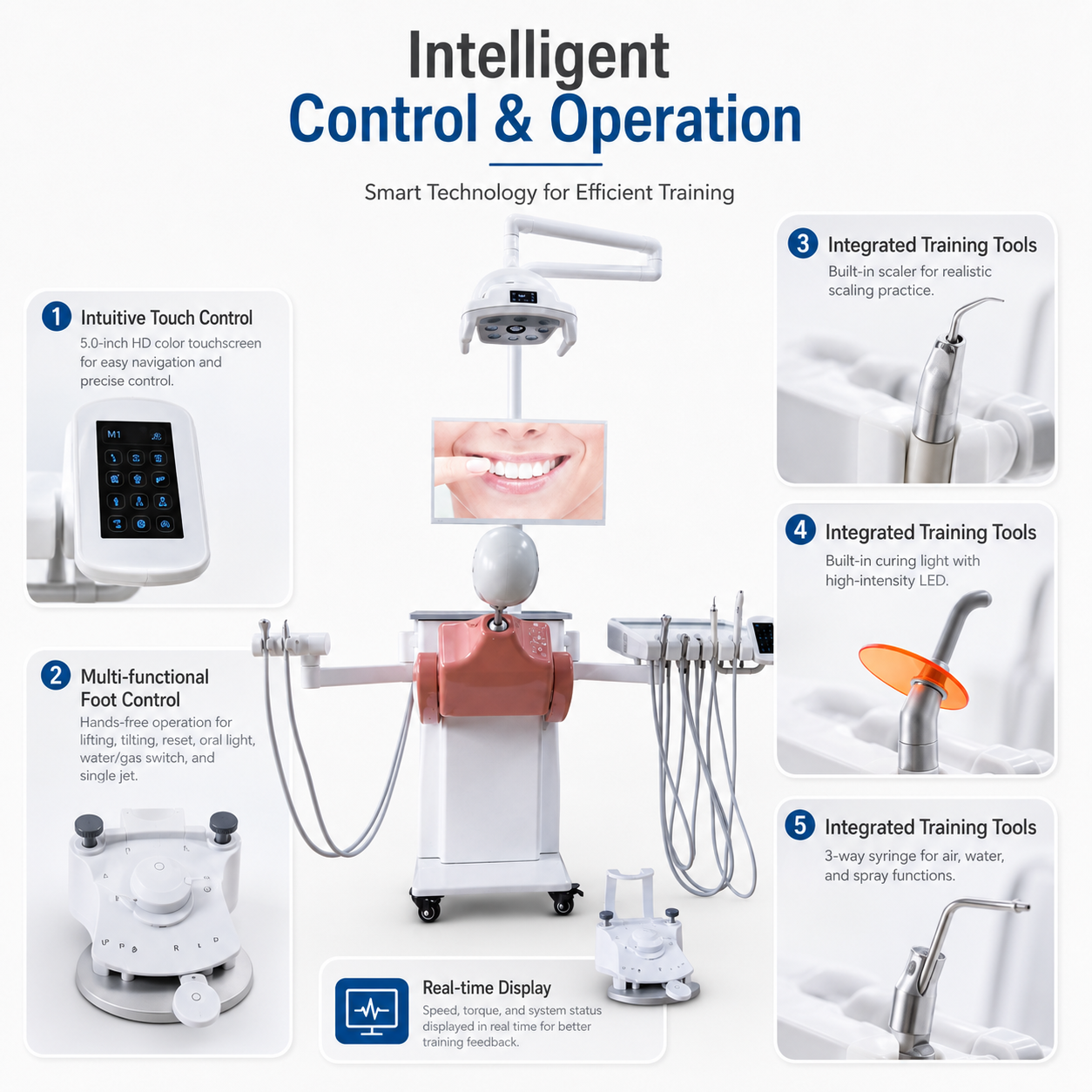

- 5-inch HD touchscreen control — Intuitive interface with self-test and fault alerts for fast, reliable operation.
- All-in-one chairside setup — Built-in curing light and scaler, 3-way syringes, low suction, and a large instrument tray with touch control pad.
- Motorized head movement — Wide adjustable range (left/right >160°, up/down >30°) plus electric height adjustment to simulate any working angle.
- Record & teach — 23.8-inch monitor and imported sensor camera lamp capture procedures for group instruction.

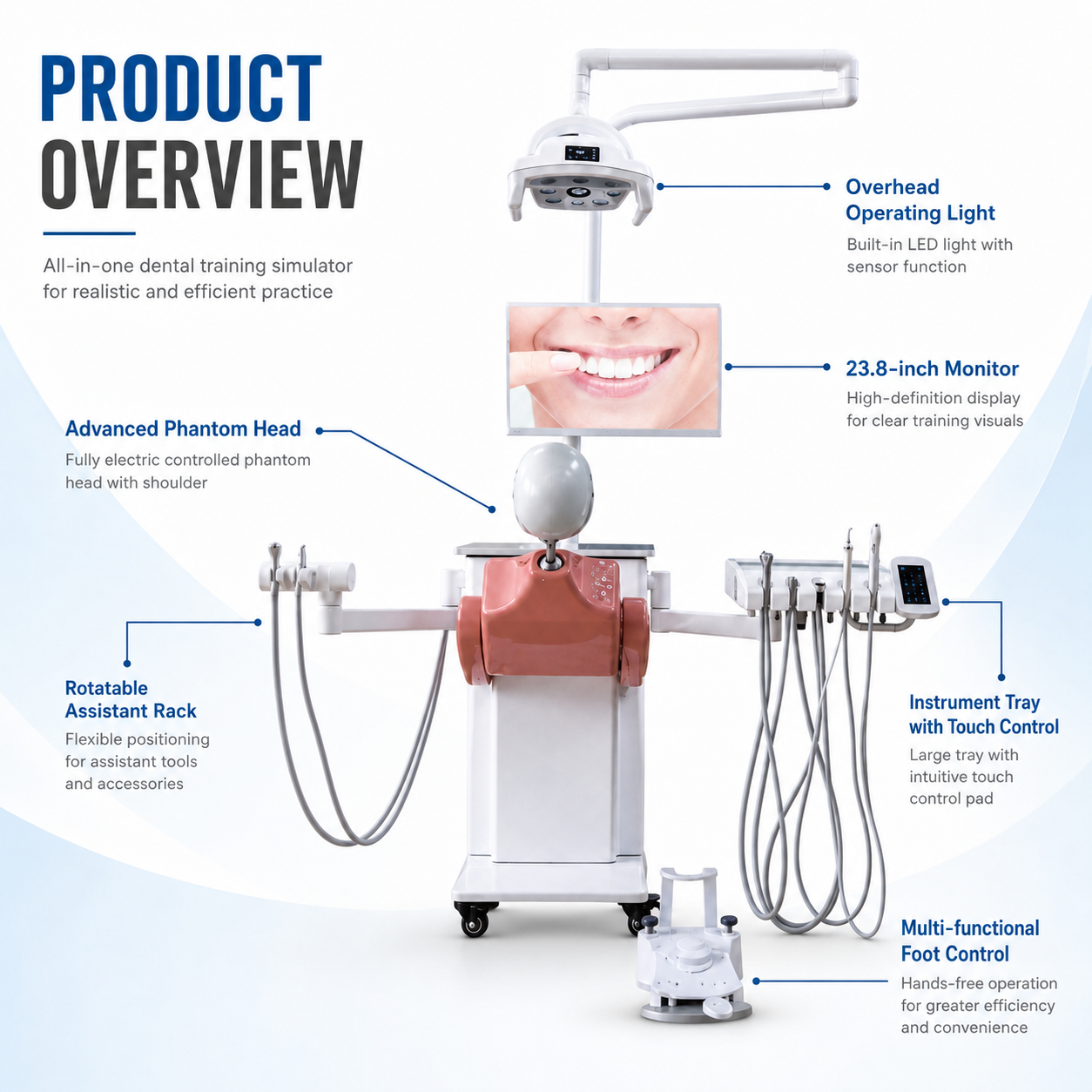

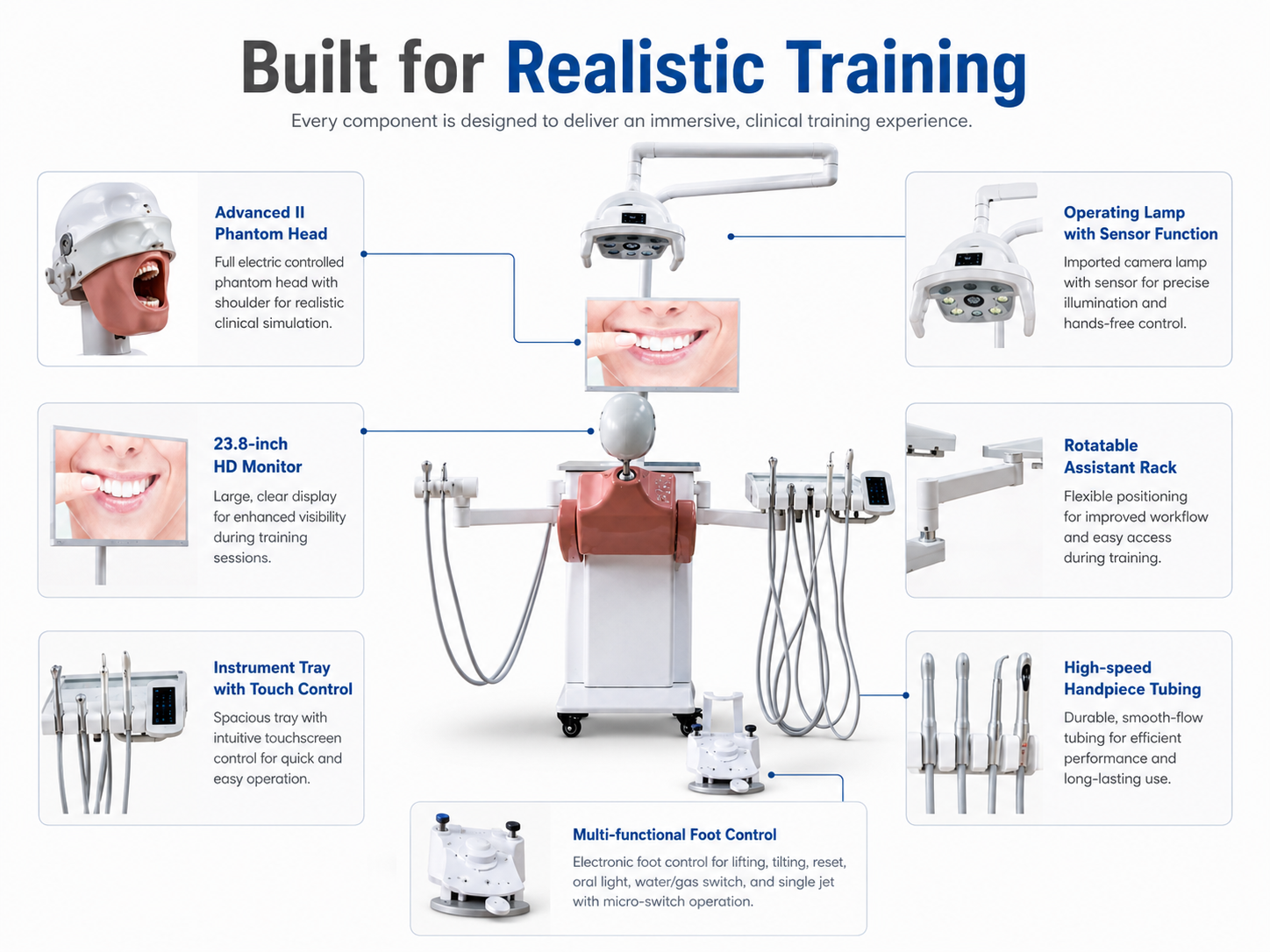

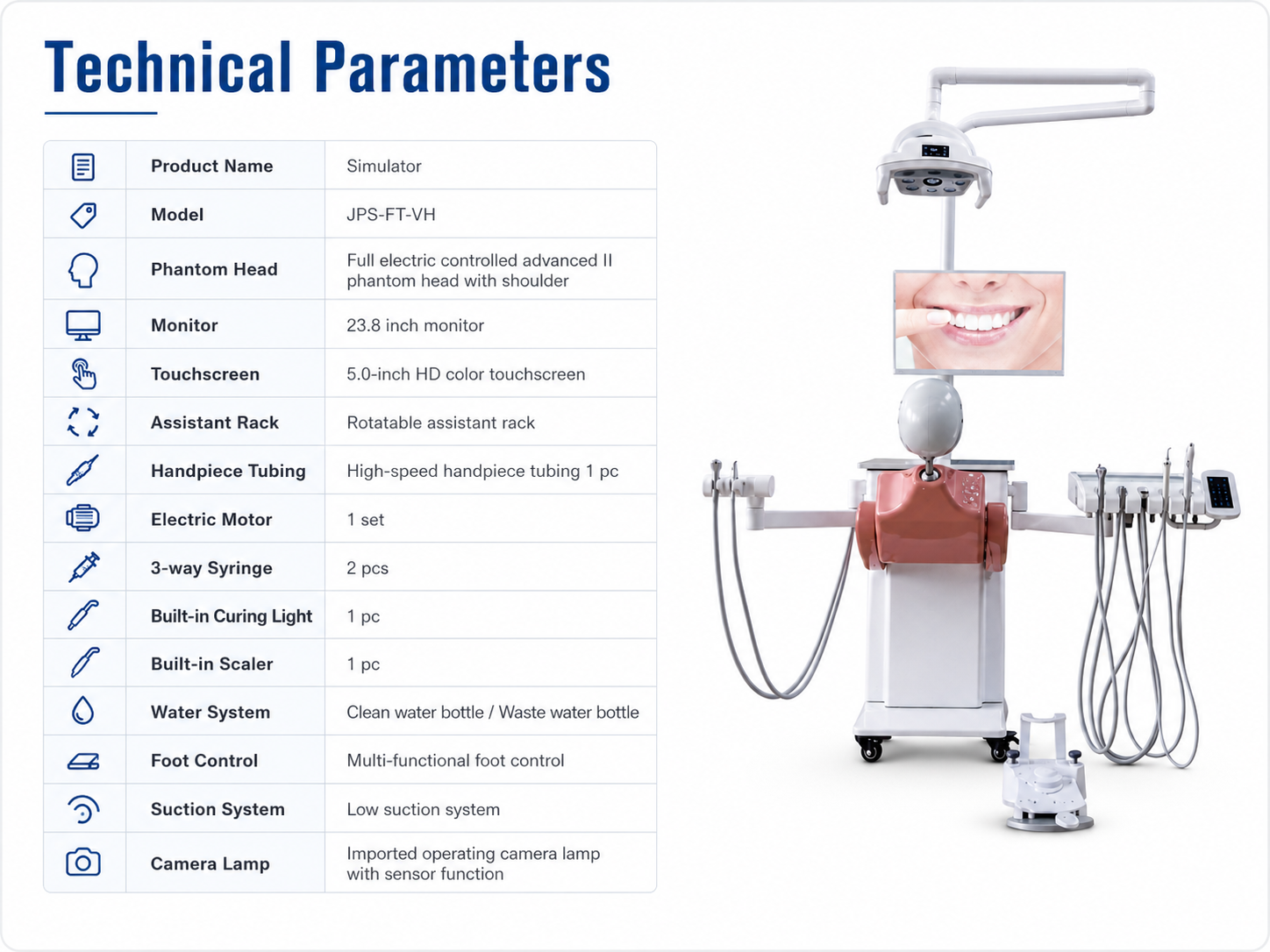

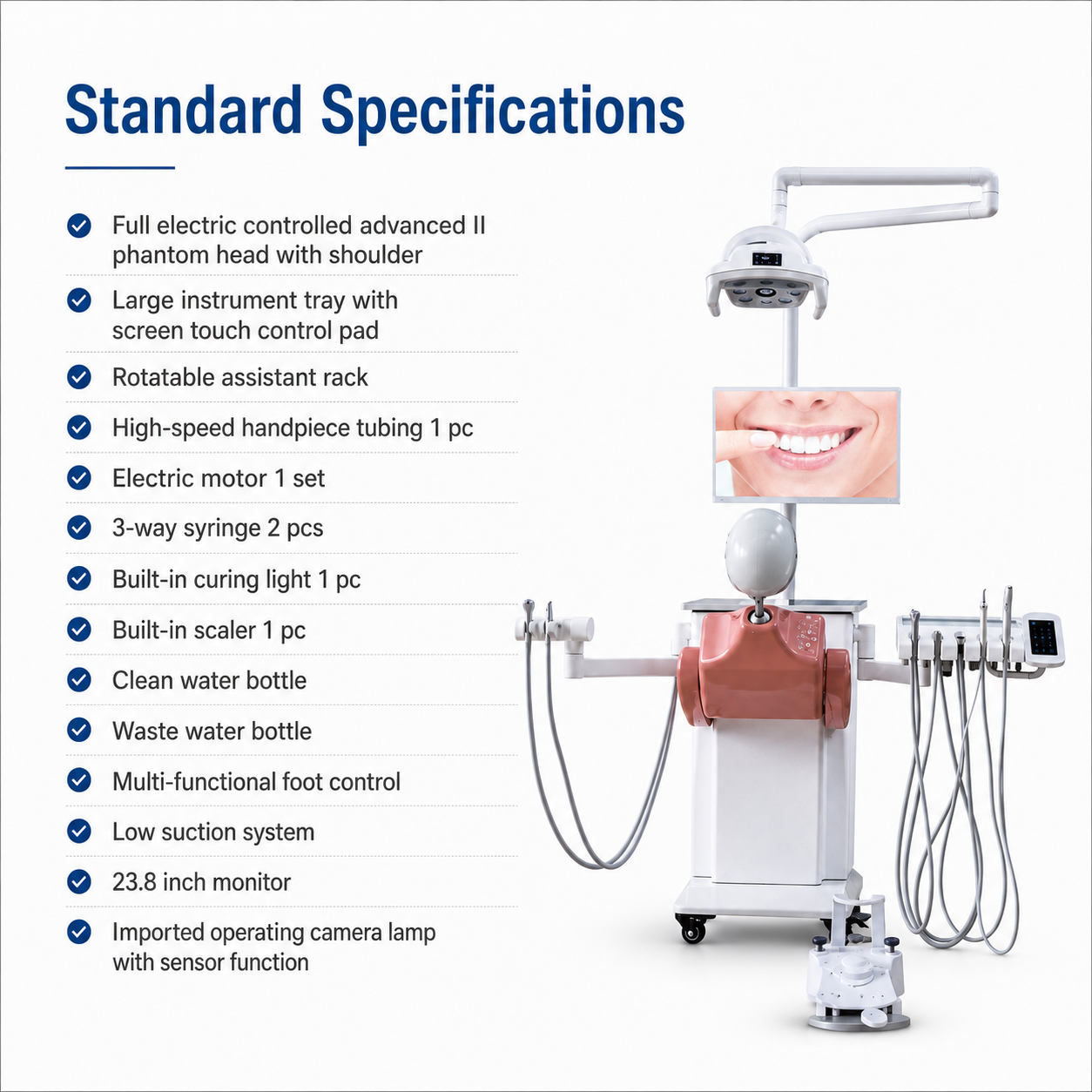

Standard Specifications
| Item | Specification |
|---|---|
| Phantom head | Full electric controlled Advanced II phantom head with shoulder |
| Instrument tray | Large instrument tray with screen touch control pad |
| Assistant rack | Rotatable assistant rack |
| High-speed handpiece tubing | 1 pc |
| Electric motor | 1 set |
| 3-way syringe | 2 pcs |
| Curing light | Built-in, 1 pc |
| Scaler | Built-in, 1 pc |
| Water bottles | Clean water bottle + waste water bottle |
| Foot control | Multi-functional foot control |
| Suction | Low suction system |
| Monitor | 23.8 inch |
| Camera lamp | Imported operating camera lamp with sensor function |

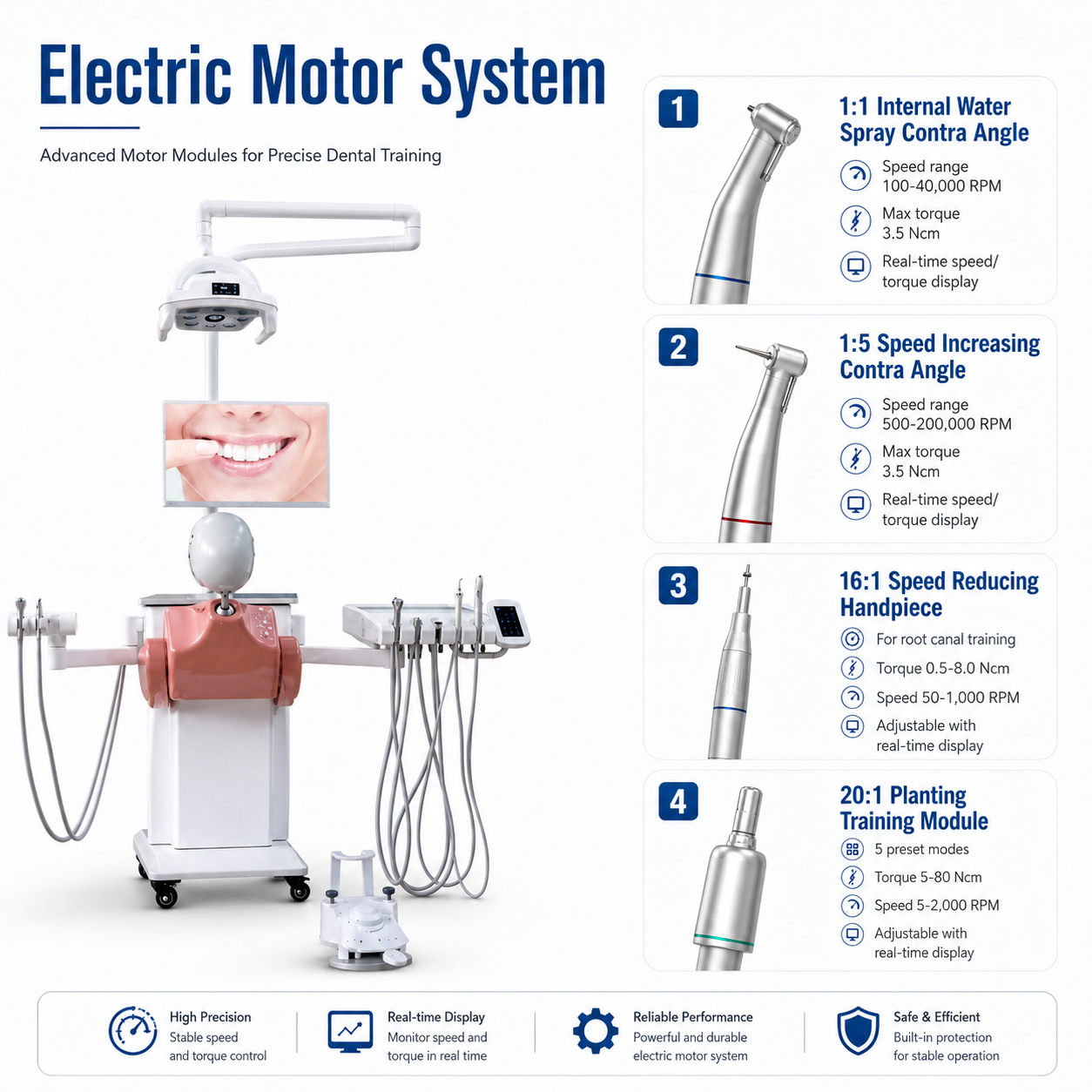

Technical Parameters — Electric Motor System
| Mode | Speed Range | Max Torque | Notes |
|---|---|---|---|
| 1:1 Internal water spray contra angle | 100–40,000 RPM | 3.5 Ncm | Real-time speed/torque display |
| 1:5 Speed-increasing contra angle | 500–200,000 RPM | 3.5 Ncm | Real-time speed/torque display |
| 16:1 Speed-reducing handpiece | 50–1,000 RPM | 0.5–8 Ncm | Root-canal training, adjustable, real-time display |
| 20:1 Implant training module | 5–2,000 RPM | 5–80 Ncm | 5 preset modes, adjustable, real-time display |
| Feature | Specification |
|---|---|
| Touchscreen | 5.0-inch HD color, self-test and fault alerts |
| Electronic foot control | Multi-functional: lifting, tilting, reset, oral light, water/gas switch, single jet (micro-switch) |
| Phantom body | Fully electric, motorized height and pitch adjustment |
| Head movement | Motorized; left/right >160°, up/down >30°, electric height adjustment |
Model: JPS-FT-VH · Fully electric dental simulator for advanced pre-clinical and skills training.
