JW-54B-54M-54S-54W (1.4m)
Dental Lab Workstation — JW-54 Series (1.4 m)

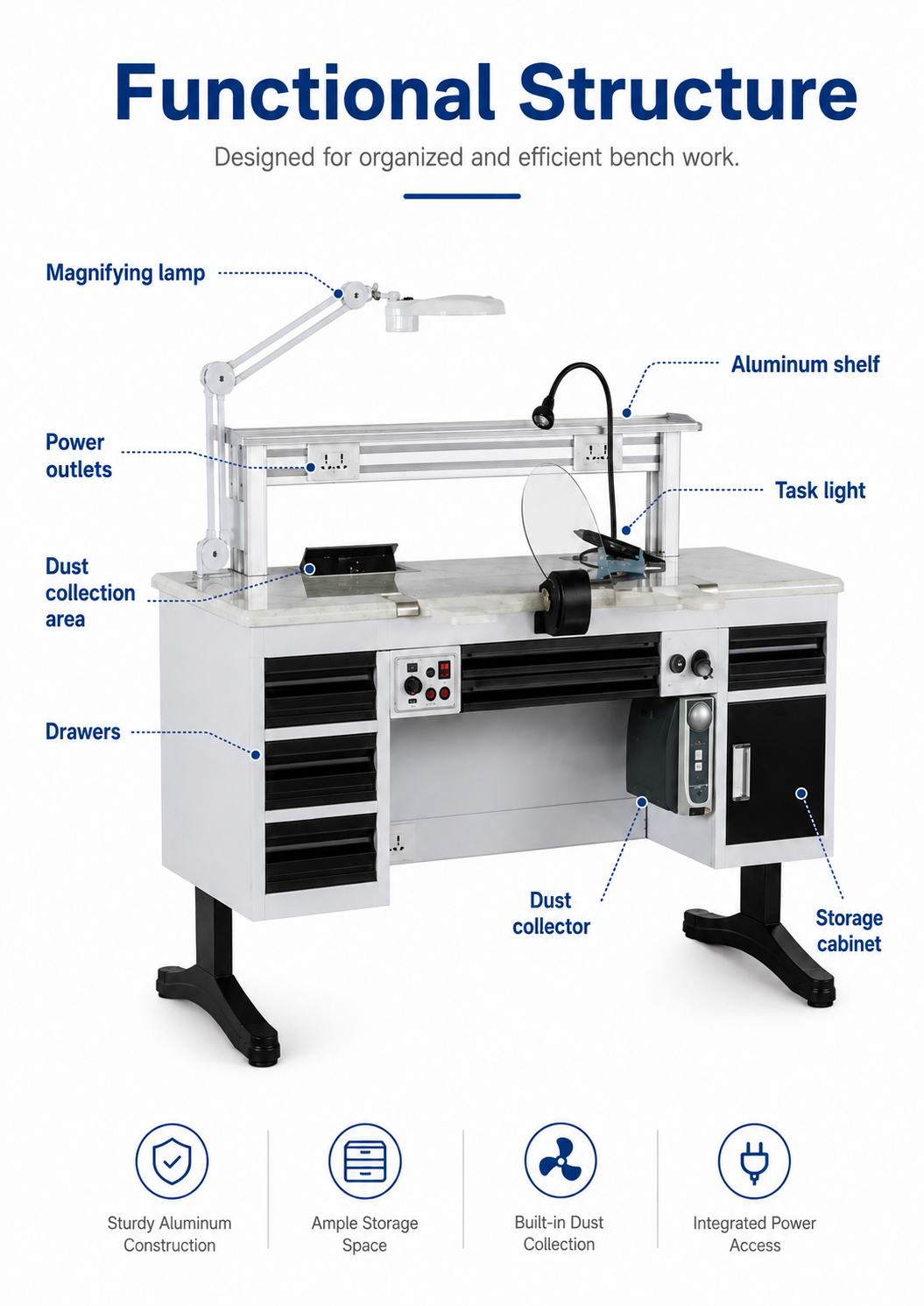

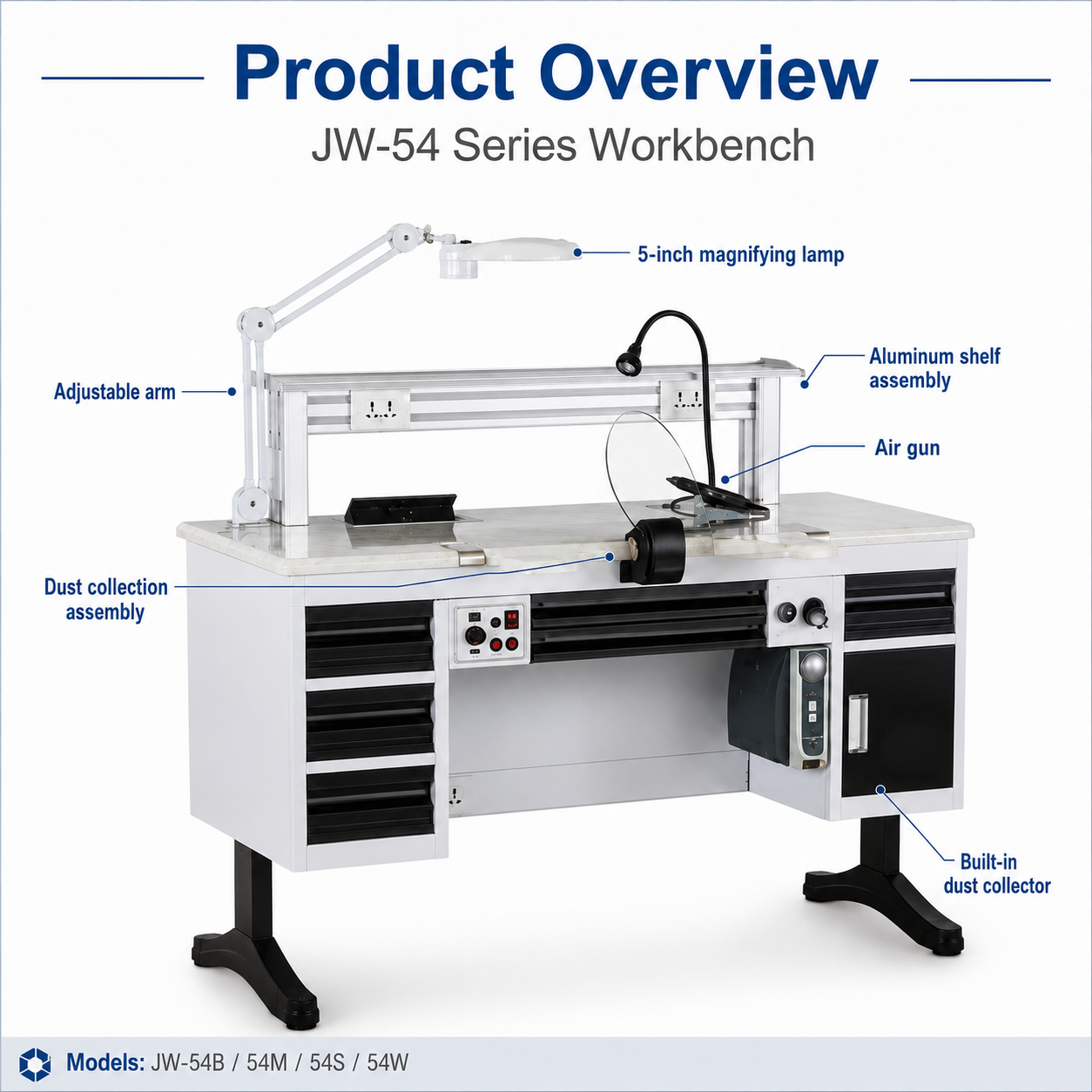

The JW-54 is a larger 1.4 m dental laboratory workstation built on a durable aluminum-alloy frame with triangular, base-balancing adjustable feet. It comes fully equipped with a 5-inch magnifying glass lamp, air gun, an integrated dust collection assembly with tempered sector glass dust board, a dust collector, and a reusable box, plus built-in pipeline and dust collection. The height-adjustable desktop (80–85 cm) is available in compact laminate (54L), artificial marble (54M), stainless steel (54S), or oak solid wood (54W). CE and ISO9001-2000 certified.
Factory Direct
Manufacturer pricing
OEM / ODM
Custom branding
Certified
CE / ISO / FDA
Global Logistics
100+ countries
After-Sales
Parts & support

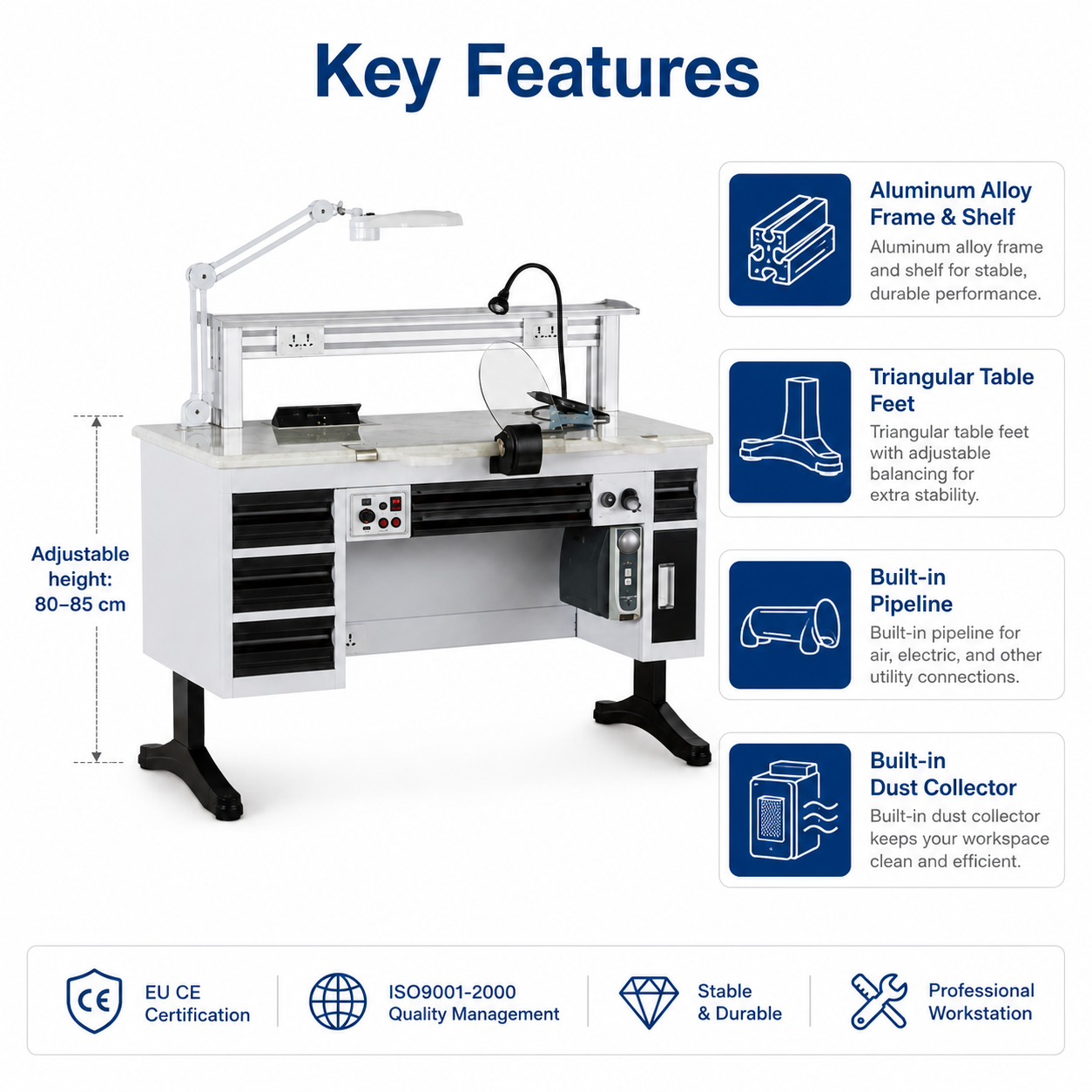

Key Highlights
- Larger 1.4 m work surface — Extra bench length for more workspace and equipment.
- Durable aluminum frame — Aluminum-alloy frame and shelf with triangular, base-balancing adjustable feet.
- Integrated dust control — Dust collection assembly with tempered sector glass dust board plus a built-in dust collector.
- Built-in services — Internal pipeline and dust collection, plus a reusable box.
- Height-adjustable — Desktop adjusts from 80 to 85 cm.

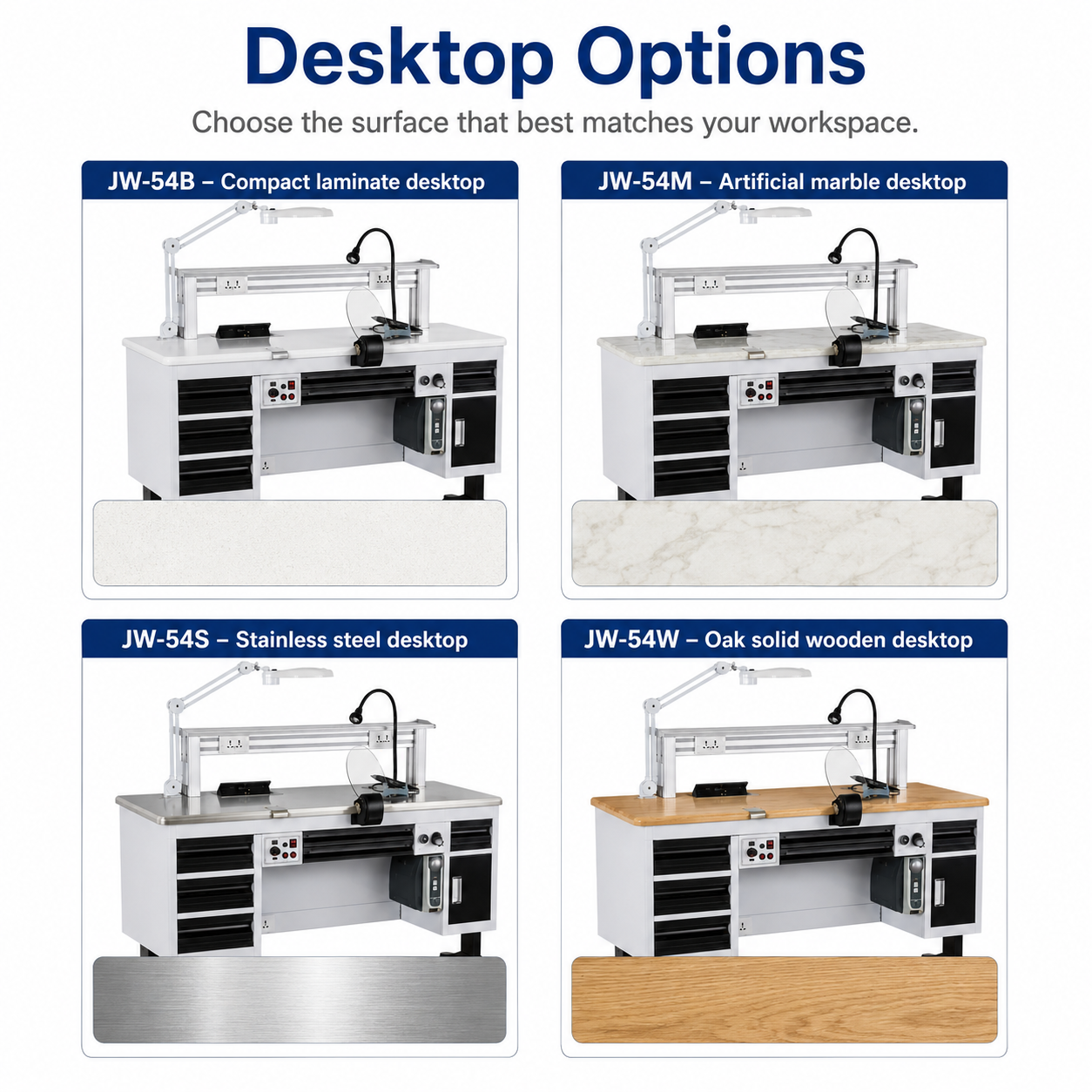

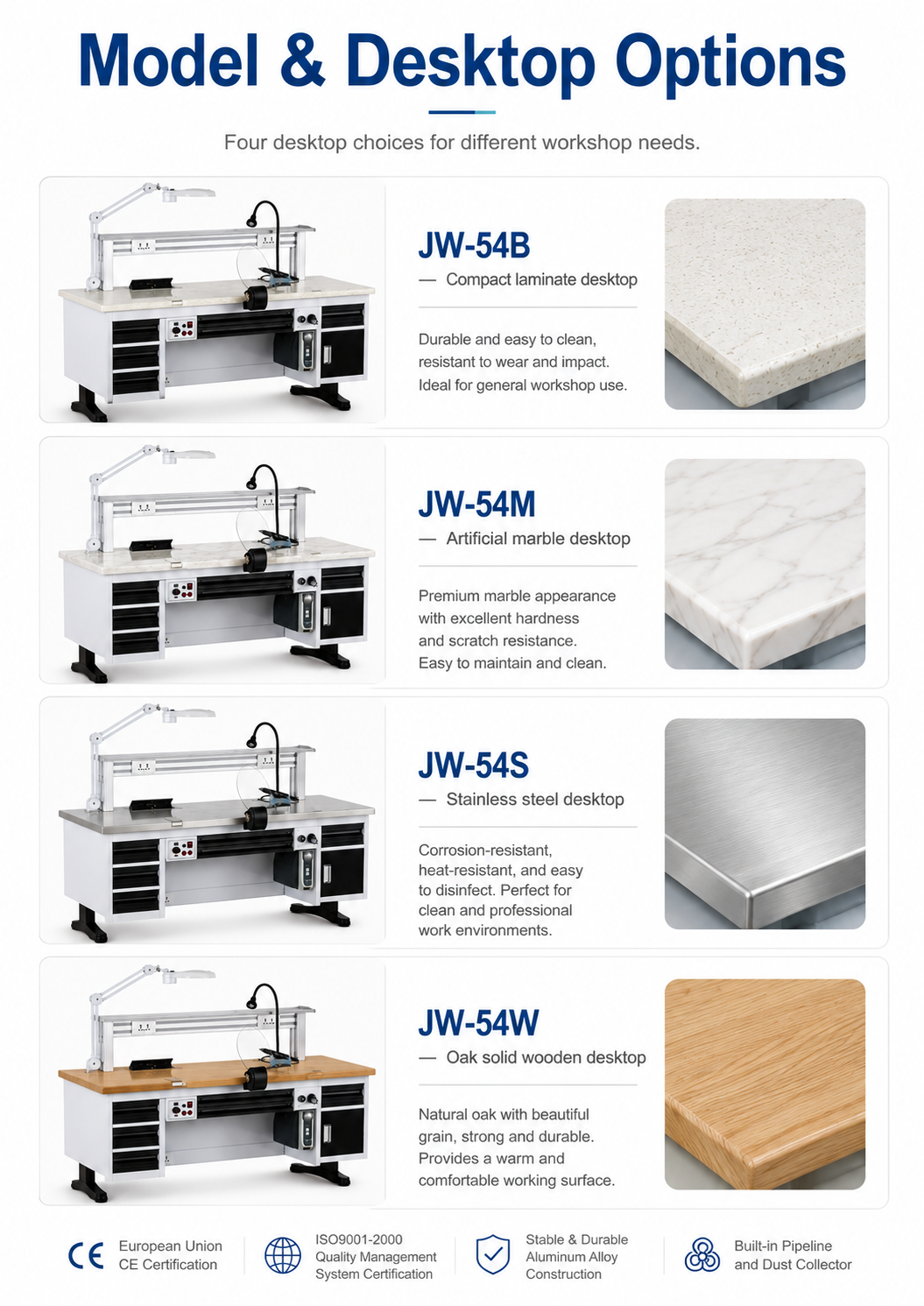

- Four desktop finishes — Compact laminate (54L), artificial marble (54M), stainless steel (54S), or oak solid wood (54W).

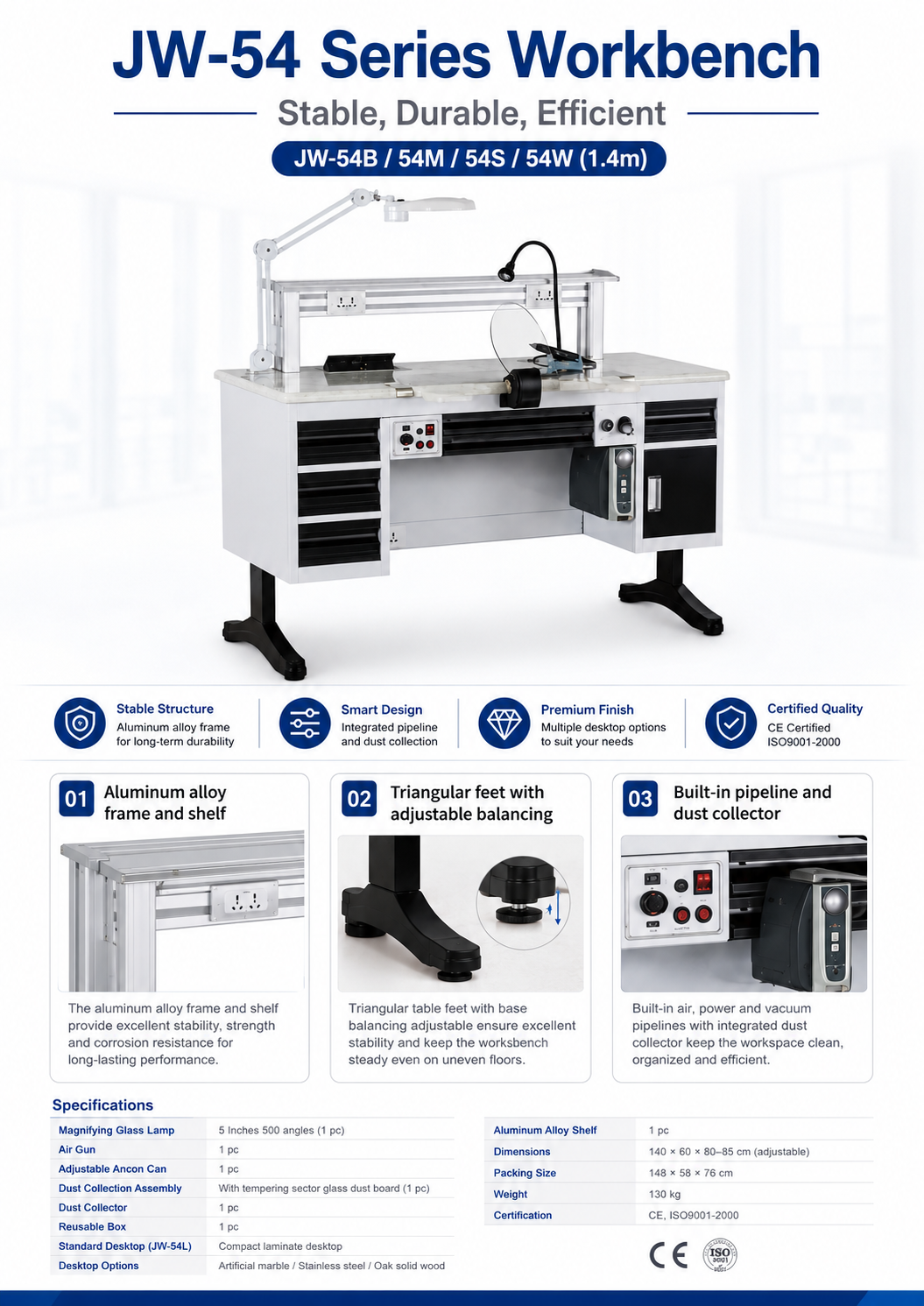

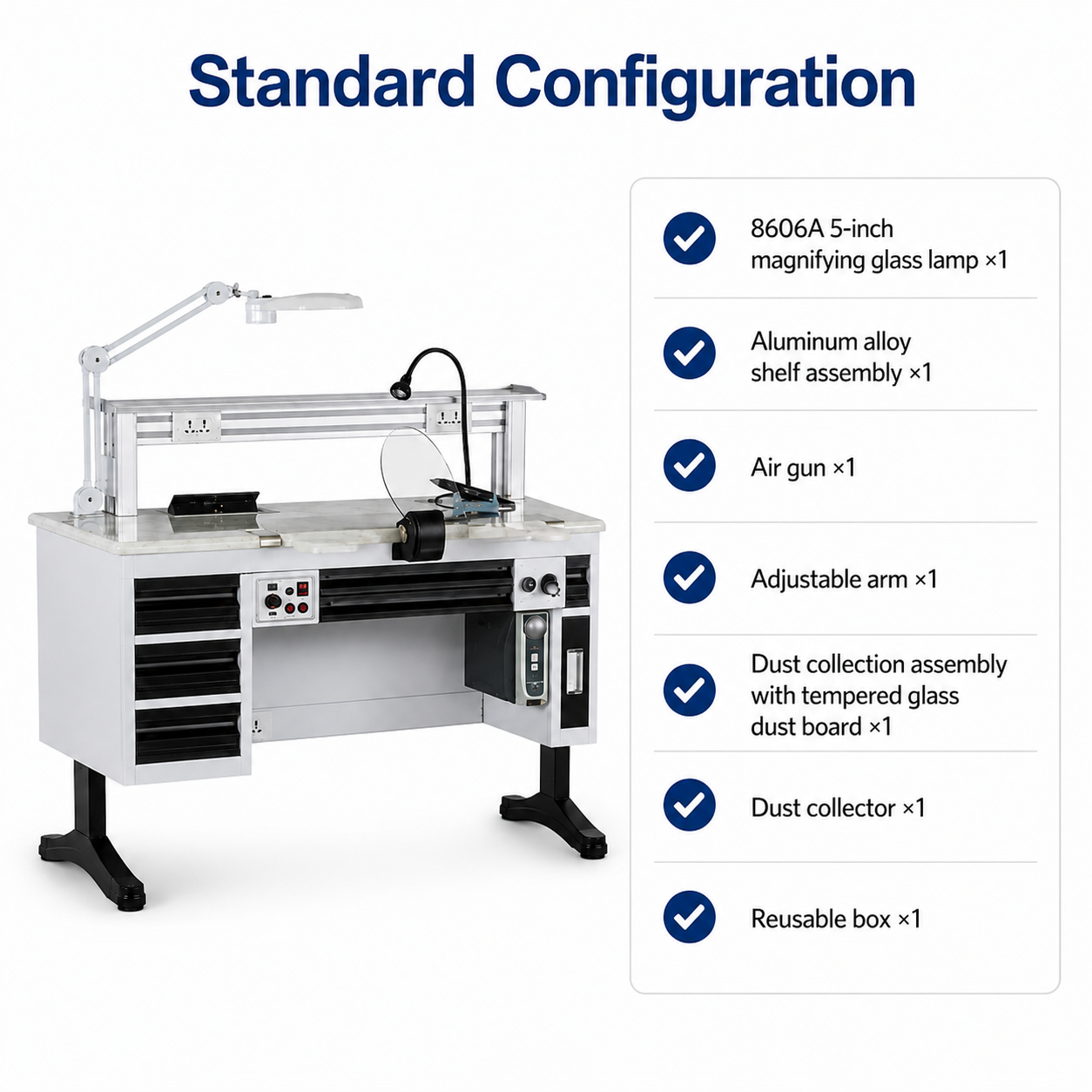

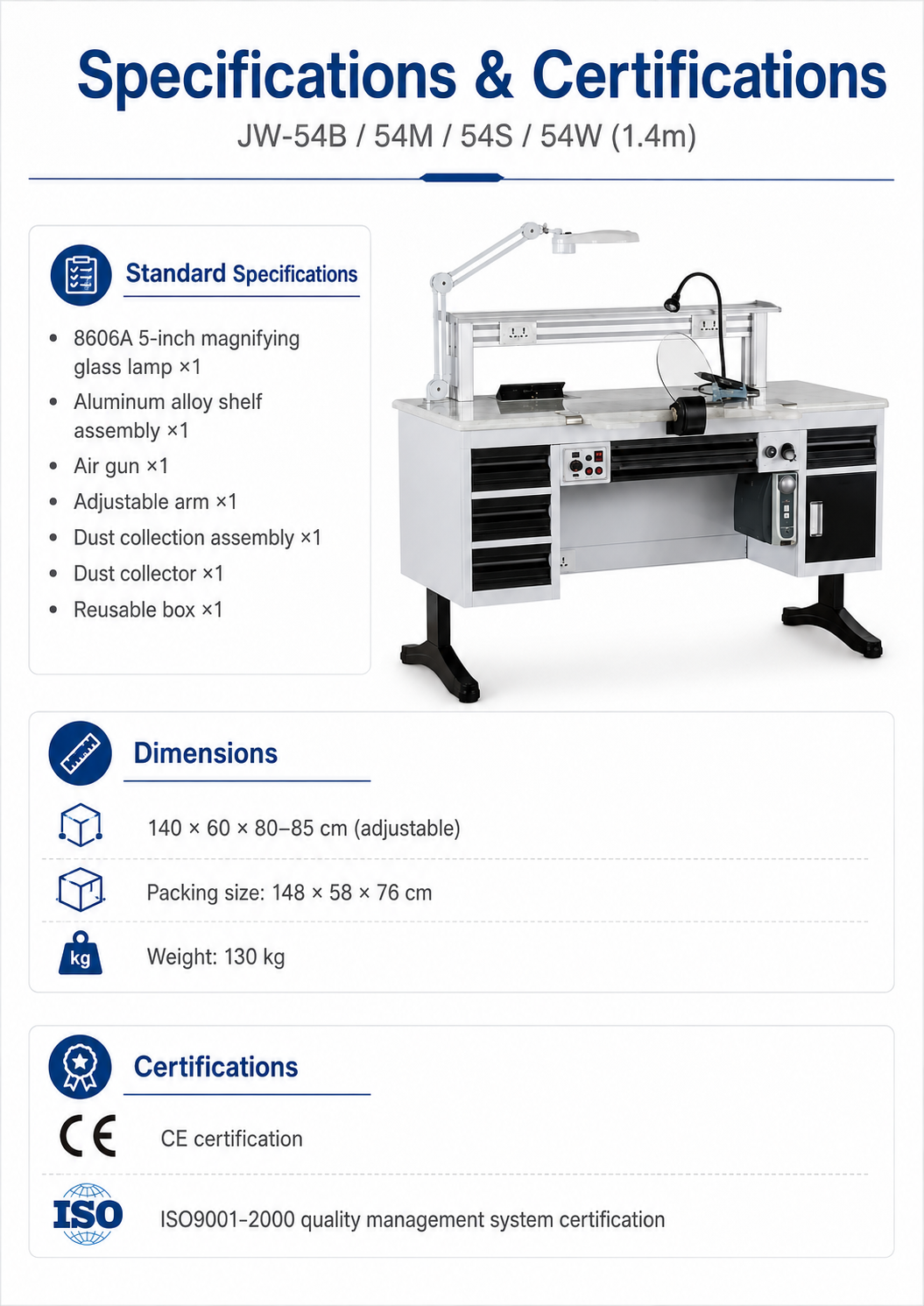

Standard Specifications
| Item | Specification |
|---|---|
| Magnifying glass lamp | 8606A, 5 inch, 500° angle ×1 |
| Shelf assembly | Aluminum alloy ×1 |
| Air gun | ×1 |
| Ancon (arm) | Adjustable ×1 |
| Dust collection assembly | With tempered sector glass dust board ×1 |
| Dust collector | ×1 |
| Reusable box | ×1 |
| Standard desktop | Compact laminate (JW-54L) ×1 |
| Dimensions | 140 × 60 × 80–85 cm (adjustable) |
| Packing size | 148 × 58 × 76 cm |
| Weight | 130 kg |
| Desktop options | Artificial marble (54M) / stainless steel (54S) / oak solid wood (54W) |
Technical Parameters
| Parameter | Specification |
|---|---|
| Bench length | 1.4 m |
| Frame | Aluminum alloy |

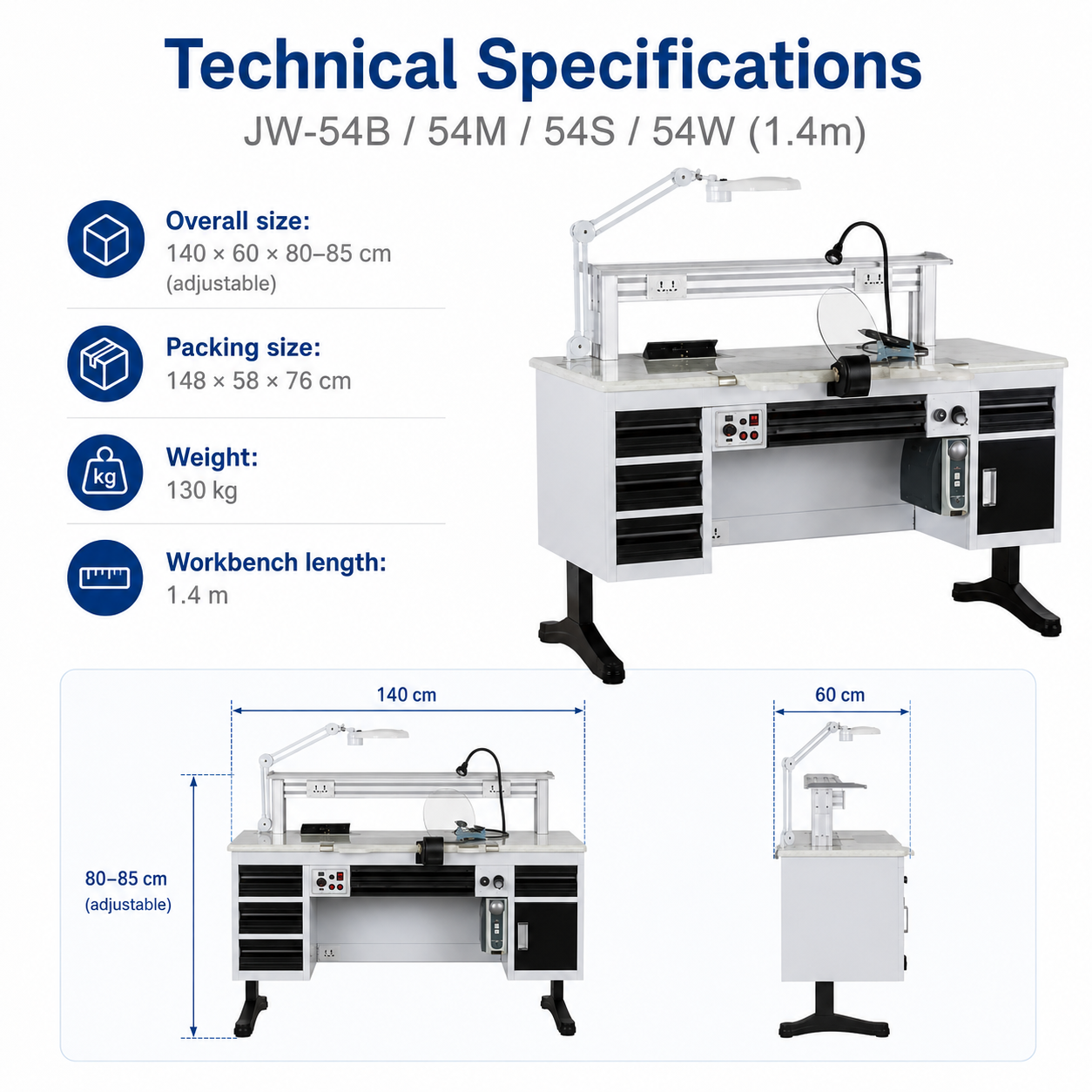

| Dimensions | 140 × 60 × 80–85 cm (height adjustable) |
| Packing size | 148 × 58 × 76 cm |
| Weight | 130 kg |
| Feet | Triangular, base-balancing adjustable |
| Lighting | 8606A 5-inch 500° magnifying glass lamp |
| Dust control | Tempered glass dust board + built-in dust collector |
| Certifications | EU CE; ISO9001-2000 |
Model: JW-54 Series (1.4 m) · Large dental laboratory workstation.
